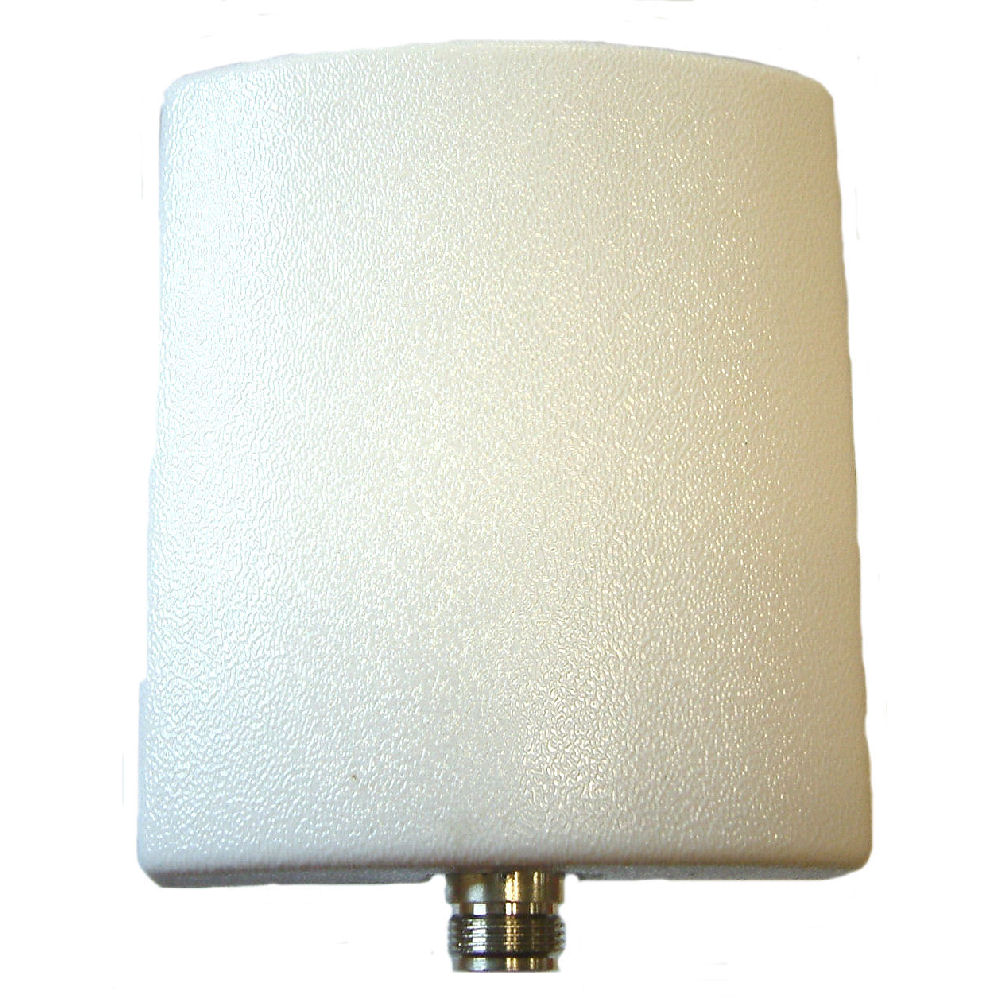

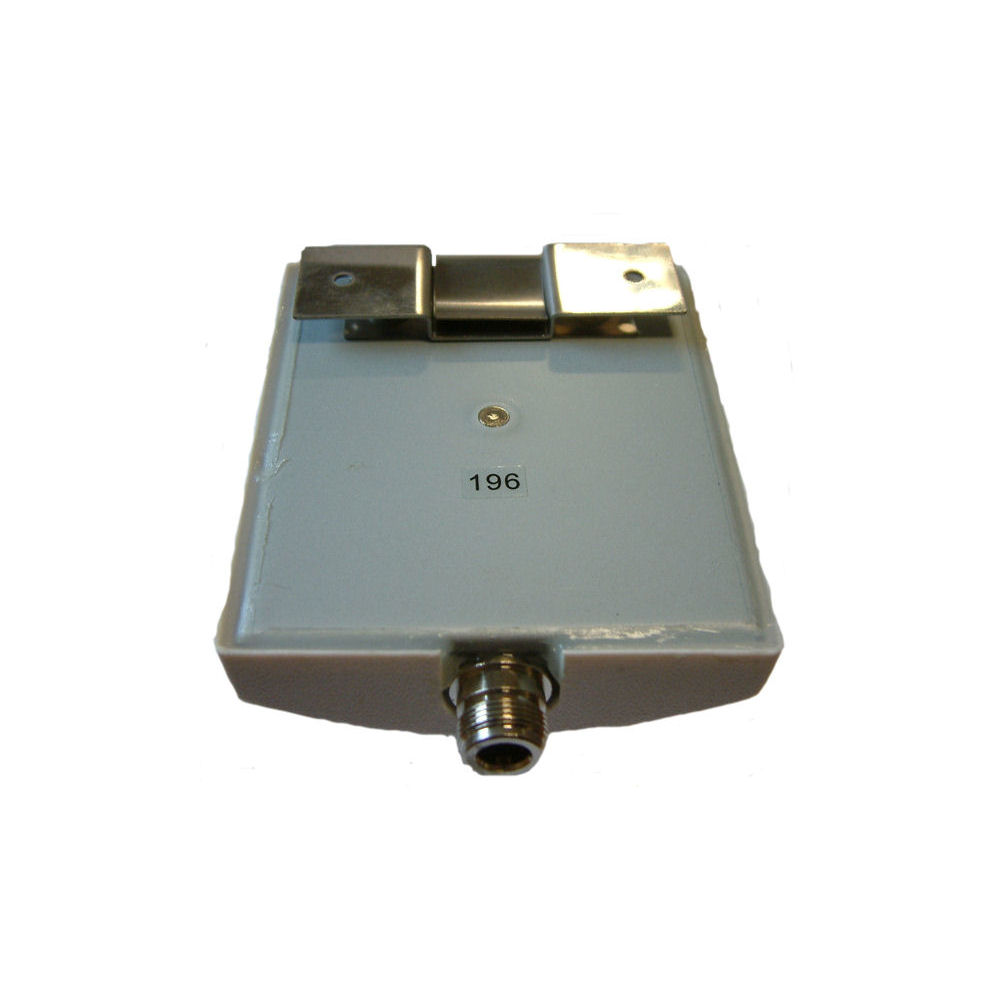

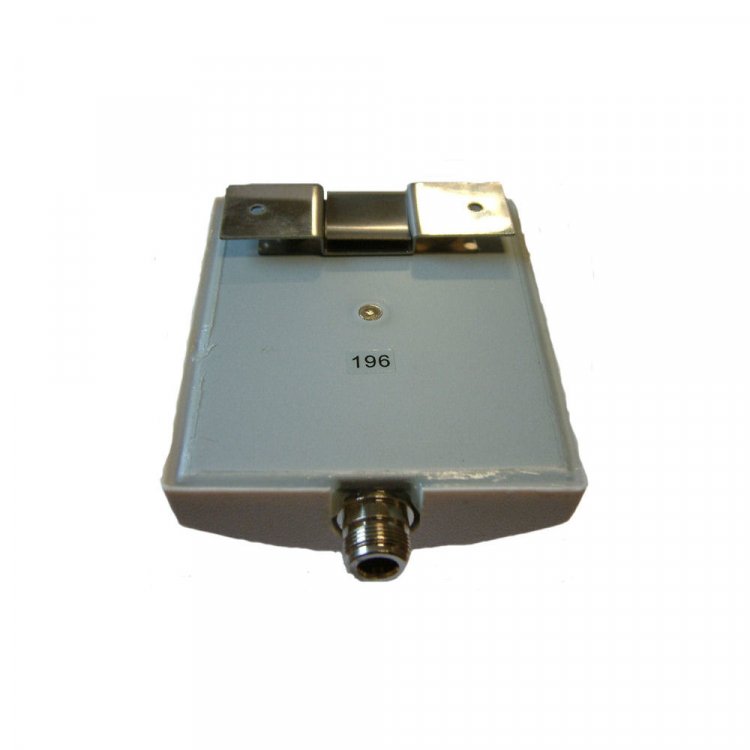

ANT010PN - Outdoor Panel Antenna

[Admin 2726]

The ANT010PN is a 10dB directional panel antenna, capable of precisely broadcasting a 2.4GHz wireless signal across a great external distance. This antenna comes with its own flush wall-mount for easy installation onto a wall or pole and is fitted with an N-Type socket connector.

The ANT010PN is typically used with outdoor wireless equipment such as WiFi Access Points to point a 2.4GHz signal across a longer distance than would normally be feasible to a very specific point, such as a single WiFi client or a second receiving antenna.

Solwise Outdoor directional panel antenna

10dBi gain

Flush wall mount

N type socket connector



[Admin 2726]

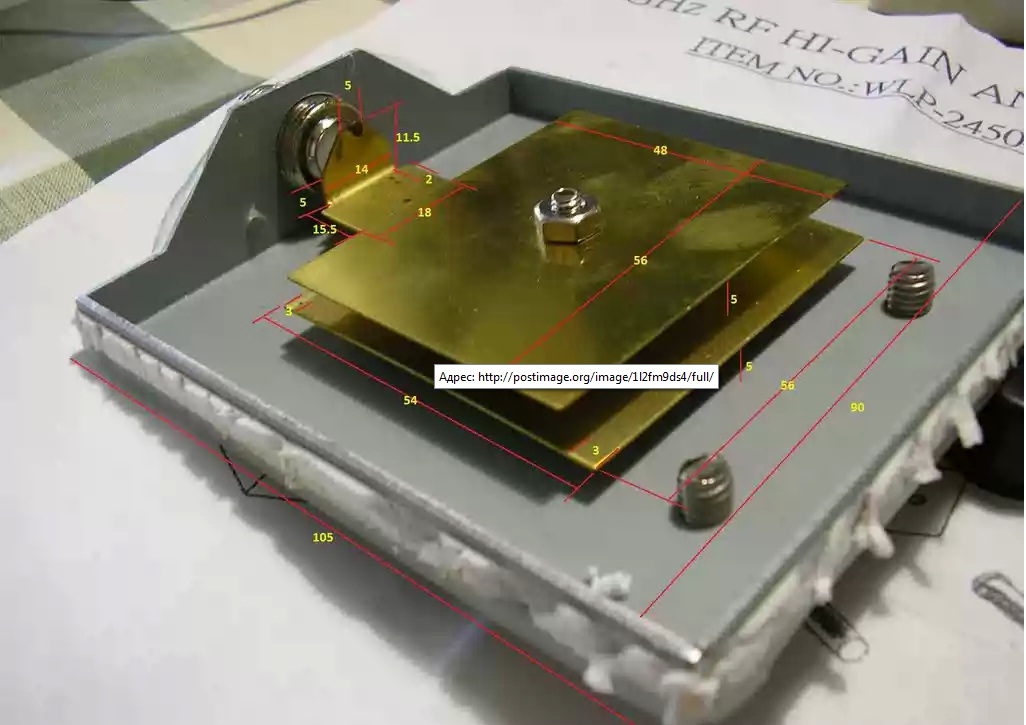

It seems that the antenna with the above dimensions does not fit in the frequency range...



ANT010PN.cst

[clanon 290]

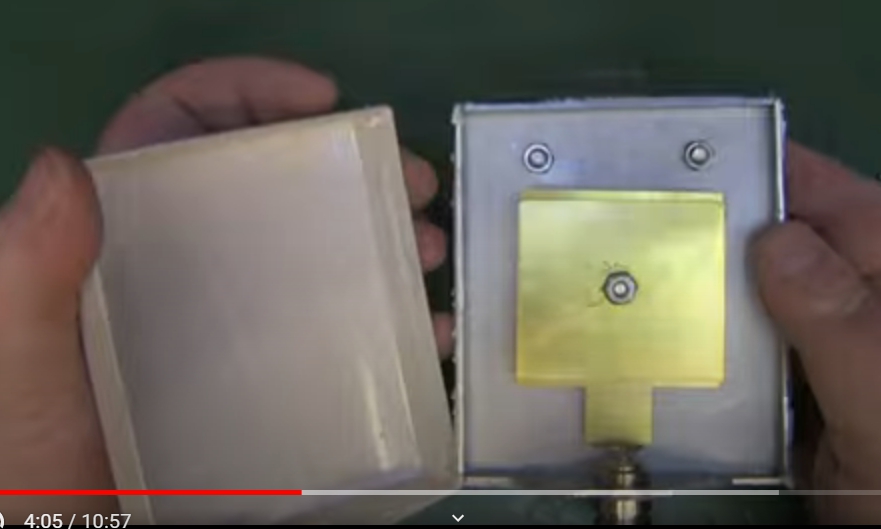

Radome seems THICK 2mm PC (Polycarbonate)

Those big BOLTS must have some effect too...



Edited June 25 by clanon
