Admin

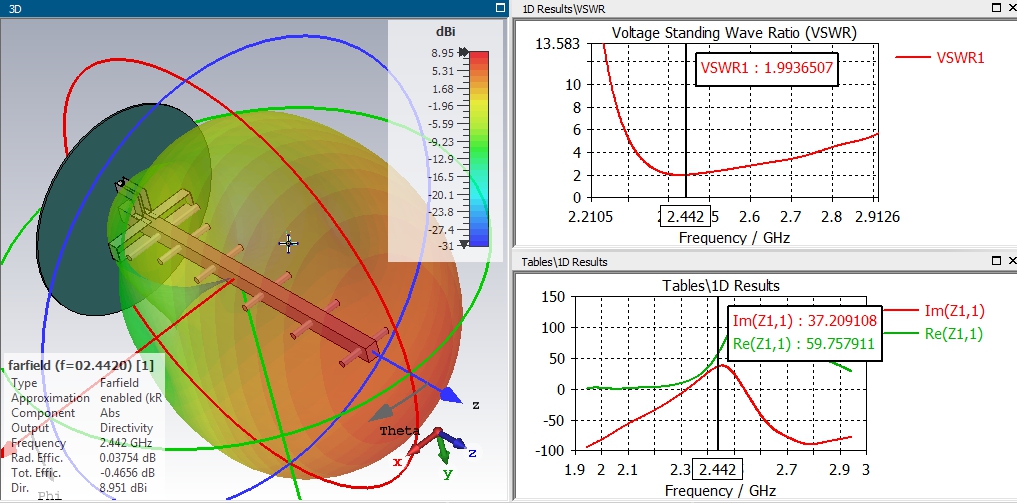

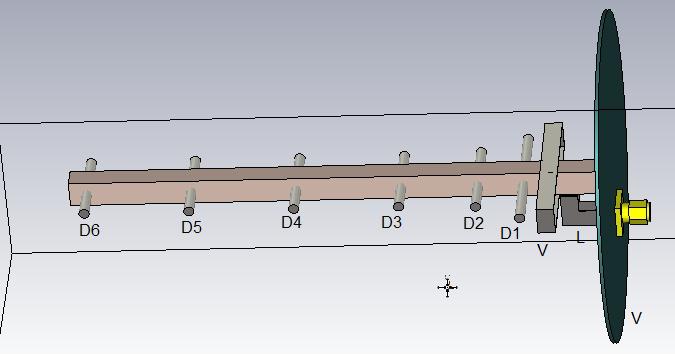

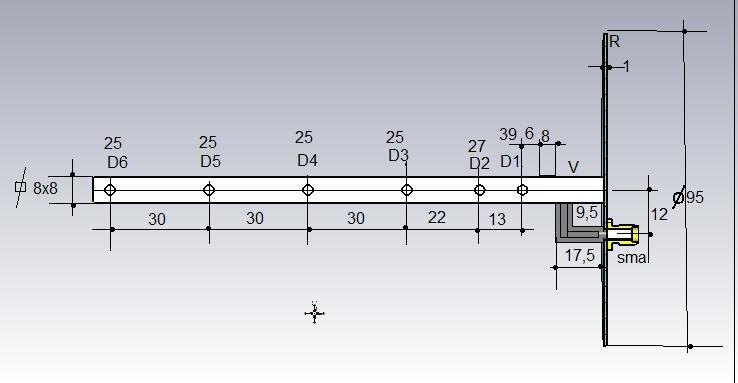

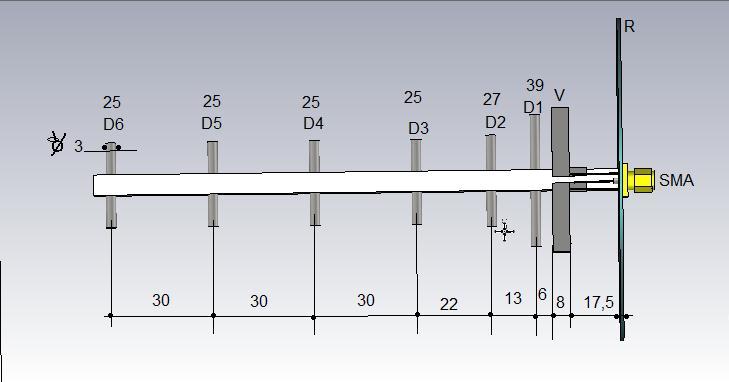

Yagi Antenna

Directional subscriber antenna, consisting of an active loop vibrator,whose shoulders are made of flat conductors of at least two passive vibrators, one of which is a reflector, and the rest are directors,coaxial input / output, balancing device, bearing traverse,protective casing, characterized in that the active loop vibrator is additionally equipped with at least one jumper and one auxiliary training ground, and conductors, jumpers, auxiliary ranges of the active vibrator, as well as Г-shaped conductors, auxiliary polygons and jumper balancing devices form a single part.








1 person likes this

Share this post


Link to post
Share on other sites

Nice Wich balun type is used ? And more details for driven element if it's possible

Share this post


Link to post
Share on other sites

,,,the baloon it"s as well as Г-shaped conductors...!!!

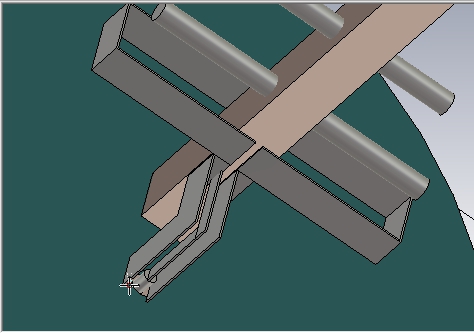

I will try to show more details for driven element  and the  Г-shaped baloon...!!!
