TWO HOLE ANTENNA

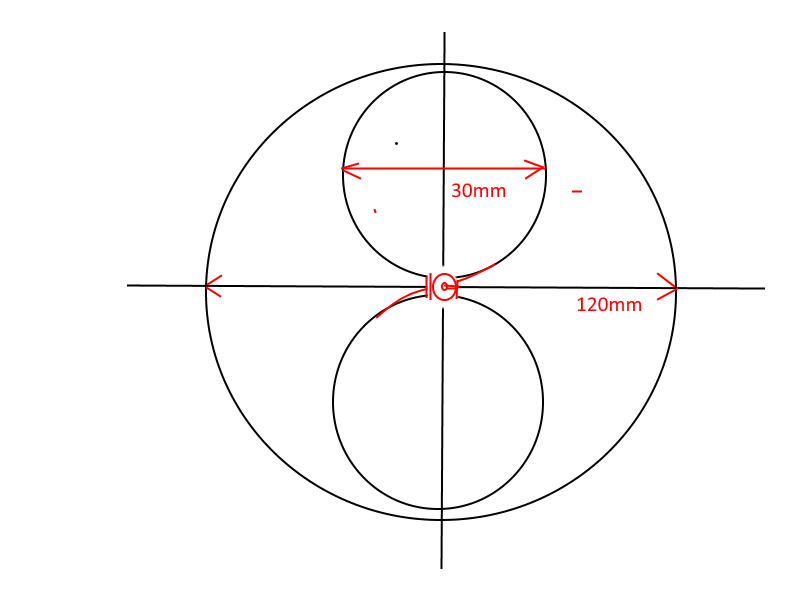

Jommy what you think about this one:


Share this post


Link to post
Share on other sites

Ooups not 120 than 72 mm

Share this post


Link to post
Share on other sites

,,,hi buddy...!!!

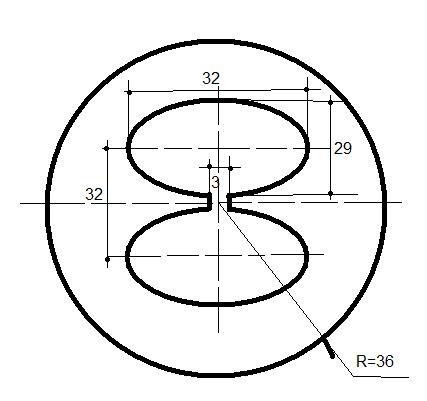

 I designed this antenna(,,,and on PCB,,,!!!) many years ago on a Spanish site that was closed, zero13wireless.com

,,, if I remember correctly, it was like that...!!!


Share this post


Link to post
Share on other sites

Thanks i will try to make it!

Share this post


Link to post
Share on other sites

Yes i made it and connect it yesterday to try ,,,ok it work in horizontal polarization



Share this post


Link to post
Share on other sites

I tried to do a simulation with these dimensions of antenna and the result was not very good...!!!

Share this post


Link to post
Share on other sites

I use it as dipole on reflextor 12x12cm and work ,of course there are better antennas but work.



Share this post


Link to post
Share on other sites
