Short Backfire Antenna on 5,6 GHz

 I was looking for a design that promised reasonable gain without excessive size. The short backfire antenna is not a common antenna, promised 20dBi and looked easy to build. Several designs were found and analysed which did reveal a few discrepancies which seem now that been resolved.

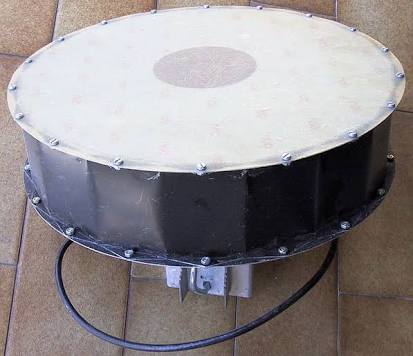

A quick look at the finished antenna shows a 'cake tin' style base fed with a elliptical patch as vibrator and a waveguide as sub-reflector.





2 people like this

Share this post


Link to post
Share on other sites

Nice alternative for a DIY parabolic reflector! Could you provide a cross-section view? Or some ratios for distances?

Share this post


Link to post
Share on other sites

,,,thanks buddy,
but it must to know that the antenna is big enough and can not adapt to a parabolic reflector,,,!!!

It has a diameter of about 258mm


Share this post


Link to post
Share on other sites

как насчет графика VSWR? этот дизайн мне тоже нравится.

What about the VSWR schedule? I also like this design.

Share this post


Link to post
Share on other sites
On 27.08.2017 at 10:05 PM, Admin said:

,,,thanks buddy,
but it must to know that the antenna is big enough and can not adapt to a parabolic reflector,,,!!!

It has a diameter of about 258mm


Hello !

Do you have a dimensional drawing for this type of antenna?

Share this post


Link to post
Share on other sites

,,,hy dude..!!!

 I do not know, simulation is long  time ago ...!!!

Share this post


Link to post
Share on other sites

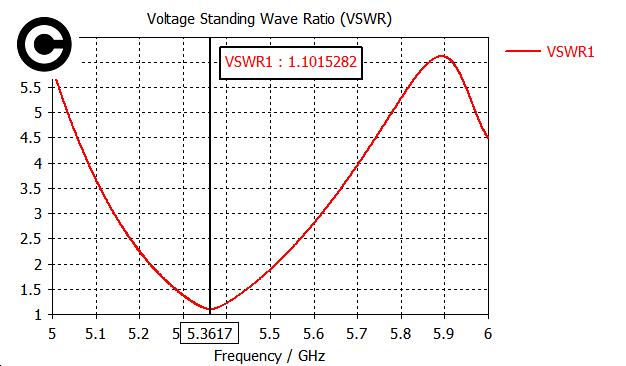

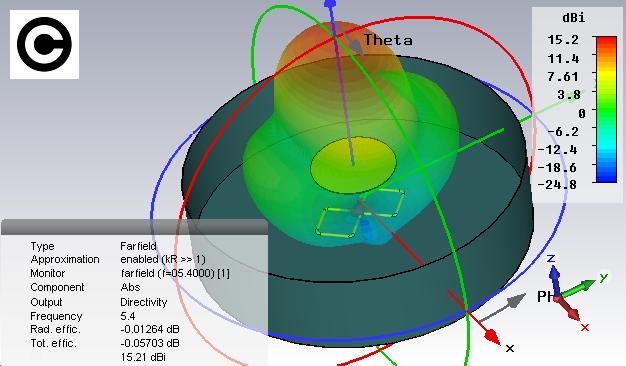

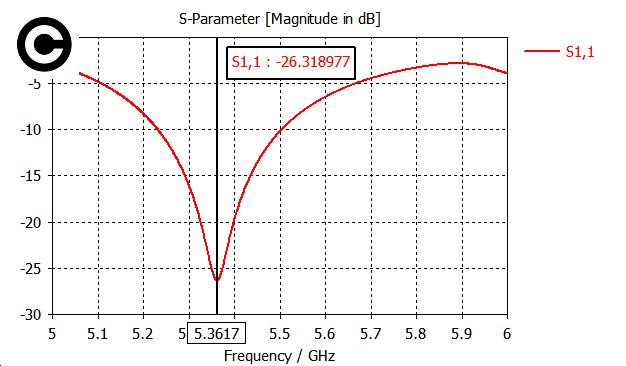

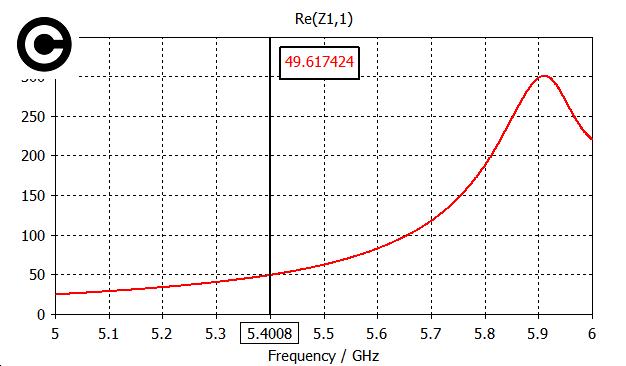

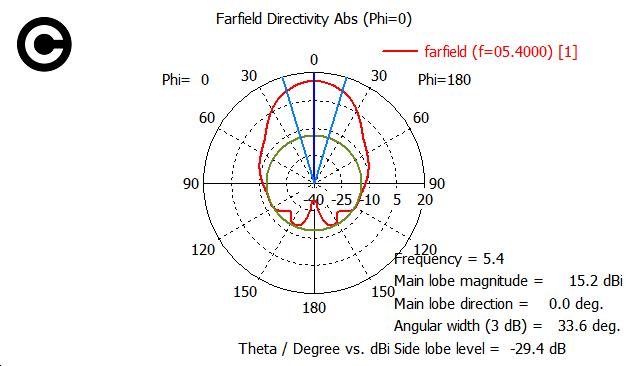

,,,Yes, but this small antenna (116mm diameter) can be used in the focus of a parabolic offset...

backfire 5.5ghz romb_01.jpg

backfire 5.5ghz romb_02.jpg

backfire 5.5ghz romb_03.jpg

backfire 5.5ghz romb_04.jpg

backfire 5.5ghz romb_05.jpg

backfire 5.5ghz romb_06.jpg

1 person likes this

Share this post


Link to post
Share on other sites

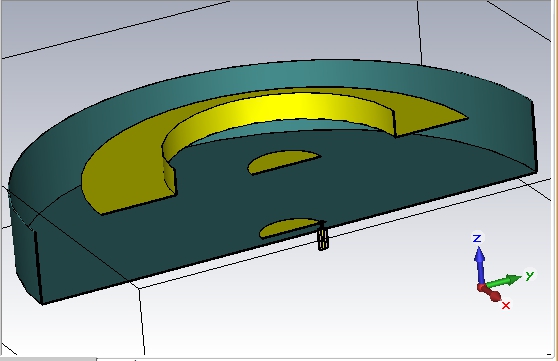

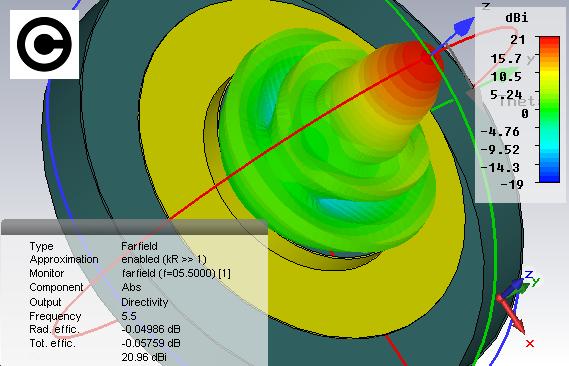

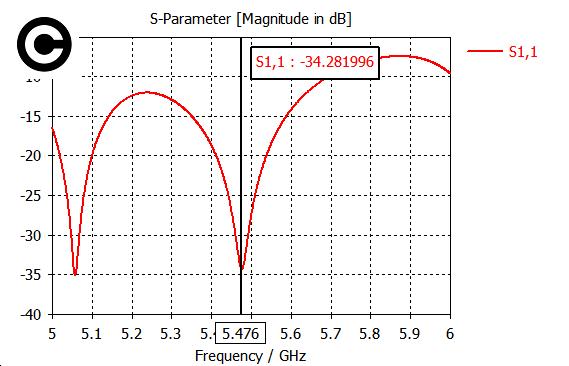

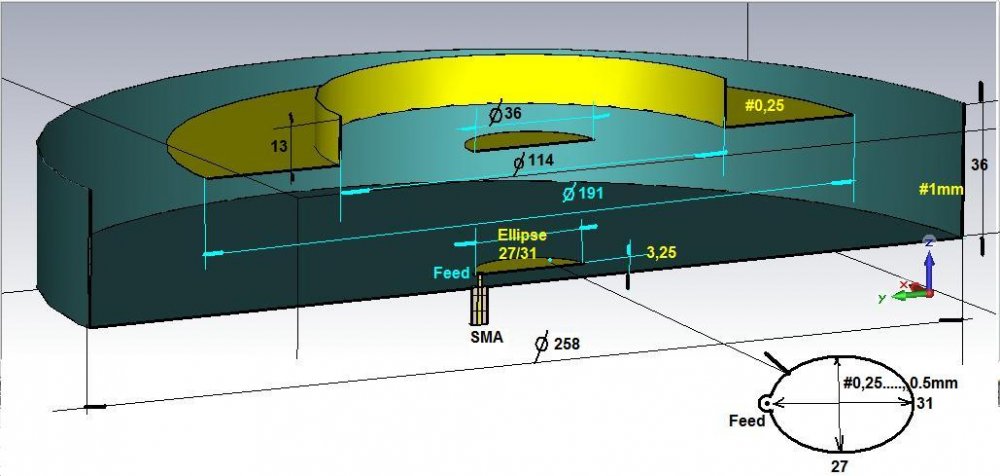

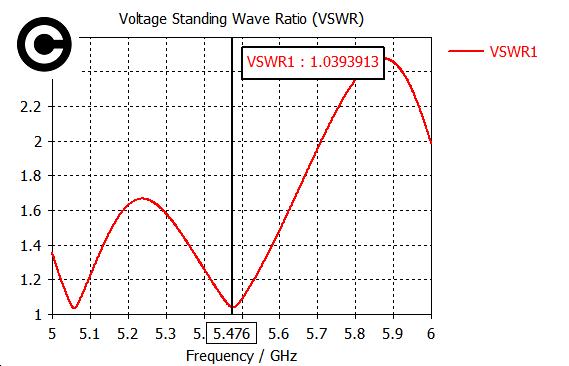

Good, these are the dimensions on the SBF antenna above,,,

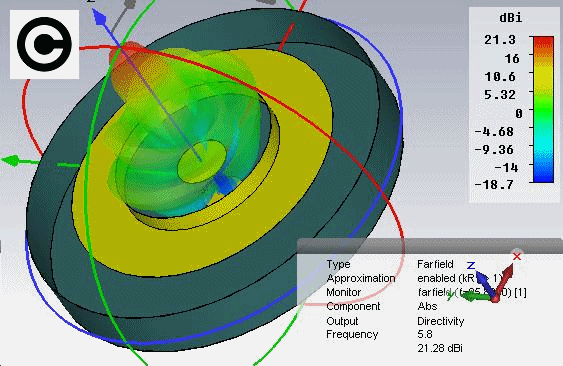

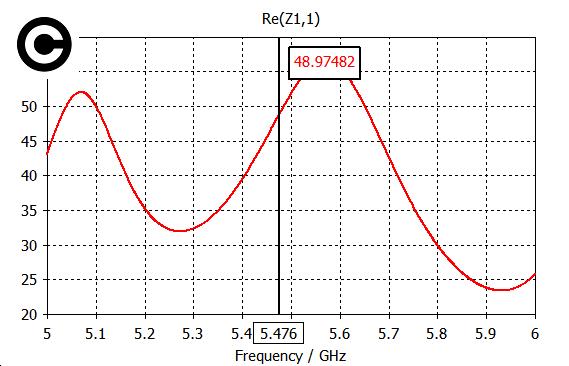

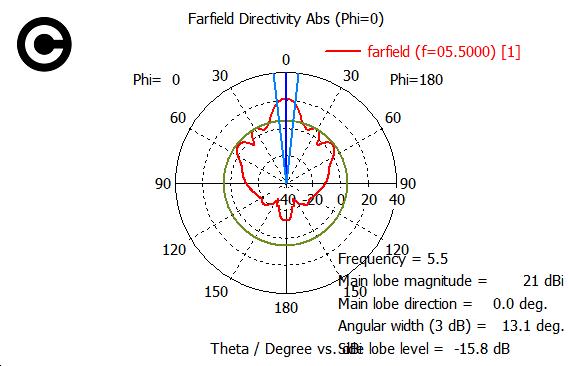

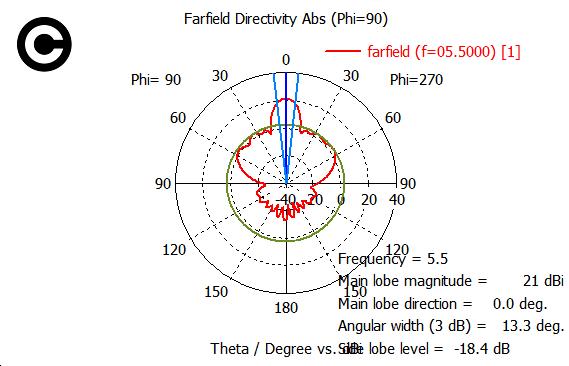

,,,and the simulations...

SBF 5,5_01.jpg

SBF 5,5_02.jpg

SBF 5,5_03.jpg

SBF 5,5_04.jpg

SBF 5,5_05.jpg

SBF 5,5_06.jpg

1 person likes this

Share this post


Link to post
Share on other sites

Loops can be very efficient, but small loops sold by most antenna companies are just too short. Best for 20/30/40m would be a 19ft perimeter loop.

Gil.

Share this post


Link to post
Share on other sites

,,,what it"s "20/30/40m would be a 19ft perimeter loop."....???


Share this post


Link to post
Share on other sites
