Admin

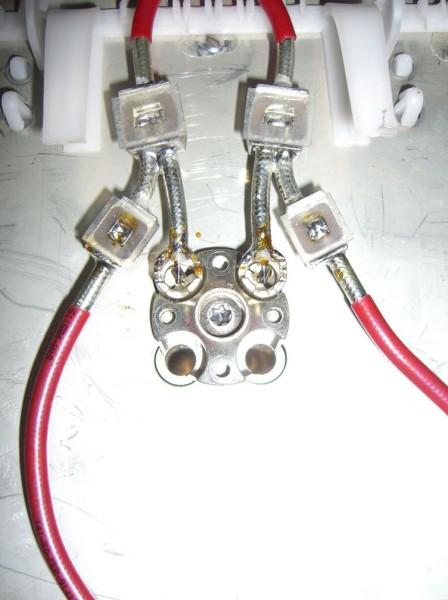

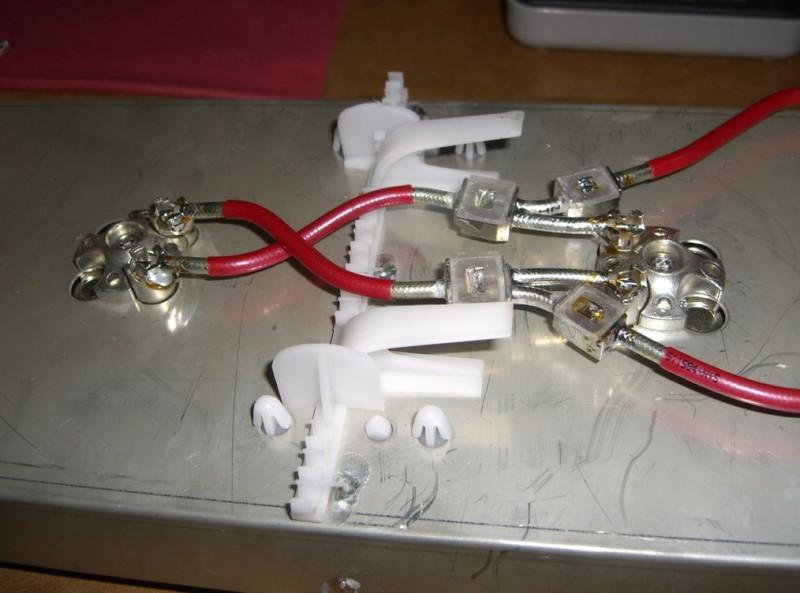

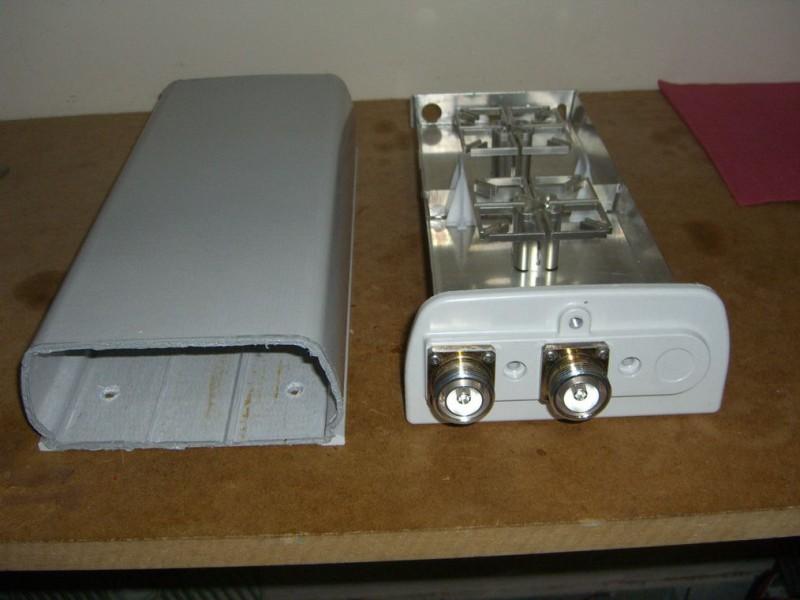

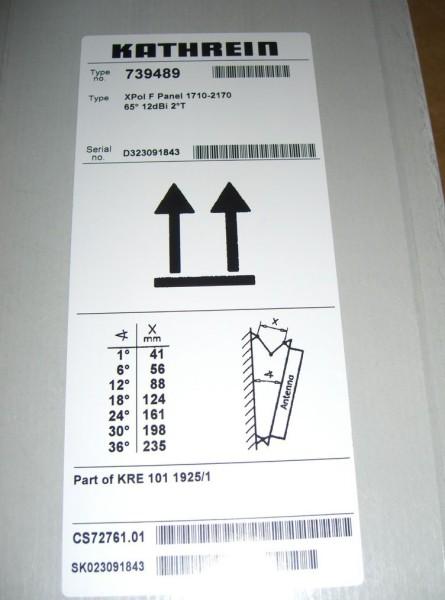

Kathrein Antenna

Antenna KATHREIN production are not only exceptional electrical characteristics. Special attention is paid to the mechanical characteristics of the antennas.



















5 people like this

Share this post


Link to post
Share on other sites

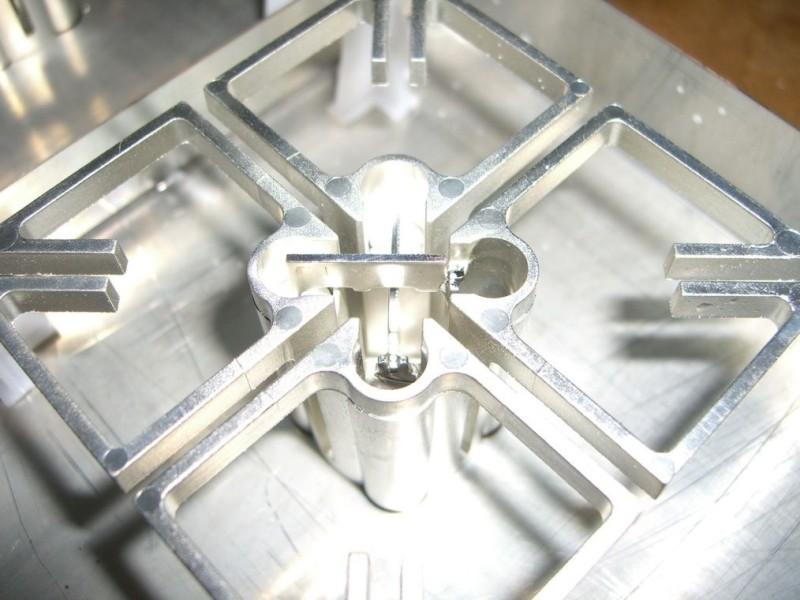

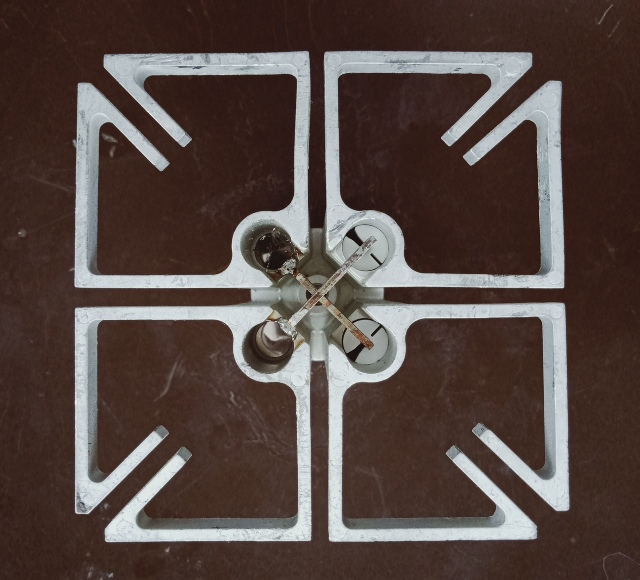

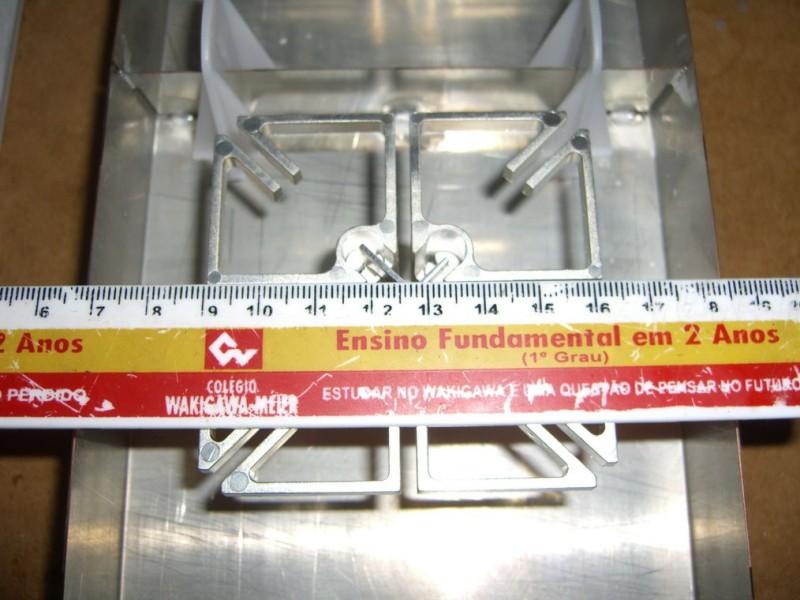

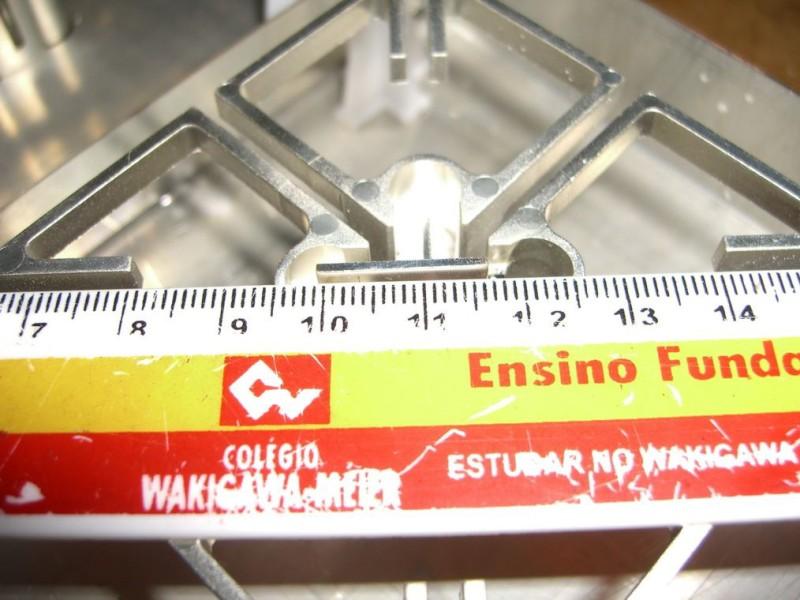

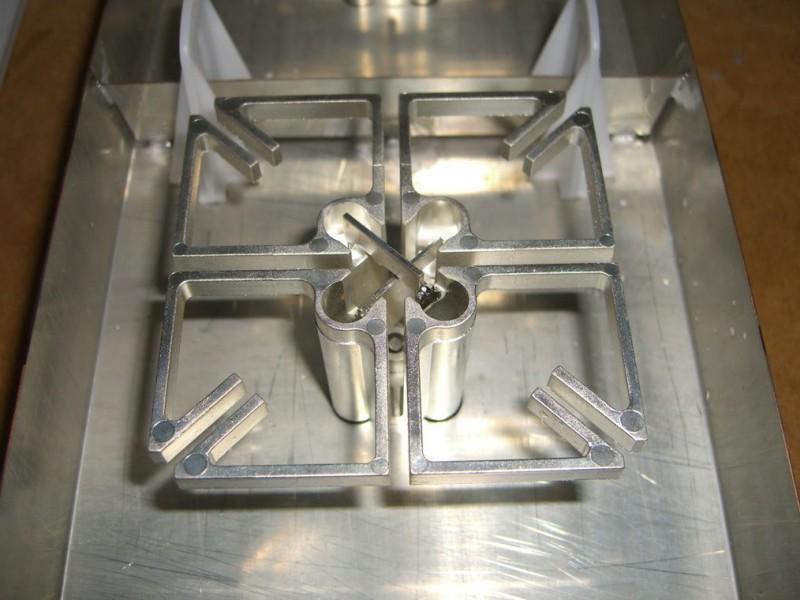

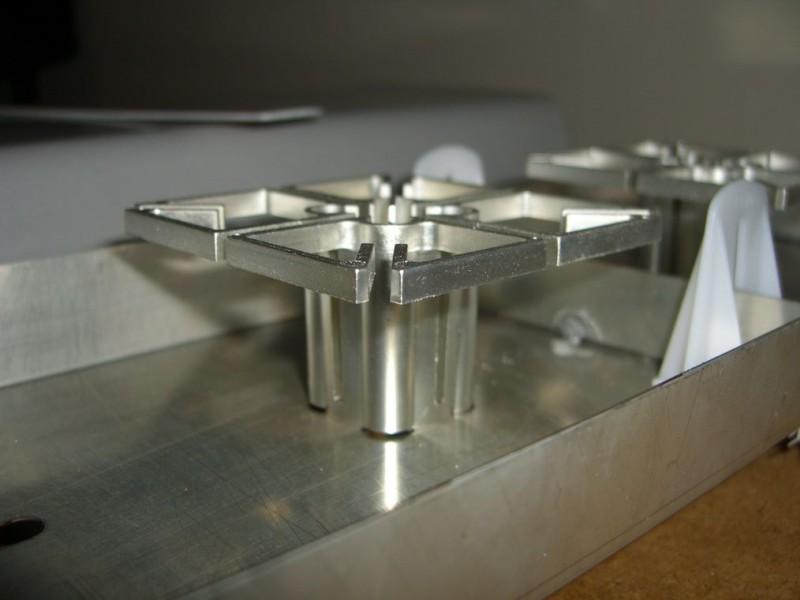

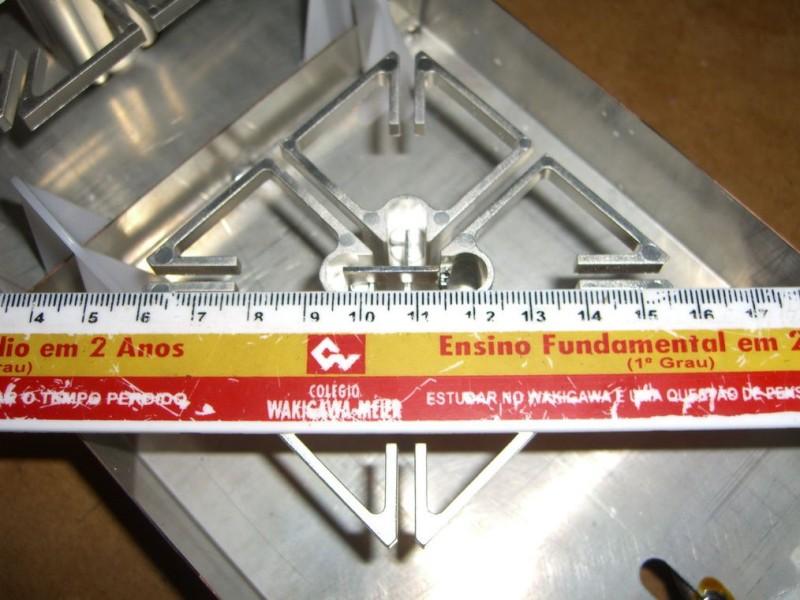

YEP , those are Dipole Magneto Electric (MED) ,

the quarter wave at 90 degrees with reflector (supports) are Magnetic fields (0 volts half wave centers could be in touch with reflector) is were you usually put metal supports or screws bolts. etc (yagi)

and the "leaves" are electric field (HALF wave ... being feed in the middle a DIPOLE)

Moderate gain , 2 ports (mimo) 2 polarizations  WIDE BAND

As I understand it...

Edited by clanon
1 person likes this

Share this post


Link to post
Share on other sites

Electric and Magnetic fields are ALWAYS at 90 degrees per Maxwells equations ...(and nature)

What make it electric or magnetic is the field orientation Vertical or Horizontal and their LENGTH

1 person likes this

Share this post


Link to post
Share on other sites
14 hours ago, clanon said:

Electric and Magnetic fields are ALWAYS at 90 degrees per Maxwells equations ...(and nature)

What make it electric or magnetic is the field orientation Vertical or Horizontal and their LENGTH

Thank you very much Clanon

1 person likes this

Share this post


Link to post
Share on other sites

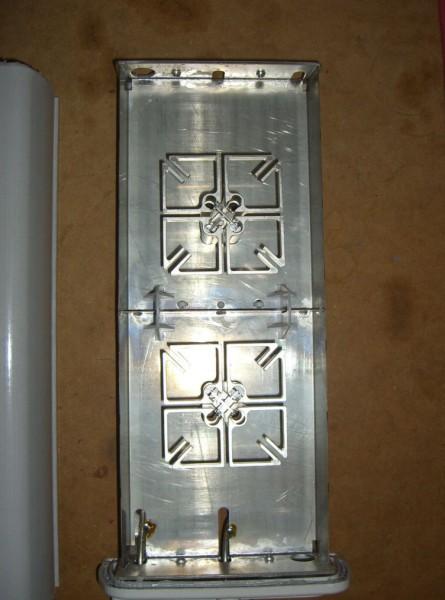

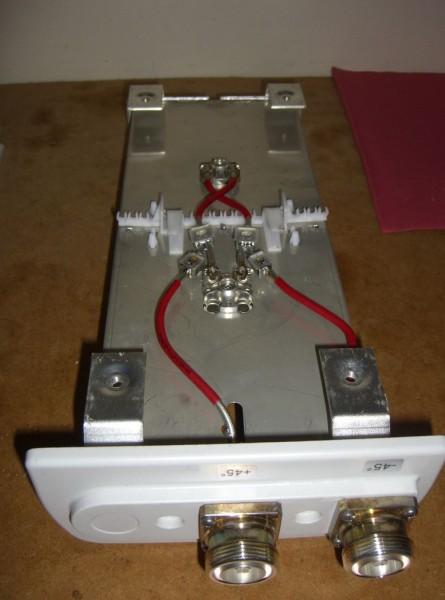

A part of ex BTS(Base Transceiver Station) antenna.


1 person likes this

Share this post


Link to post
Share on other sites

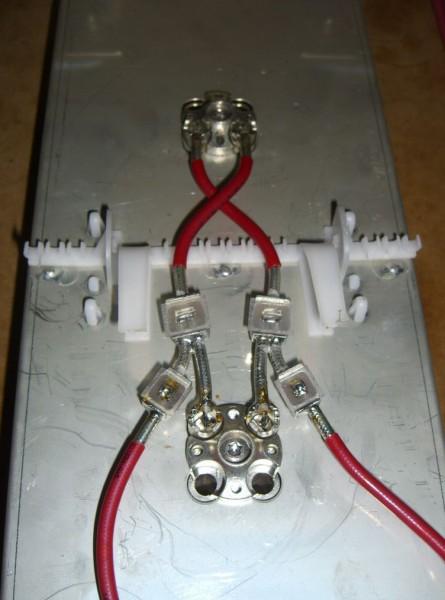

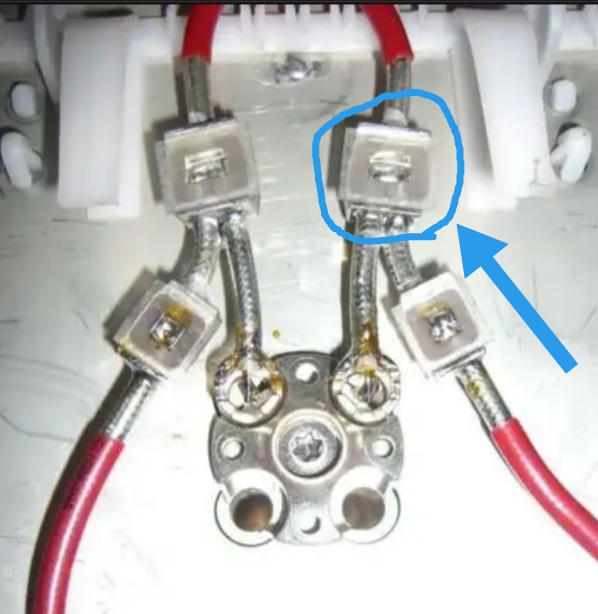

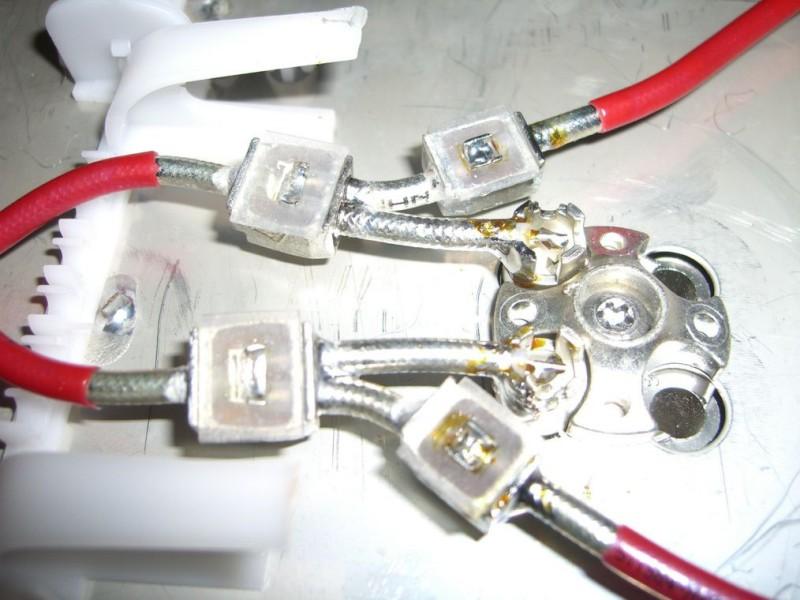

How to crimp this junction?

I've not found tutorial of making this joint.


Share this post


Link to post
Share on other sites

...it is not crimping, it is soldering by tinning...!!!

Share this post


Link to post
Share on other sites

Any FLAT plate  are would do...the bigger the BETTER.

1 person likes this

Share this post


Link to post
Share on other sites
On 11/5/2021 at 9:34 PM, clanon said:

Any FLAT plate  are would do...the bigger the BETTER.

thanks brother

1 person likes this

Share this post


Link to post
Share on other sites

if you want more GAIN , new shape and area should be SIMULATED to see it doesn't harm the original specs...VSWR , Impedance , diagram (lobes) bandwidth ,etc

Flat area plates are the safest to use



1 person likes this

Share this post


Link to post
Share on other sites

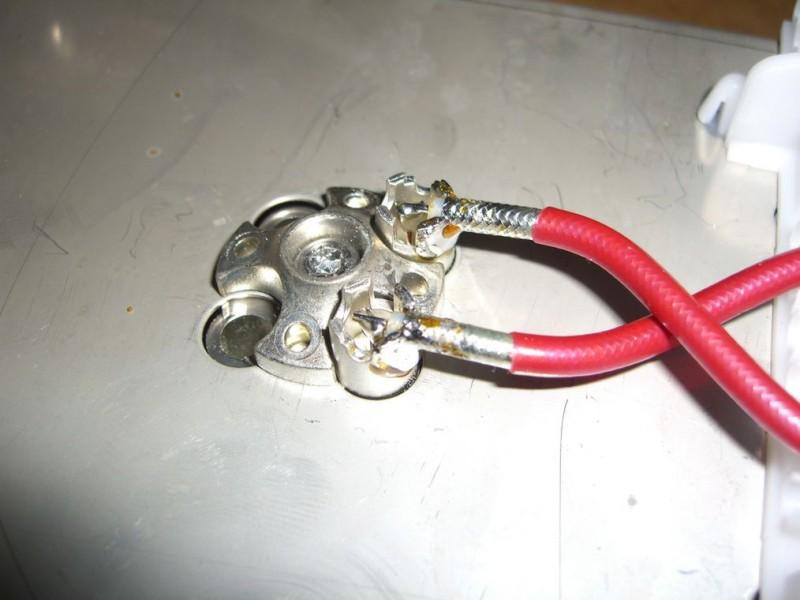

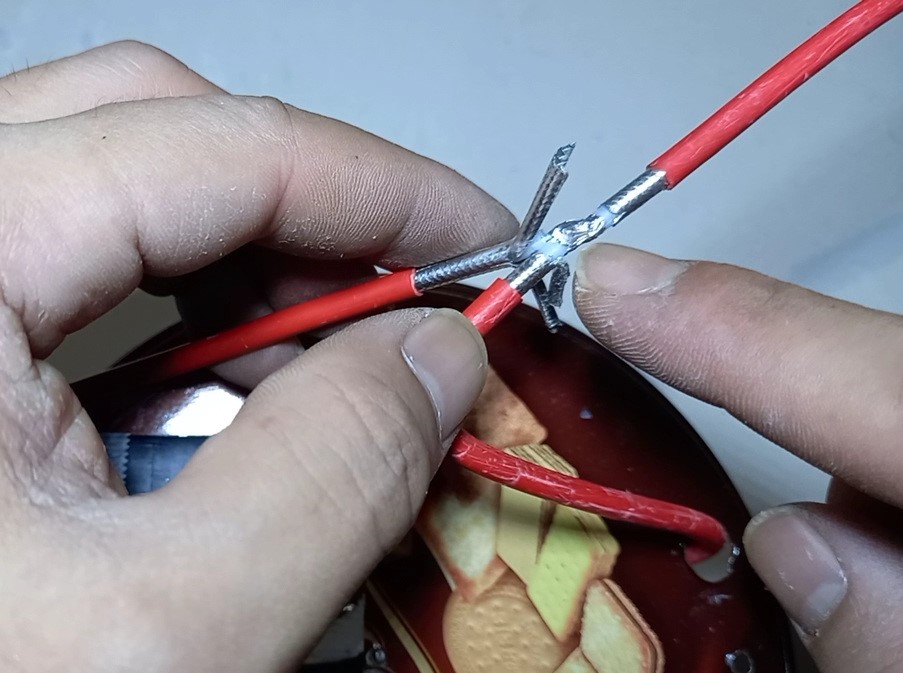

This is how I connected these two wires with solder.
