Modifications Tp-Link TL-MR3020

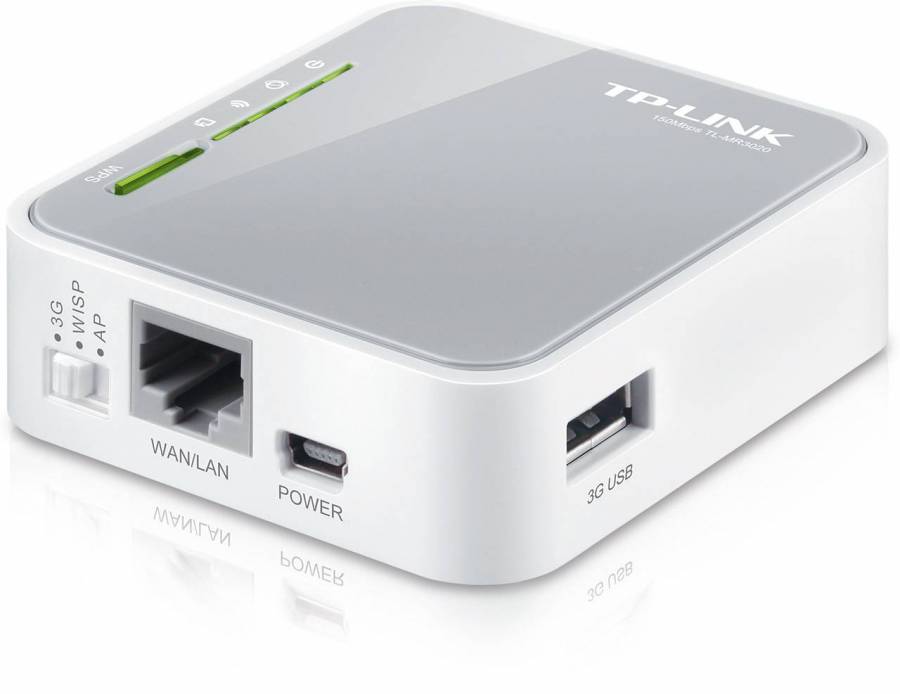

The only major drawback of the TL-MR3020 is the lack of an external antenna connector, this however can be easily hacked in a couple of simple steps and takes less than 15 minutes.



Option A: If you want to use a Pigtail:

Solder the center of RG-174 (or the like) coax cable to the left pad (connected to C43 - see Image) and the braid/shield of the coax to the right strip (GND).

Option B: If you want to use a PCB Edge RP-SMA connector:

Solder the center pin (round) to the left pad (connected to C43 - see Image) and the right pin of the connector to the right pad (GND).





There have been reports of EM related damage to MR3020 routers that have been hacked the way shown below. It seems that the cut off capacitors after J4 were put there for EM protection rather than matching the antenna. Please follow the method shown above to have proper EM protection for your router's external antenna. The following images are only left as a reference for now




2 people like this

Share this post


Link to post
Share on other sites

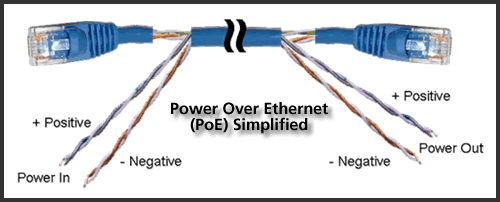

Nice tutorials..I'm already flashed to openWRT firmware... and how about powering TL MR3020 from ethernet port ( PoE in ) ?? i have no idea about it...

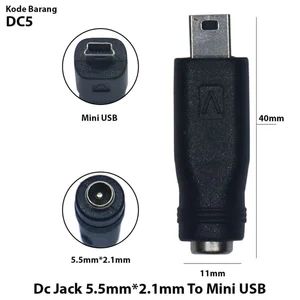

peoples outsmart it with an intermediate PoE injector to Micro USB port, but i think it's still powering by Micro USB port ( and high cost too maybe ), and then must have a DC Jack 5/9/12 Volt to Micro USB connector.... thanks..

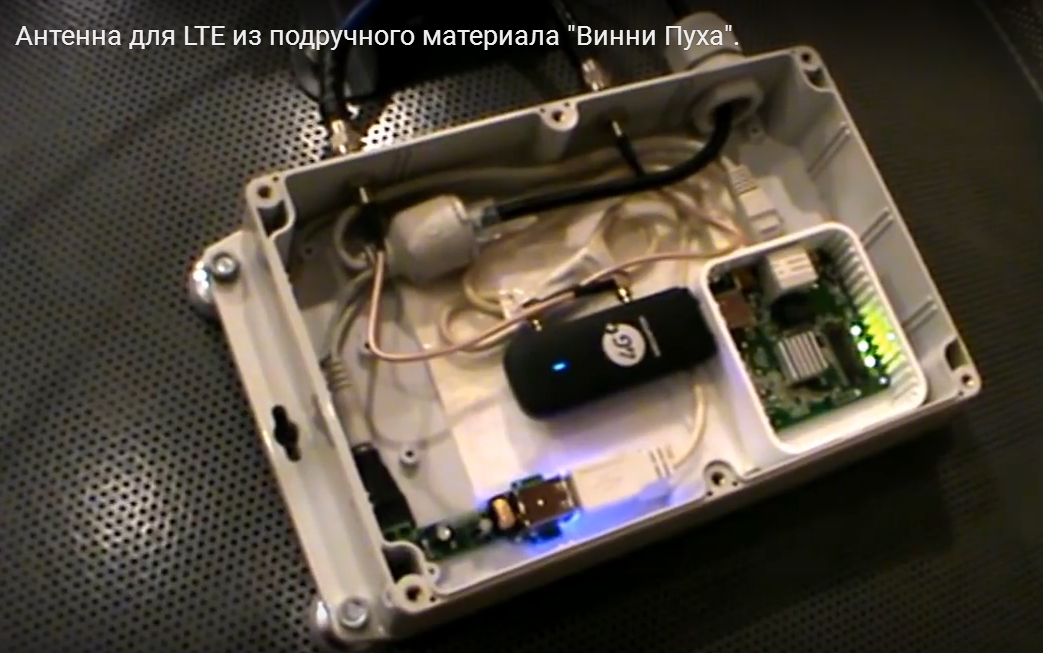

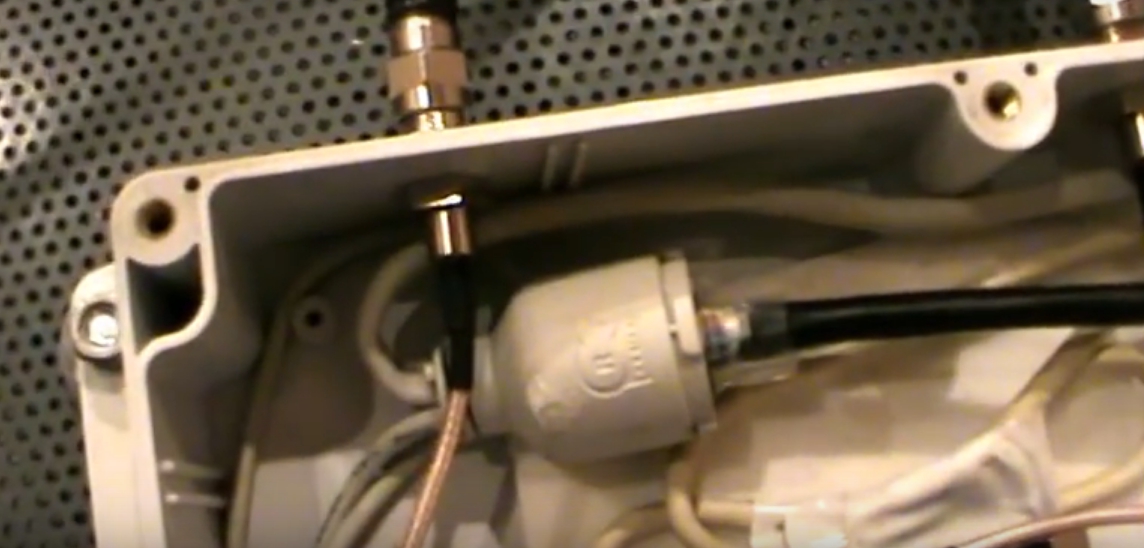

Из чего собрать хорошую 3G или 4G антенну.mp4

Share this post


Link to post
Share on other sites

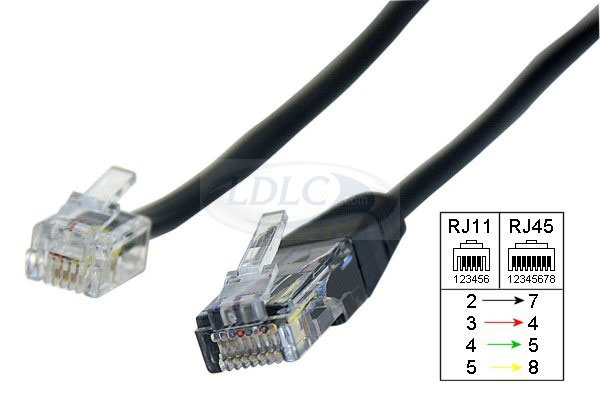

I'm not still get it, can you give more explanation about that picture please ?.... Where we use RJ-11 port ?? and I guess the ethernet port of TL MR3020 will not accept the power supply, so we might modifying from TL MR3020's chipset sides maybe ?

Share this post


Link to post
Share on other sites

,,,okay,I see,  but it has power supply..., do not understand the question, put the feed(POWER) in touch with WAN/LAN

Share this post


Link to post
Share on other sites

i think adaptor of TP-Link TL MR3020 is Micro USB output, not RJ-45 output, and the datasheet said TL MR3020 just powered by Micro USB 5 Volt not by PoE in, is that correct ?

Share this post


Link to post
Share on other sites

I see, cat5e or cat6 support transmitting power over ethernet cable , but the problem is ethernet  port (LAN/WAN) ( from TL MR3020 ) not accept PoE Injector if plugging from LAN/WAN Port, because TL MR3020 was designed just powering over Micro USB only ( default from factory ).  I've been plugged PoE injector to LAN/WAN port ( without plugging Micro USB adaptor ), TL MR3020 is still off...

Share this post


Link to post
Share on other sites

well, im already searching around 2 months, and still i have no idea about it, thanks for your kindness :)

Share this post


Link to post
Share on other sites

Винни, пожалуйста, разместите более подробную картину с этой конструкцией ... !!!!


«и особенно для этих монстров ...



Share this post


Link to post
Share on other sites

If the micro usb sees 5vdc...it doesn't matters WHERE it came from...and GND off course


Share this post


Link to post
Share on other sites

TL-MR3020 is actually a secure device because I have used it last year in my retail business and we had a conversational bot implemented to interact with all the employees. The employees could interact, ask questions, apply leaves, etc through this chatbot platform that was connected over TL-MR3020. Since it was an interactive solution I wanted a highly secure network and TL-MR3020 did a great job. The modem was actually suggested by the chatbot development services company that developed the bot for me. seems they had several clients previously that used and was well satisfied with TL-MR3020.
