1001 trifles for self-made antennas



Admin, what diameters and length are needed for the manufacture of antennas plastic bolts-nuts, spacers, washers? Usually.



I look at the aliexpress, there are many such plastics. How do you do when you need plastic products? Thanks for the answer.

Share this post


Link to post
Share on other sites



Antennas are short-circuited and not short-circuited. On open, not short-circuited antennas, what plastic bolts-nuts-spacers to use? There are different platters, and different sizes

Edited by chilanzar2

Share this post


Link to post
Share on other sites

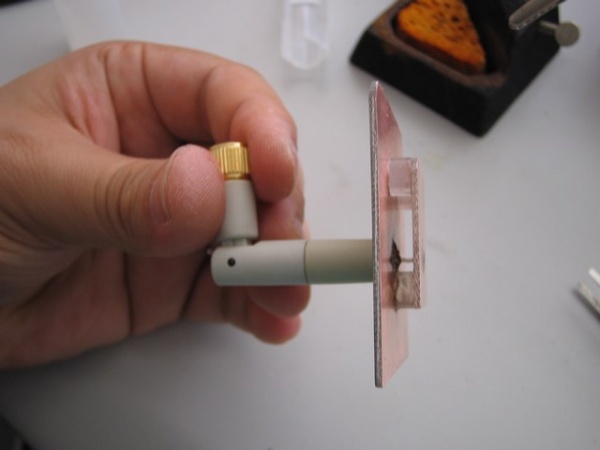

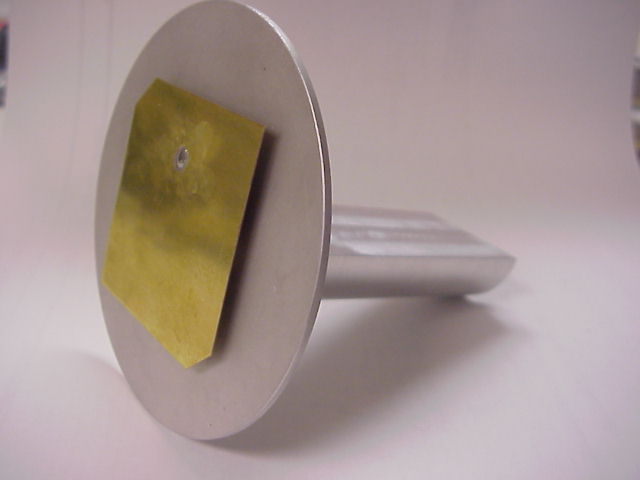

It has been determined that the nylon spacers between the patch element and the reflector originally shown in the drawings, degrade the performance of the antenna. It is suggested that the spacers are not installed.

Share this post


Link to post
Share on other sites

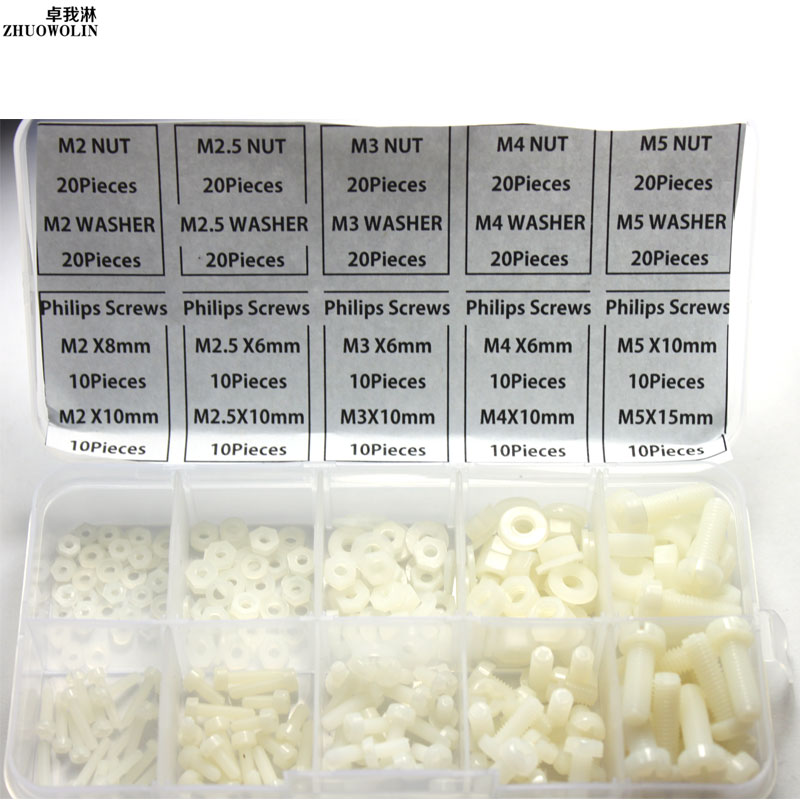

So, the thinner the spacer, the better? On aliexpress buy such nylon bolts-nuts-spacers, or, no?

In Uzbekistan, there are no such details

Edited by chilanzar2

Share this post


Link to post
Share on other sites

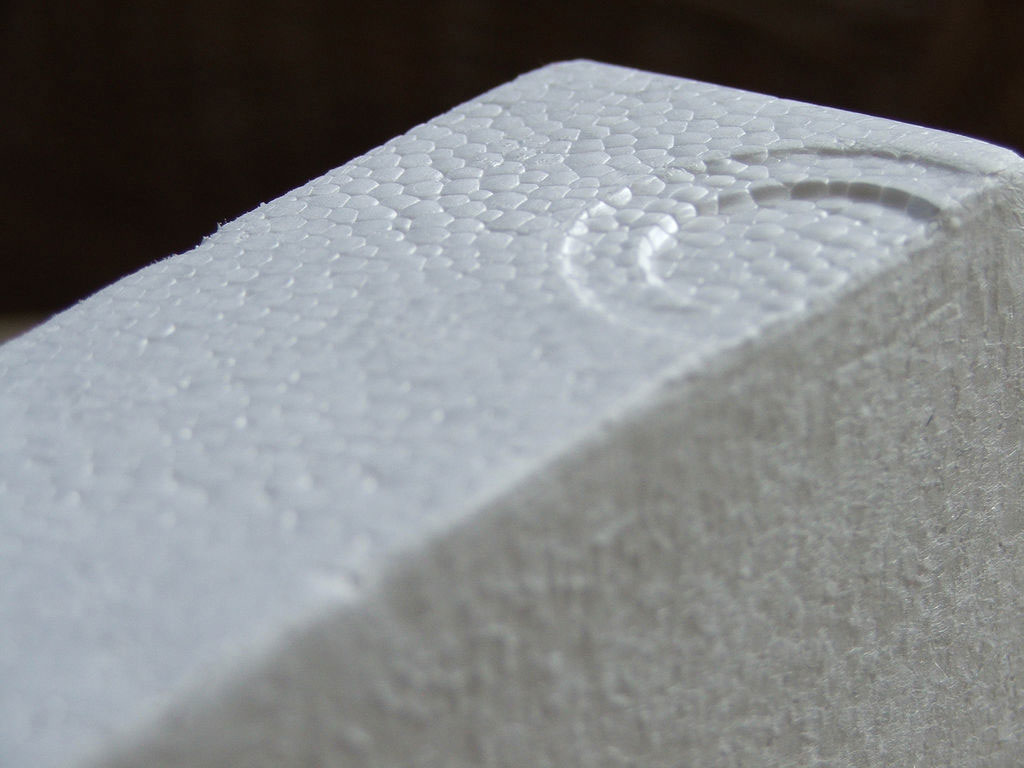

Expanded Polystyrene Foam: the best spacer

 the permittivity is 1.02 – 1.04 with a loss factor less.


Share this post


Link to post
Share on other sites
13 hours ago, Admin said:


???? ???????????, ??? ?????????? ????????? ????? ????????? ???????? ? ???????????, ????????????? ?????????? ?? ????????, ???????? ?????????????? ???????. ??????????????, ??? ????????? ?? ???????????.

Only ordered nylon bolts-nuts-spacers. In the meantime, so do mimo2600. It's ridiculous.:D




1 person likes this

Share this post


Link to post
Share on other sites

It's not ridiculous, it's really good, and so ... tell me the results...!!!!

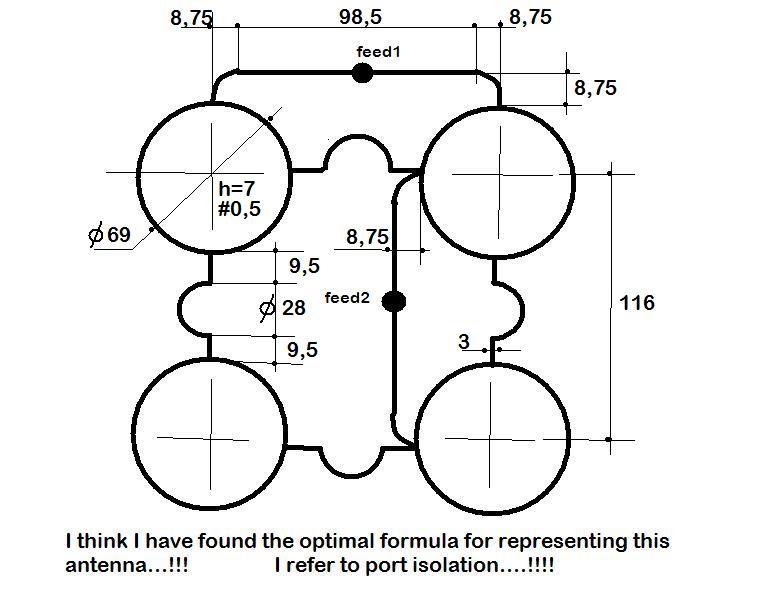

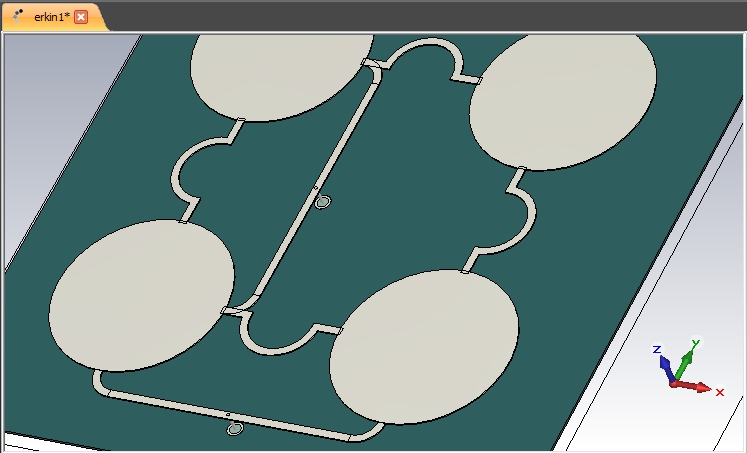

But tell me why the question marks...???????????????????, appear in the first picture

Share this post


Link to post
Share on other sites



Ooo, this is when the Cyrillic alphabet is written, then "????" Appear .. I apologize, did not notice

Share this post


Link to post
Share on other sites

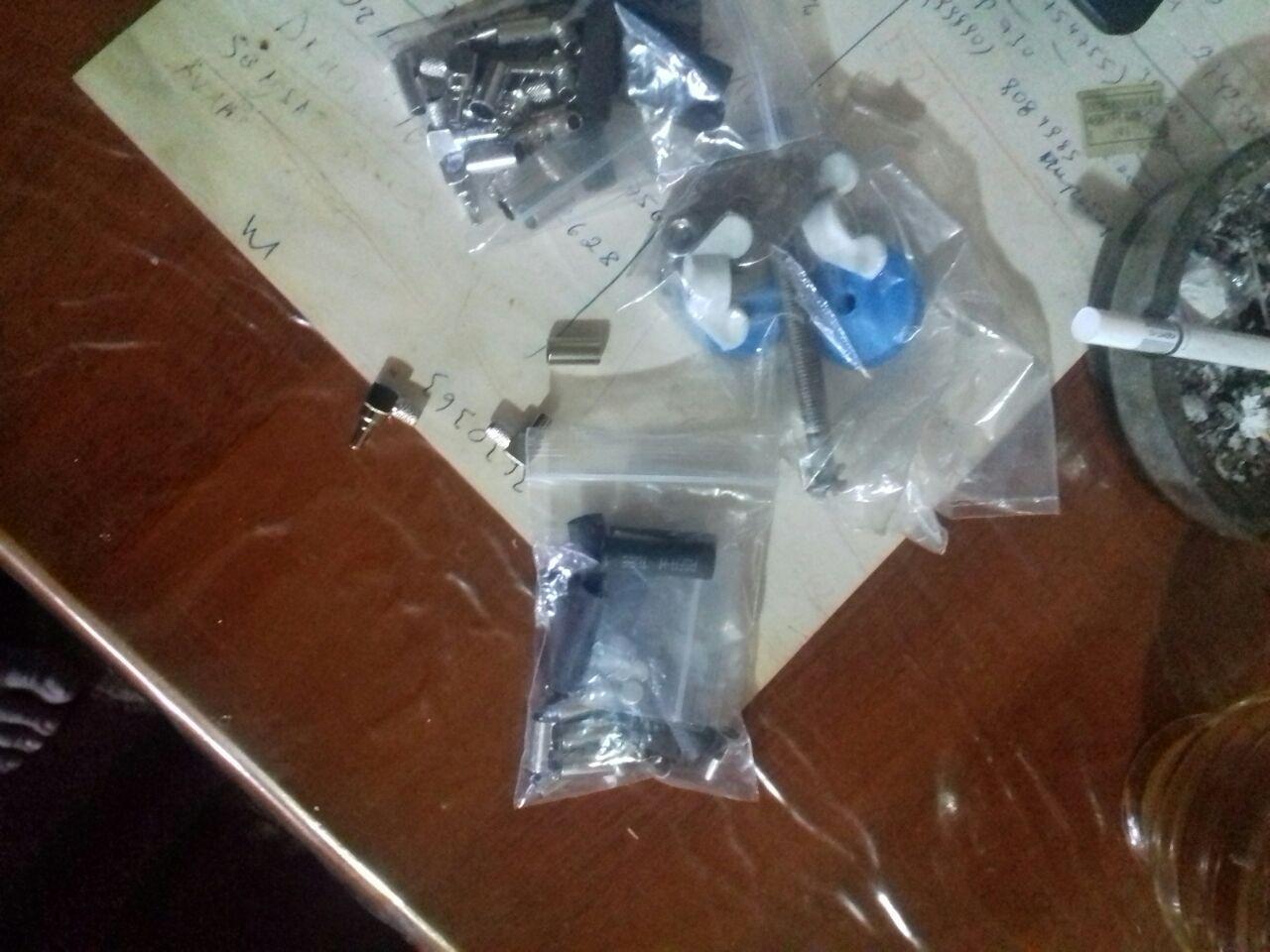

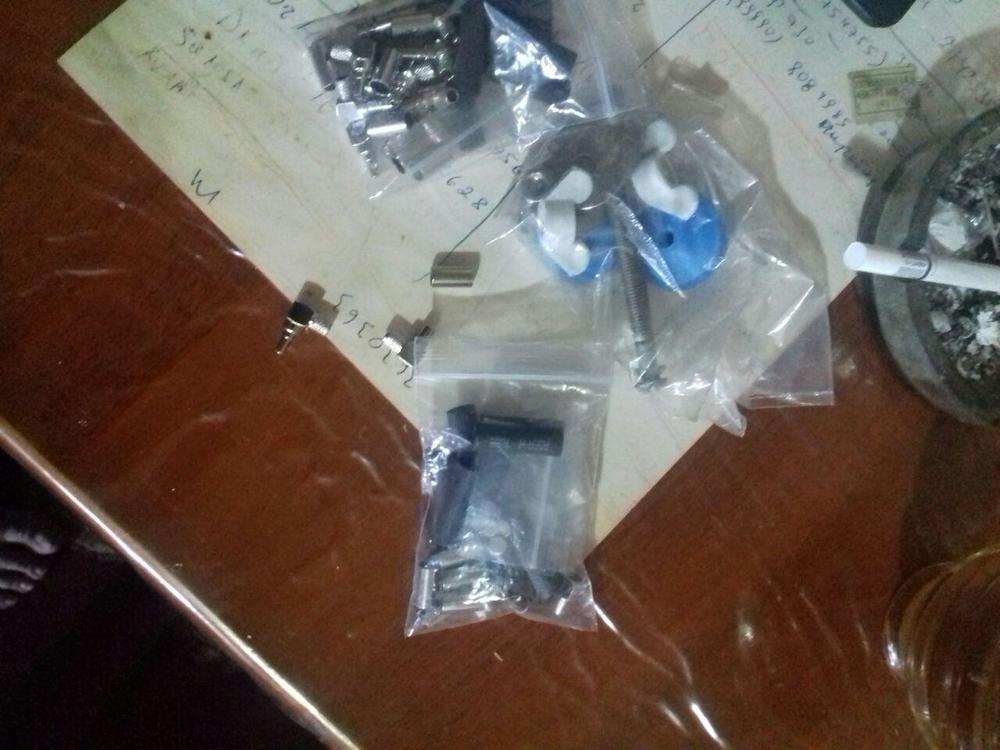

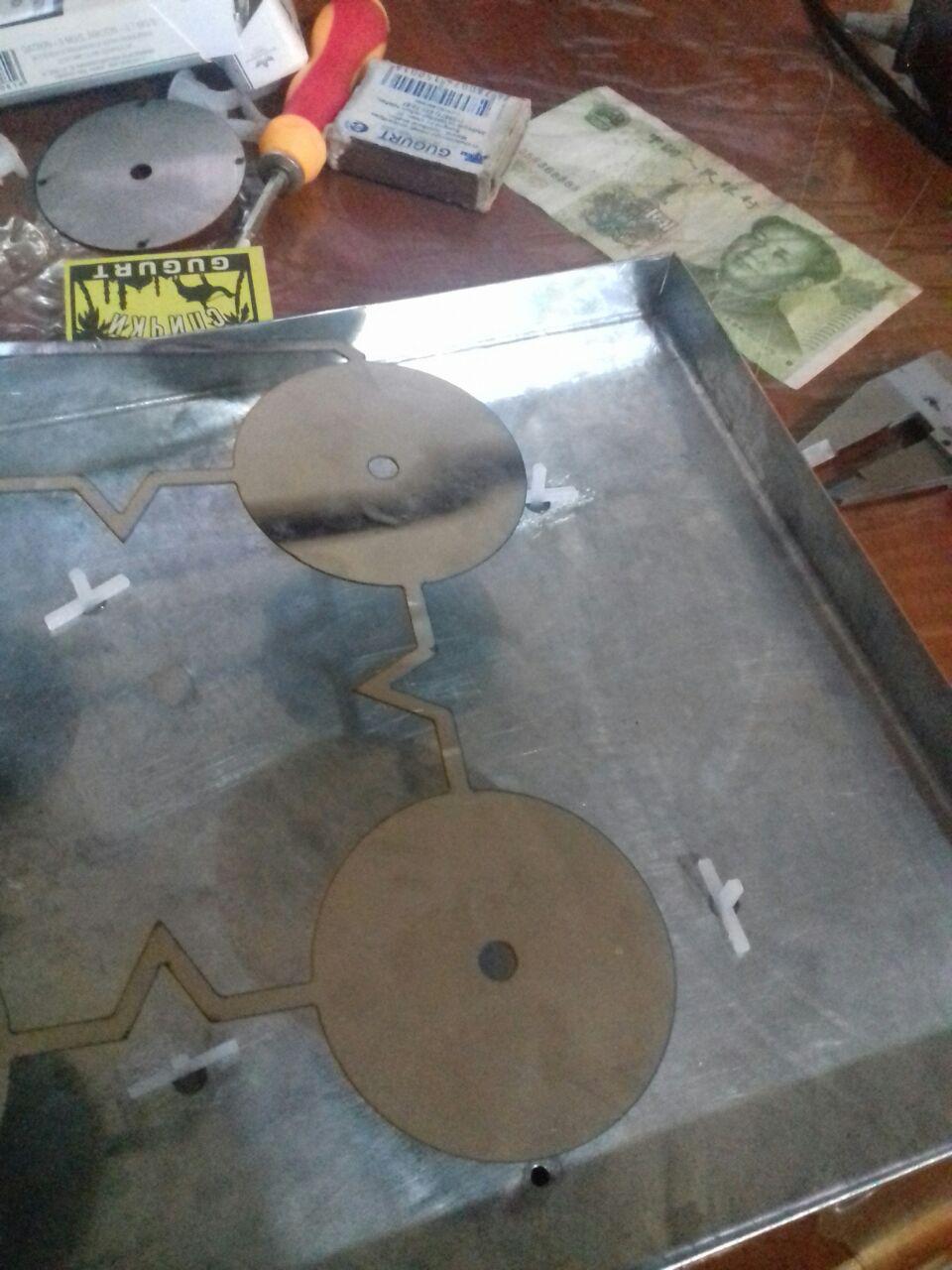

No results for mimo2600. Because sma, F-male and other connectors are not present. Today crc9 & ts9 came. I collect all the necessary 1000 & 1 small things.



2 people like this

Share this post


Link to post
Share on other sites

I like your avatar...


1 person likes this

Share this post


Link to post
Share on other sites

to try...!!1











1 person likes this

Share this post


Link to post
Share on other sites

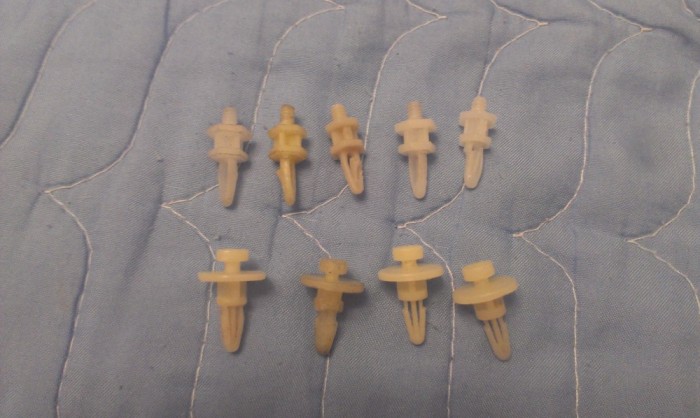

Erkin, why do not you try with insulating spacers from the motherboard of PC...




1 person likes this

Share this post


Link to post
Share on other sites

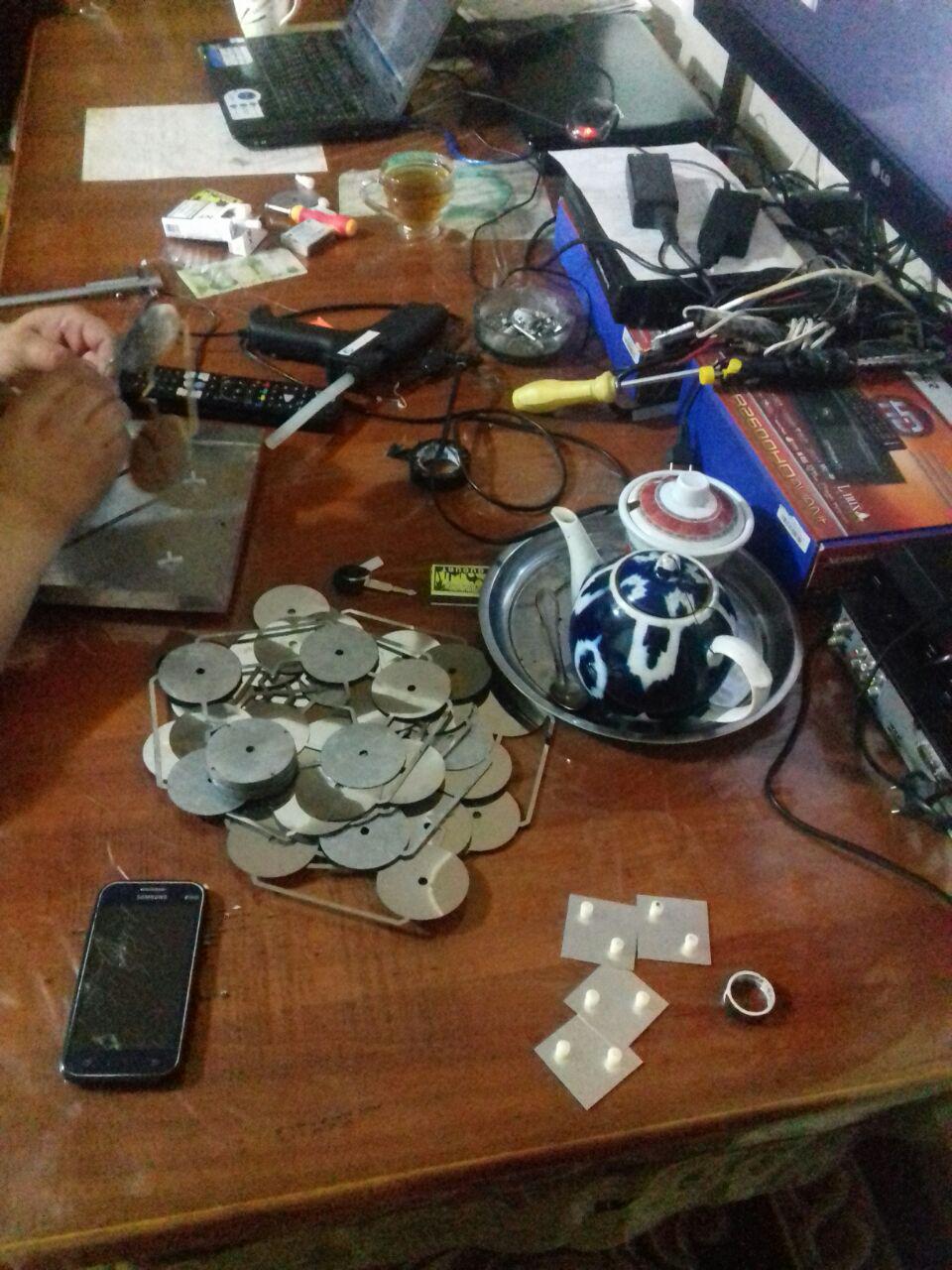

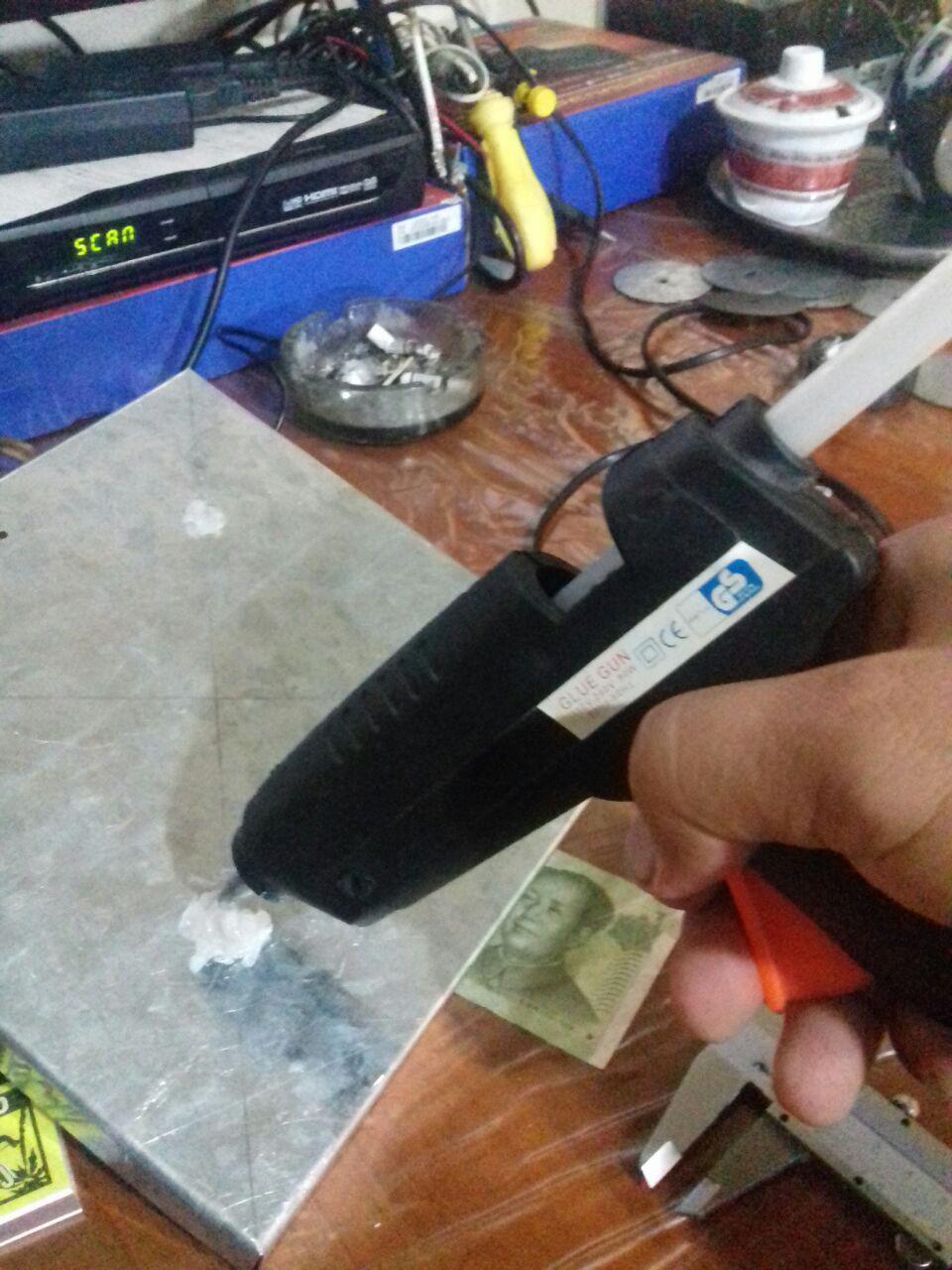

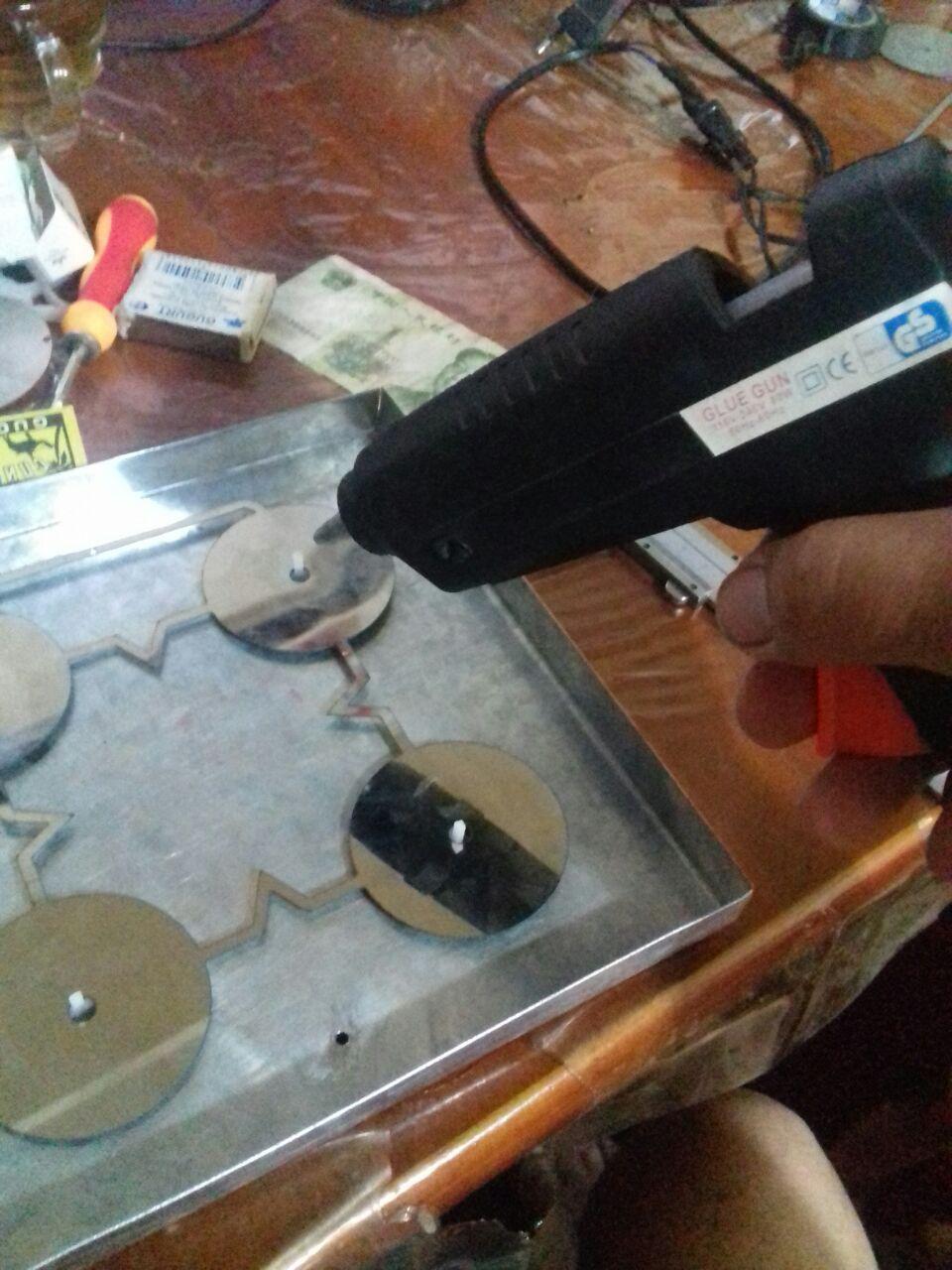

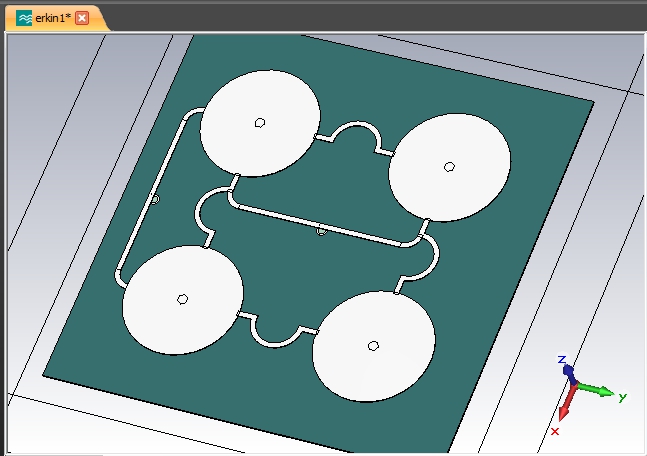

Uuuu .. my boss, the size is at 2300-2400 !!!. Many thanks! Tomorrow I'll cut the rings with a laser. =======================

You liked my avatar! I will try to make sure that my movements please you. You are the guru in the world of antennas! =======================

With such nylon bolt-nuts, you can achieve better results. I think so.


Share this post


Link to post
Share on other sites
12 minutes ago, chilanzar2 said:



Uuuu .. my boss, the size is at 2300-2400 !!!. Many thanks! Tomorrow I'll cut the rings with a laser. =======================

My friend, do not rush, I'm still working on this kind of antenna






1 person likes this

Share this post


Link to post
Share on other sites

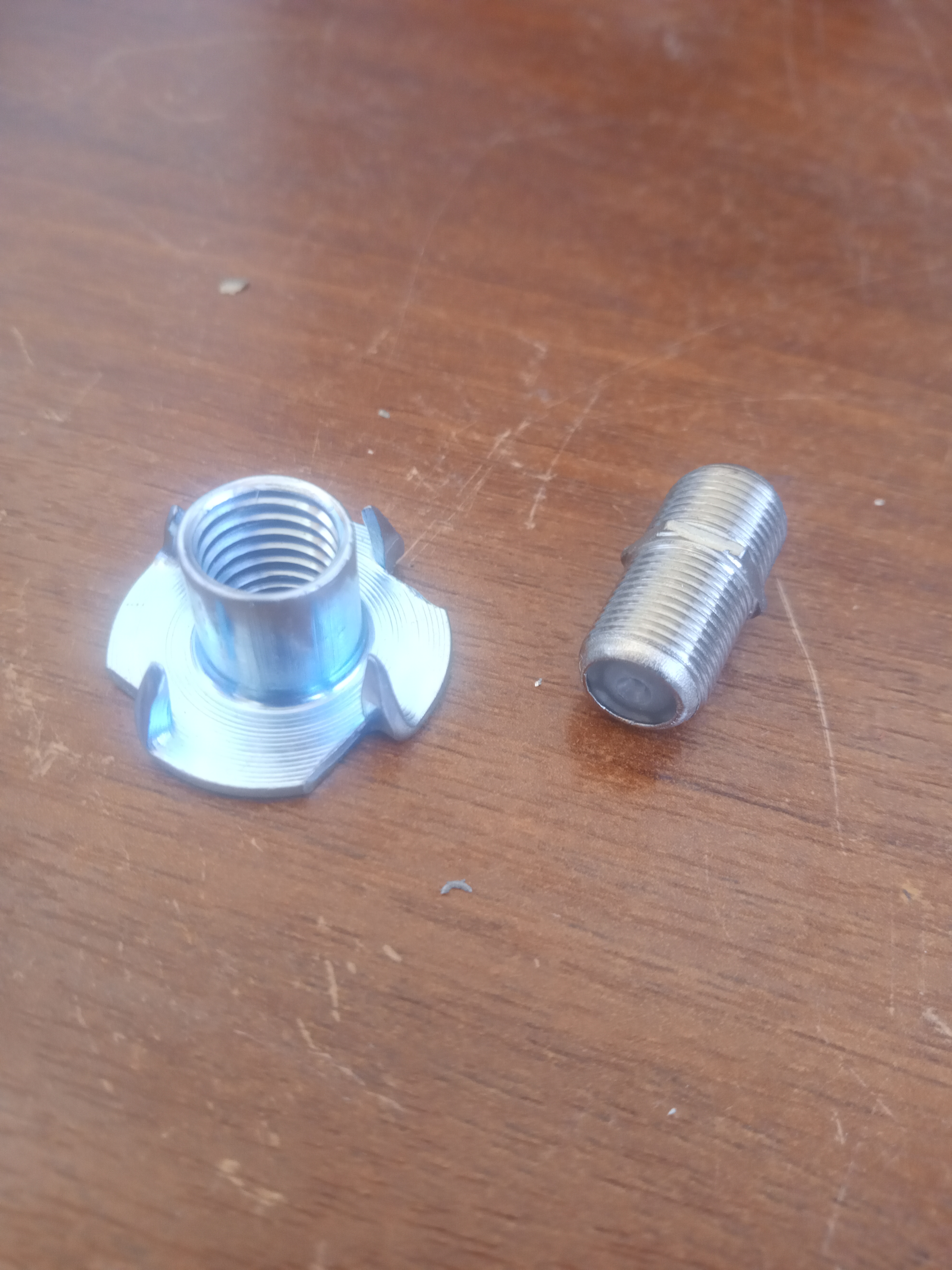

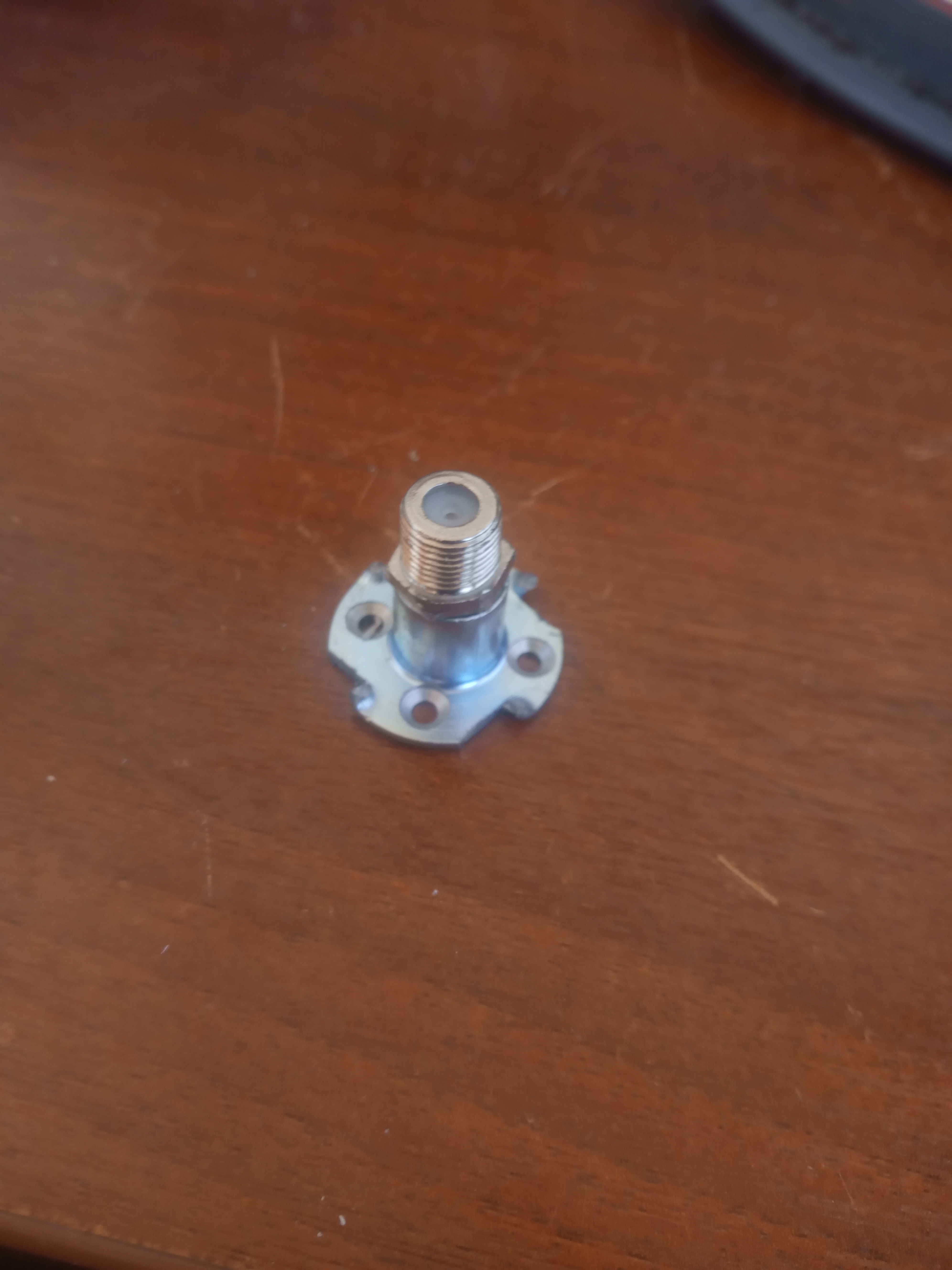

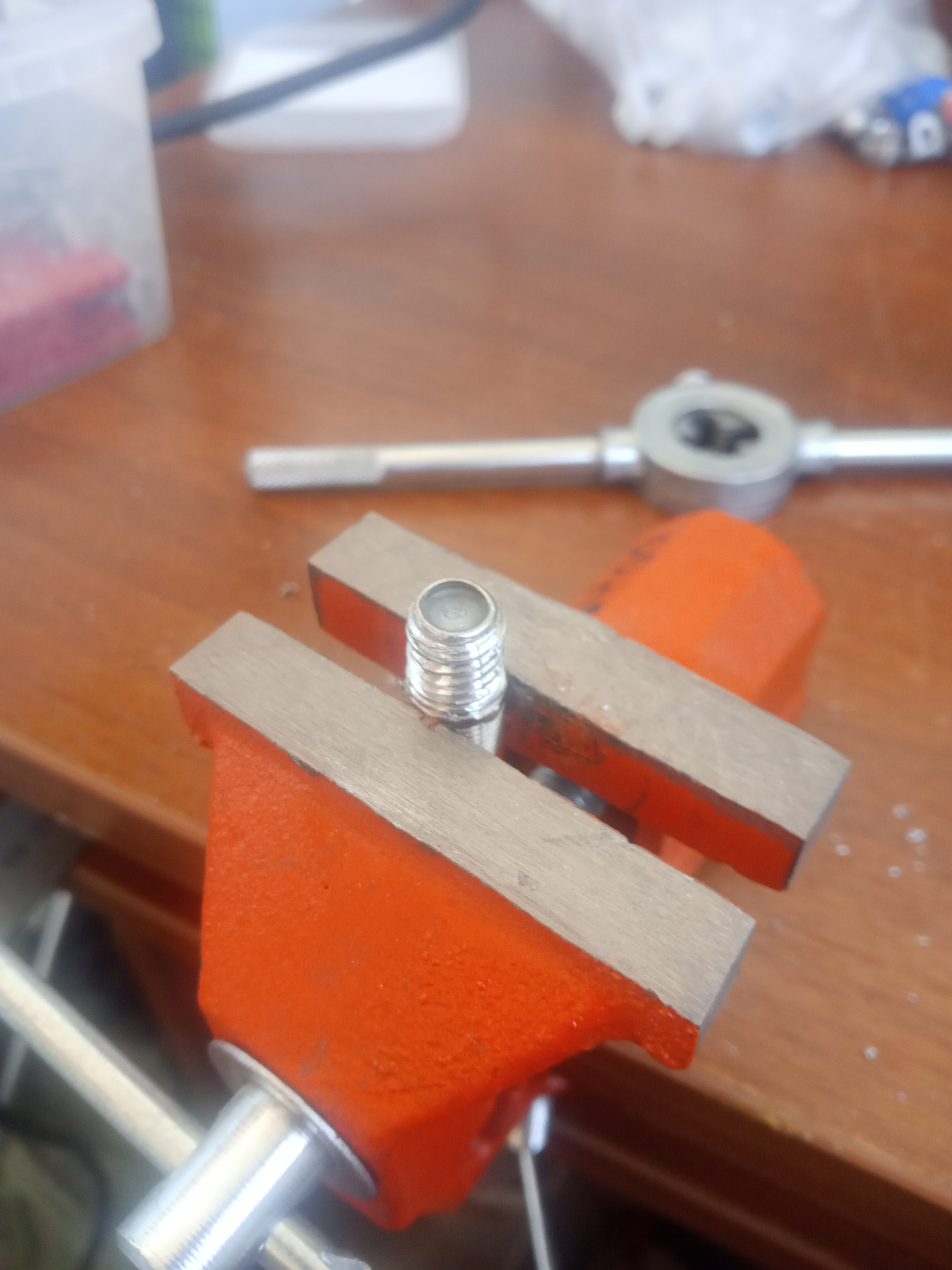

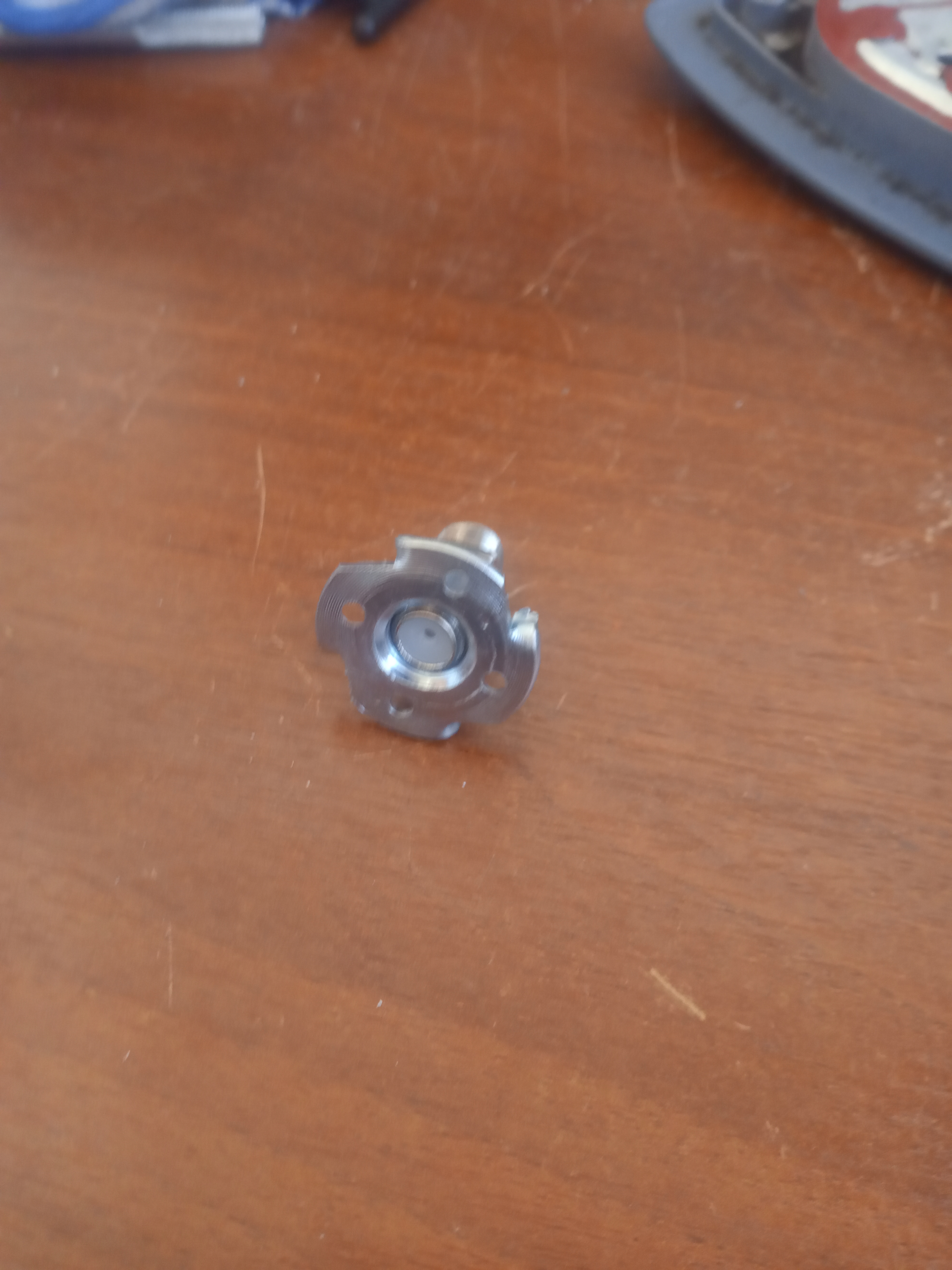

Homemade F Connector

1. Adapter F
2. Angle washer on the M10 (like so called) bought in the furniture.
3. M10 die 1.5 thread pitch for threading. If not, then try to twist in corner. the puck if possible.







1 person likes this

Share this post


Link to post
Share on other sites
