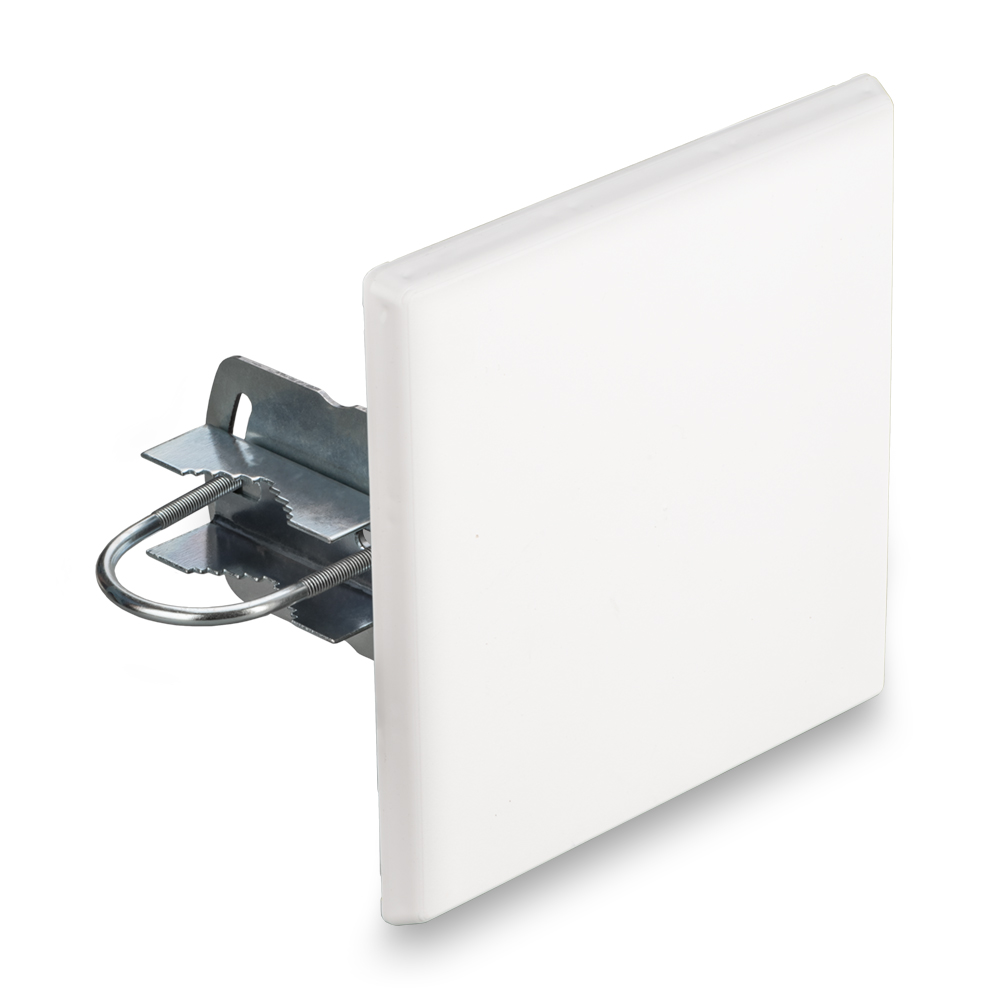

Directional WiFi 5.8 GHz antenna with 20 dBi gain KP20-5500

[Admin 2759]

The KP20-5500 antenna is used in 4900-6100 MHz transceiver systems. The antenna is designed for use in wireless computer networks of Wi-Fi standards IEEE 802.11 a/h/n, as well as in alarm systems, radio communication, etc.

Dimensions (length, width, height), mm 200 x 200 x 120

Dimensions, weight, and quantity of the product in the package:

Dimensions of individual packaging (length, width, height), mm 215 x 215 x 90

Weight in individual packaging, grams 1050

Number of products in a group package, pcs 12

Antennas-characteristics :

Operating frequency range, MHz 4900-6100

Antenna gain, dBi 20

VSWR in the operating frequency range, not more than 1.6

Polarisation Linear

Wave resistance, Ohms 50

Maximum input power, W 50

Connector N- female SMA-female

Allowable wind load, m/s 30

Operating temperature range, oC -50 … +90

Maximum permissible air humidity, % 100

Communication Standard WiFi 5GHz

Mounting type on the pipe

Execution type Panel version

MIMO Support No

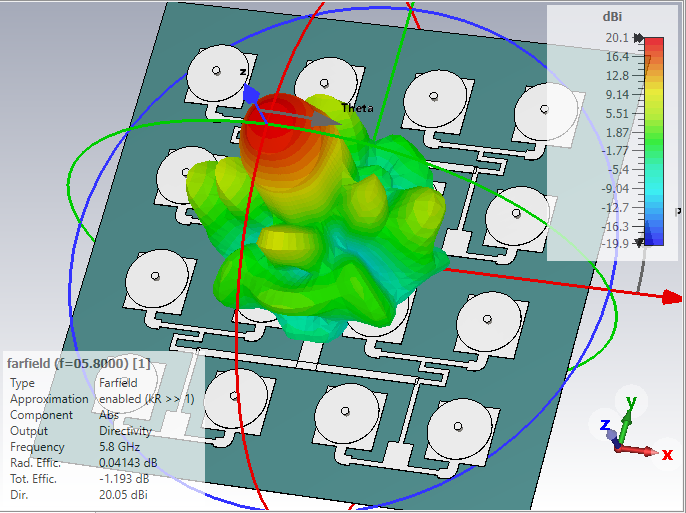

,,,and I still tried to simulate this antenna....!!!!
