Waveform UWB (0.6-6Ghz) 4by4 MiMo

Started by clanon,

Posted

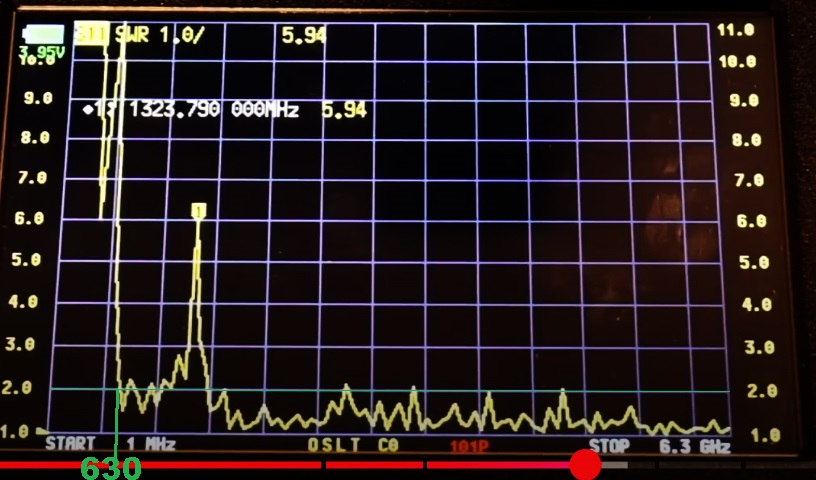

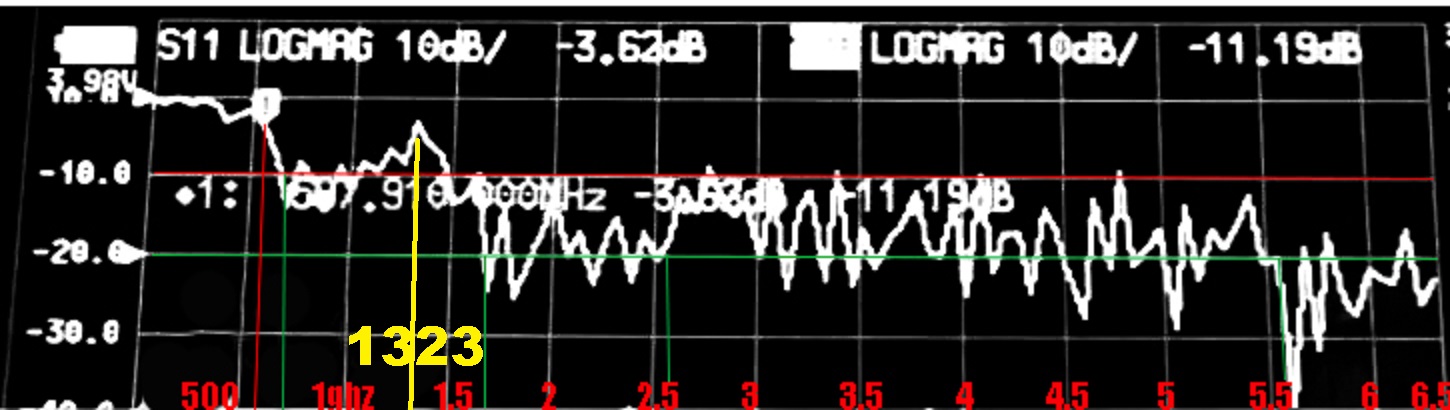

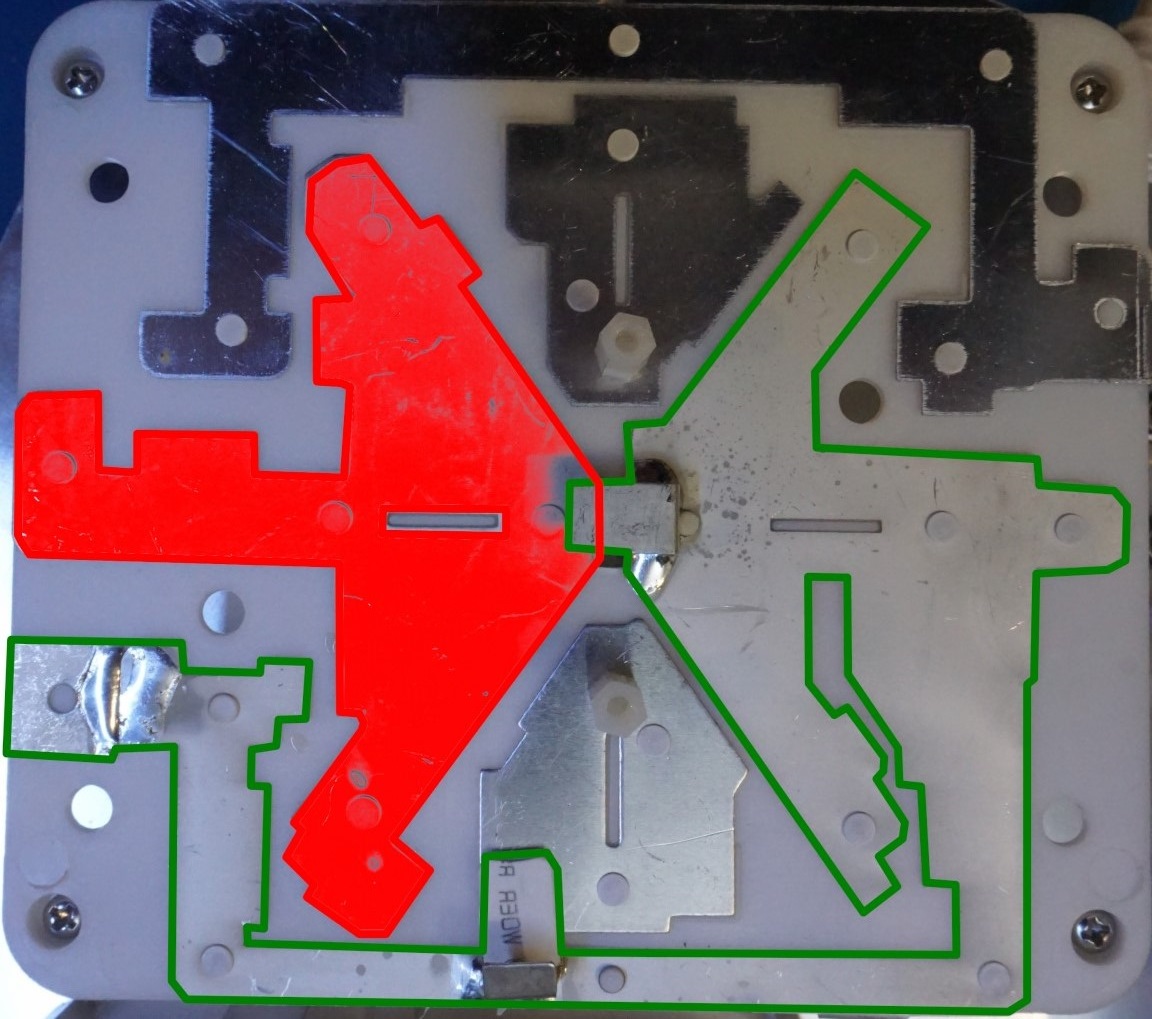

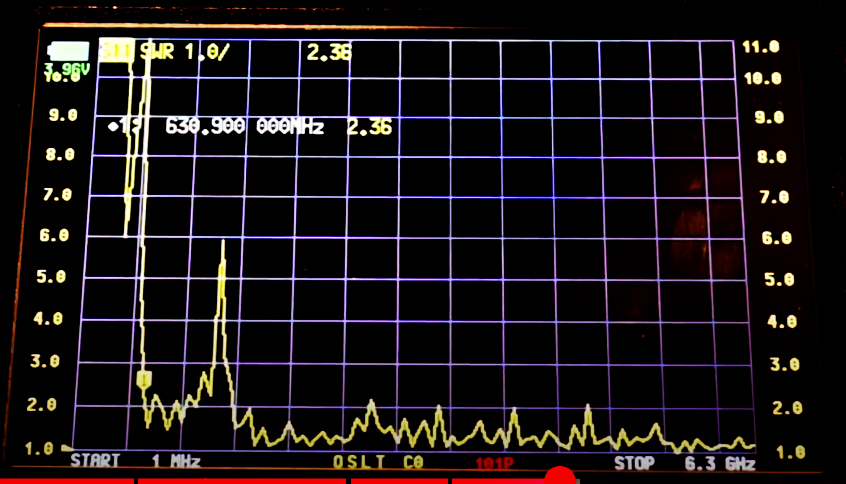

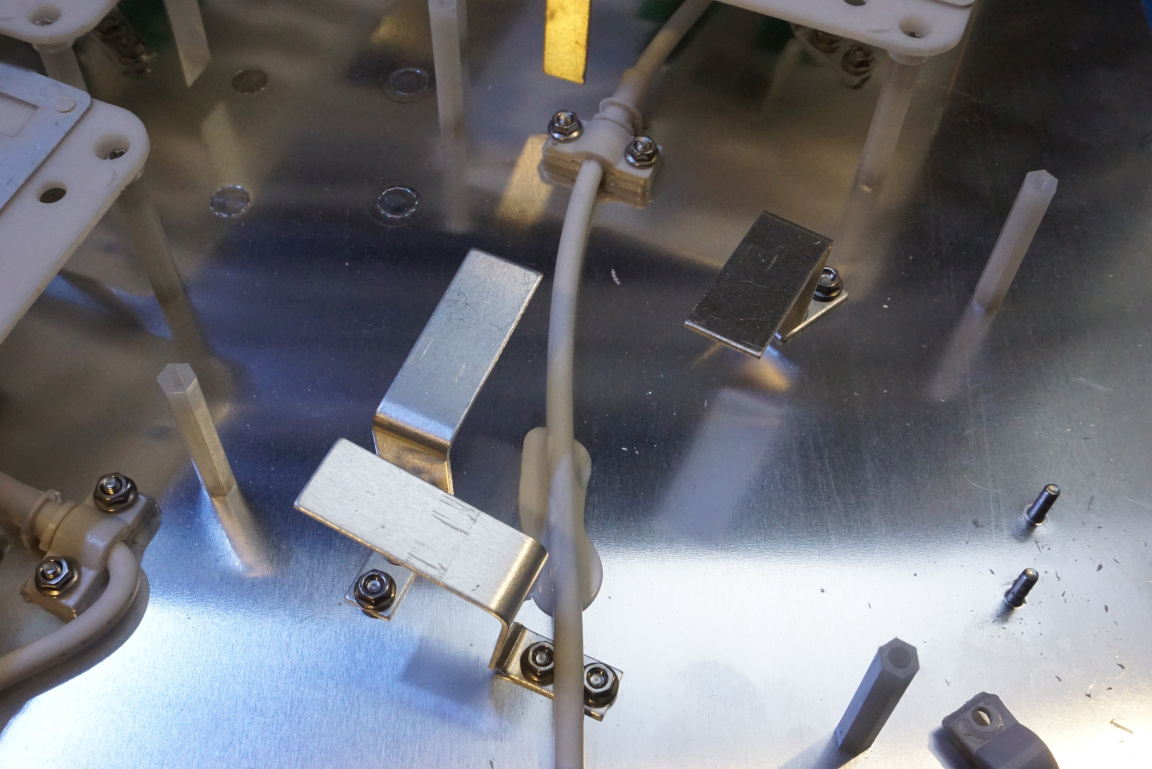

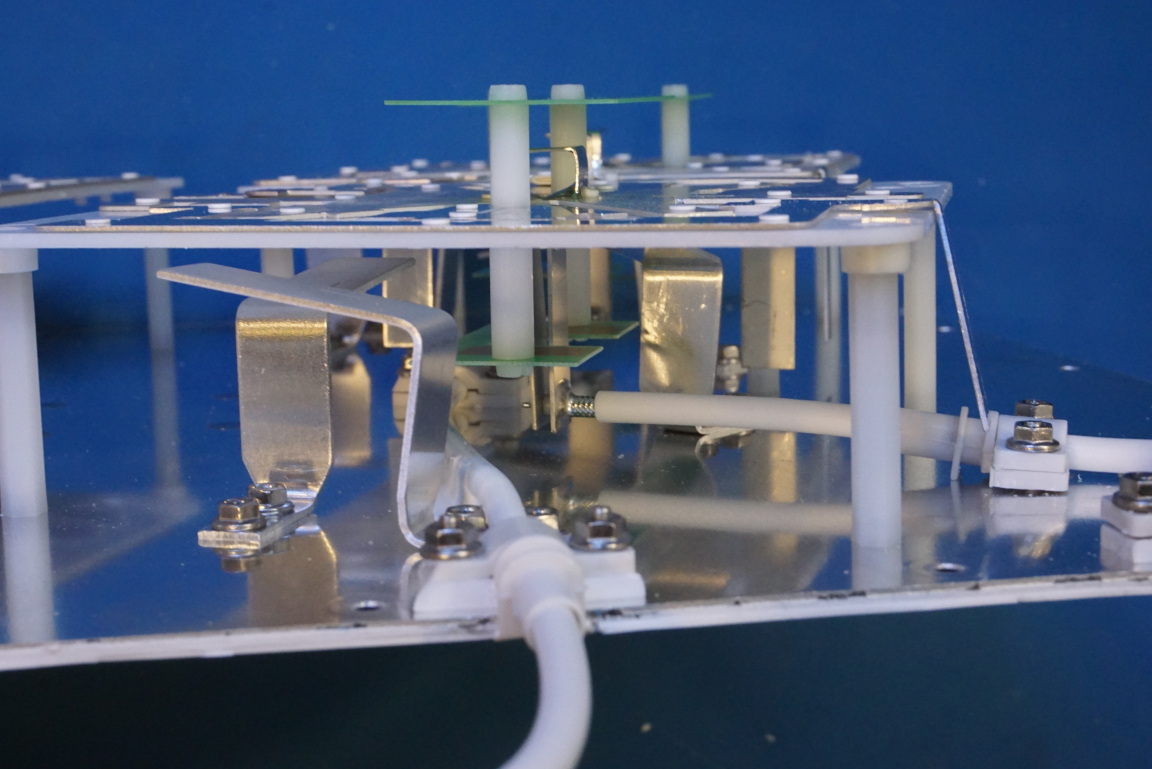

Kerry D. Wong disassembling and test (VNA)

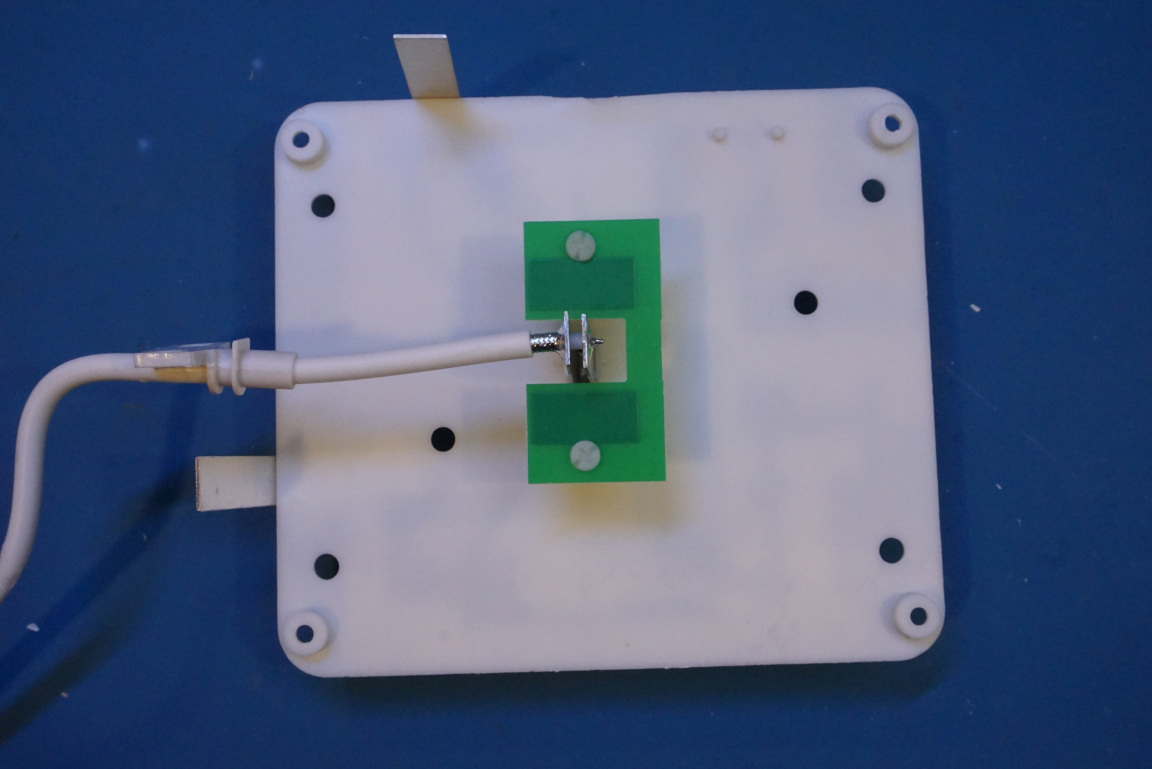

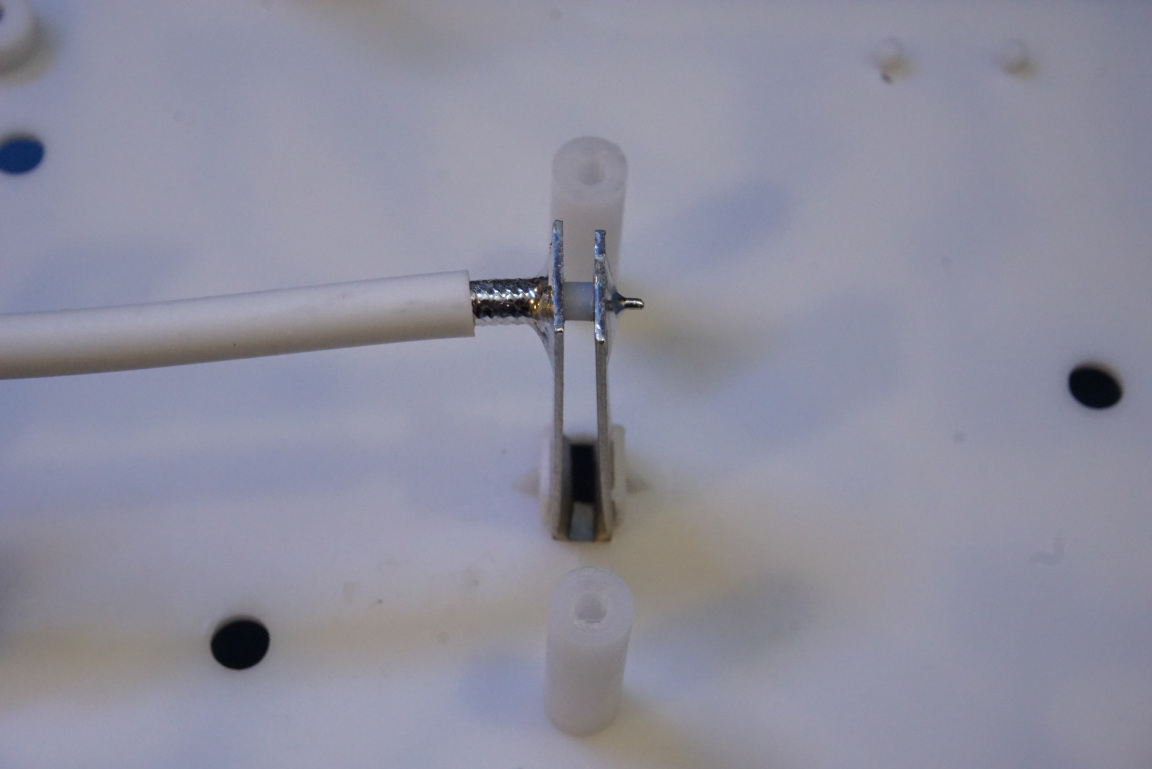

Teflon PTFE allows for a very small footprint ,(smallest UWB antenna I know)

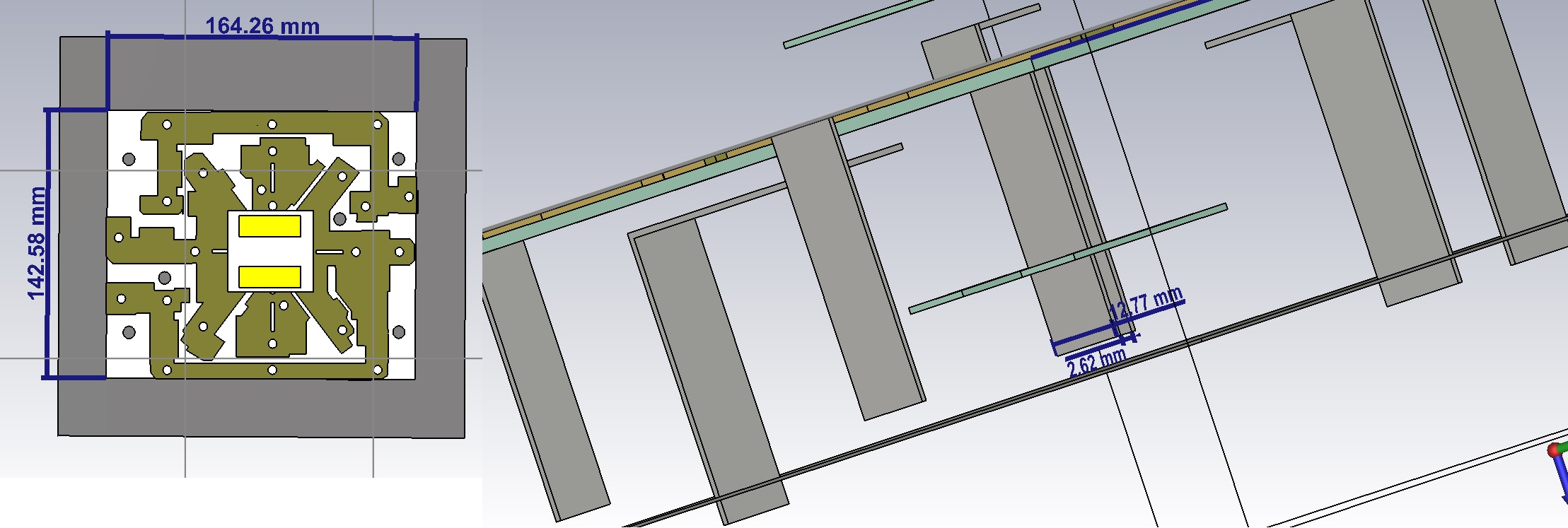

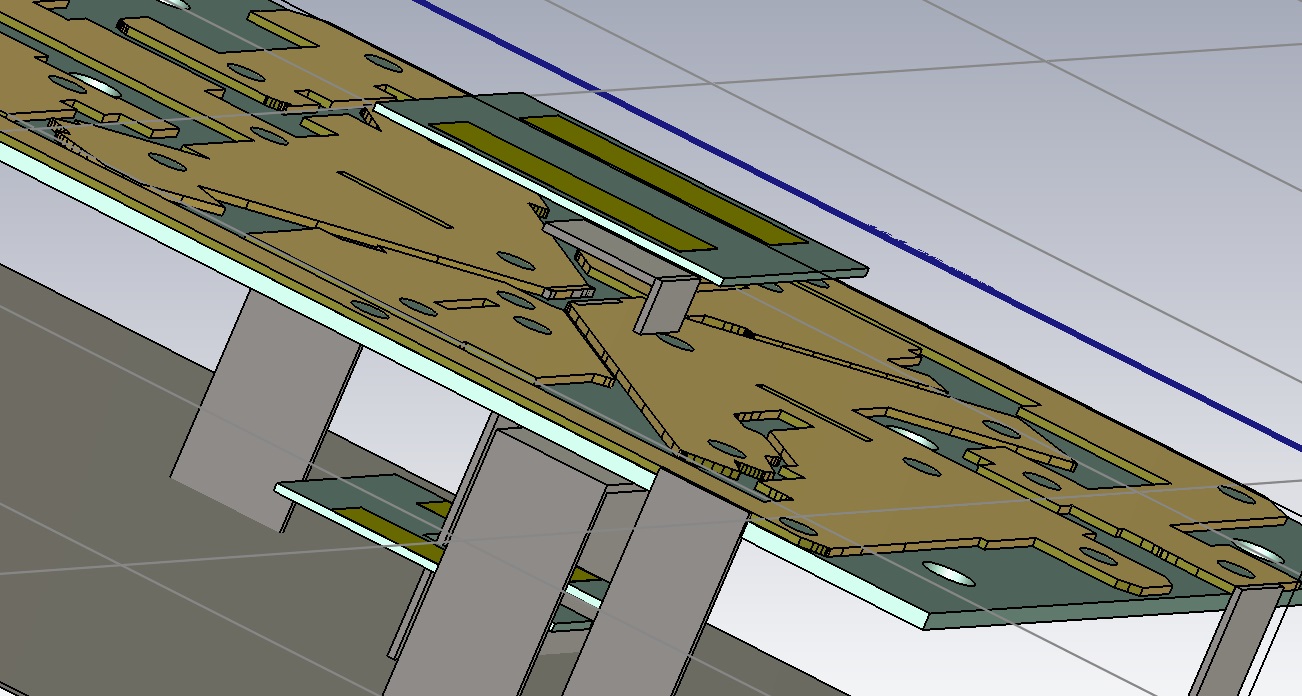

Not as good as my own LPDA ...but it could be tried on double sided PCB...(still working on it , Needs tweaking)

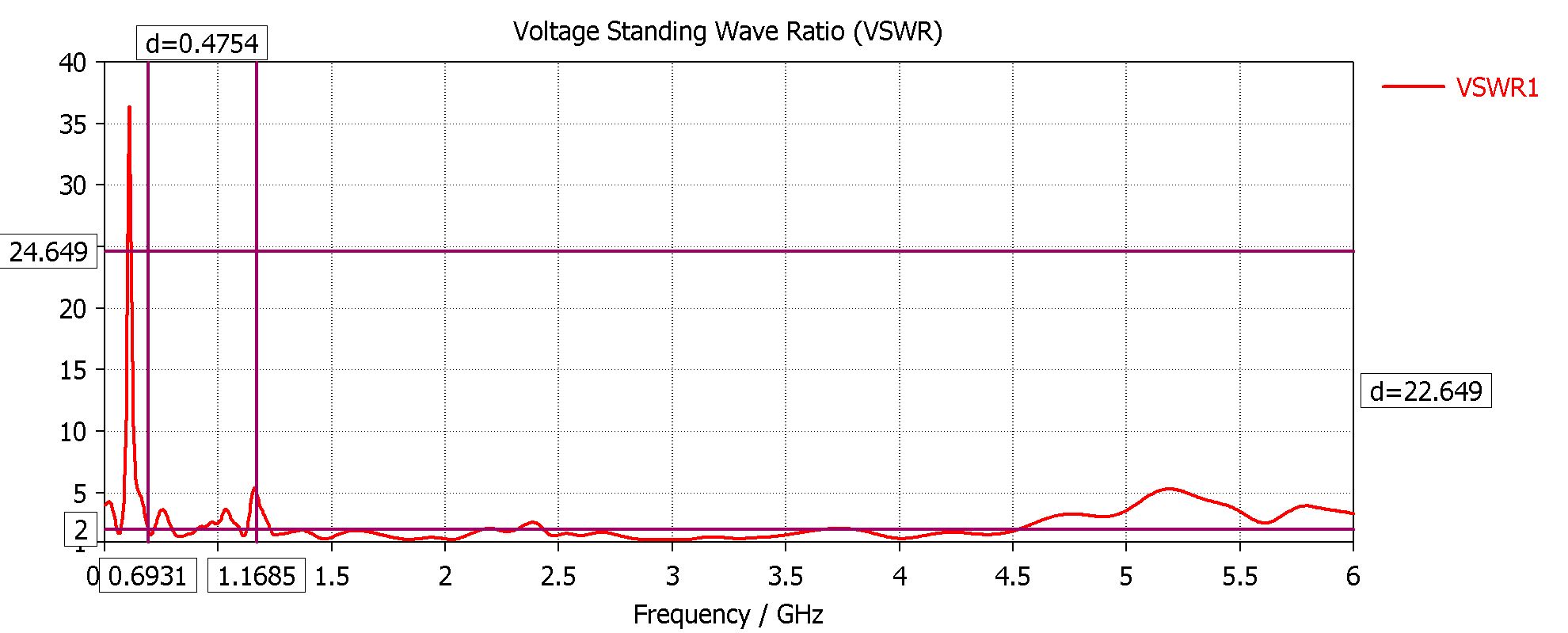

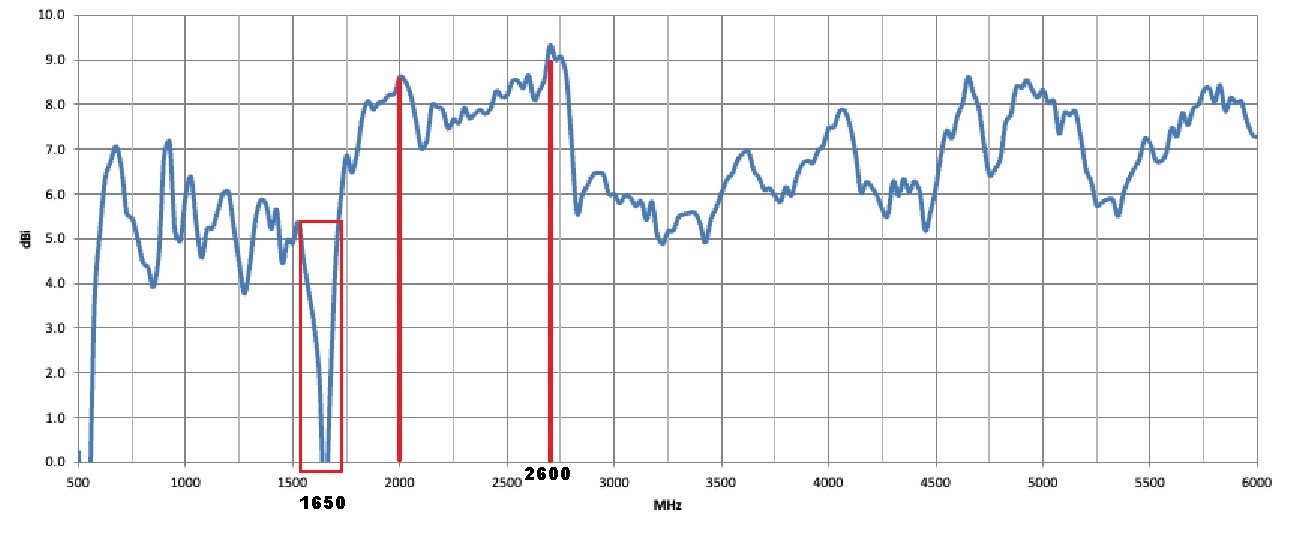

ALL this UWB have great gain beyond 3 ghz...not so much under it and almost NO GAIN close to 500 Mhz...(too small , too SHORT)

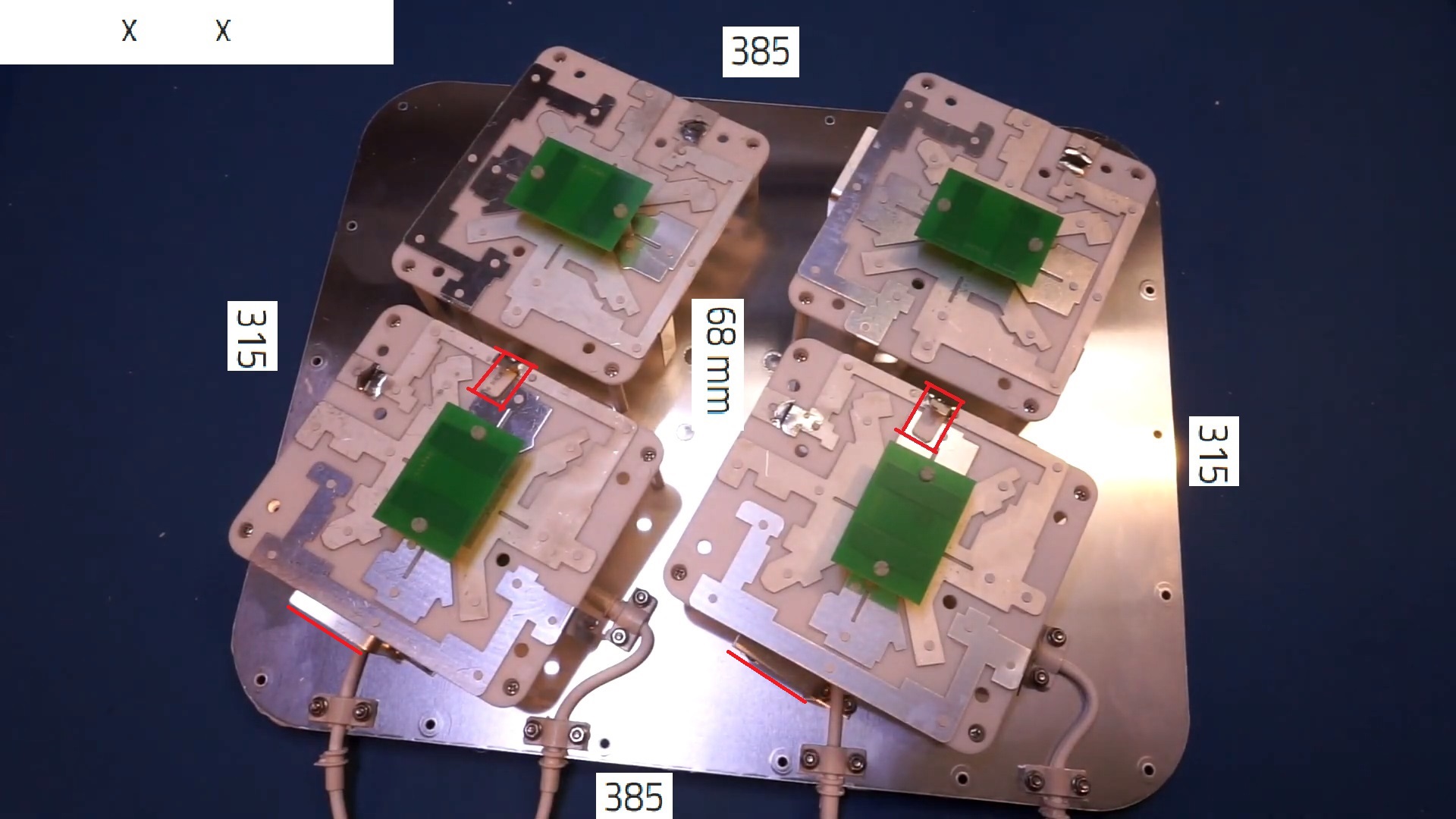

Teardown, Analysis of a Waveform 600 MHz to 6 GHz Cross-Polarized 4x4 MIMO Panel Antenna.mp4_snapshot_02.24.550.jpg
