R-Net antenna 690 960

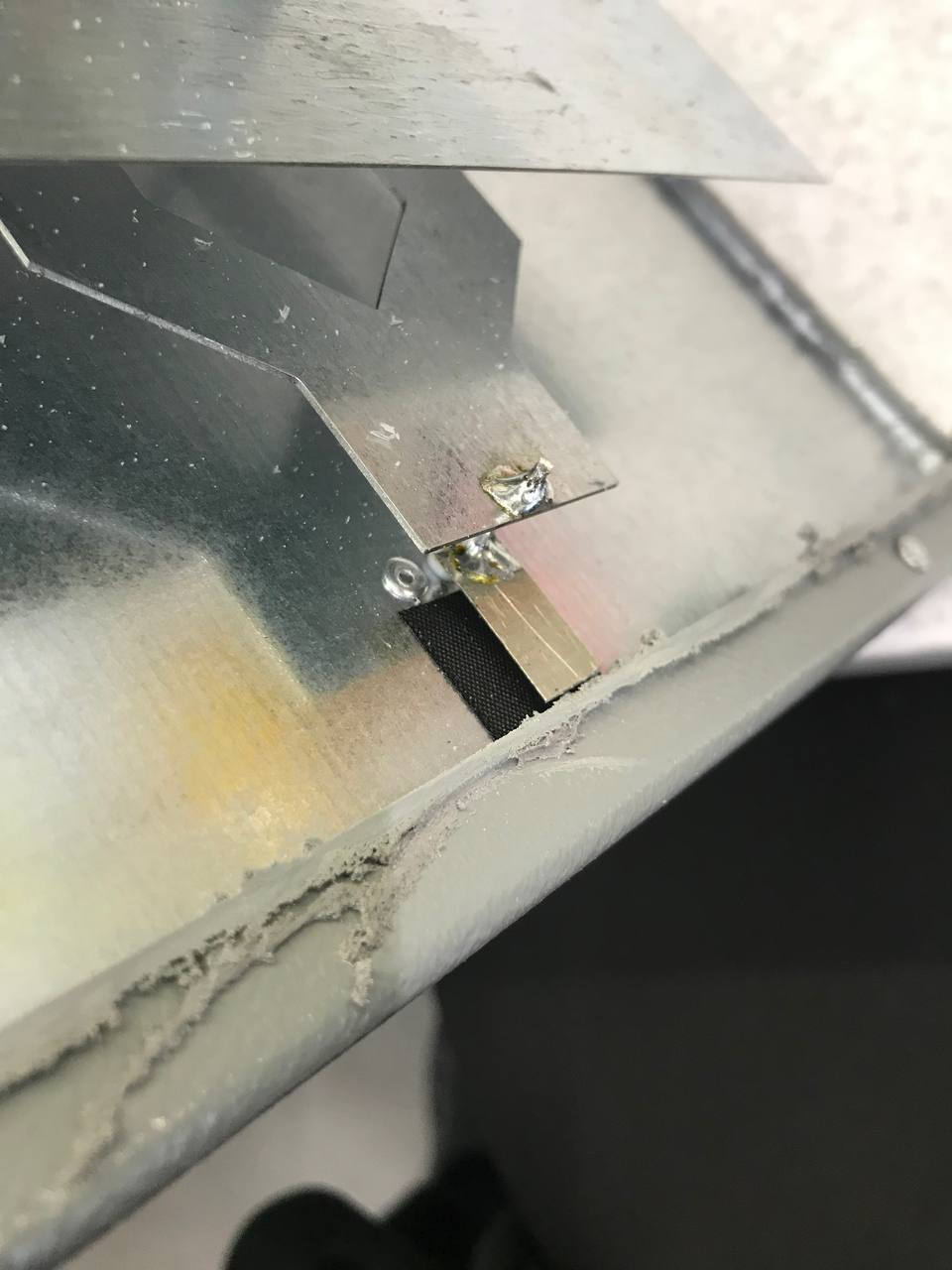

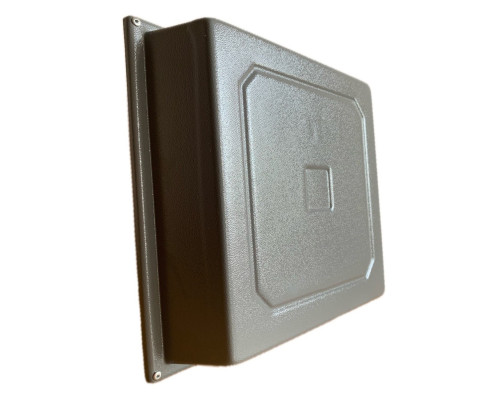

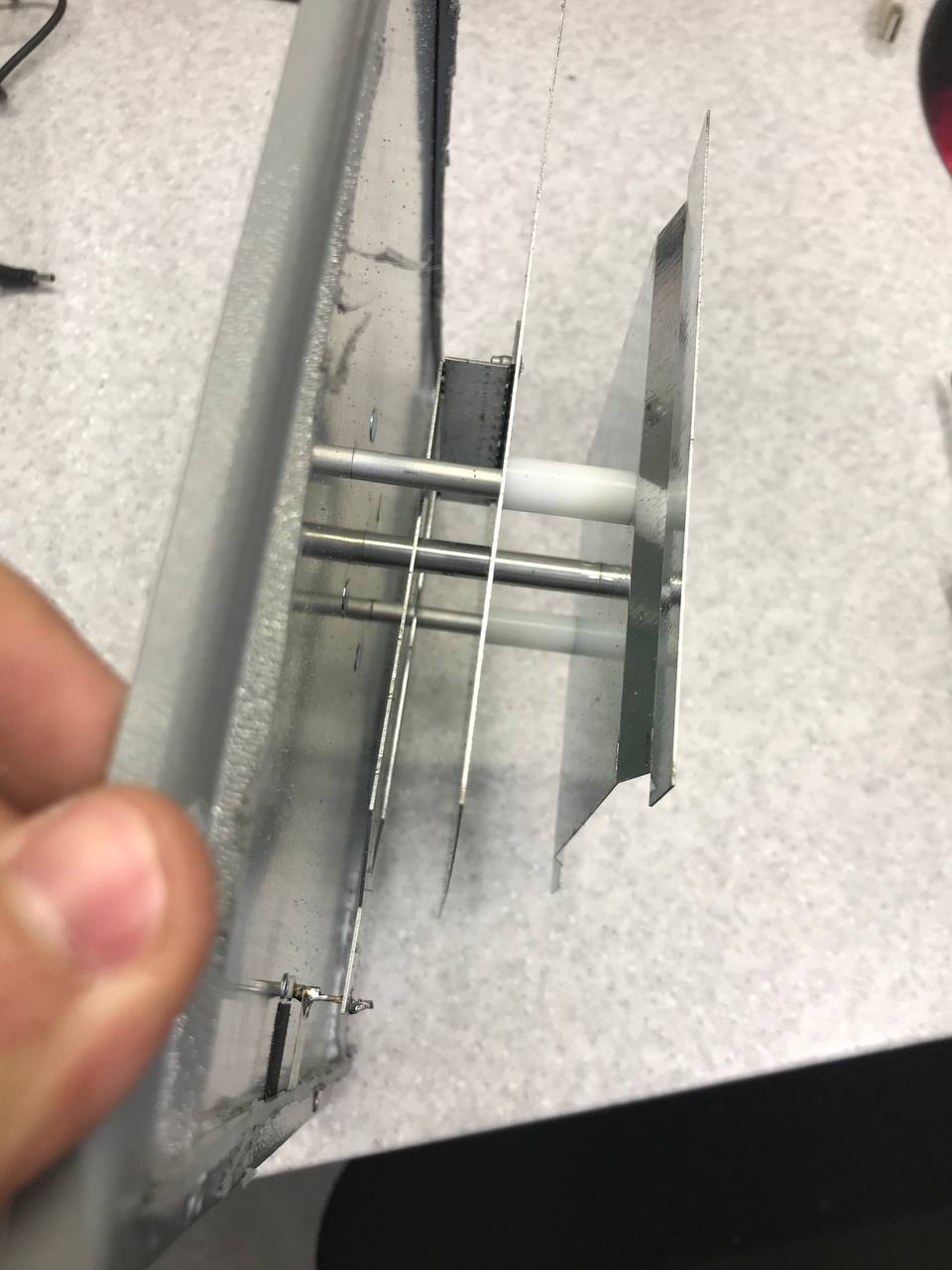

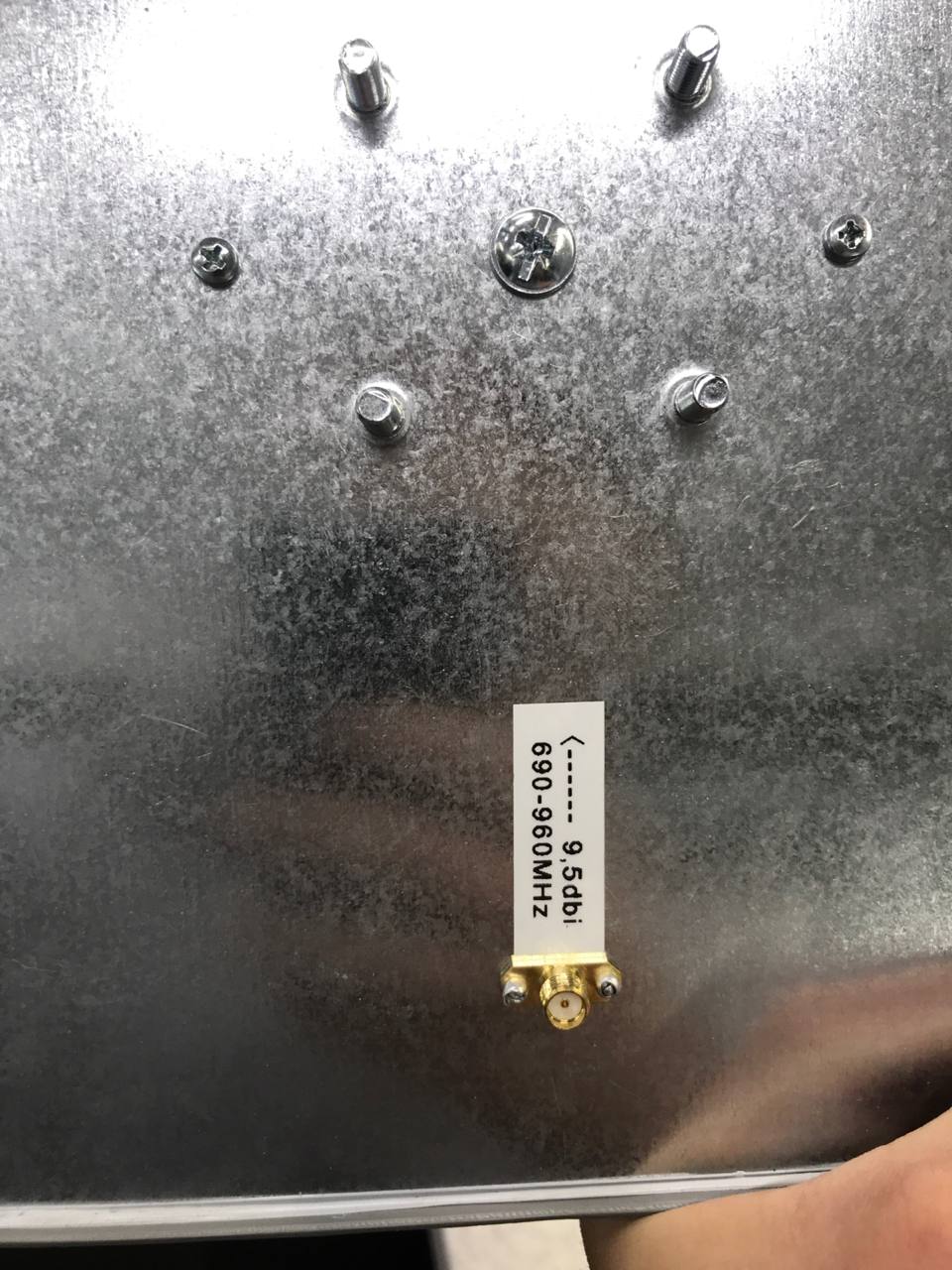

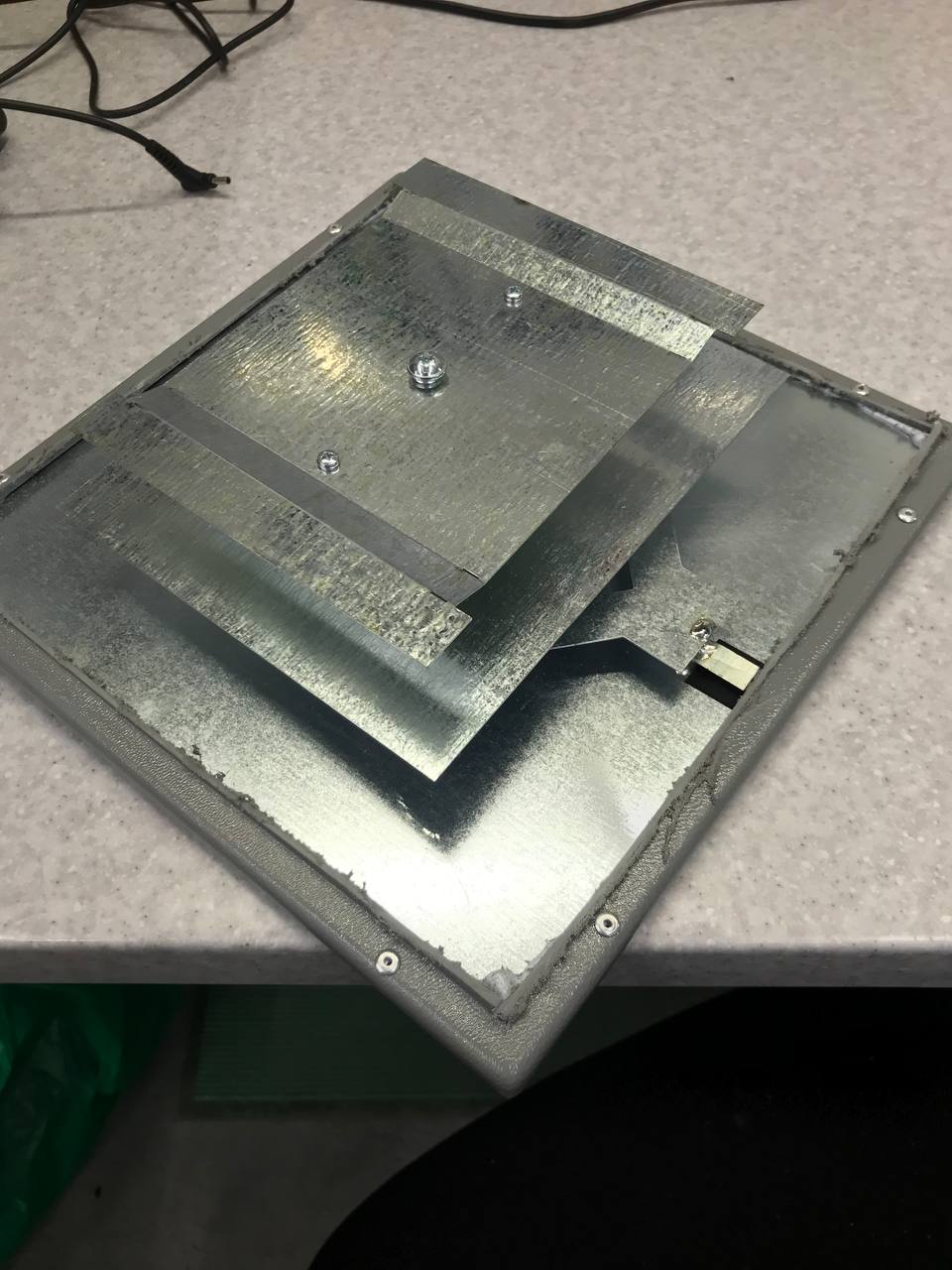

I got my hands on such an antenna, and I can provide the dimensions for copying.






2 people like this

Share this post


Link to post
Share on other sites

Please, if possible, post the dimensions as well.

2 people like this

Share this post


Link to post
Share on other sites

This is Patch Antenna for Controlling FPV Drones ....????

Share this post


Link to post
Share on other sites
34 minutes ago, Admin said:

This is Patch Antenna for Controlling FPV Drones ....????

It can be used for 4G LTE as well as for controlling FPV drones

Share this post


Link to post
Share on other sites

You have the dimensions....???

Share this post


Link to post
Share on other sites

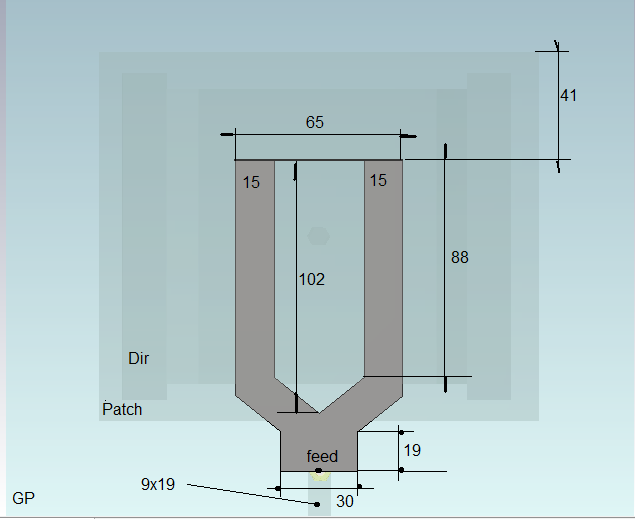

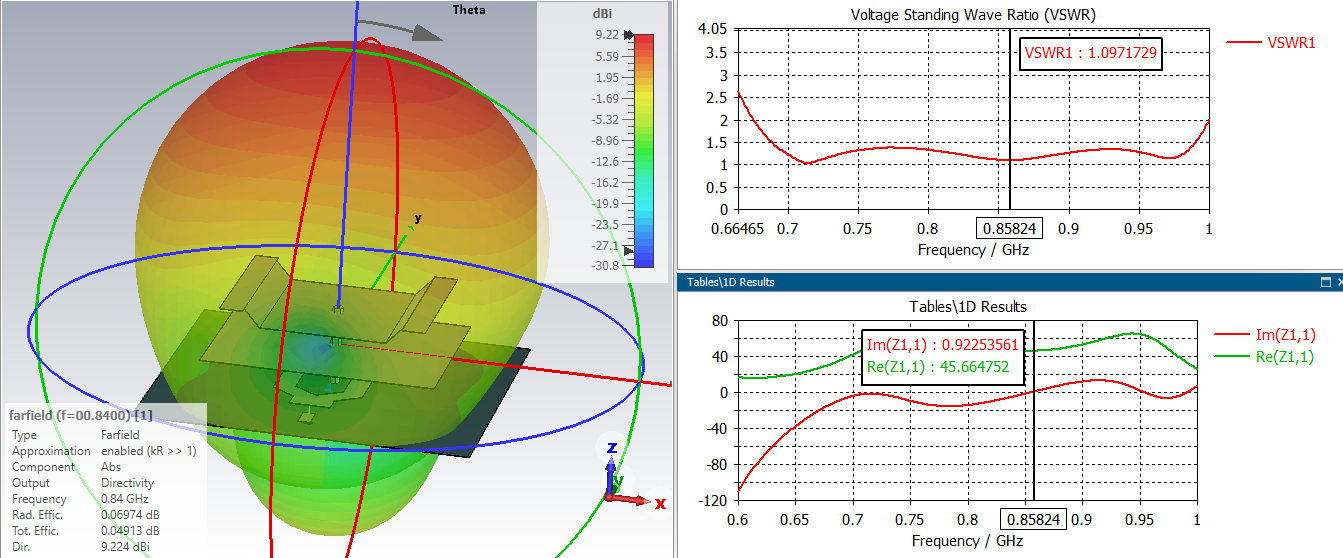

,,,according to the dimensions given by KSM , I did the simulation with the following results...


,,,it seems that this type of antenna is quite good considering the frequency bandwidth.

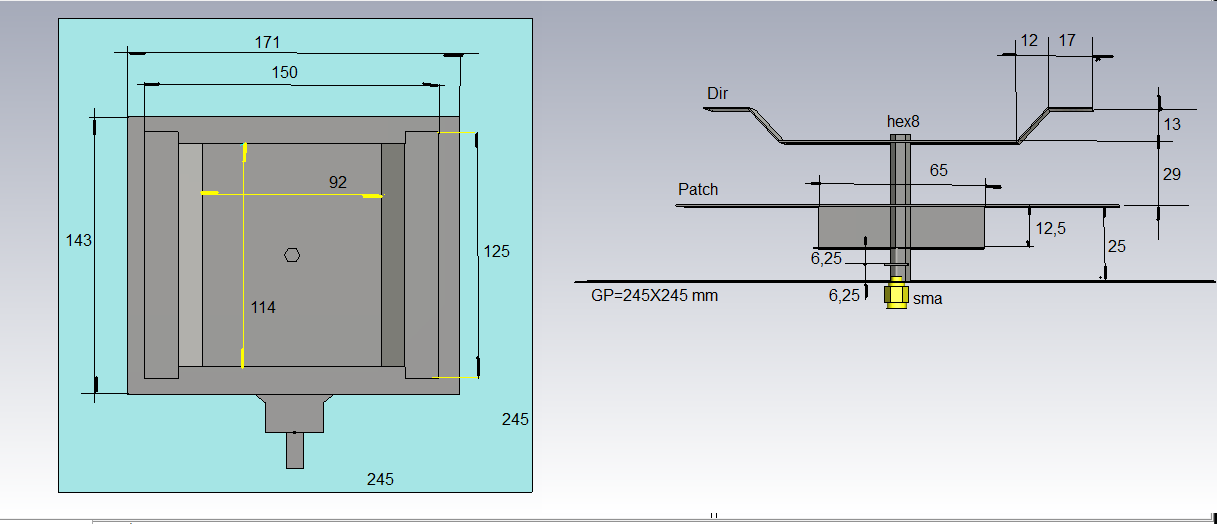

,,,and some constructive details...





2 people like this

Share this post


Link to post
Share on other sites
