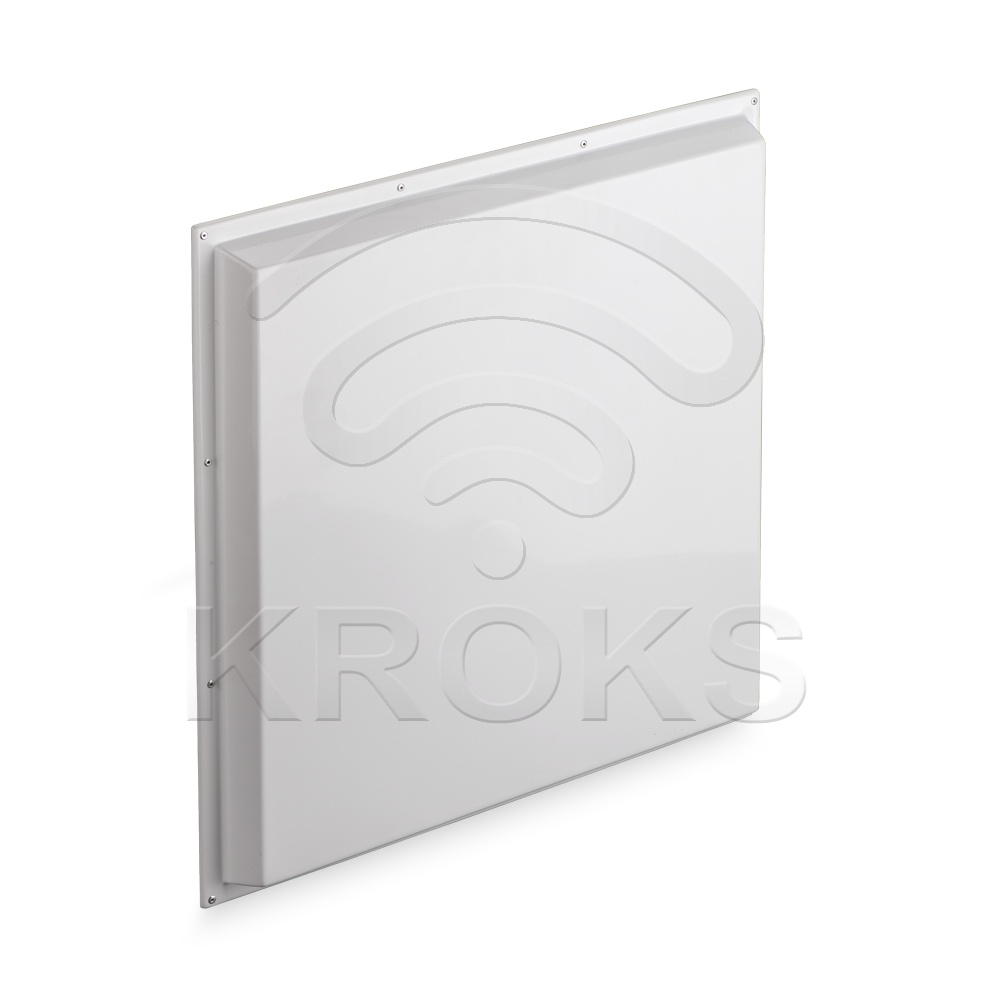

Broadband panel antenna 4G/3G/2G KP20-1700/2700 (17-20dB)

Broadband antenna 2G/3G/4G/WIFI. Gain 20 dB.
Supports standards LTE1800, GSM1800, UMTS2100, WiFi2400, LTE2600.
It is recommended to use complete with 3G/4G modems and GSM1800/3G repeaters.

Panel antenna KP20-1700/2700 is designed for use with 3G, 4G, YOTA modems, GSM/3G repeaters in the range of 1700-2700 MHz.

The antenna is compatible with the equipment to the following standards:

2G(EDGE, GPRS frequencies GSM1800)
3G (UMTS 2100)
4G (LTE1800, LTE2600)
2.4 GHz WI-FI (IEEE 802.11 b, g, n)
A wide range of operating frequencies of the antenna enables 3G/4G modems to work effectively at the boundaries of the service areas 4G. The modem will automatically switch to the 3G standard, in the absence of a 4G signal, and the antenna will provide a high-quality signal in both bands.

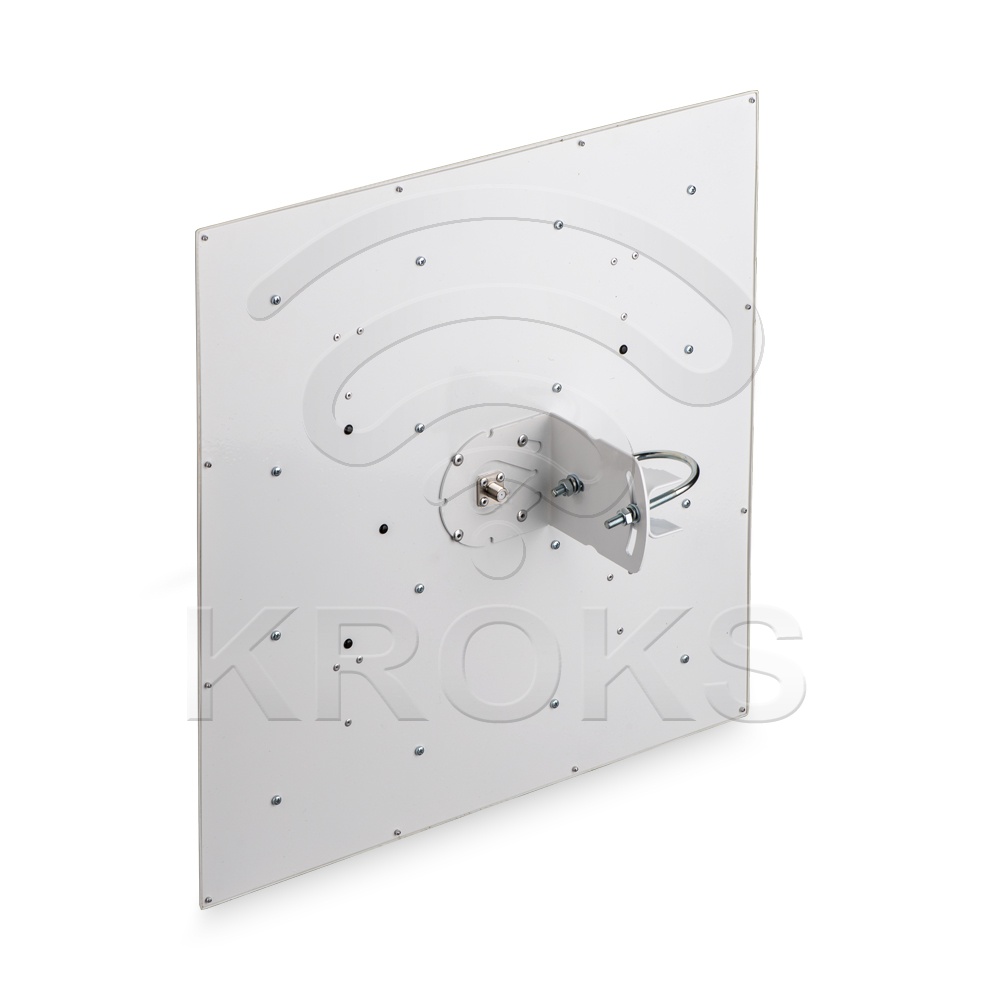

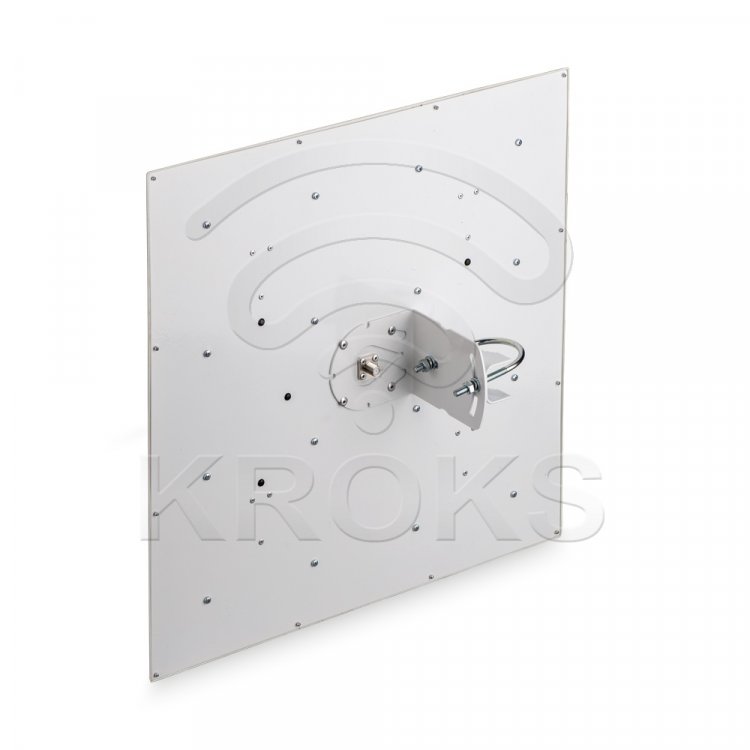

The body of the antenna is made of ABS plastic resistant to UV radiation and precipitation. The antenna input has short circuit DC current between the outer and inner conductors, which reduces the probability of accumulation of static electricity at the input of active equipment, reducing the probability of failure from static electricity, and makes optional the use of gazorazryadnoi. Antenna mount designed for installation on a vertical pipe with a diameter of 32-40 mm. and allows you to adjust tilt.








Dimensions (length , width , height ), mm 445 x 445 x 80

Antenna - features :

Operating frequency range, MHz 1700-2700

Antenna gain, dB 20

SWR in the frequency range, not more 1.7

Polarization Vertical

Input impedance, Ohm 50

Maximum input power, watts 10

Connector F - female N - female

Permissible wind load, m/s 30

The operating temperature range, oC -40 ... +50

The maximum permissible humidity of air, % 100

Crosspolarization isolation is not less than, dB 0

Connection standard 4G(LTE2600), YOTA LTE 1800 WiFi 2400 GSM 1800 Multi-band 3G (UMTS2100)

Mounting type on the tube

Execution type directed

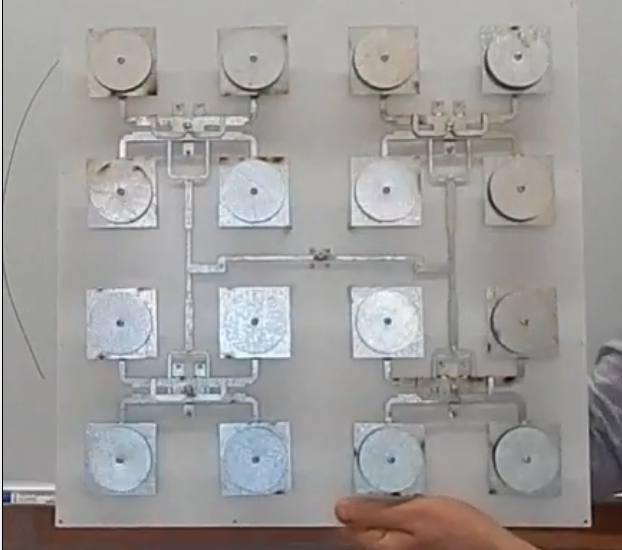

A very good movie on the subject, the author Maxim Dakhin (firm Crocs)...
