Admin

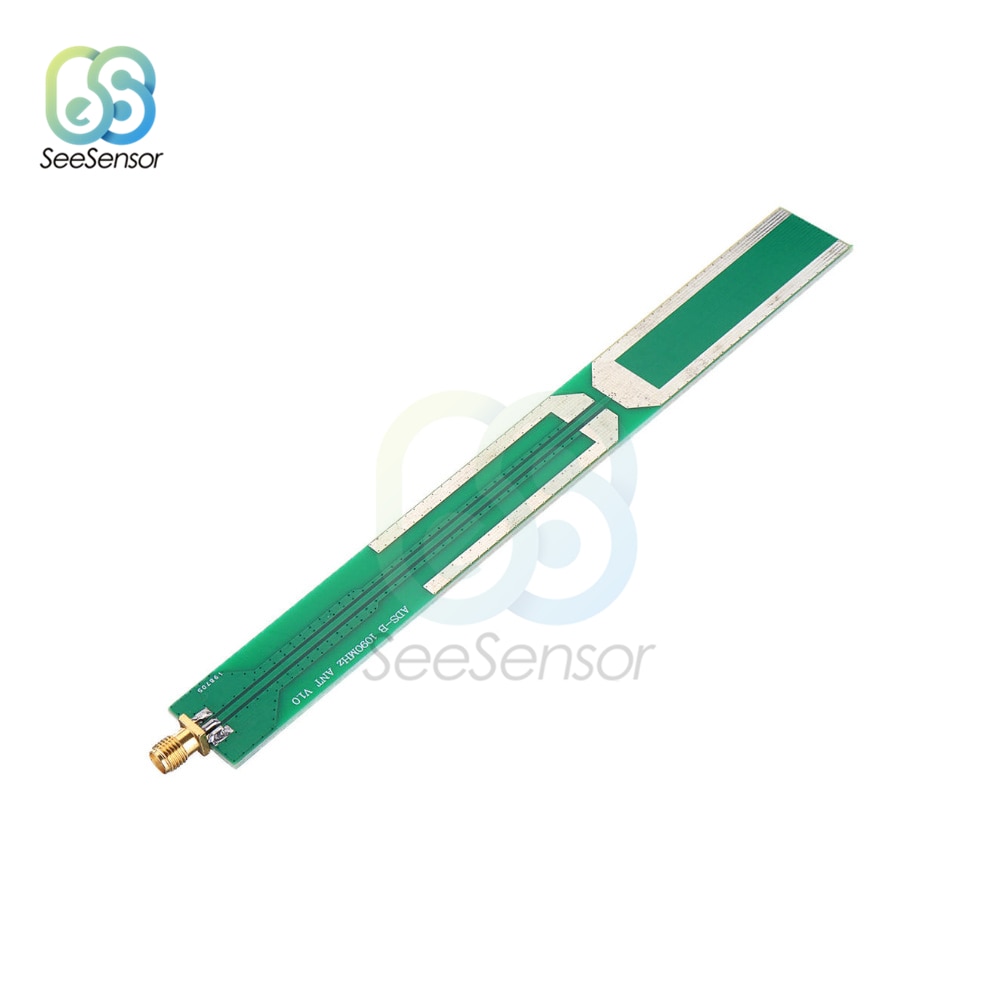

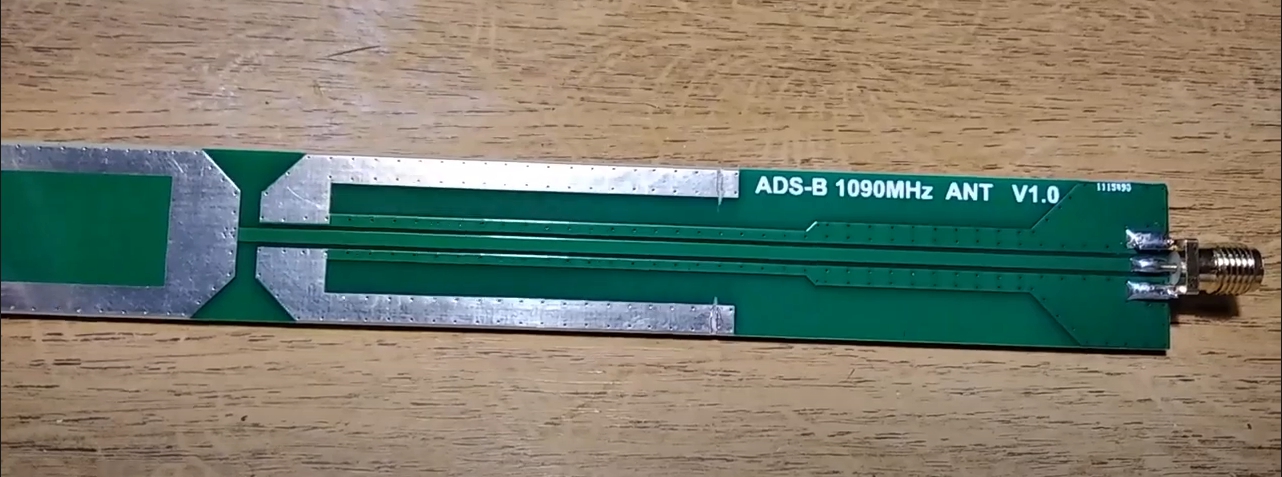

1 pc ADS-B active receiving antenna 1090 MHz

1) Operating frequency: 1090 ± 15MHz

2) Passive gain: 2dBi (dipole antenna)

3) Antenna polarization: Omni-directional vertical linear polarization

4) Active gain: 20dB

5) deviation from the external range: >30 dB

6) Working voltage: 2.5-5.5 V (negative core only)

7) Working current: 80mA

8) System resistance: 50 ohms

9) Antenna weight: 15g

10) Dimensions: 20 × 170 mm

11) Connector shape: SMA standard female head (outer inner screw hole)
