REMO BAS-5106 RADAR

General information of the indoor antenna " REMO BAS-5106 RADAR»

The REMO BAS-5106 RADAR TV antenna is designed for receiving television programs in the frequency band 174...862 MHz (channels 6 to 69 MV and DMV). The antenna receives analog and digital TV signals in DVB-T/DVB-T2 format.

Depending on the design, the antenna can be active or passive. The built-in active antenna amplifier can receive power either via a coaxial cable directly from a digital receiver (receiver) or a TV with a DVB-T2 tuner (model REMO BAS-5106 RADAR), or from a USB injectorthat can be connected to the TV's USB port or power supply unit with USB output.

Main technical characteristics of " REMO BAS-5106 RADAR»

* Antenna placement: indoor;

* Antenna type: Broadband TV antenna;

* Gain, max., dBi, 6-12 channels: 15;

* Gain, max., dBi, 21-69 channels: 26;

* Wave resistance, Ohms: 75;

* Package dimensions, mm: 265×240x35;

* Weight, not more than, kg: 0.35;

* Cable length, m: 1.2;

* Amplifier and power supply: Yes;

* Power supply voltage, V: 5.

Scope of delivery "REMO BAS-5106 RADAR»

* Antenna Assembly, PCs. - 1

* Injector*, PCs. - 1

* Warranty card, PCs. -1

* Packing, PCs. - 1

* - for the antenna model " REMO BAS-5106USB RADAR»

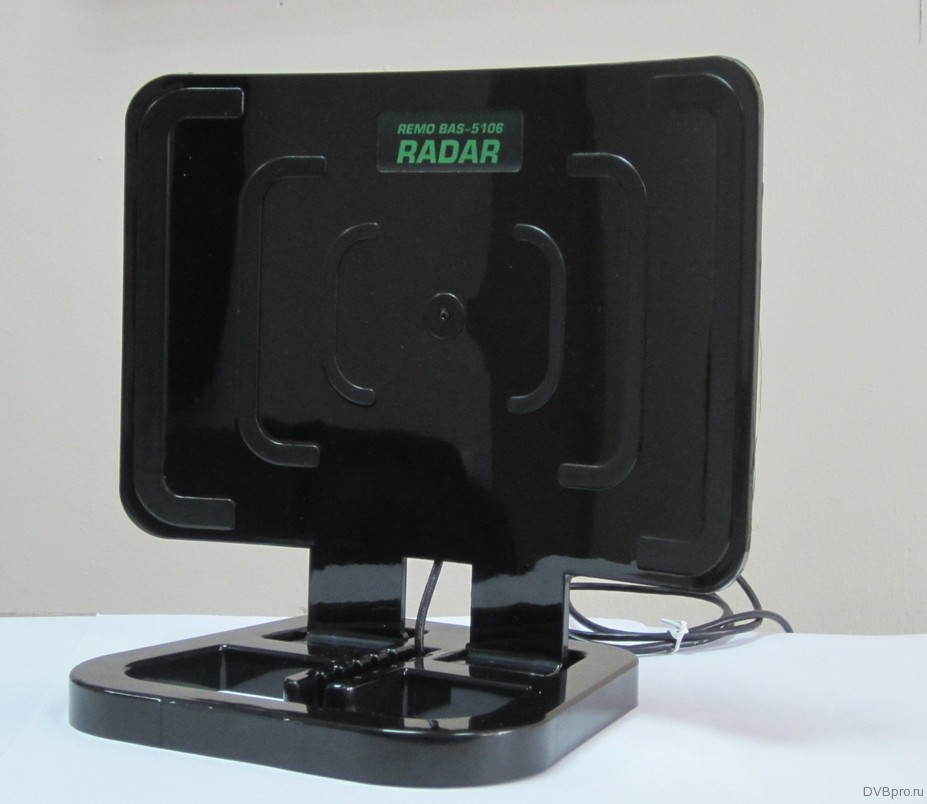

Appearance and overall dimensions of the "REMO BAS-5106 RADAR" antenna»

It is worth noting that the appearance of the antenna is non-standard, and indeed resembles a radar.
