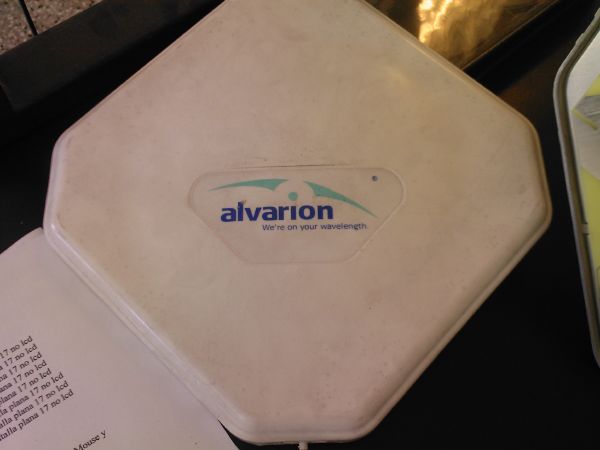

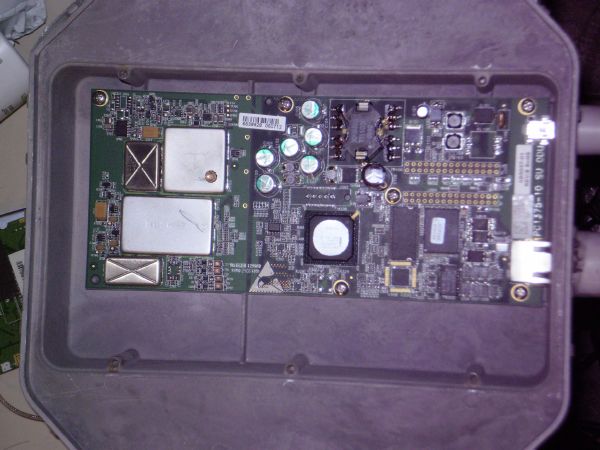

Alvarion Patch Array

Originally for wimax 3.5 ghz (it SHOULD be more than 18dbi)

 (circular Polarization)

Trying to rebuilt it for 2.4 ghz

PS: doubts about the Dielectric material...(rexolite , fiber glass...?)

very similar to http://Ionica 19 db , 3.5 ghz

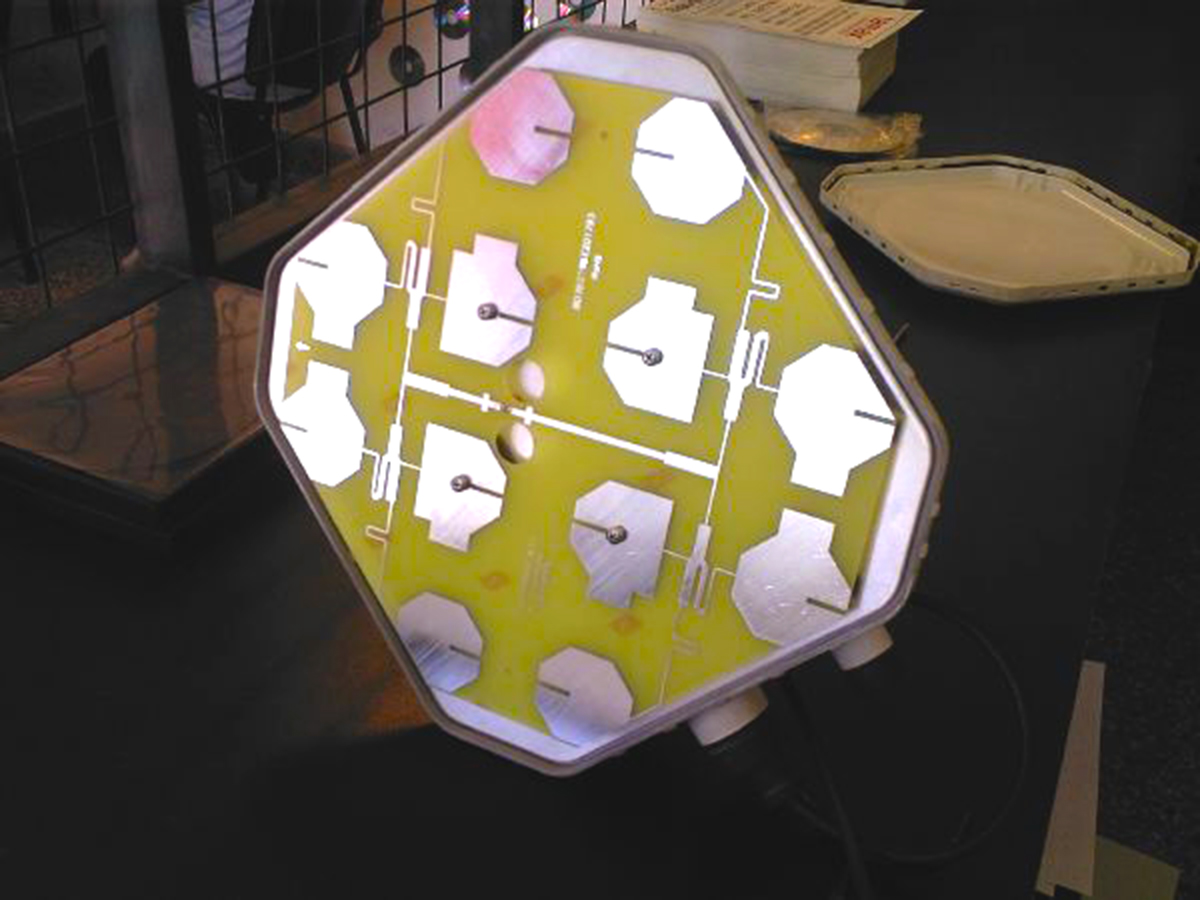

alvarionwimax2 (1).jpg


Share this post


Link to post
Share on other sites

for wifi (2,4ghz) ...? (close to 19dbi)

it's hard  to draw ...with precision...and originally is for 3.5ghz...

performance NOT guaranteed...but if you wanna try...

1 person likes this

Share this post


Link to post
Share on other sites
6 hours ago, clanon said:

for wifi (2,4ghz) ...? (close to 19dbi)

it's hard  to draw ...with precision...and originally is for 3.5ghz...

performance NOT guaranteed...but if you wanna try...

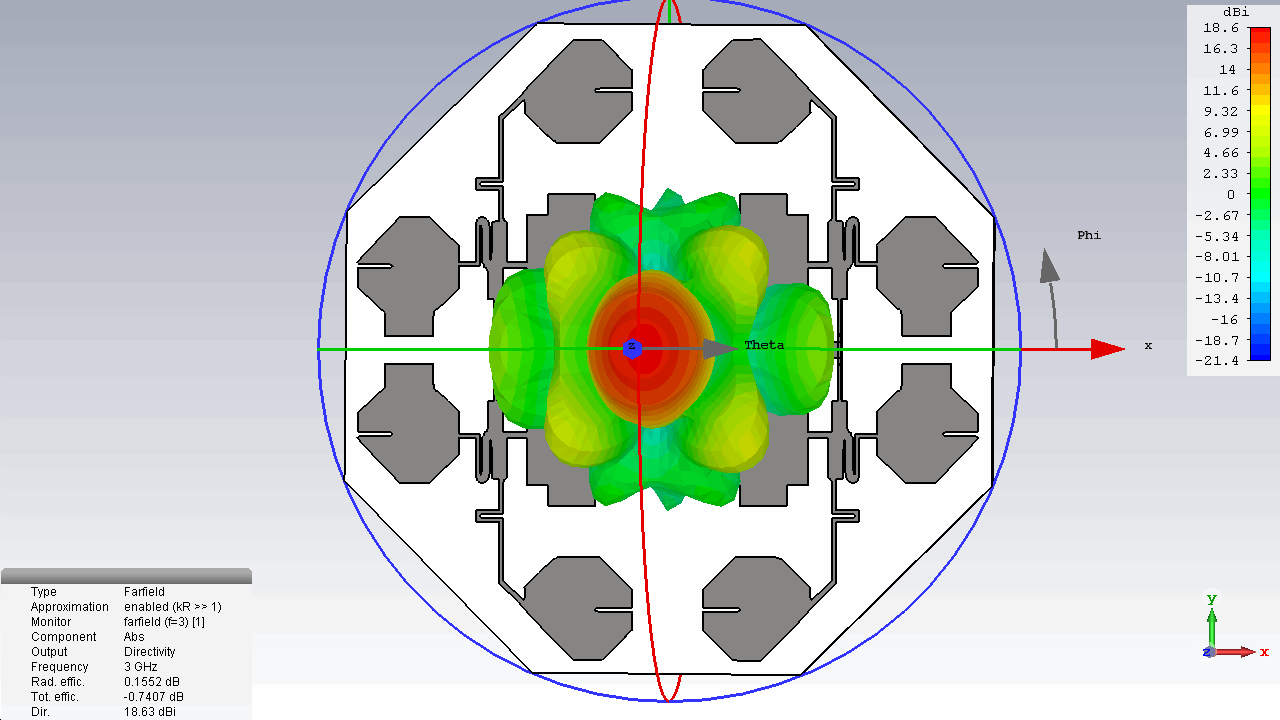

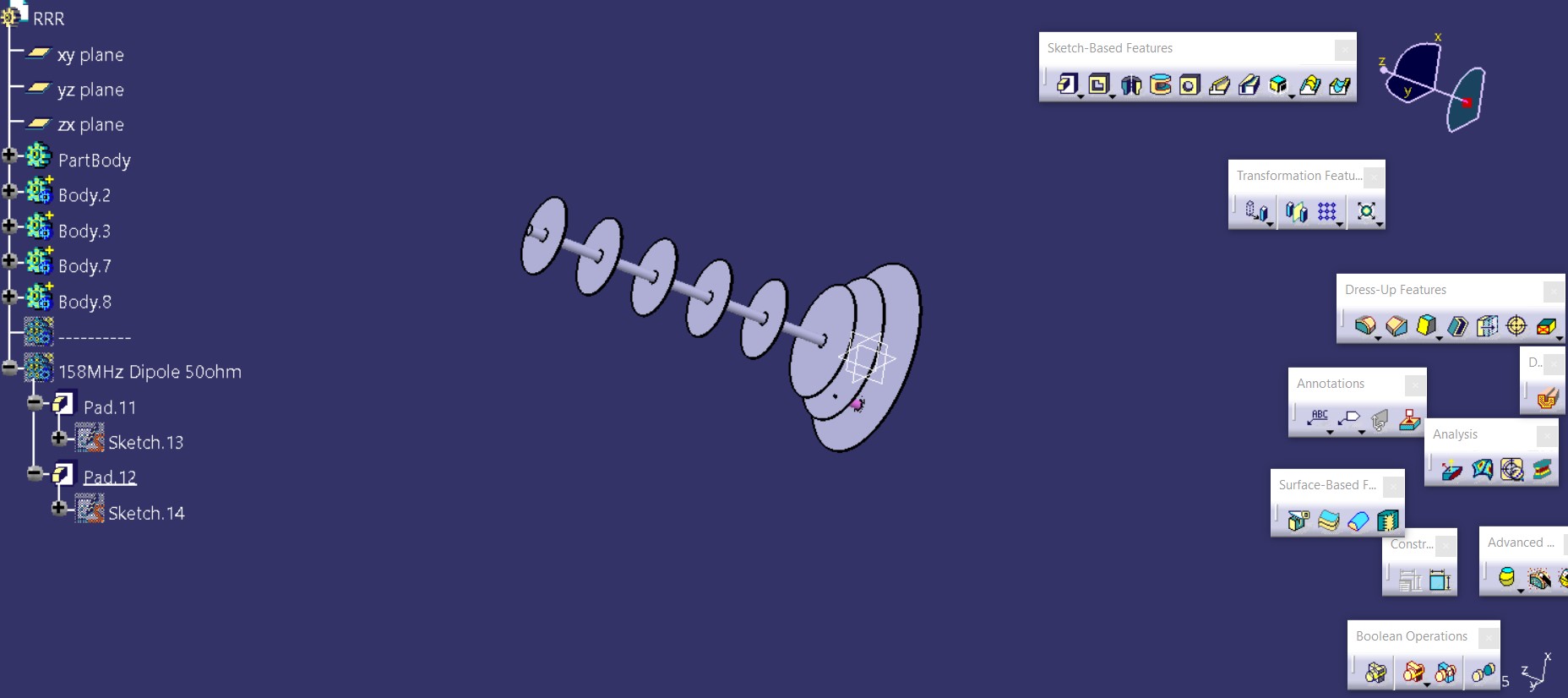

it is better to design Antenna in Professional CAD softwares and then import 3d file to CST. I use CATIA to design 3D files. it is so more easier and faster to create accurate 3d geometry.



Screenshot 2021-06-17 084638.jpg

1 person likes this

Share this post


Link to post
Share on other sites
