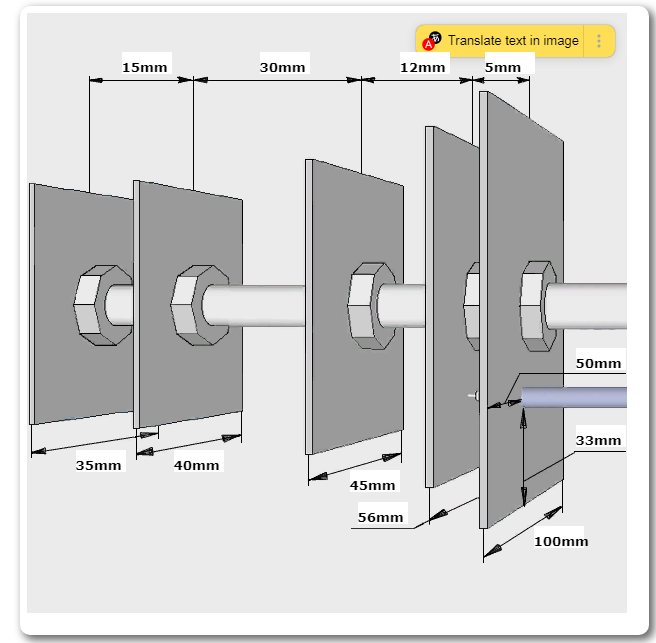

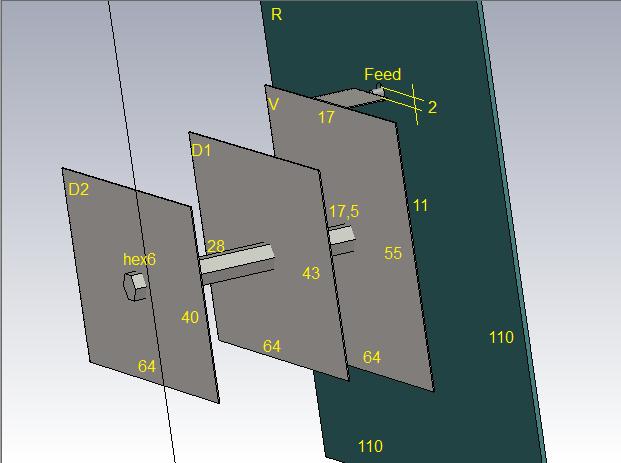

Rectangular Patch-Yagi Antenna

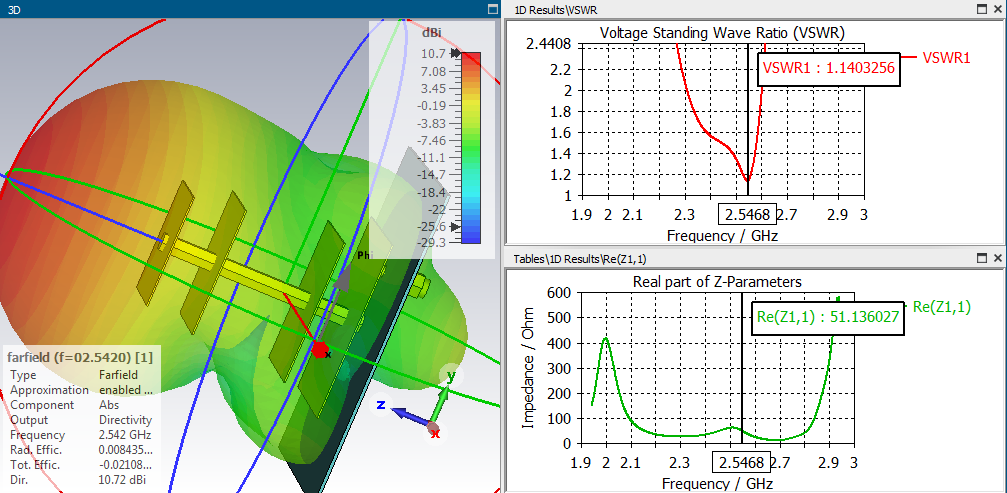

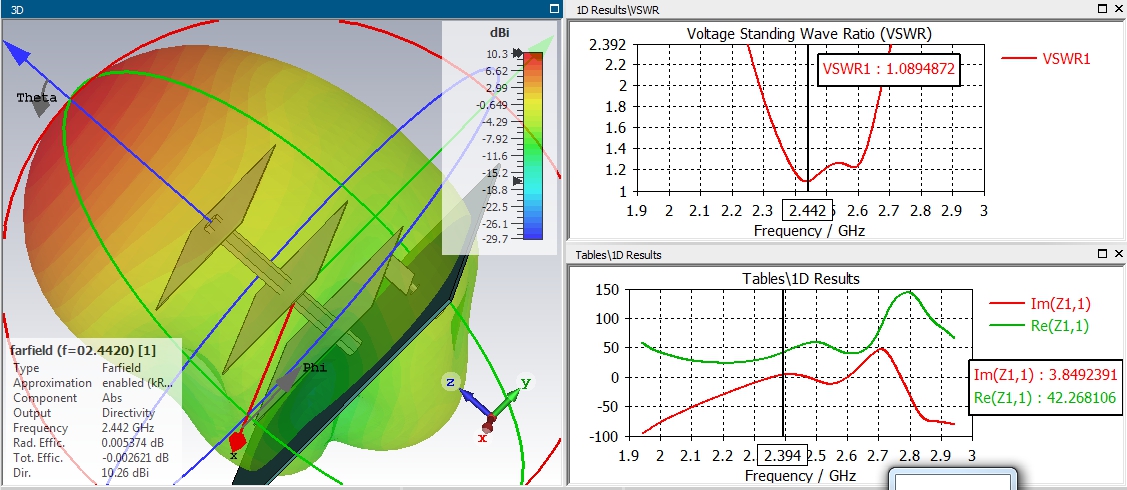

A novel miniature wideband rectangular patch antenna is designed for wireless local area network (WLANs) applications and operating for 2,442-2,6 GHz , and wideband applications. The proposed antenna gives a bandwidth of 2,3 to 2.7 GHz for S11<-10dB.

The rectangular patch is easier to make by WiFi enthusiasts...!!!

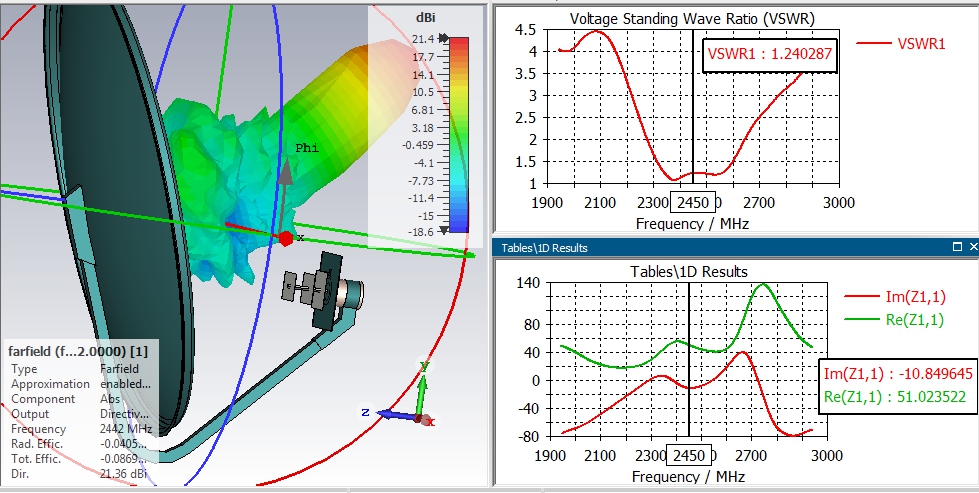

,,, and an antenna position in the focus of an offset dish 600mm
