Universal antenna NITSA-2

Universal antenna NITSA-2 is designed for use with included c cell phones, modems or repeaters standards GSM900/GSM1800/UMTS900/UMTS2100.

Electrical characteristics

Operating frequency range, MHz 890-960/1700-2200

Gain, dBi 9 / 9÷11

The width of the days in H-plane, degrees 70/50

Days width in E-plane, degrees 70/53

Input impedance, Ohm 50

SWR in the frequency range, not more 1,5

Permissible power watts 20

Polarization vertical

Mechanical characteristics

Weight with mount, g 835

Overall dimensions, m 0,2x0,2x0. 045

Connector N-female

The material of the radiator galvanized steel

Material of protective box Polycarbonate+ABS

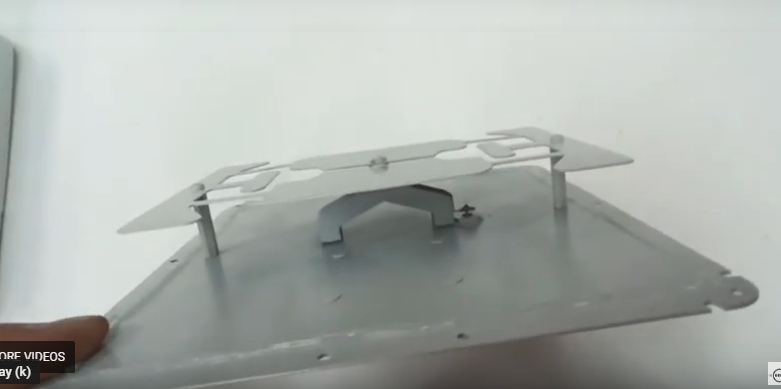

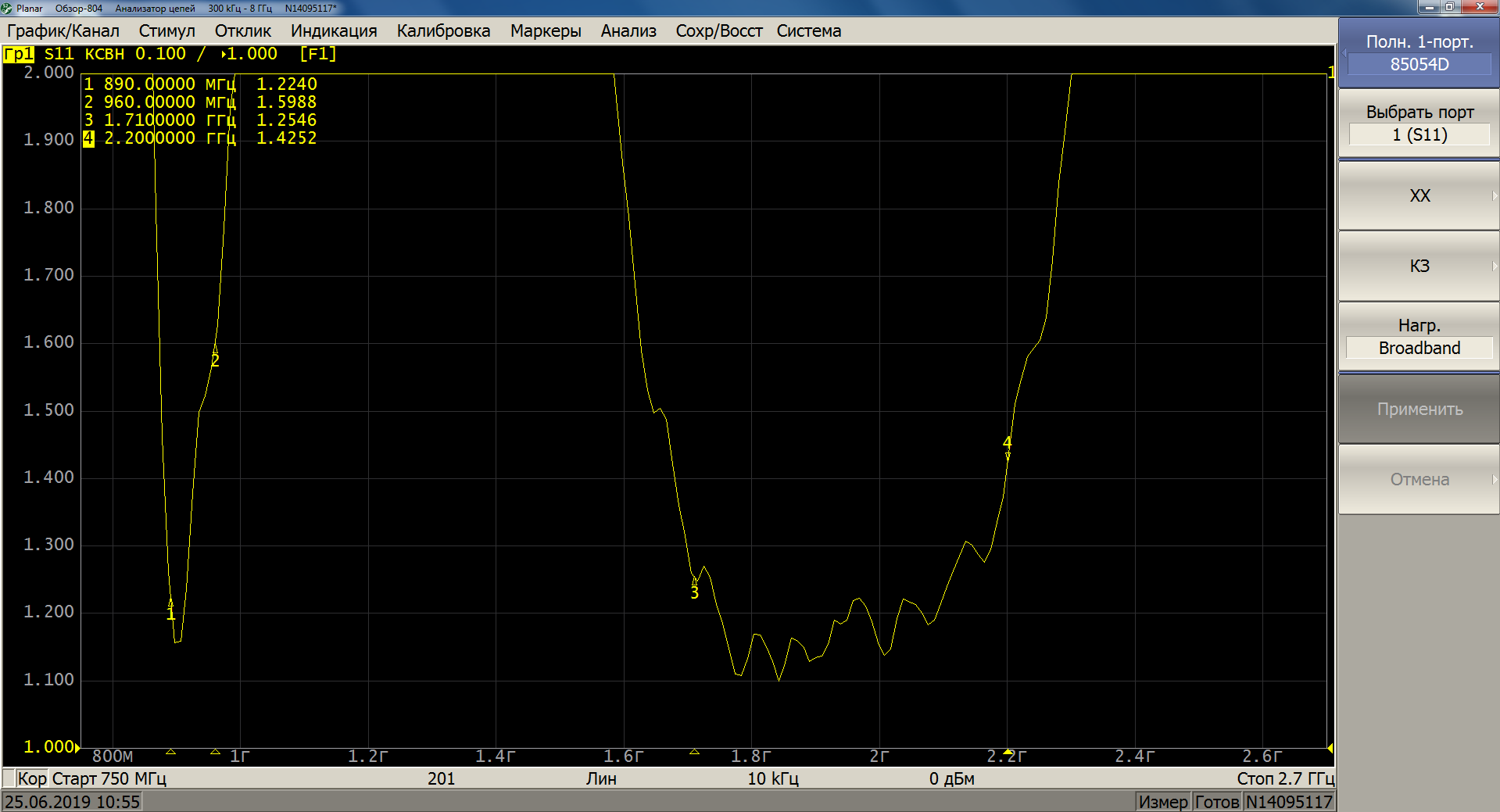

Nitsa2 vswr..


Share this post

Link to post
Share on other sites

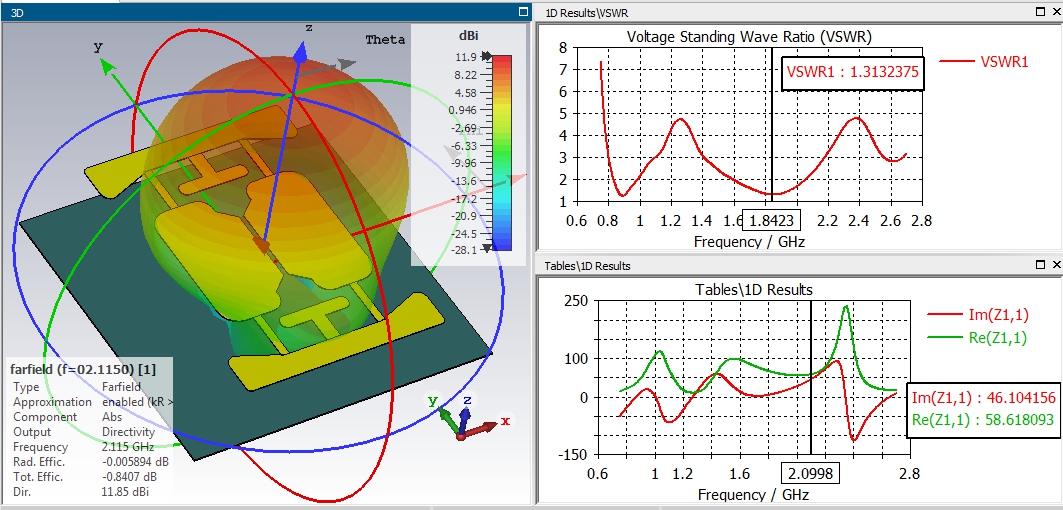

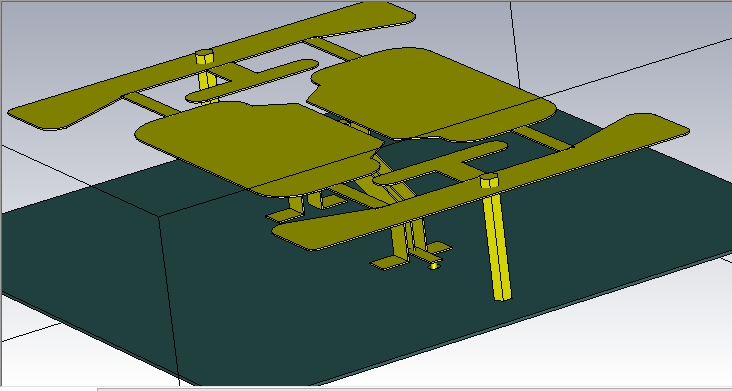

,,, a simulation attempt...


,,,but without this line of adaptation....


Share this post

Link to post
Share on other sites

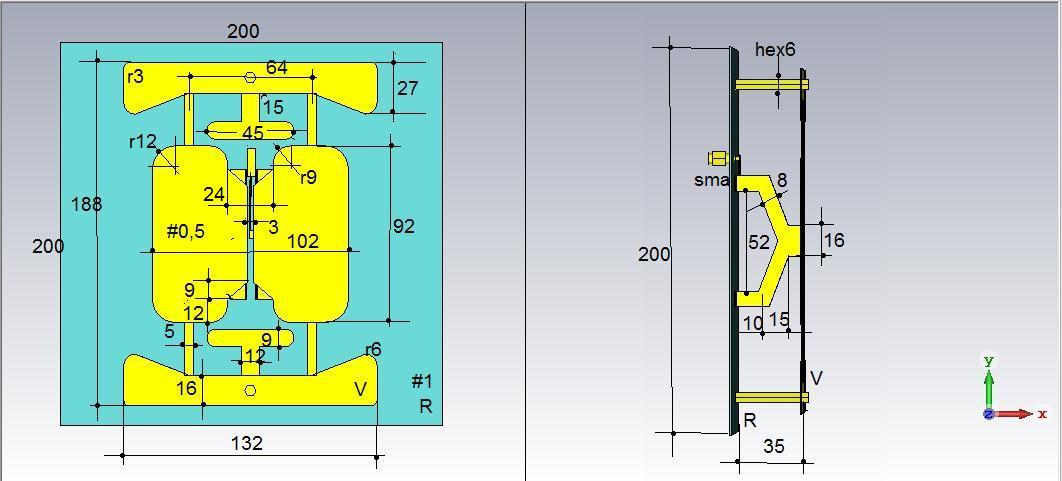

,,, the antenna dimensions with adapting lines ....
