2x2 UWB Panel Anntenna

Started by Admin,

Posted

This 2.4 GHz directional uwb panel antenna sports a discrete, professional look. With 13,5dBi of gain and an RP-SMA connector this outdoor-indoor antenna provides great coverage and convenience when paired with a  ALFA AWUS036H and many other 2.4 GHz gadgets.

2.2 - 2.7 GHz Frequency

13,5 dBi Gain

VSWR<1.2

50 ohms impedance

RP-SMA connector












for an antenna in a reflector CPC ... ???




2 people like this

Share this post

Link to post
Share on other sites

Posted

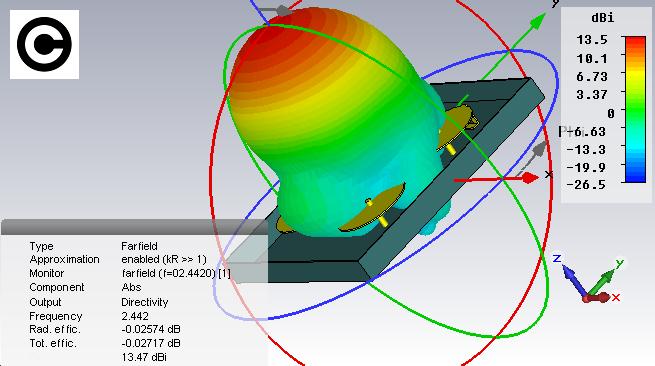

,,,for which antenna with rectangular patches is simpler ... ???

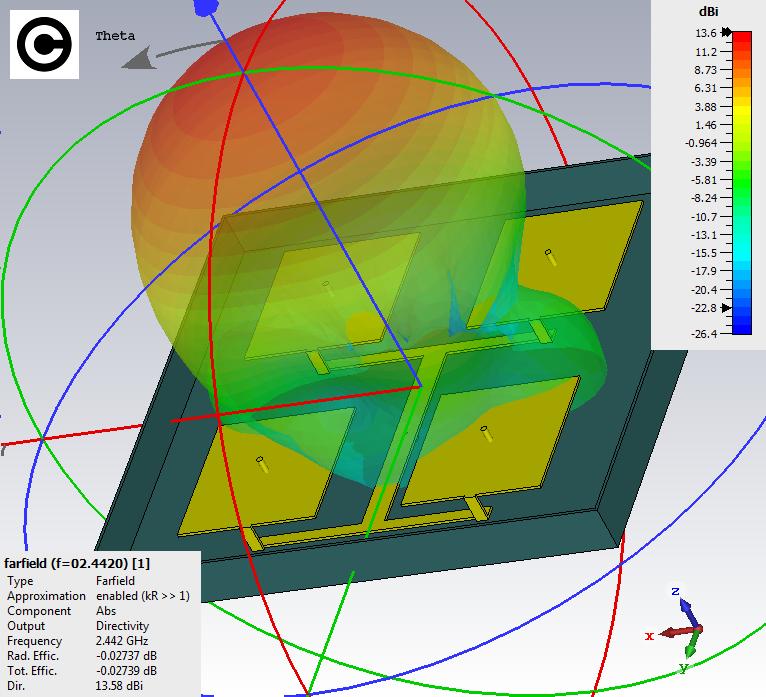

Ulungas UFI-C_01.jpg

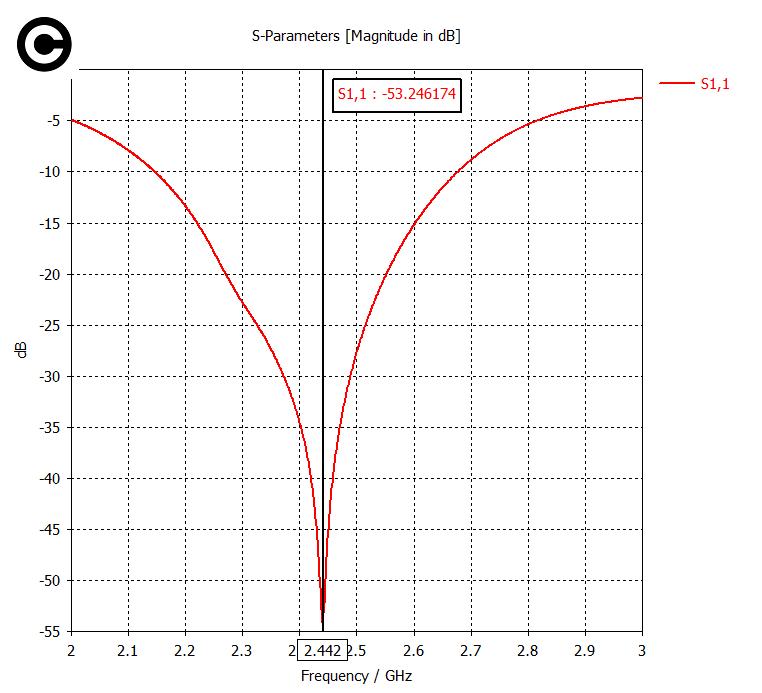

Ulungas UFI-C_02.jpg

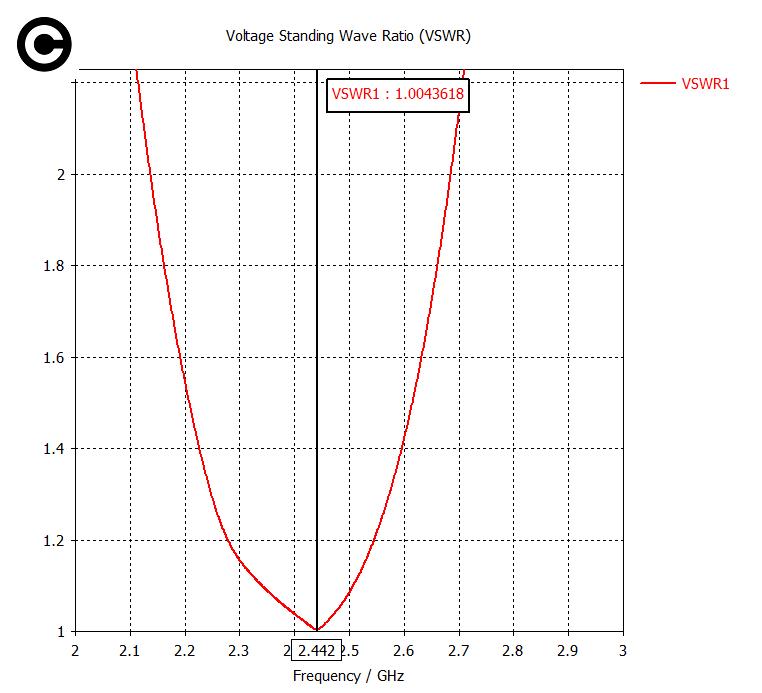

Ulungas UFI-C_03.jpg

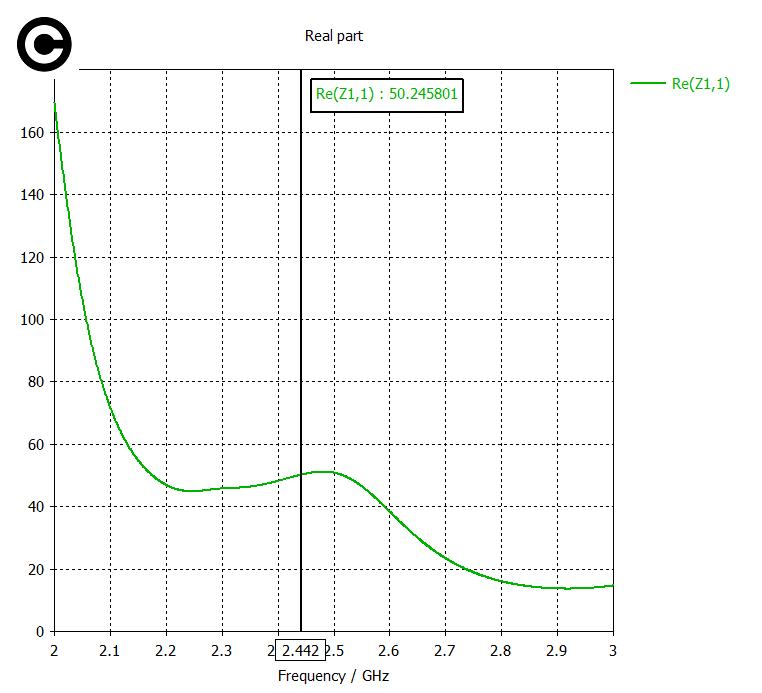

Ulungas UFI-C_04.jpg

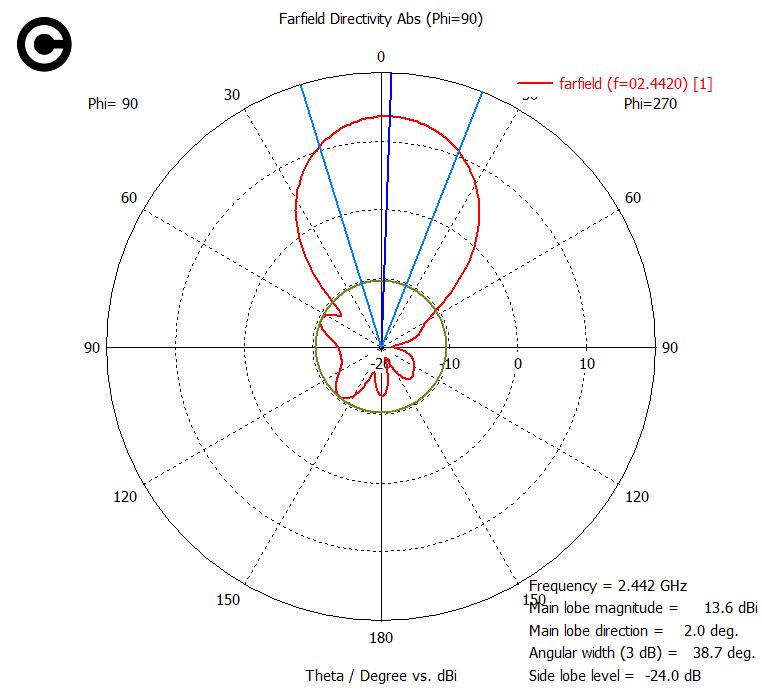

Ulungas UFI-C_05.jpg

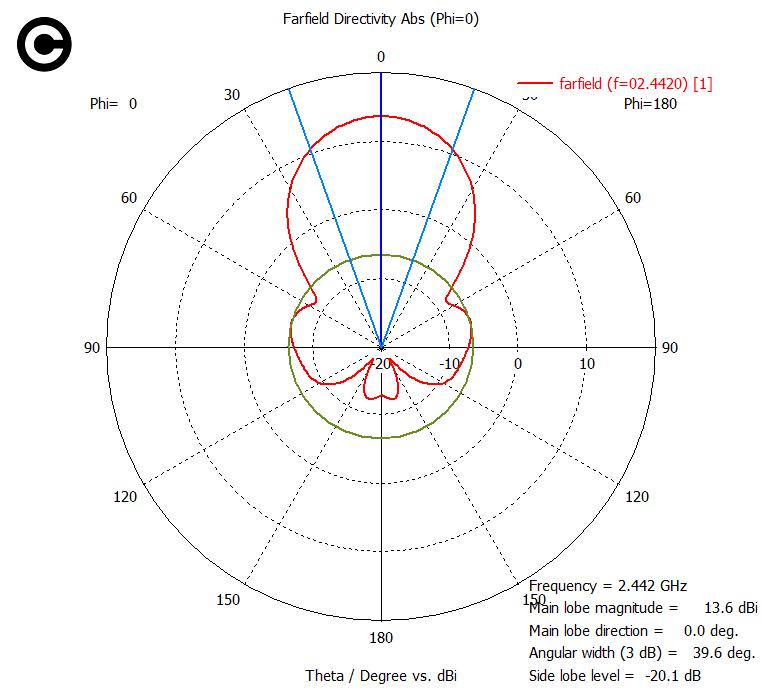

Ulungas UFI-C_06.jpg




1 person likes this

Share this post

Link to post
Share on other sites

Posted

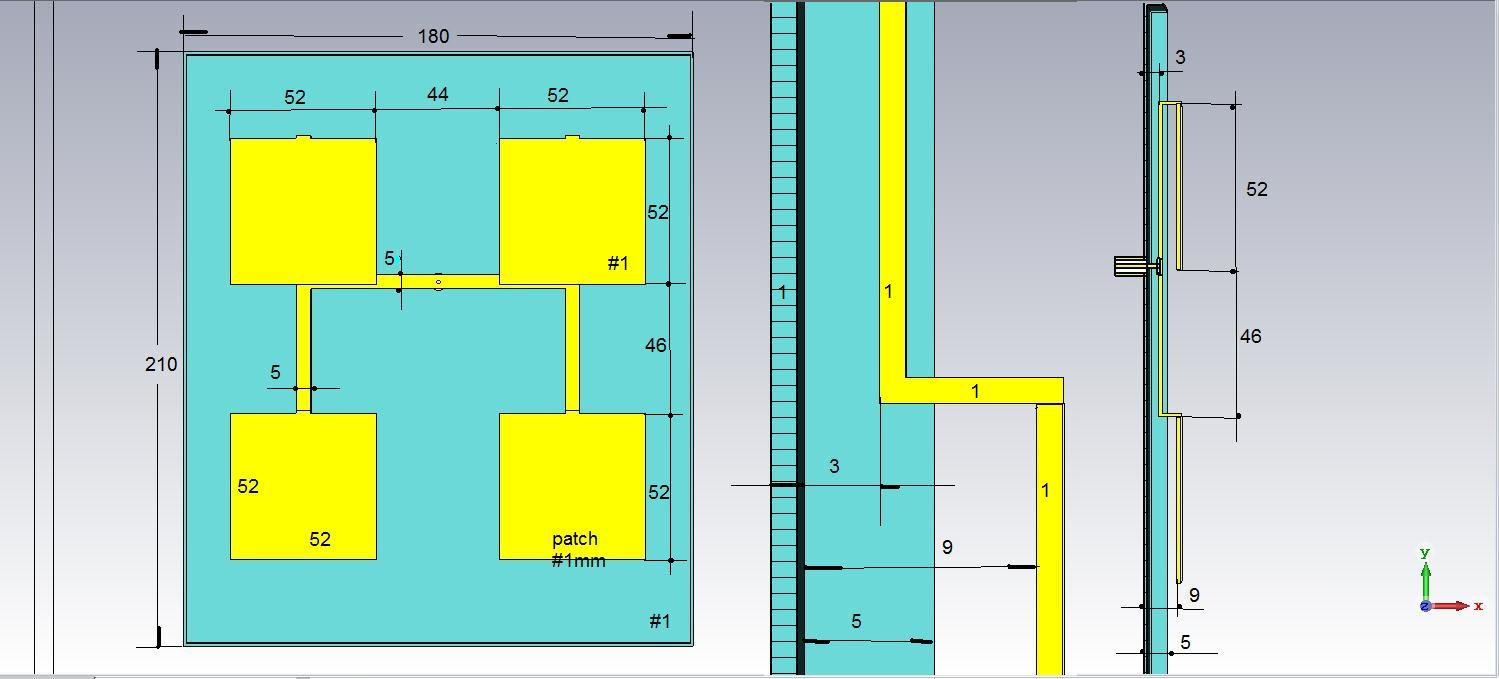

,,,version on the same theme...



1 person likes this

Share this post

Link to post
Share on other sites
