aurel

BatWing antenna 2.4 ghz

258 posts in this topic
3 minutes ago, Admin said:

,,, this do you like ,,, ?? parabolic offset 800mm

[image removed]

Yes, thank you very much! Really appreciate it!

I see the simulation data is for 2150 MHz. I'd be grateful if you could do it for 2442 MHz. Well, I don't think it will change dramatically because the batwing is wide band.

Share this post


Link to post
Share on other sites

,,, yes, the gain is about the same on the whole frequency band...!!!

1 person likes this

Share this post


Link to post
Share on other sites

Looks very competitive to the Bester antenna.

I think I could put one to the test. But I've found that this drawing differs from content of the DXF files you've published later. So which one is correct?

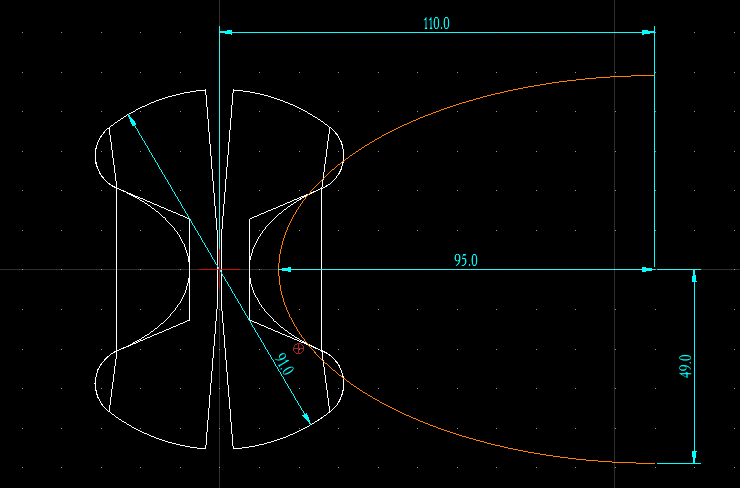

The DXF as my QCAD sees:




1 person likes this

Share this post


Link to post
Share on other sites

,,, yes, that's right. my drawing is the good one...!!!!

Share this post


Link to post
Share on other sites
5 hours ago, Admin said:

,,, yes, that's right. my drawing is the good one...!!!!

I still do not understand which is correct?


or

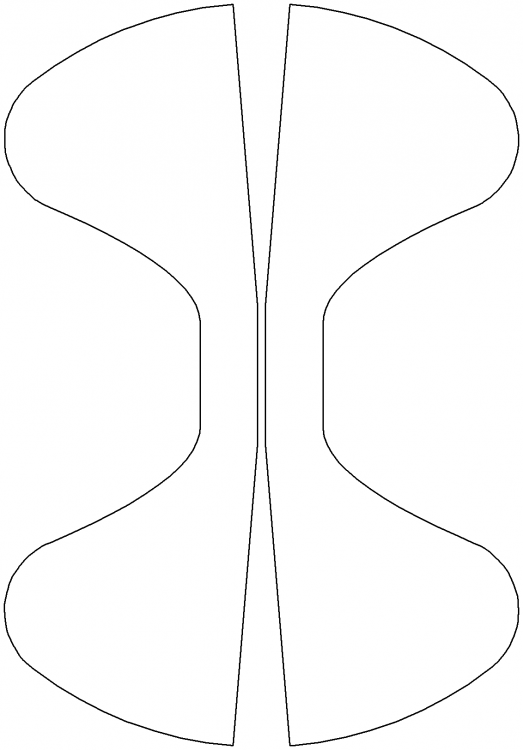

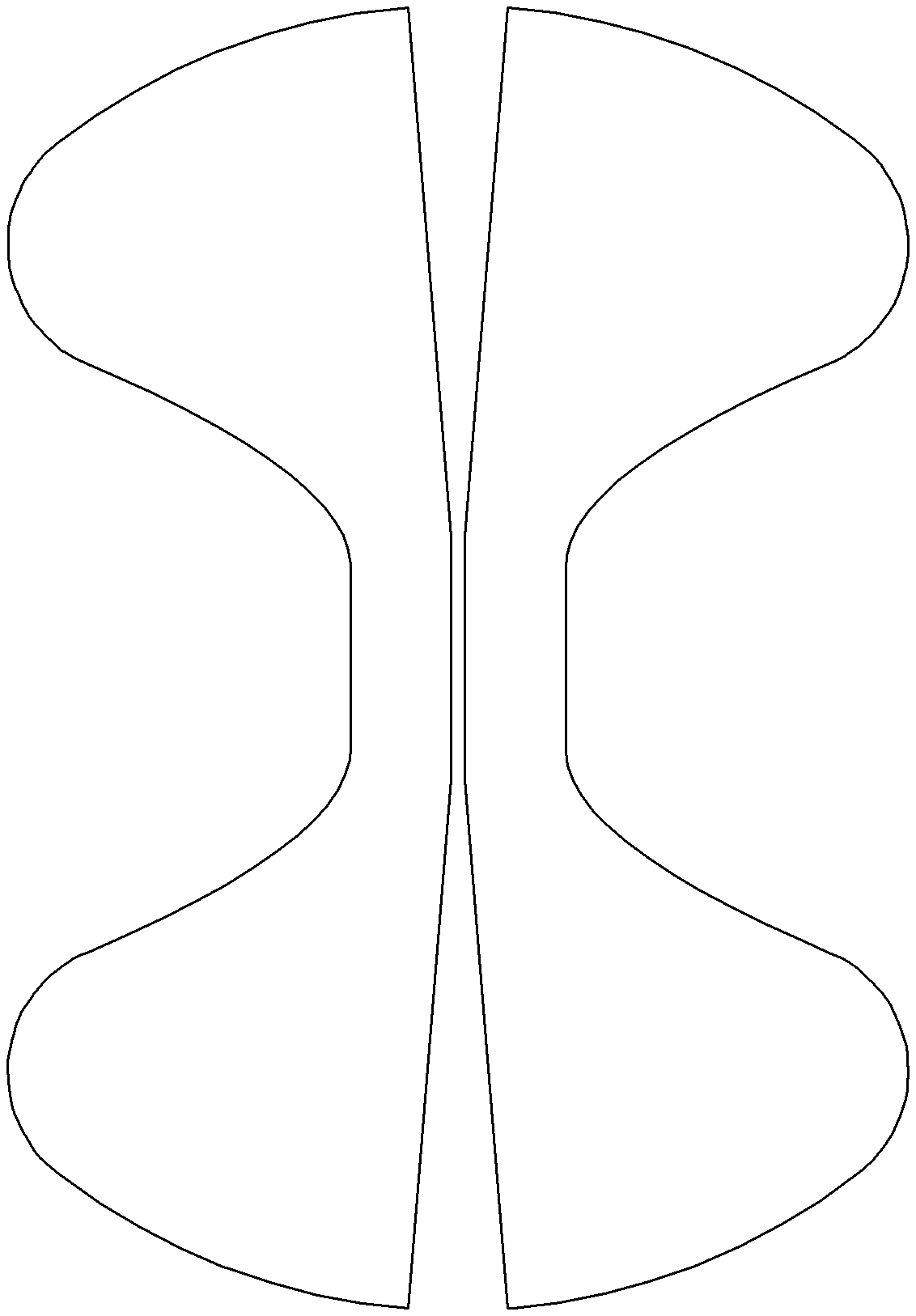

1my batwing.png

Share this post


Link to post
Share on other sites

,, my drawing is correct...!!!

 I do not know why the transposition in cad programs does not respect the reality...??/!!!

Share this post


Link to post
Share on other sites
3 minutes ago, Admin said:

,, my drawing is correct...!!!

 I do not know why the transposition in cad programs does not respect the reality...??/!!!

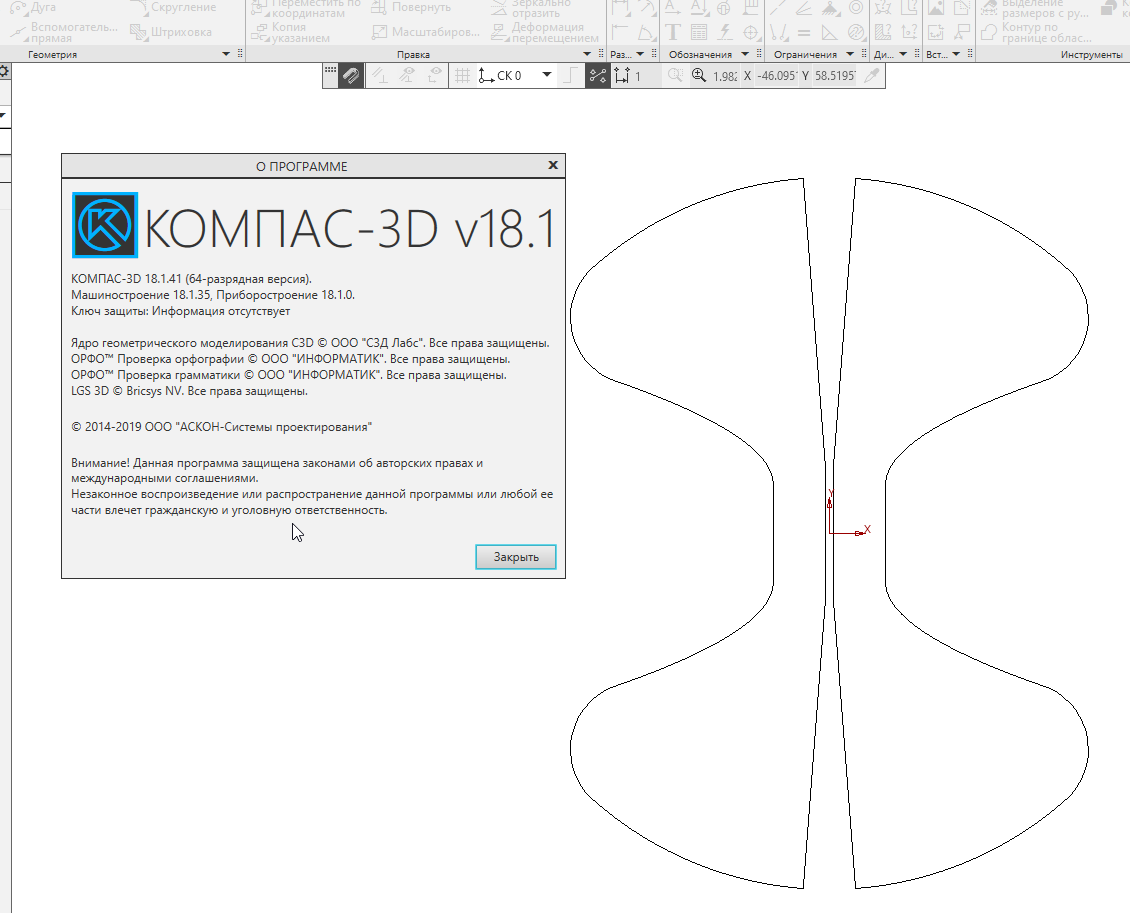

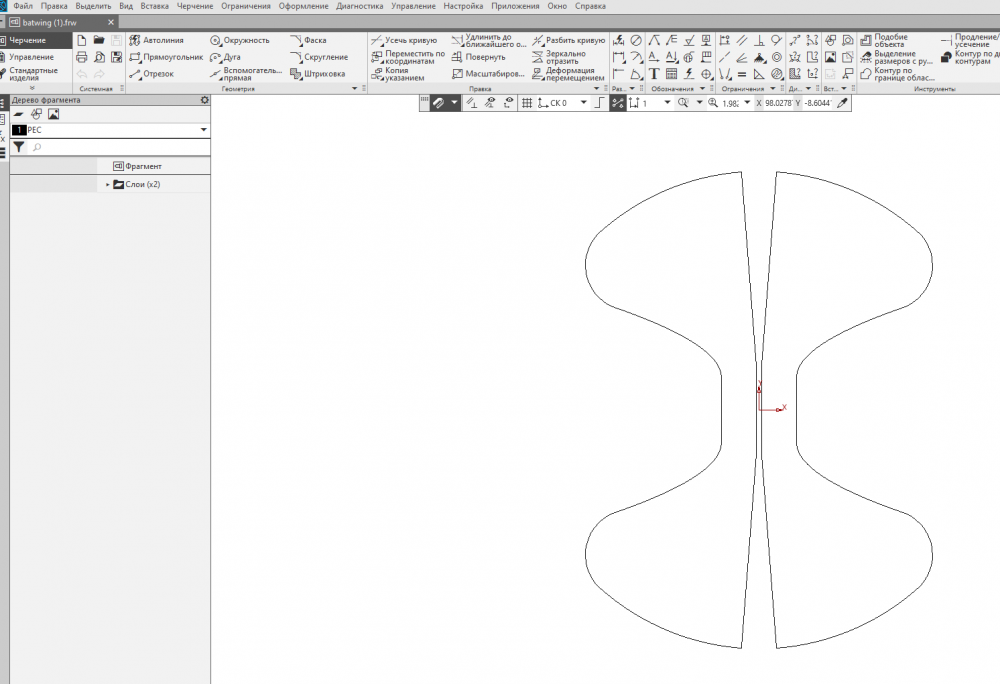

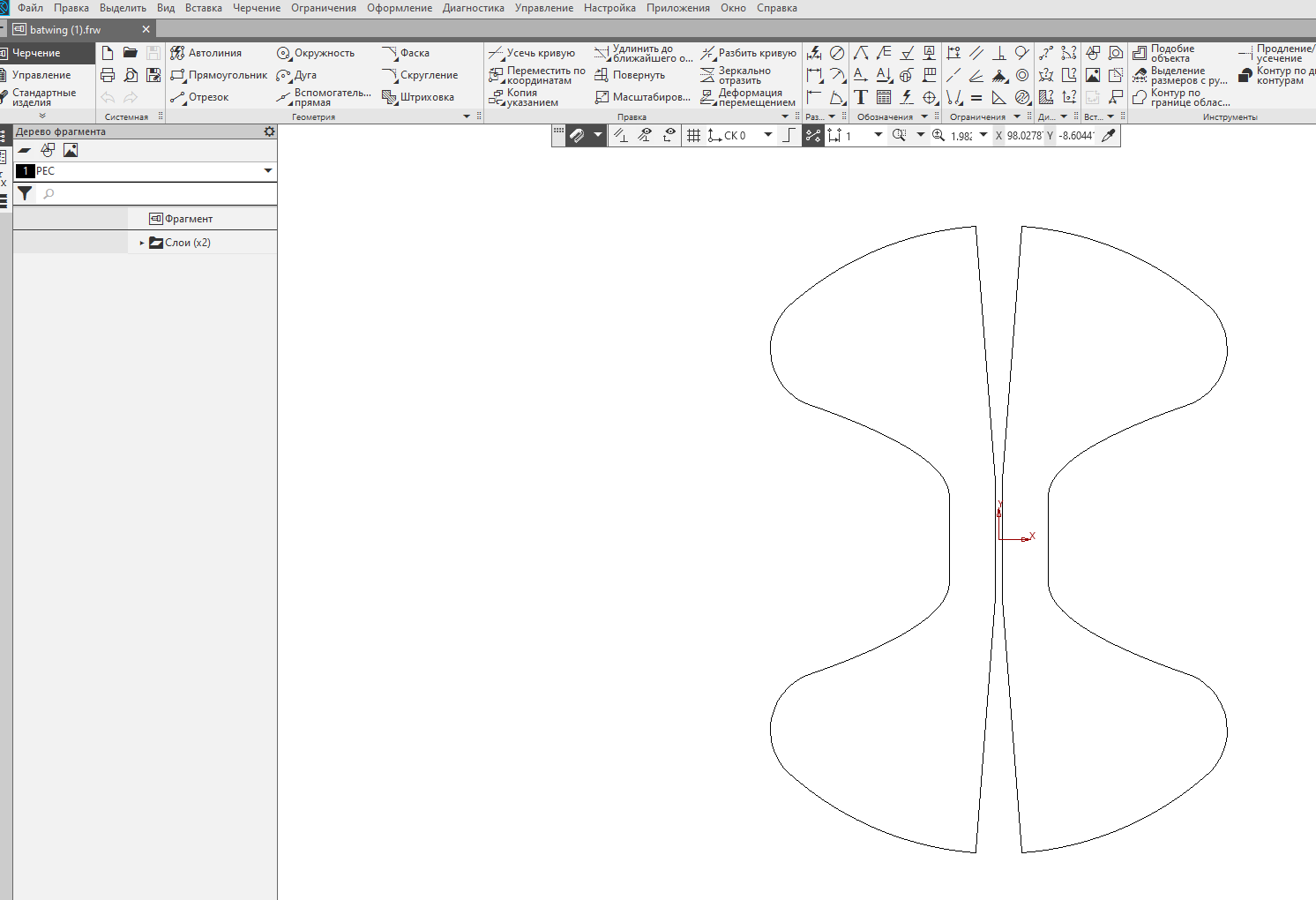

This is exactly how (like the bottom picture) opens in Compass 3D


Share this post


Link to post
Share on other sites

,,, the antenna profile must be made on Kompass program..!!!

Share this post


Link to post
Share on other sites
2 minutes ago, Admin said:

,,, the antenna profile must be made on Kompass program..!!!

so in it and open your file


Share this post


Link to post
Share on other sites

,,, yes, I translated * dxf file from CST to Kompass and it doesn't seem to match..!!

Share this post


Link to post
Share on other sites
2 minutes ago, Admin said:

,,, yes, I translated * dxf file from CST to Kompass and it doesn't seem to match..!!

can you share the file from CST?

Share this post


Link to post
Share on other sites
On 7/17/2020 at 3:47 PM, Admin said:

,,, this is the cst* file , for Batwing in the bucket ,,,

new batwig.cst

,,, and some dimensions...

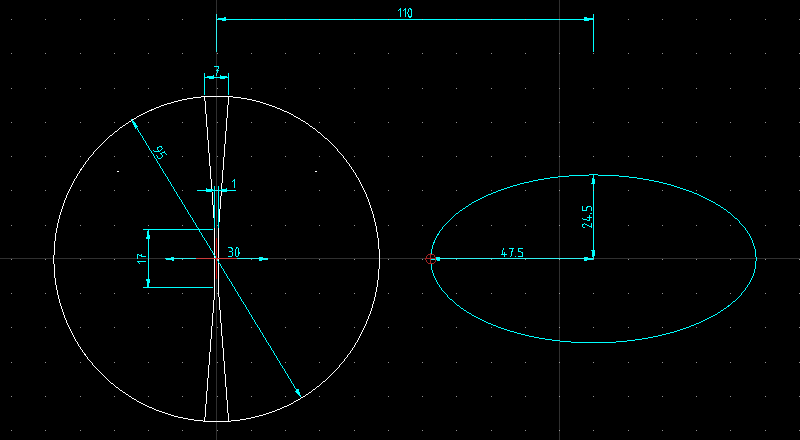

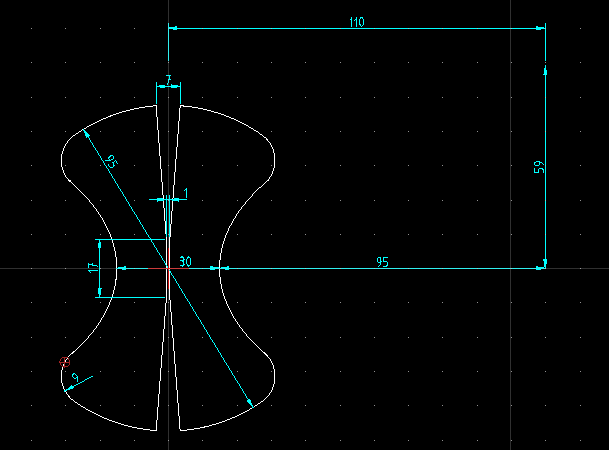

Okay, here it is. But it looks different from your drawing. Simulation screenshots seem match your drawings too.

What am I missing?


covina.dxf

Share this post


Link to post
Share on other sites

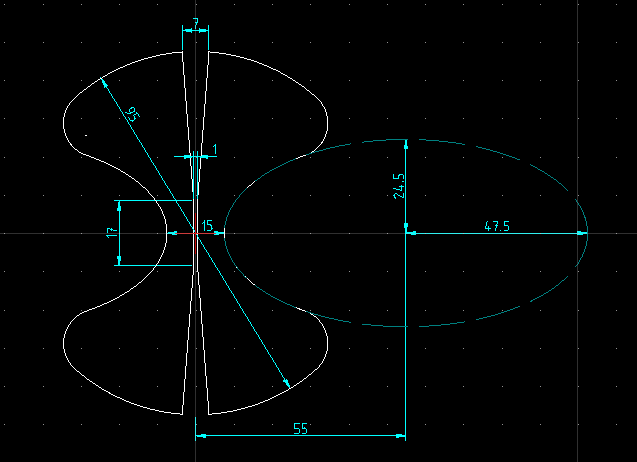

Oops, the ellipse smaller radius is 49 mm, of course. The shape shows it correct, but the drawing dimension is wrong. Please use the updated DXF for reference.



covina.dxf

Share this post


Link to post
Share on other sites

,,, not,,, small radius of the ellipse => 49/2 = 24.5mm and large radius of the ellipse => 95/2 = 47.5mm

             the center of the ellipse = 110mm from the 0y axis


 I thought my picture above was pretty clear...!!

Share this post


Link to post
Share on other sites
1 hour ago, Admin said:

,,, not,,, small radius of the ellipse => 49/2 = 24.5mm and large radius of the ellipse => 95/2 = 47.5mm

             the center of the ellipse = 110mm from the 0y axis


 I thought my picture above was pretty clear...!!

I'm sorry, but this doesn't converge into anything practical :-(

Help needed.




Share this post


Link to post
Share on other sites

,,, yes, you're right, my mistake..!!!

   the center of the ellipse = 110/2=55mm from the 0y axis

1 person likes this

Share this post


Link to post
Share on other sites
On 20.03.2020 at 0:08 PM, Admin said:




CUTE! what about SWR? measured with swr-meter?

Share this post


Link to post
Share on other sites

,,, this is the comparison

between bester  and batwing antenna...

2 people like this

Share this post


Link to post
Share on other sites

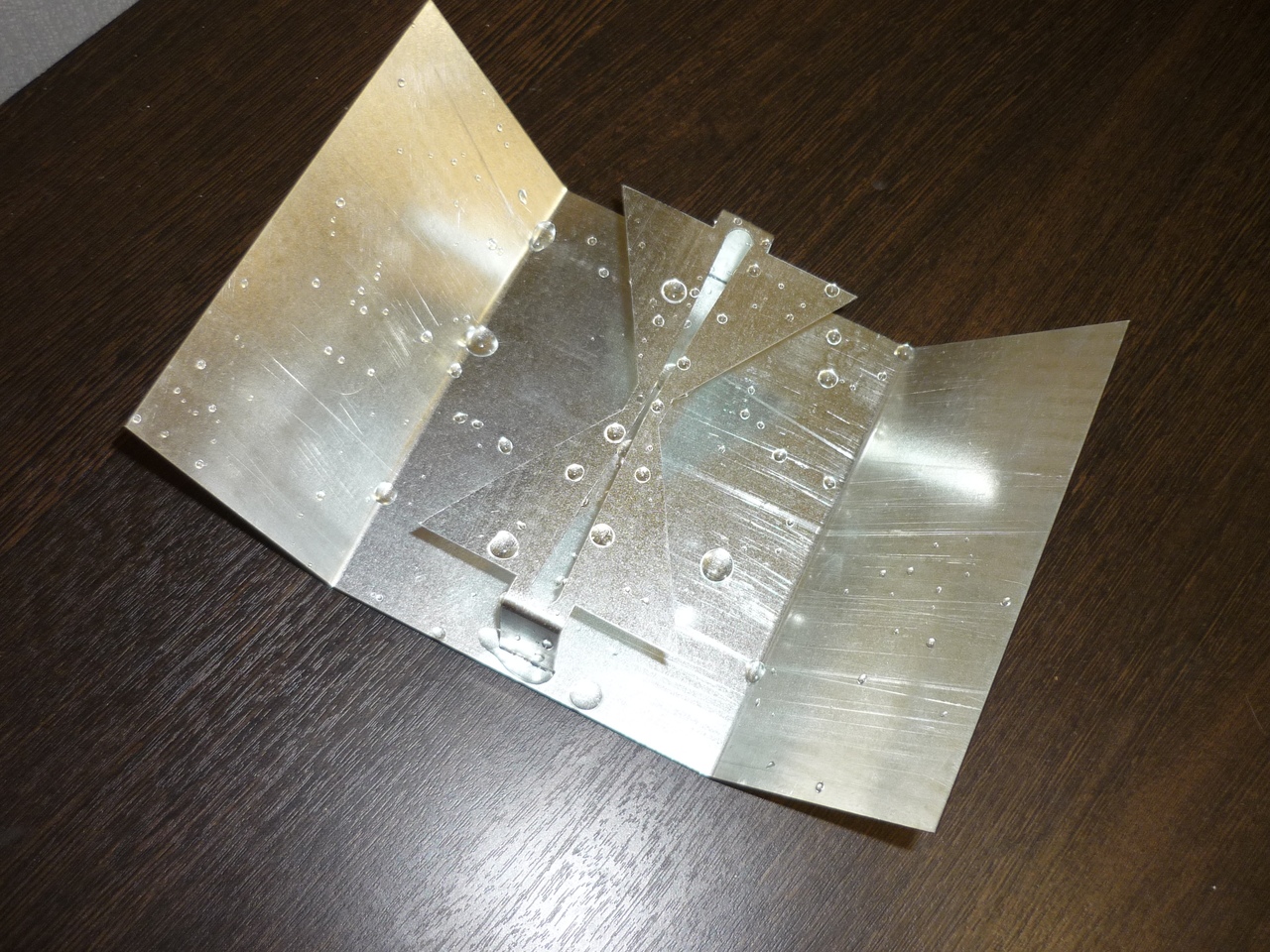

This is your batwing made in russia! Wow!

p.s he just a little bit mess with reflector angle

Share this post


Link to post
Share on other sites

,,,this batwing antenna is my project...!!!



1 person likes this

Share this post


Link to post
Share on other sites

hm...what if you try to model Batwing with 90 degree 2d-corner reflector?? 0_o

corner reflector antenna with Batwing instead of dipole!

0.36...0.4 wavelength from corner top to axis of batwing

batwing plane in plane of corner's bisector

Share this post
