Wifi Antenna Colander

Sir,i what is the measurement for the reflector ,radiator and director? thank you.

Share this post


Link to post
Share on other sites

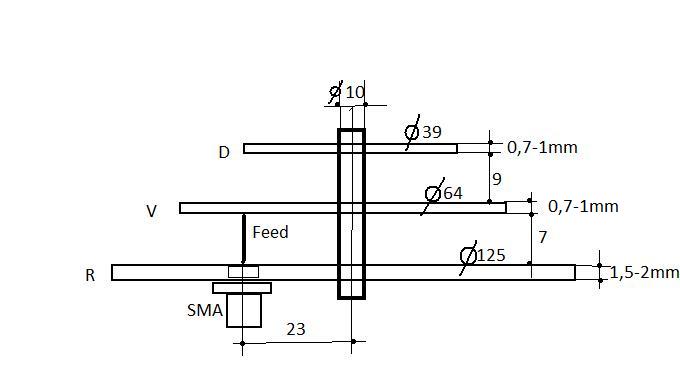

These are the better dimensions...

,,,those in the above images are ellipses...!!!


Share this post


Link to post
Share on other sites

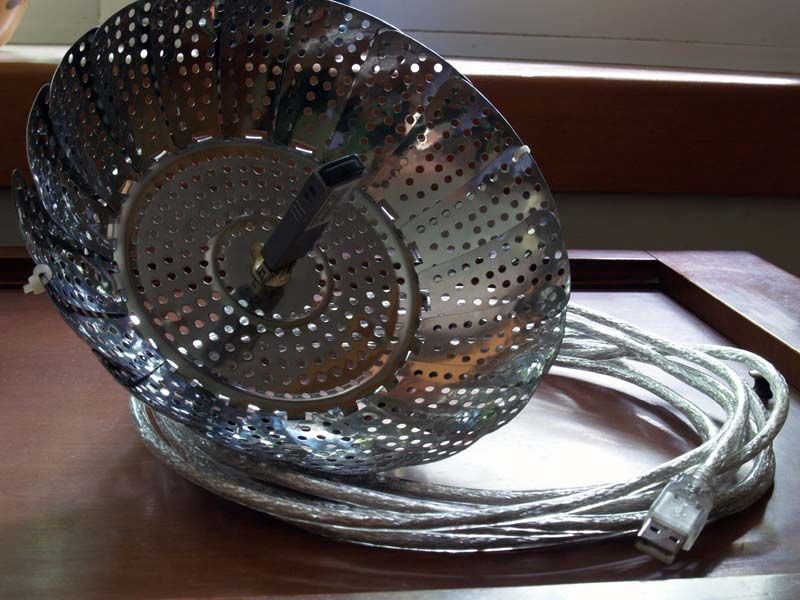

Can I use this one (attach picture) instead of that and using with that dish ?? If yes, what modification is needed?? thank you again..


Share this post


Link to post
Share on other sites

Yes, it might, but I have to check these...!!1

,,,something like that ... ???




1 person likes this

Share this post


Link to post
Share on other sites

yes please., will that work? will there be any modifications?

Share this post


Link to post
Share on other sites

got any updates sir,  i'm sorry i don't have any software to work/simulate on this..

Share this post


Link to post
Share on other sites

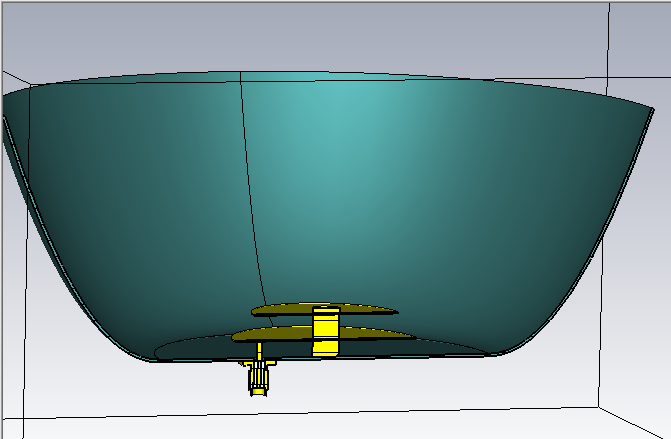

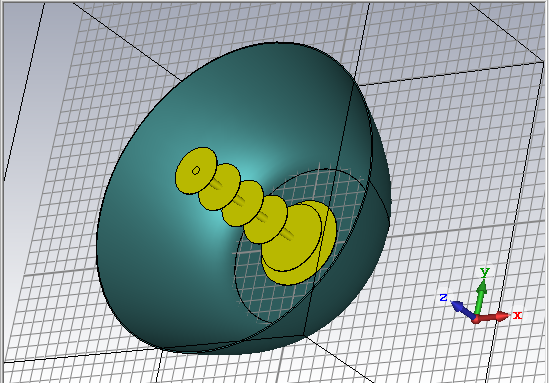

I think this is a good shape of the colander antenna...


Share this post


Link to post
Share on other sites

sir what are the dimensions/measurements?

Share this post


Link to post
Share on other sites

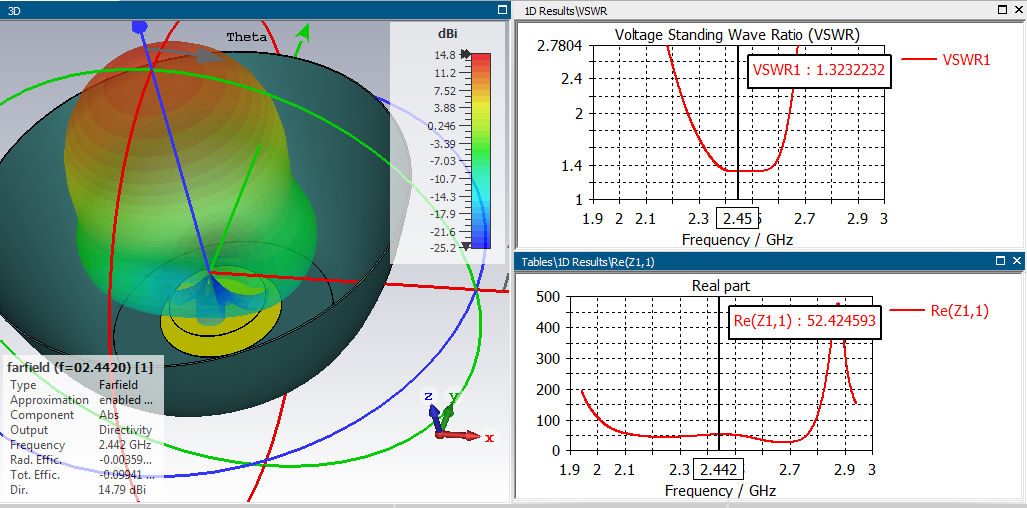

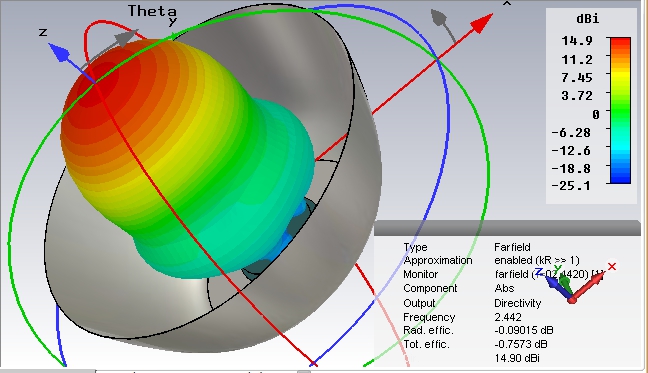

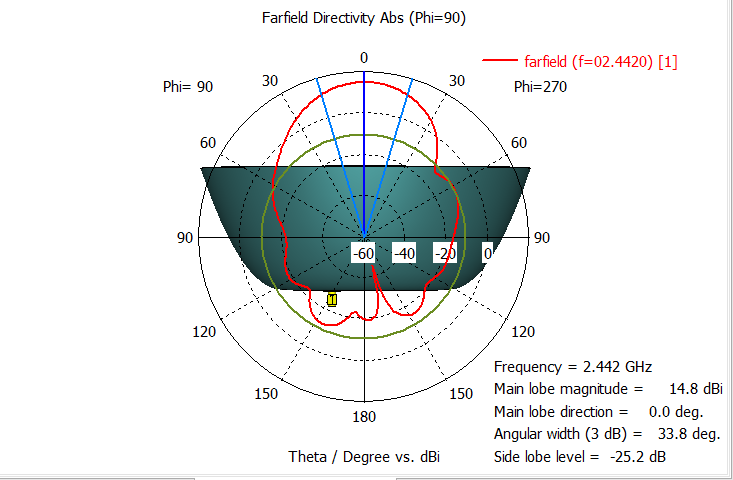

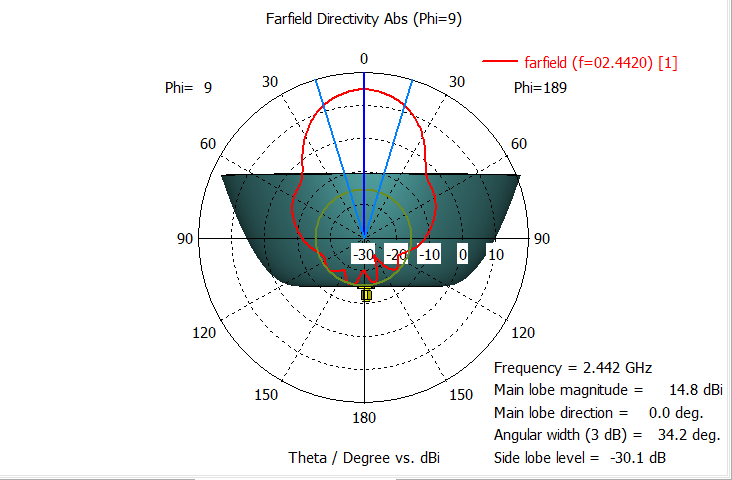

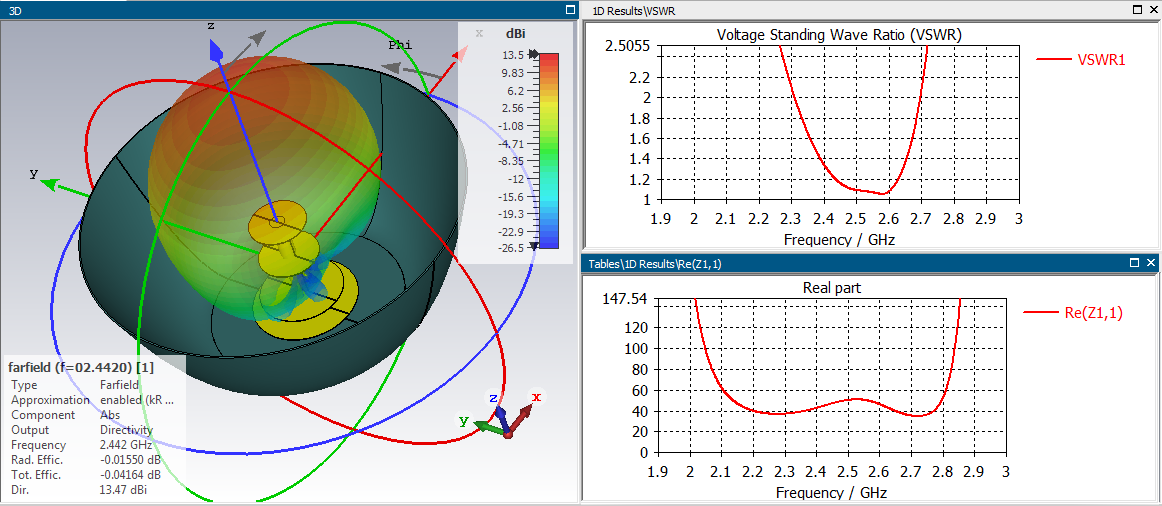

,,,you have to wait for a new simulation at the 2,442GHz central frequency>>>!!!

Share this post


Link to post
Share on other sites

I'm working on it now...!!!

Share this post


Link to post
Share on other sites

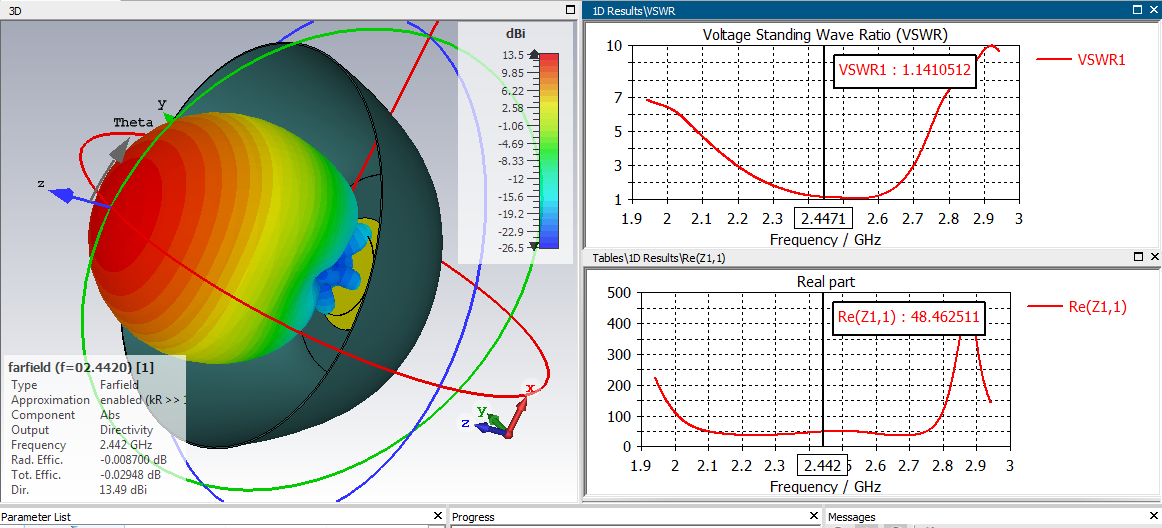

I think it would be better...



Share this post


Link to post
Share on other sites

thank you very much Sir! :o

Share this post


Link to post
Share on other sites

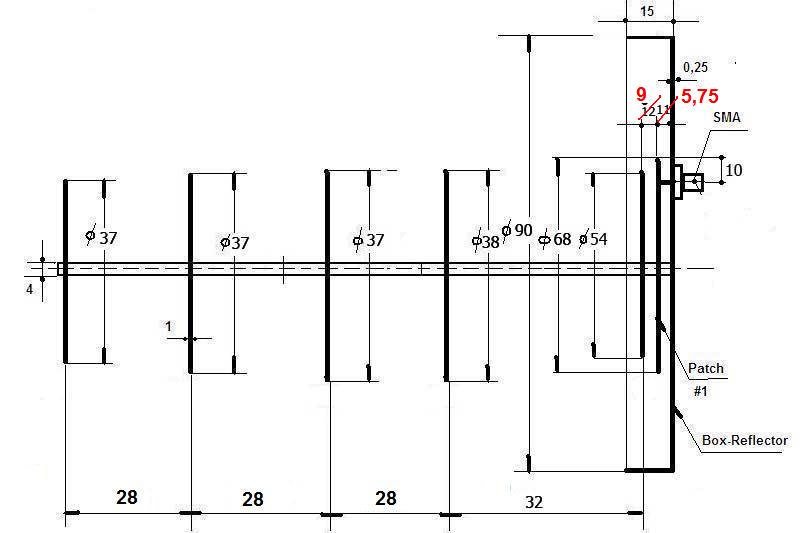

,,,but the best solution is this...!!!







1 person likes this

Share this post


Link to post
Share on other sites

With this one?

is there an effect if i used 4-6mm for the boom??


Share this post


Link to post
Share on other sites

Yes, it does, so it should be done...


1 person likes this

Share this post


Link to post
Share on other sites

Sorry sir got too many questions, the reflector would be the base of the dish with diameter of 125..

Share this post


Link to post
Share on other sites

,,yes...!!!

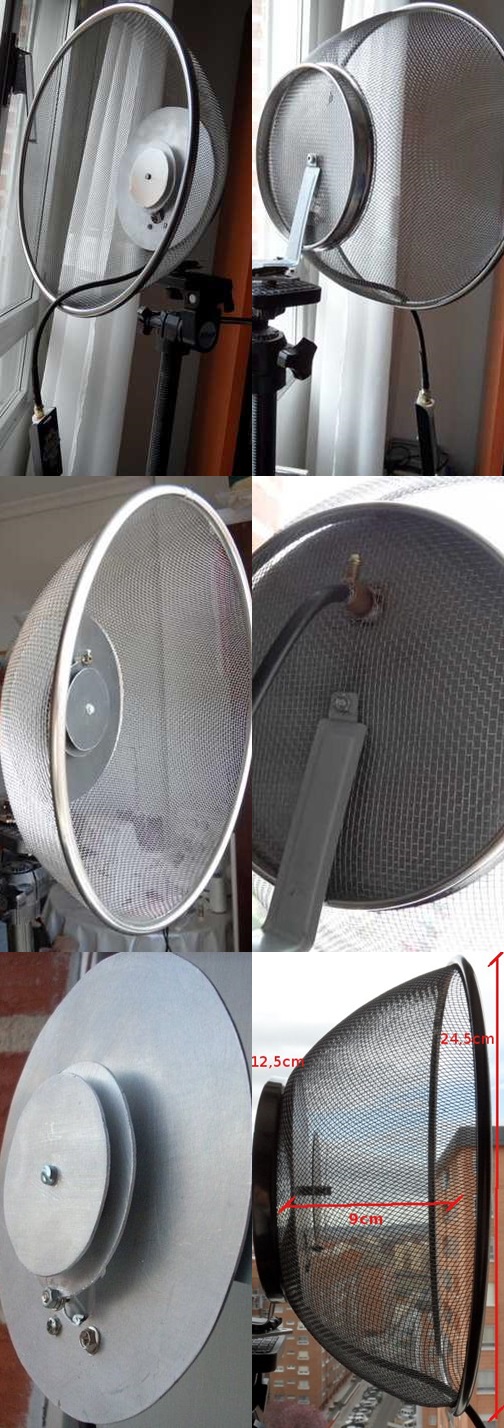

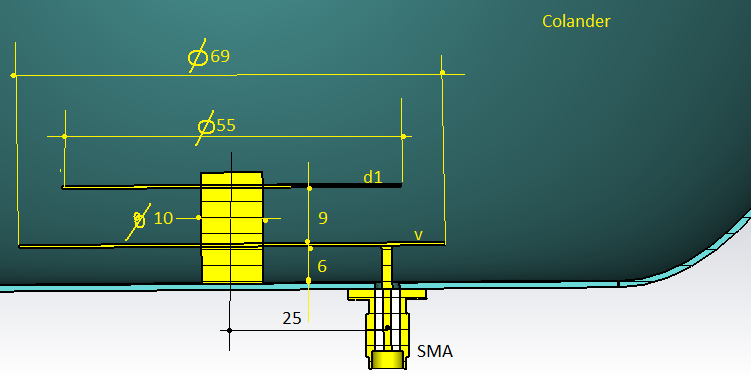

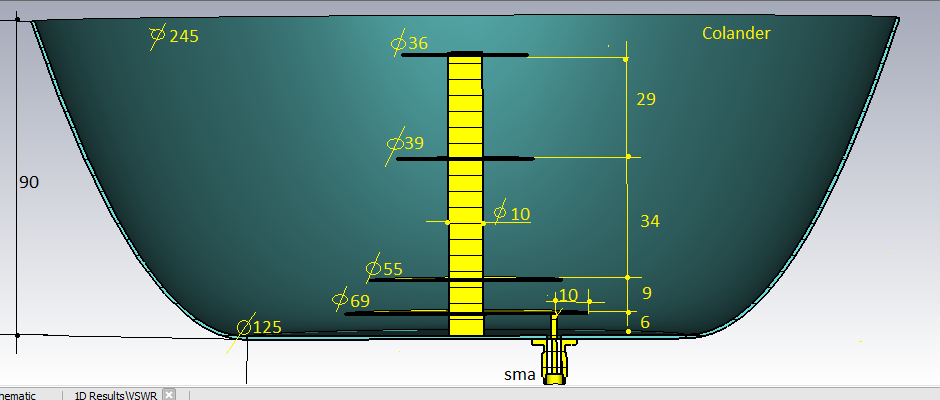

,,,in all of the above images, you can see the sizes of the colander...!!!
