aurel

Old yagi-corner TV UHF antenna

Hi Admin and others !

As i said in PM i have question.

I have one old broken TV UHF yagi-corner antenna , and  what is left from antenna is

5 directors are OK . - bowtie shaped

half of  feed Point dipole  bowtie shaped

aluminum pipe as element holder with original holes.

I don't have reflector..

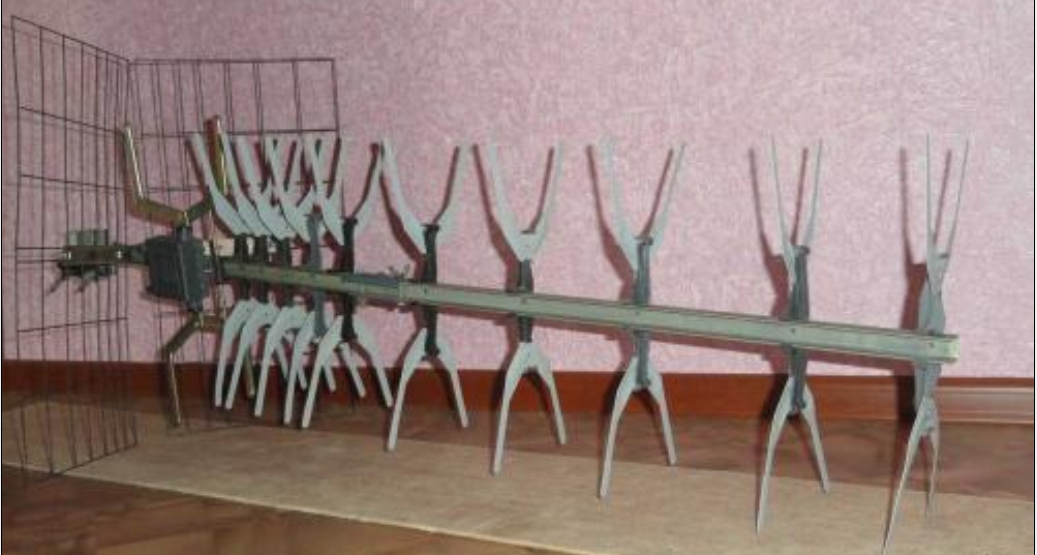

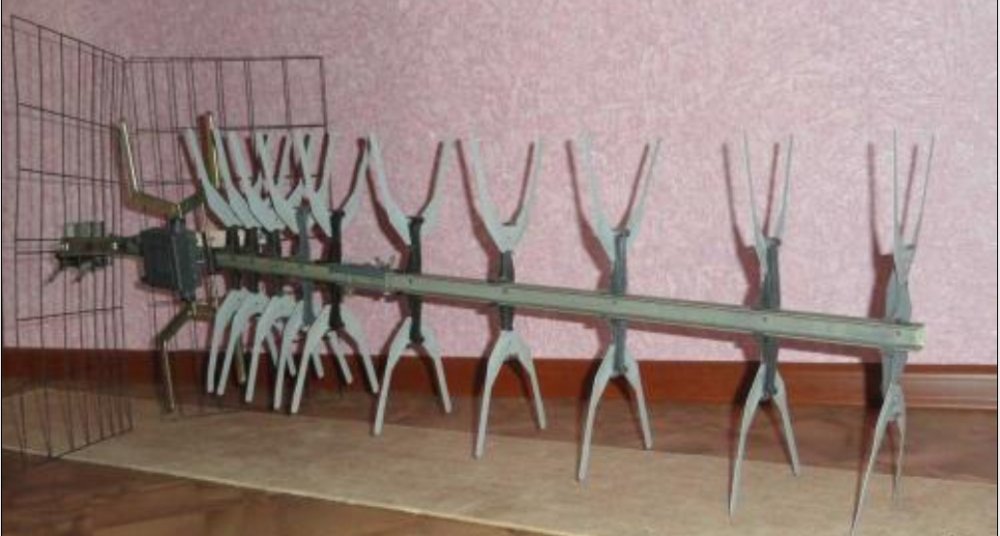

this is how original looks:


Share this post


Link to post
Share on other sites

On the image ..is ordinary folded dipole as active element but i have on this one ith same shape as directors.

so my questions should be :

1 . can i use or made something else (aluminum wire mesh ) or another bowtie shape as Reflector?

2. because i have only one side of active element ...is it better to build another one bowtie shaped

or to build one like is on image above?

thanks...

Share this post


Link to post
Share on other sites

,,,why do not you make a bowtie dipole as the directors...???

Share this post


Link to post
Share on other sites

I am not sure that i understand your answer.

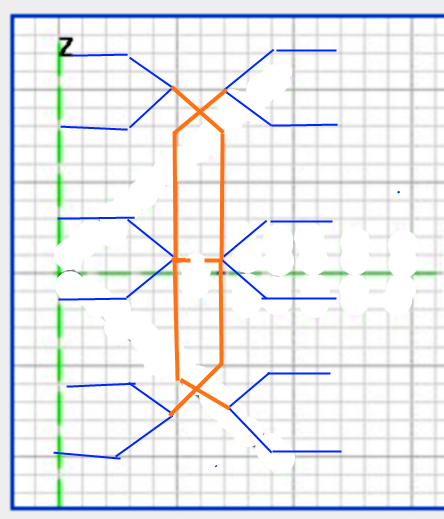

Do you mean something like panel antenna with bowtie elements instead of rebuild this small yagi?


Share this post


Link to post
Share on other sites

,,,yah...!!!

Share this post


Link to post
Share on other sites

Ok

I mut explain why I ask..

as far as i remember when i use this type of antenna ii don't get solid results

then i become pissed off and cut aluminum thin and build yagi with 15 directors using

folded dipol shape for all directors and of course with proper reflector

and all that time this antenna work excellent.

Share this post


Link to post
Share on other sites

,,,good, then greetings...!!!

Share this post


Link to post
Share on other sites

,,,hi buddy...!!!

,,,can you give the dimensions to a director....???

Share this post


Link to post
Share on other sites

of course

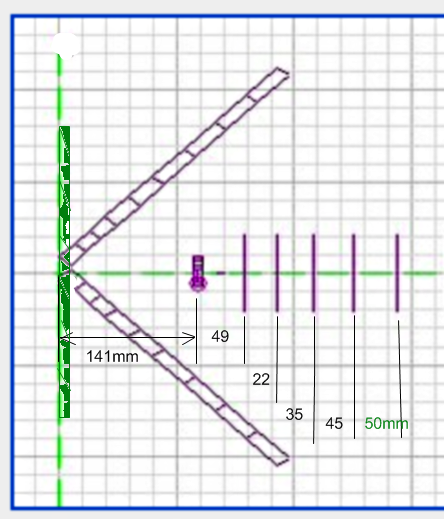

quick measuring from image


Share this post


Link to post
Share on other sites

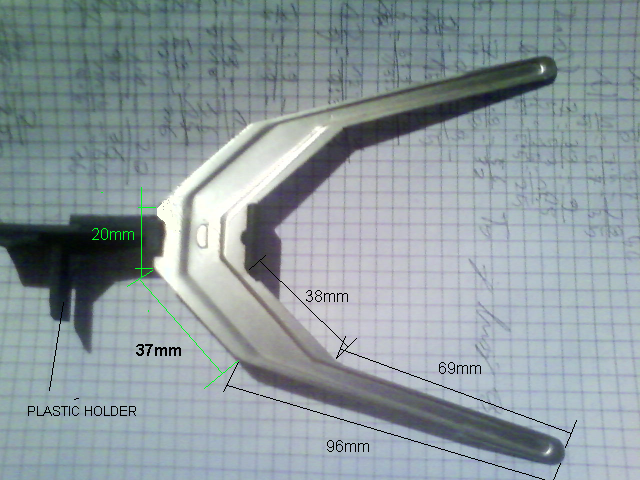

ahh i see ...shape is little bit tricky..right

i do my best with small plastic measuring triangle

and here is .

For testing i will put it again on old holder to try it as yagi ...


Share this post


Link to post
Share on other sites

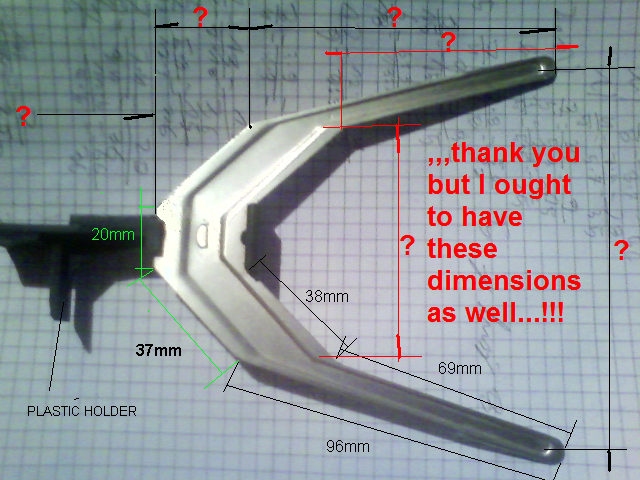

,,,thank you but is missing a dimension...!!!

Share this post


Link to post
Share on other sites

Posted (edited)

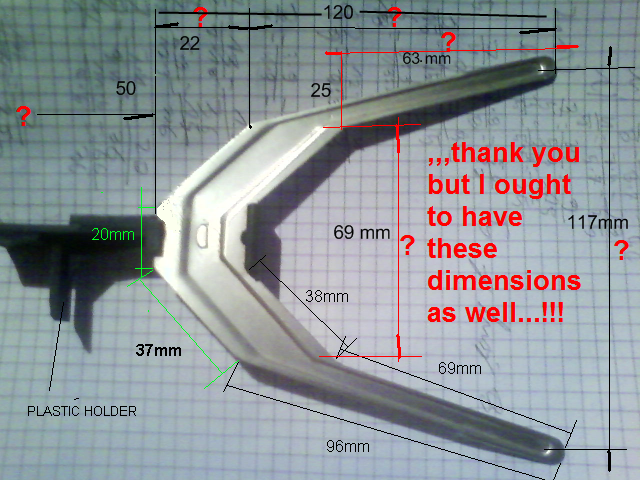

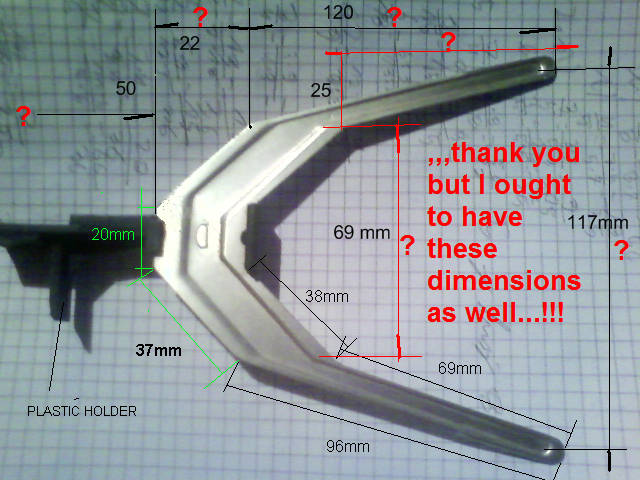

ahh sorry missing dim is 63 mm


Edited by aurel

Share this post


Link to post
Share on other sites

,,,thanks...!!!

I will try to make a simulation for your antenna but tell me the frequency domain...!!!

Share this post


Link to post
Share on other sites

It is suppose to be standard UHF antenna for 21-69 chanels

so i think from 470-860Mhz ..right?

Share this post


Link to post
Share on other sites

,,,good, and the dimensions of the reflector, which are .. ??

Share this post


Link to post
Share on other sites

I dont know because i dont have it...

Share this post


Link to post
Share on other sites

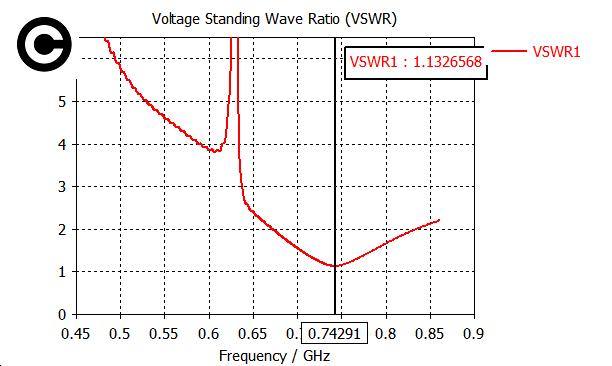

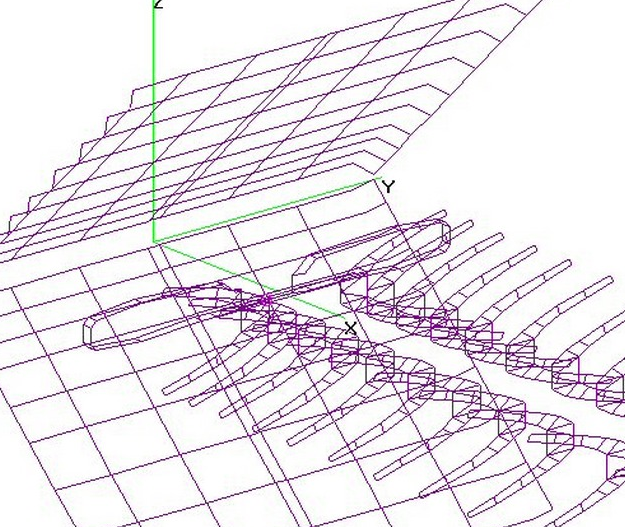

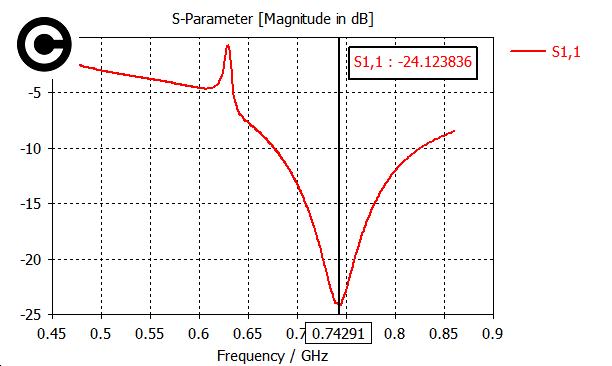

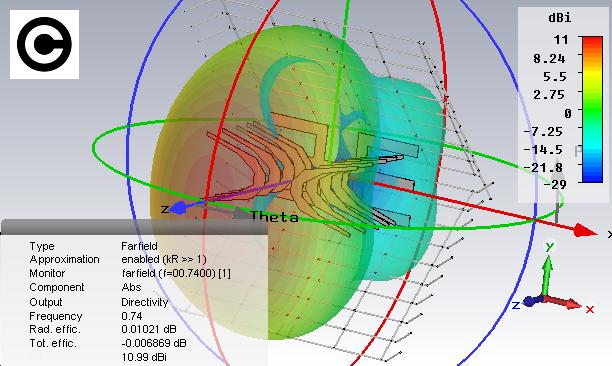

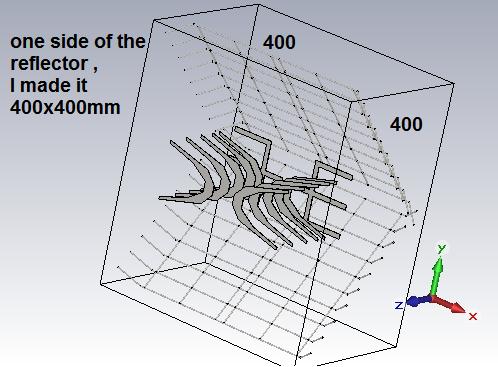

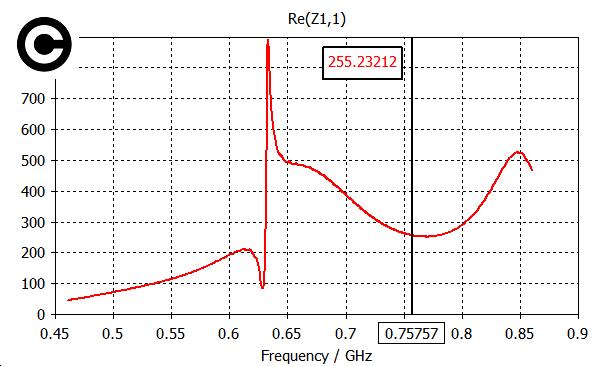

,,,and these would be the results...





Share this post


Link to post
Share on other sites

Thank you very much for simulation !!

But i don't understand what kind of dipol is that ????

looks like -E shape ???

what is that?

I have mateials for 5 directors bowtie shape

and for one bowtie "dipole" so probably results should be little bit better maybe 12dB gain

anyway even on your way i think that should work.

currently i cannot mount antenna on foof because of very bad weather here.



Share this post


Link to post
Share on other sites

,,,so your antenna should have been shown...!!!


Share this post


Link to post
Share on other sites

Yes ..that was the original..!



Share this post


Link to post
Share on other sites
