Simple Antenna Panel

[Admin 2421]

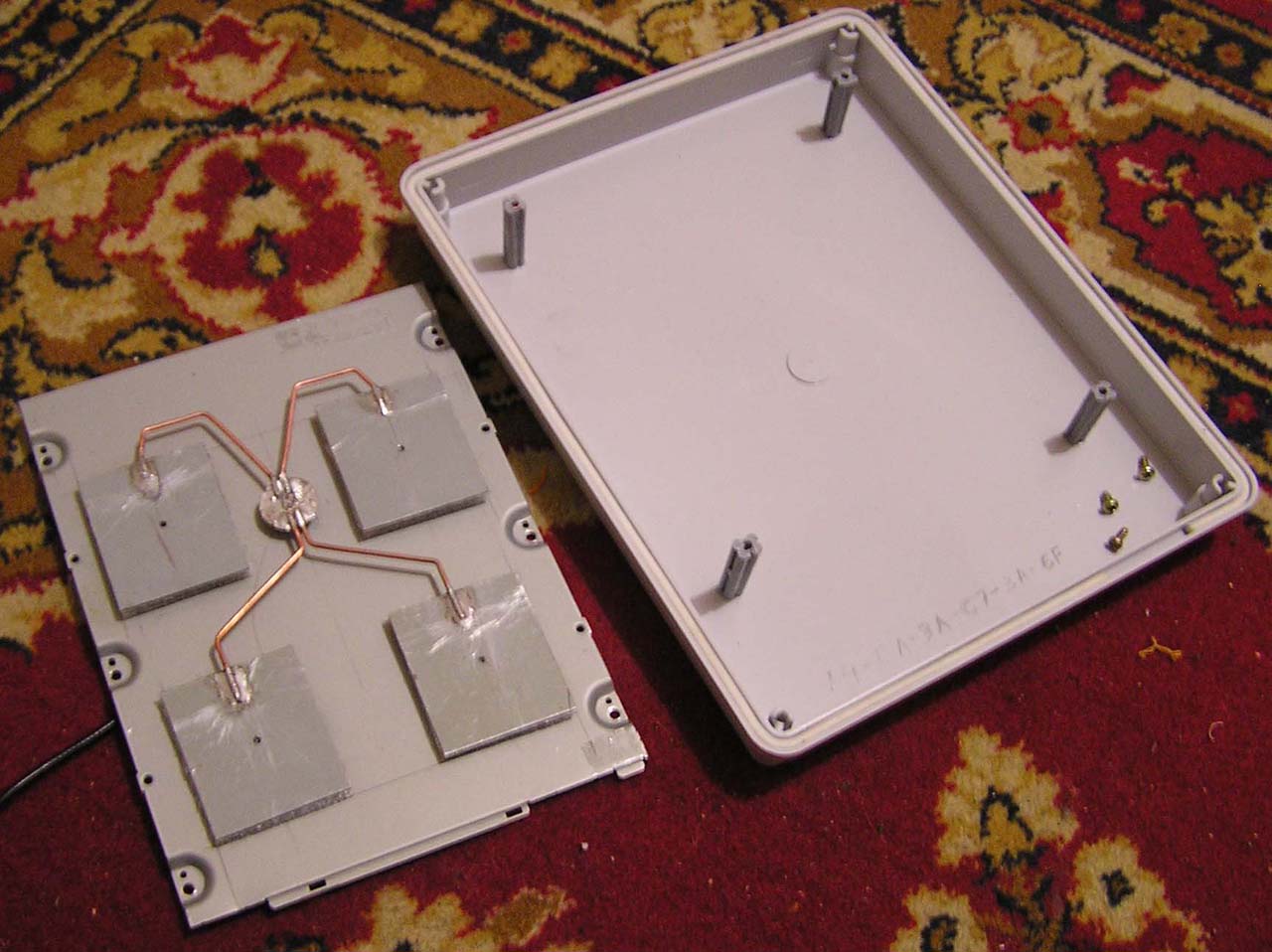

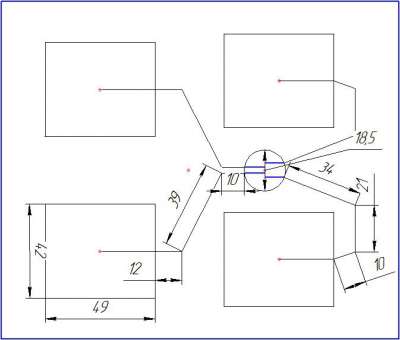

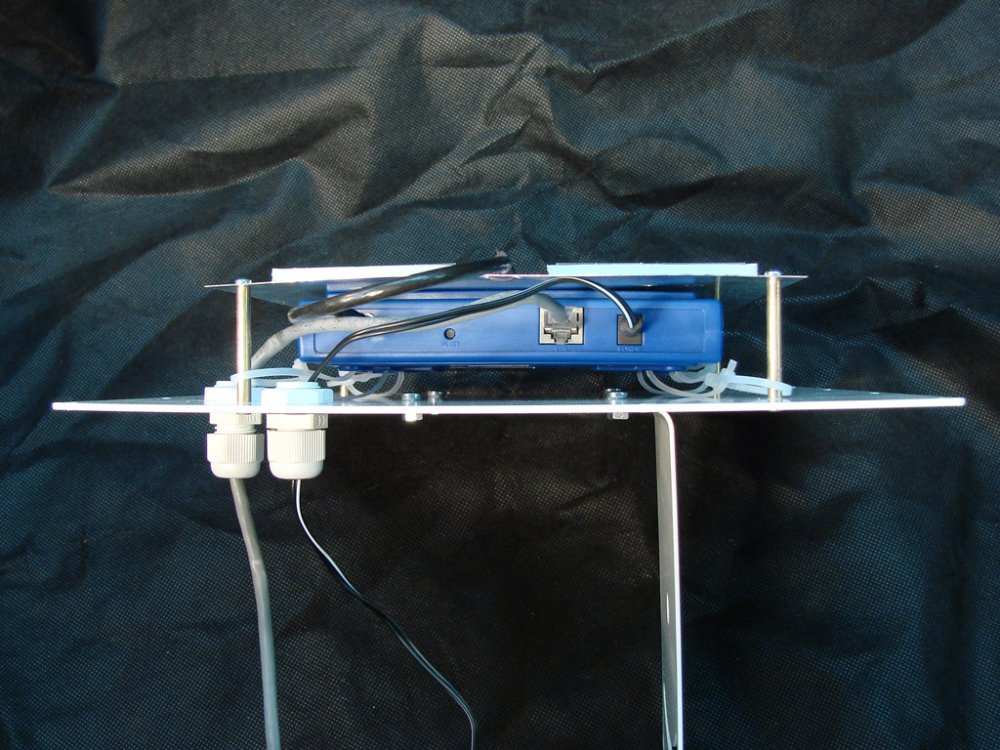

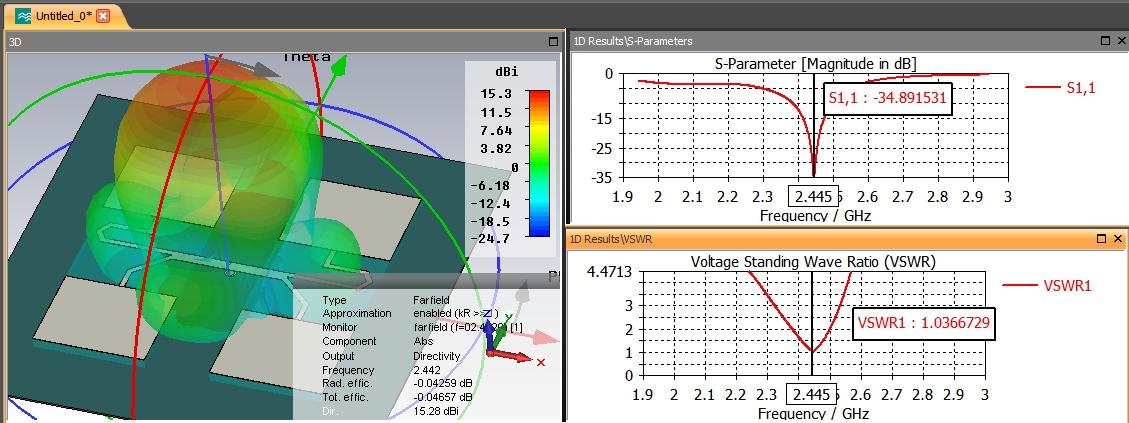

2x2 antenna panel, that has two polystyrene foam insulating spacers, being easily executed.

[Admin 2421]

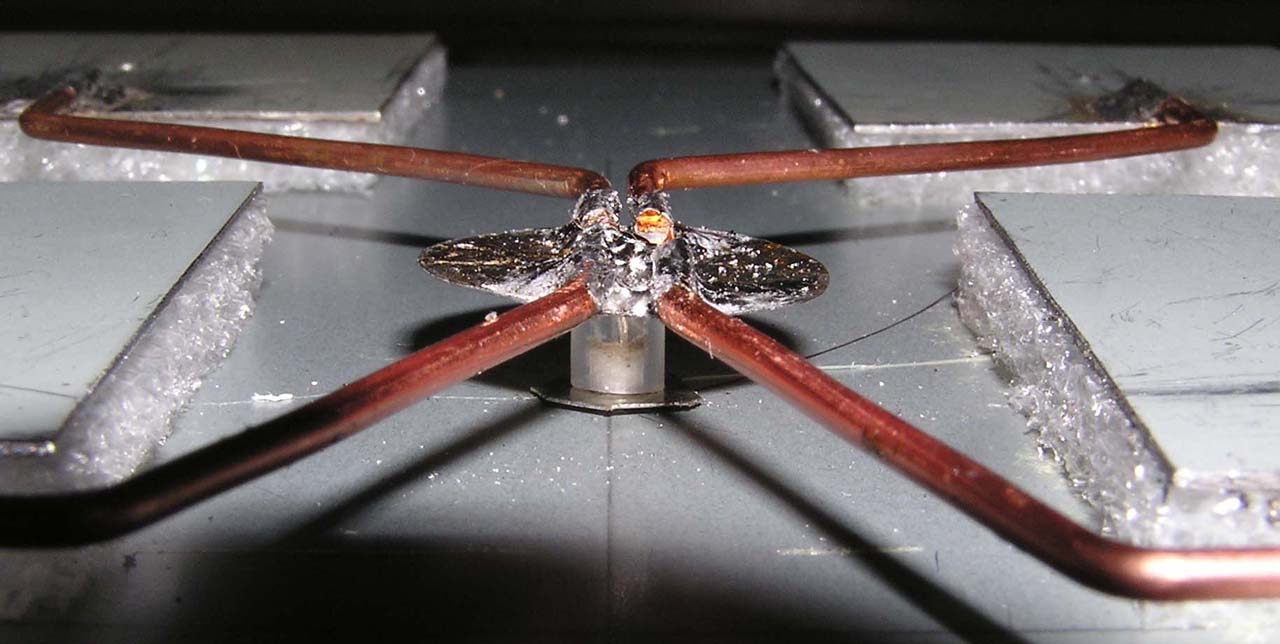

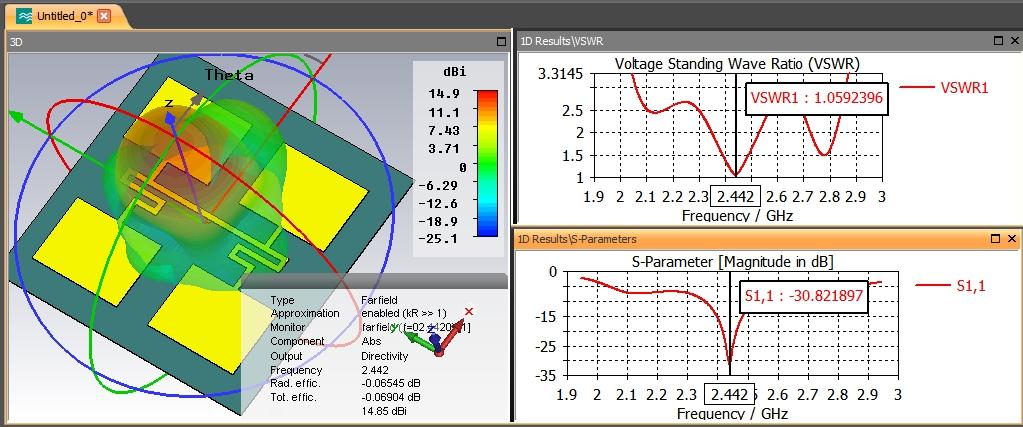

Another form of feeding patches



[Admin 2421]

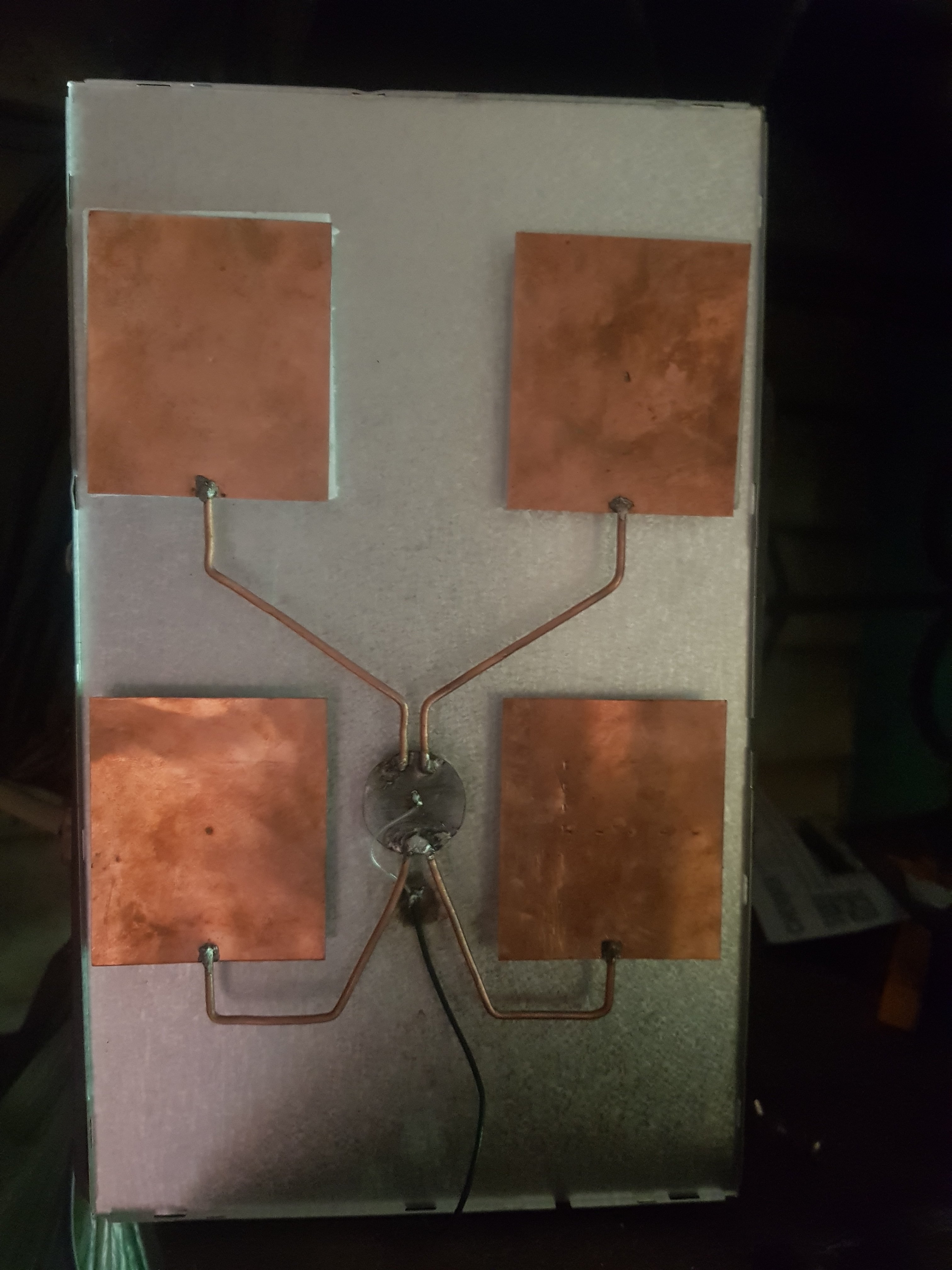

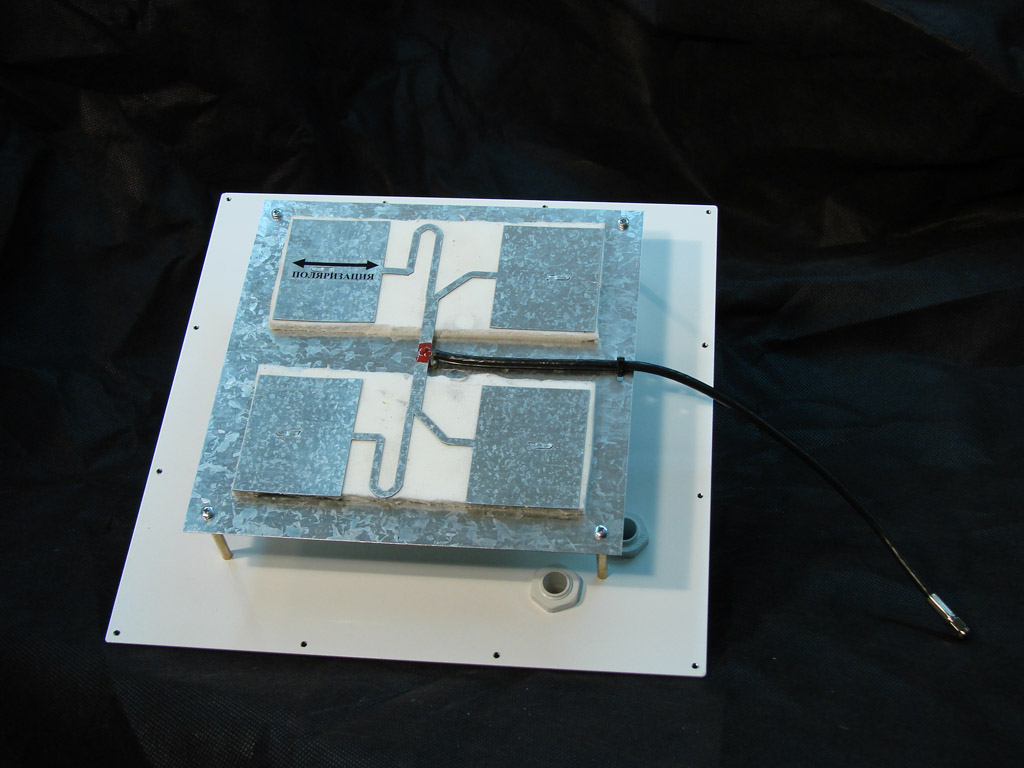

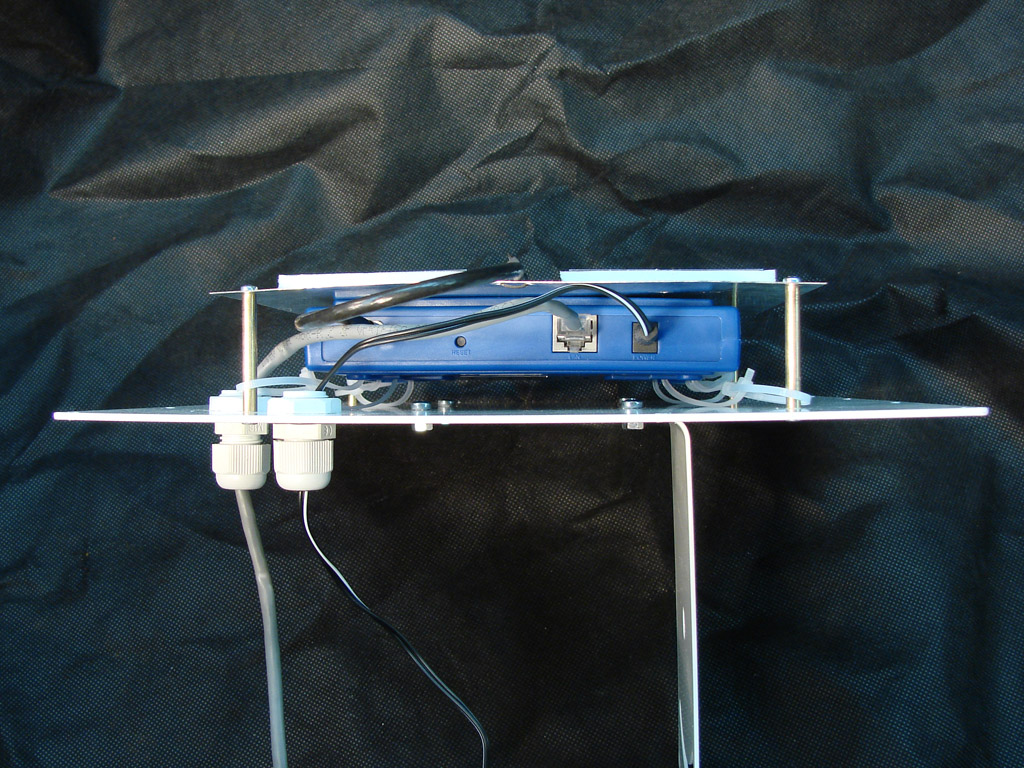

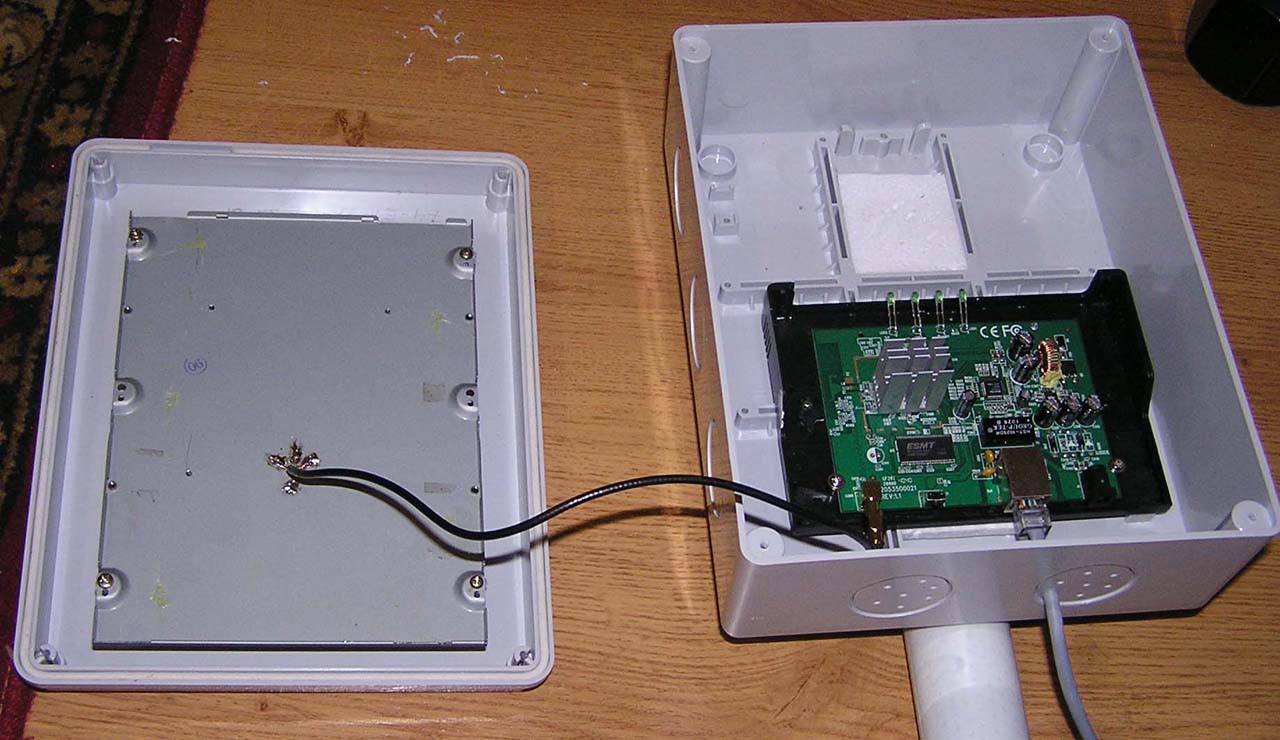

Another type of panel antenna

[Carlos 3]

Que medidas utiliza en la ultima antena

[Admin 2421]

4 hours ago, Carlos said:

Que medidas utiliza en la ultima antena

Reflector 190x150mm on 2400 MHz but try to recalculate under 4G iota 2600, then replace the patches on the ellipse and see what happens, well, for the kit I will do and for 3G 1900-2200, if I suddenly buy
According to the patch calculator dimensions 51. 2x38. 9 on 2600 and 200 ohm, 5mm-h (air)
45.2x38.9 2600-200-10(air)
48.8x38.8 2600-200-7(air)
44. 6x39 2600-200-7 (foam with a permittivity of 1.25)

[Carlos 3]

Gracias hice la antena probare en 2.4g los parches van en cobre reflector no tiene esas medidas solo me falta poner y corto la antena

Edited June 25, 2020 by Carlos
