Admin

Antenna with wire elements

43 posts in this topic

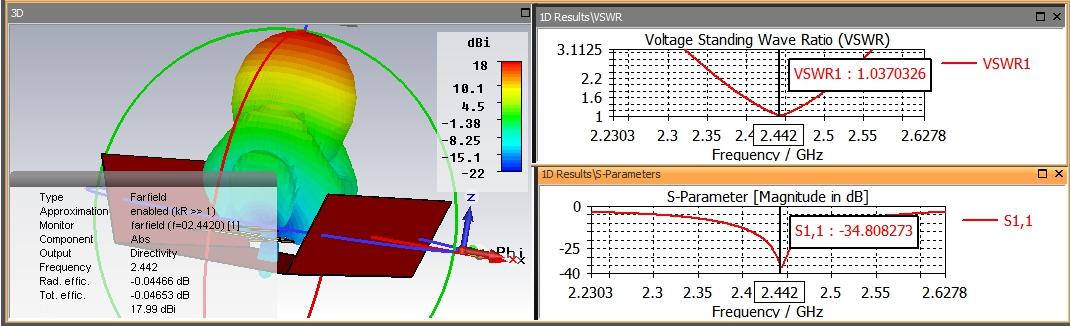

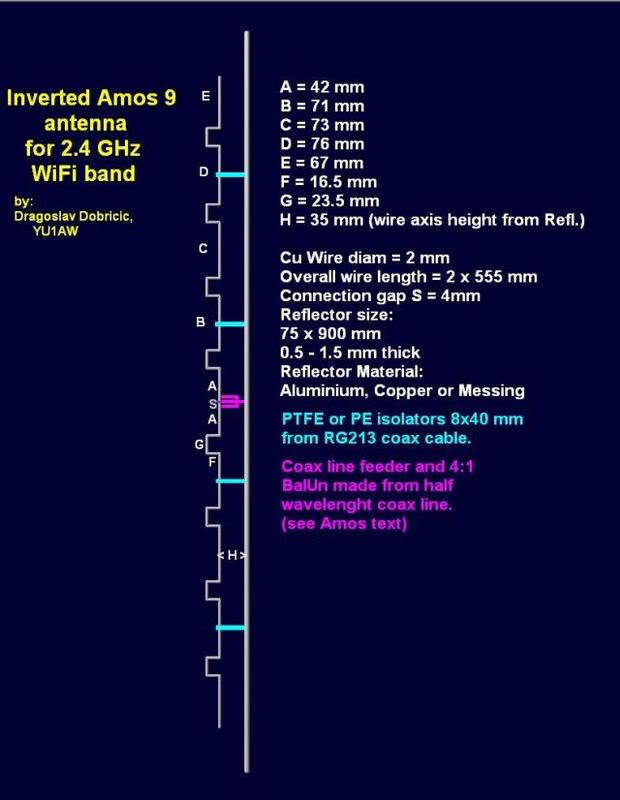

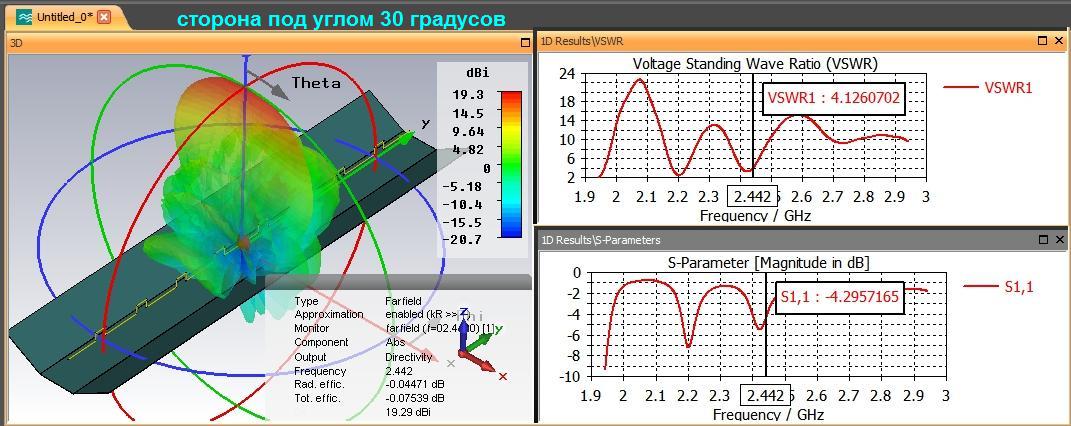

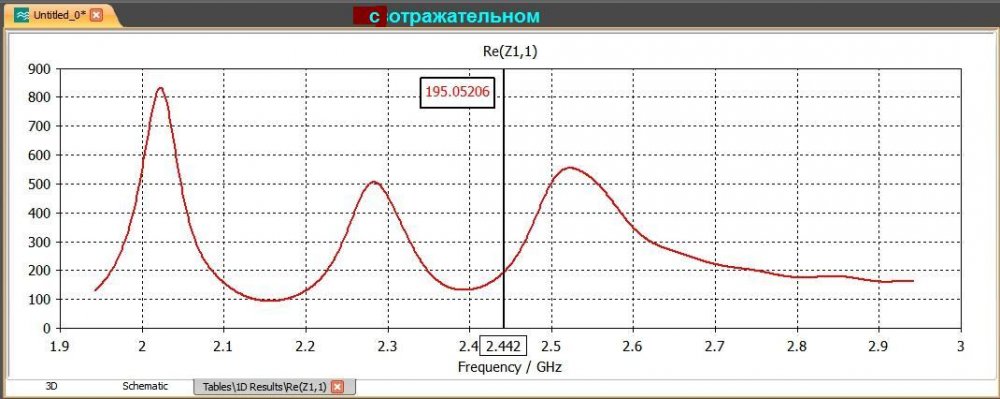

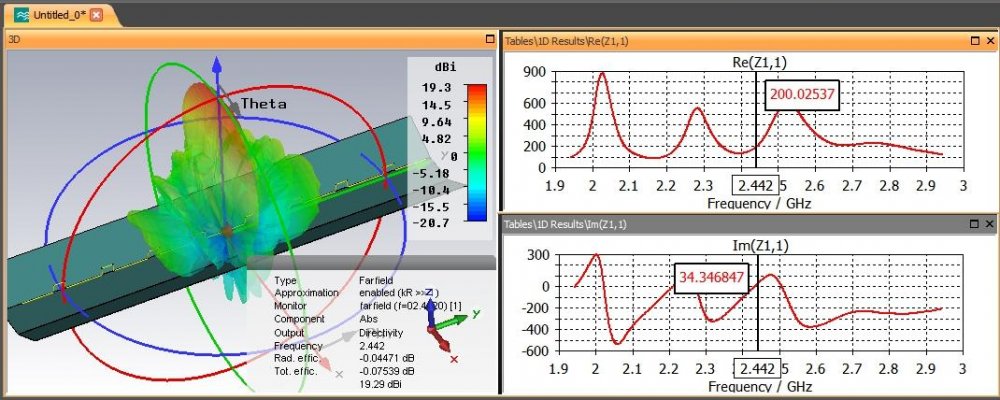

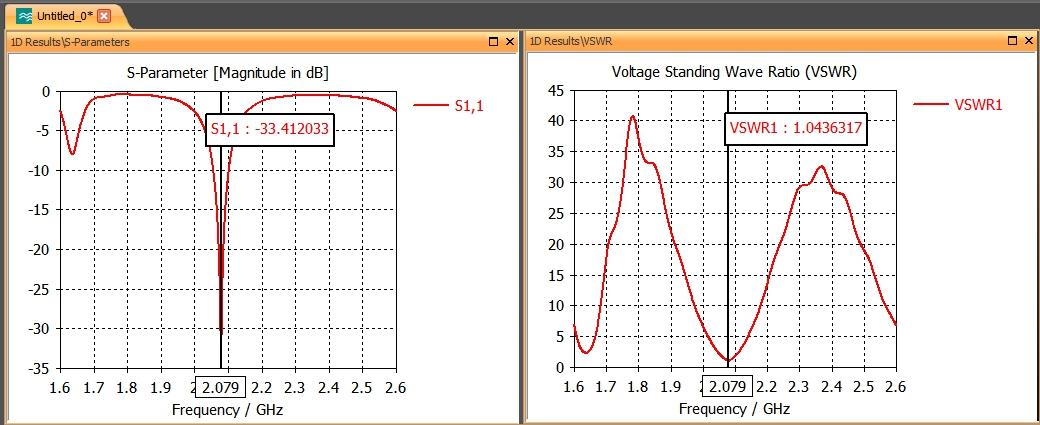

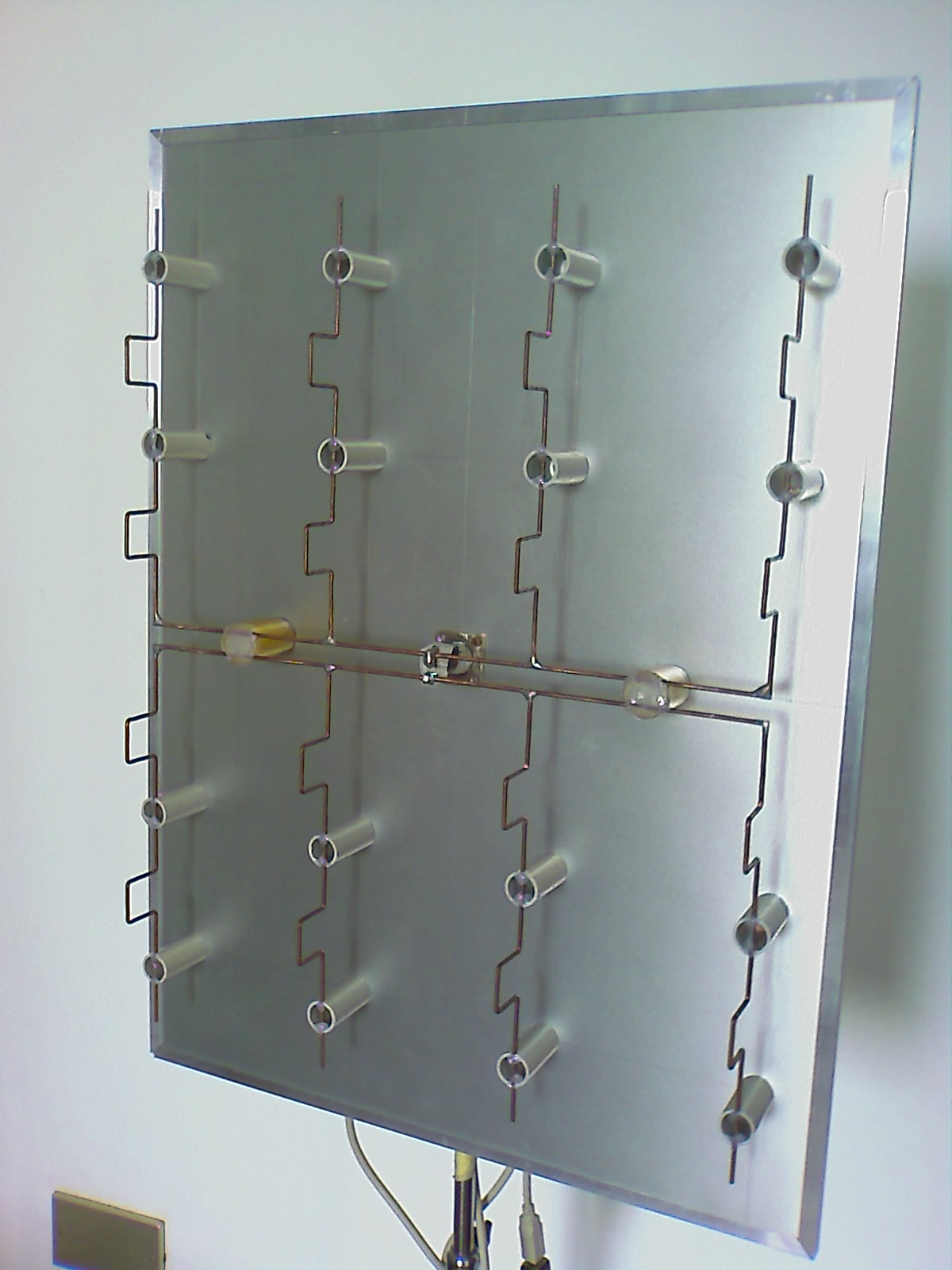

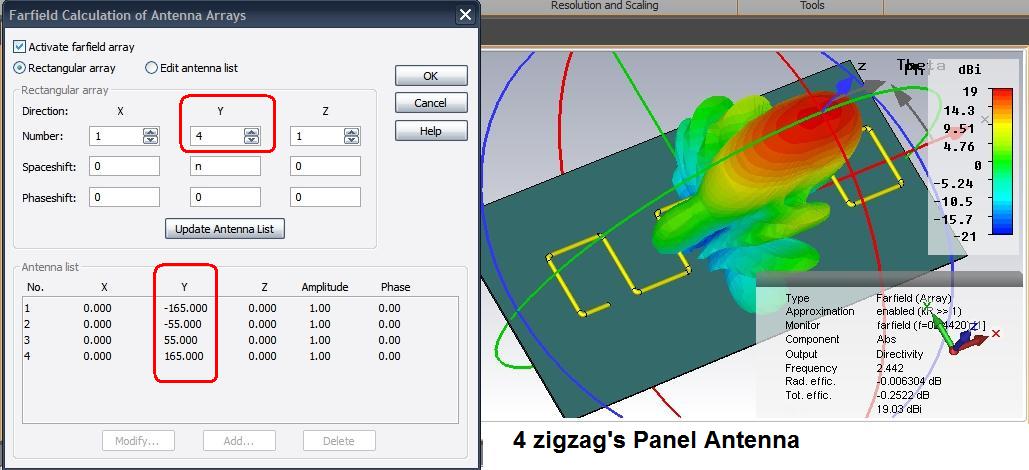

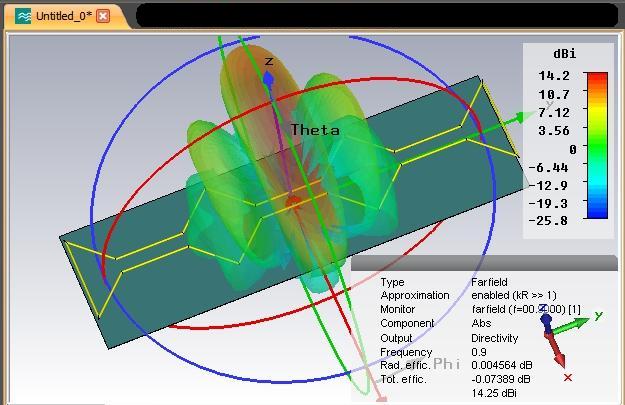

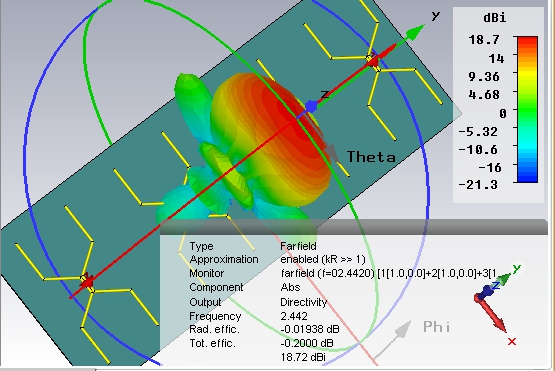

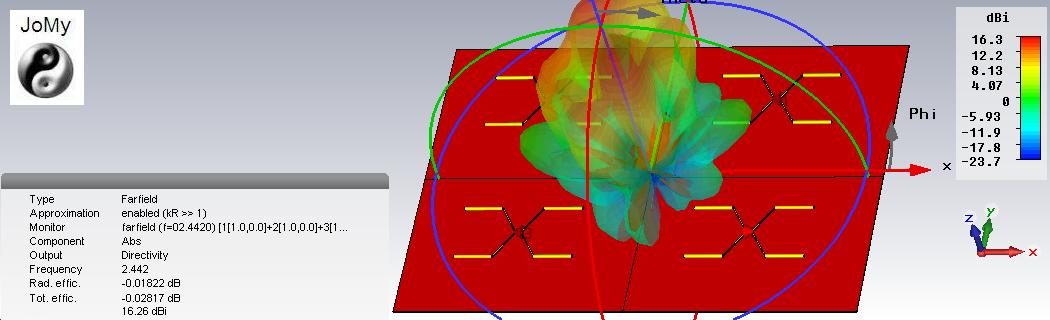

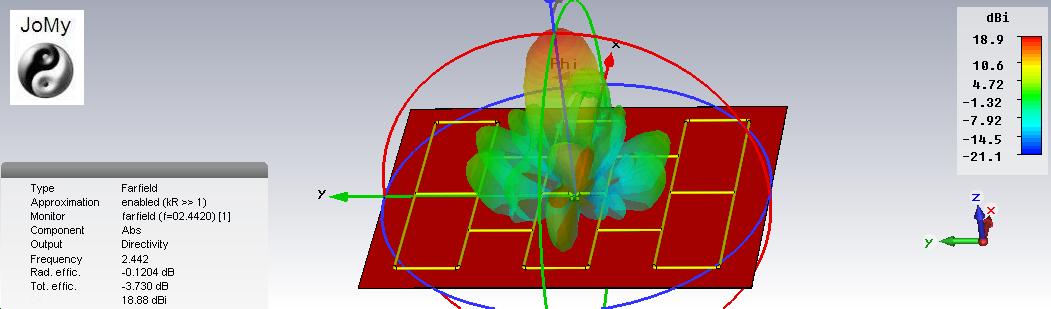

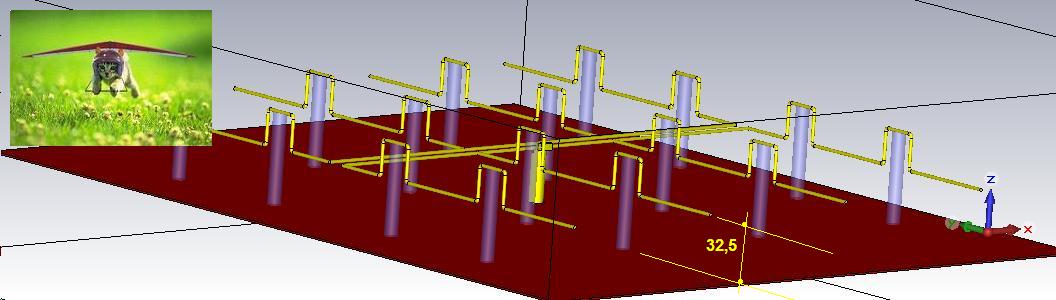

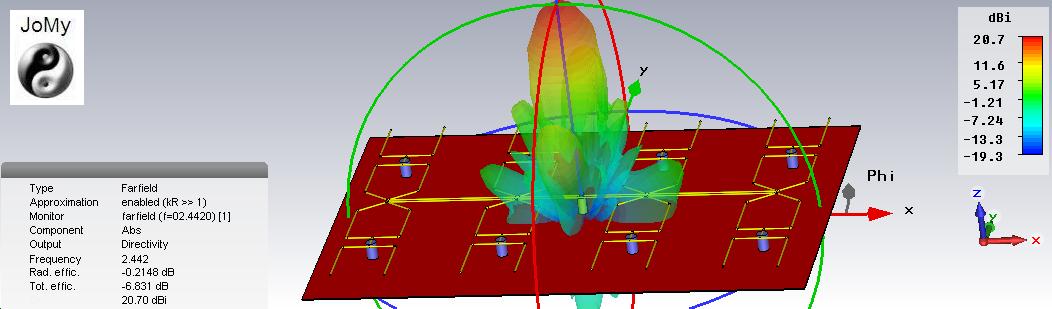

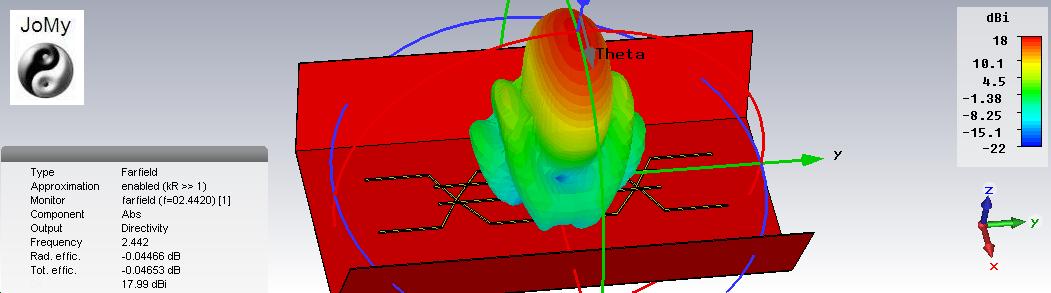

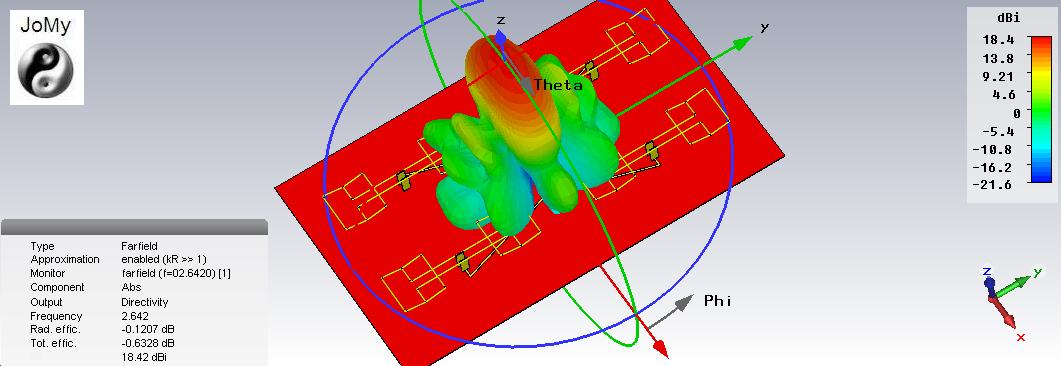

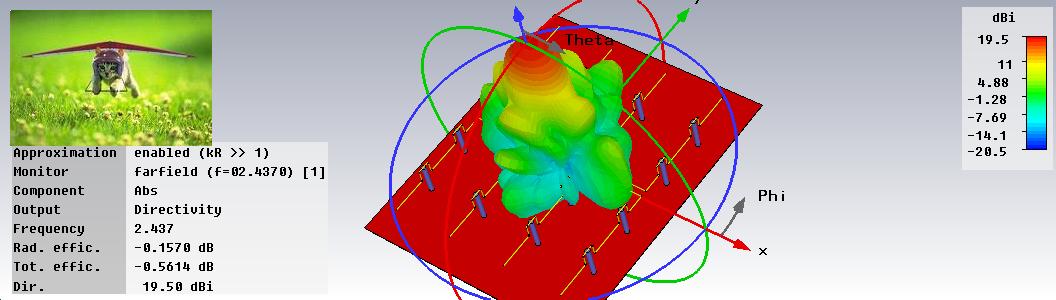

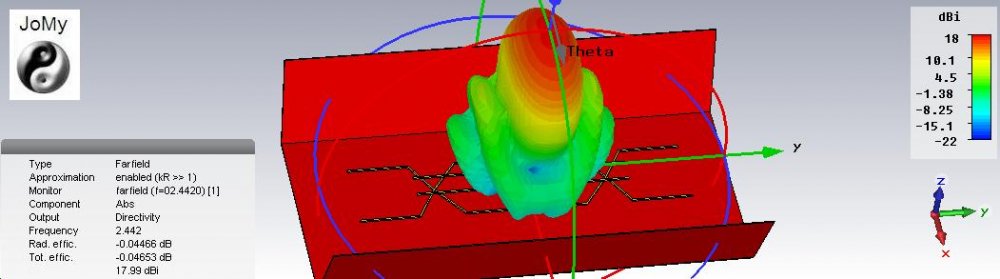

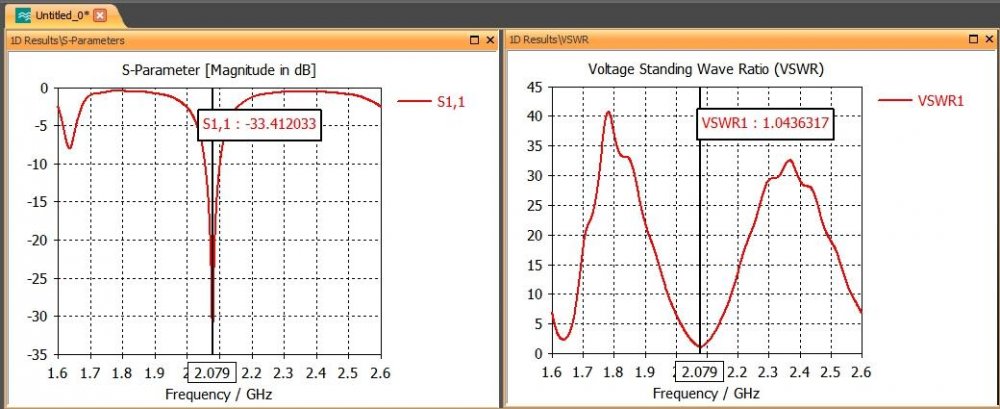

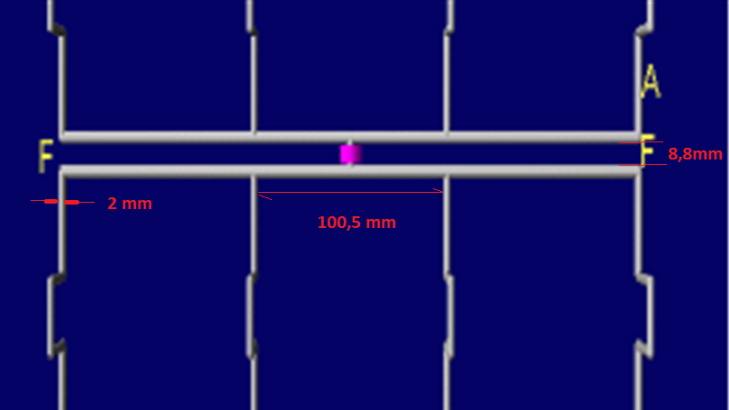

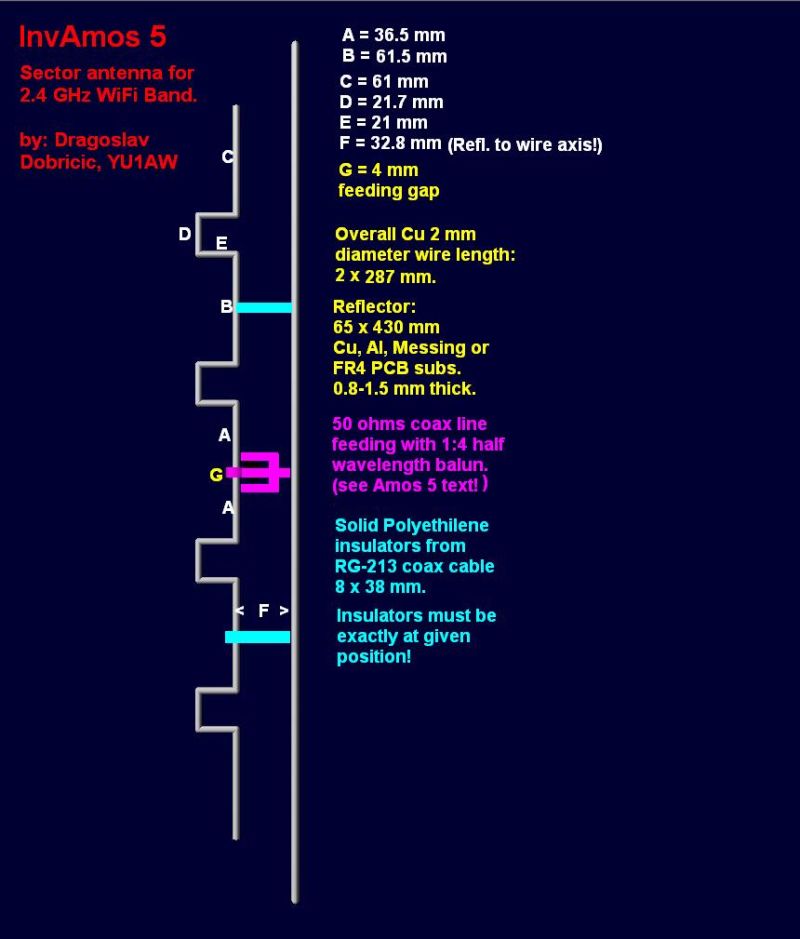

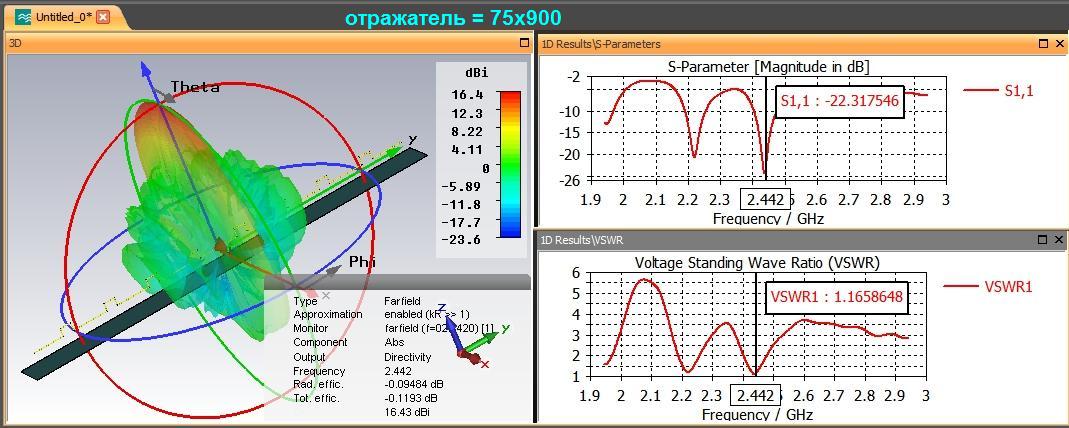

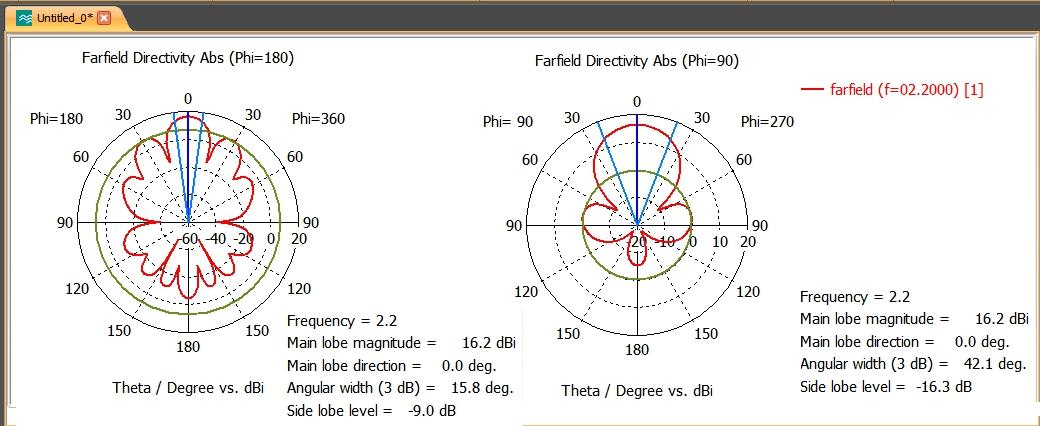

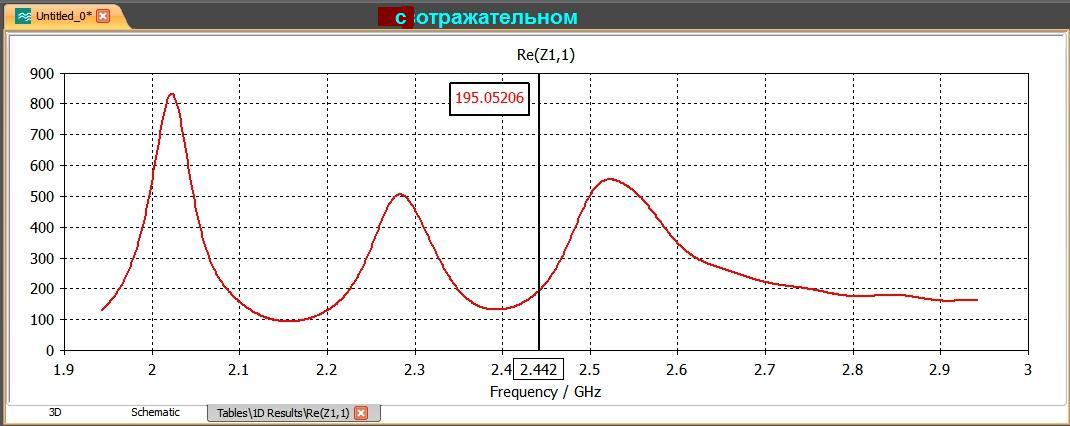

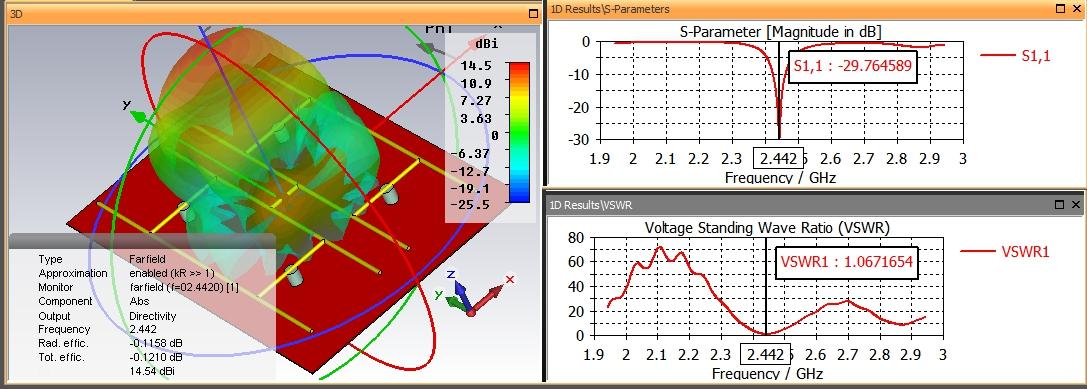

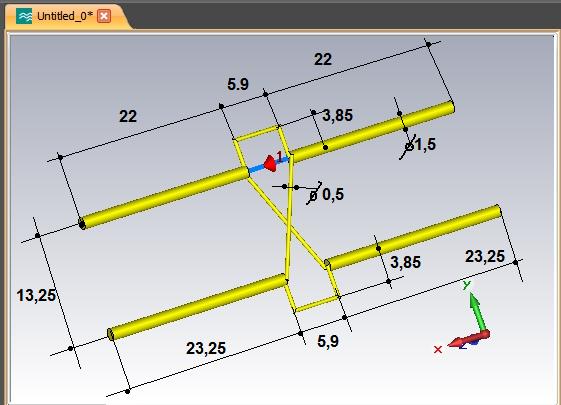

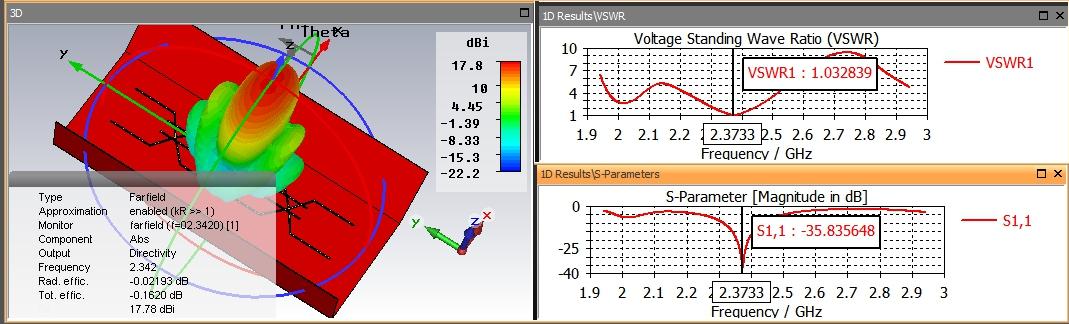

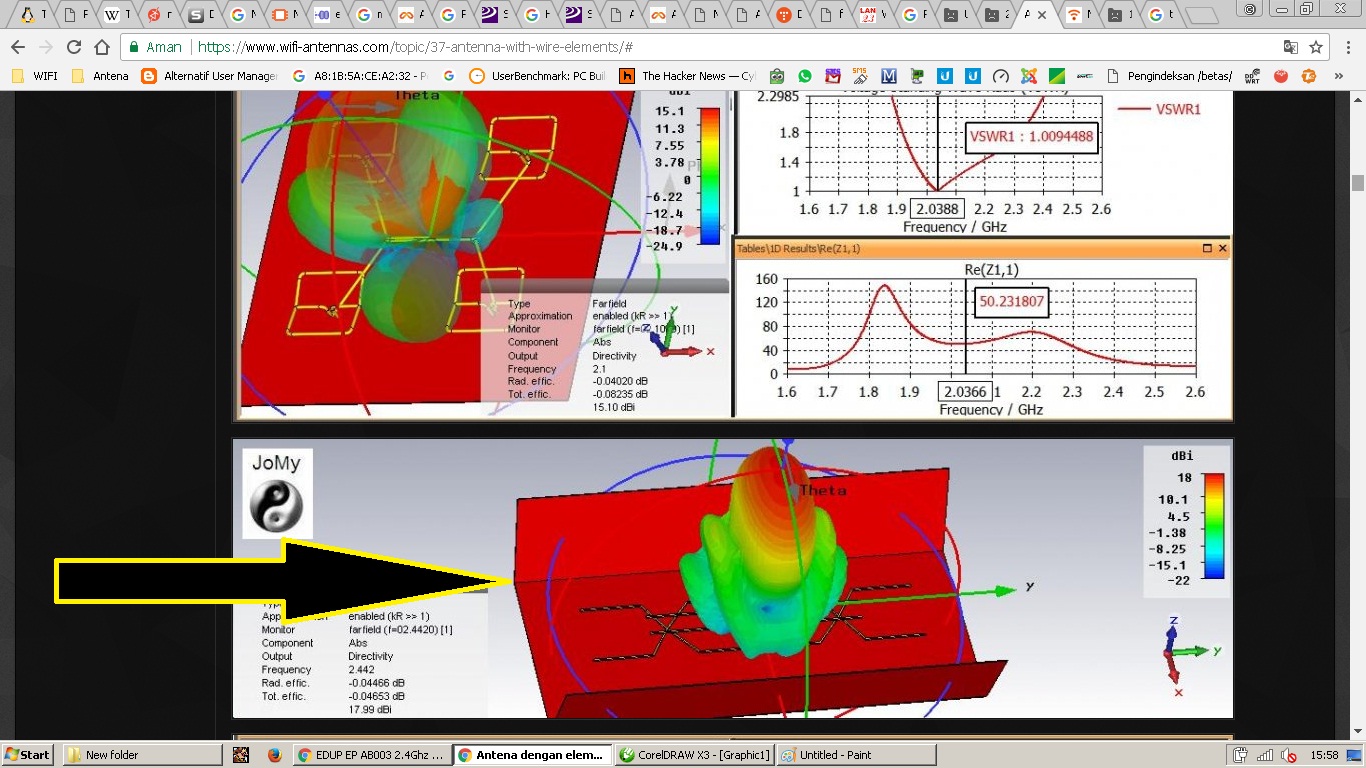

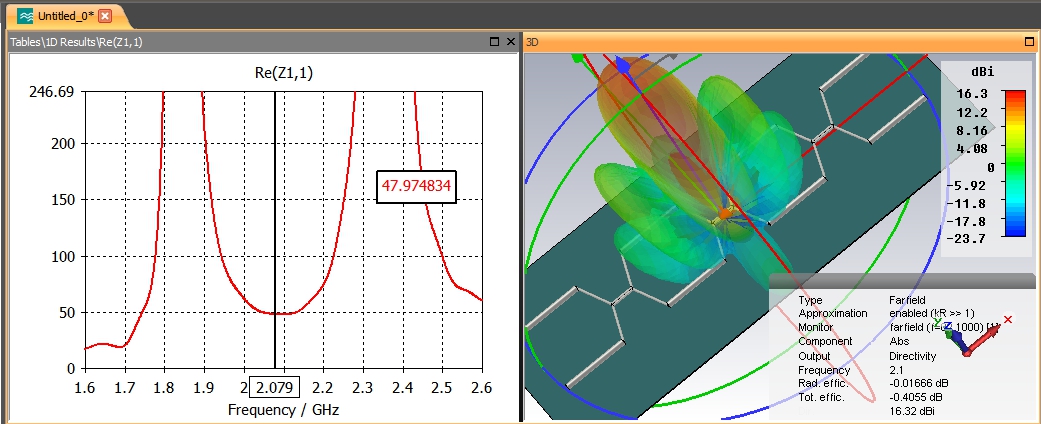

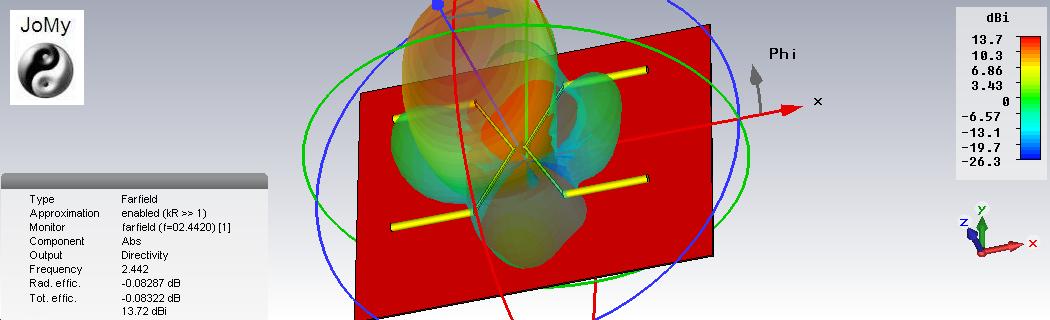

The LAZY "H" antenna is a general type of antenna that is in the curtain array family. By placing 2X4 wavelength dipoles in a plane that is at right angles to the direction of maximum radiation and keeping the proper in-phase current condition to each element, you can achieve a HIGH GAIN directional antenna.








Share this post


Link to post
Share on other sites

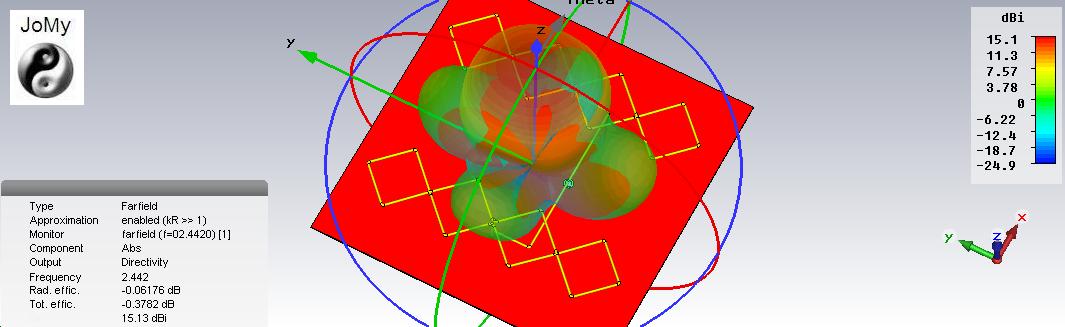

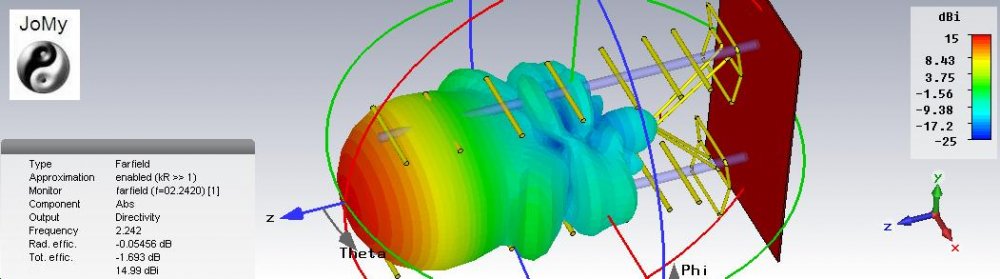

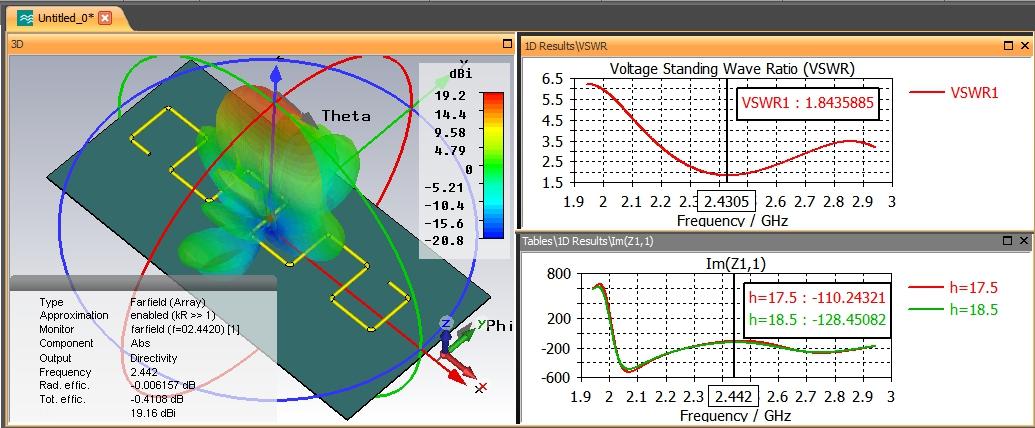

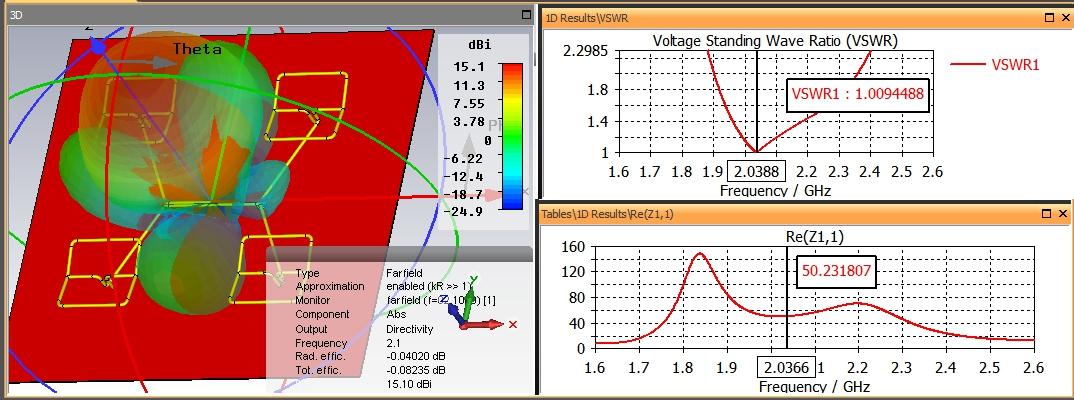

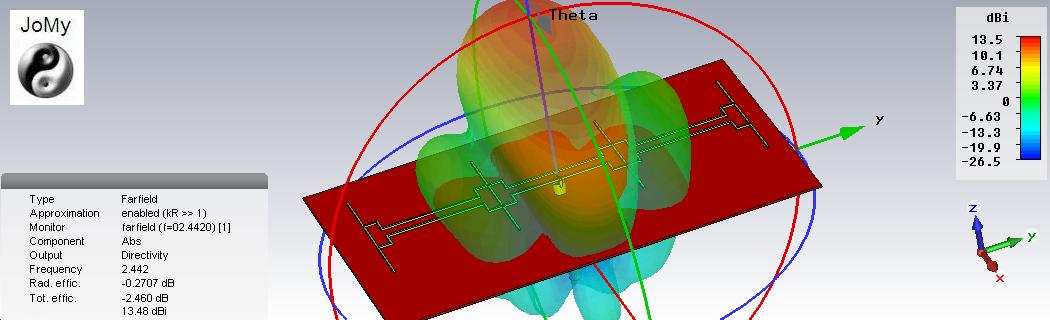

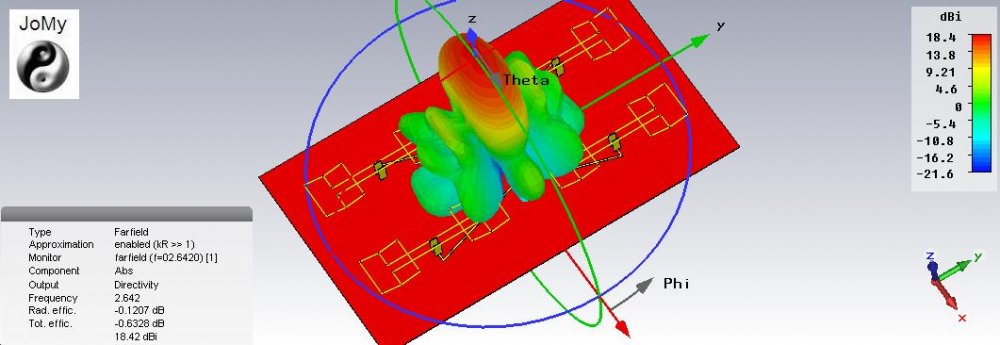

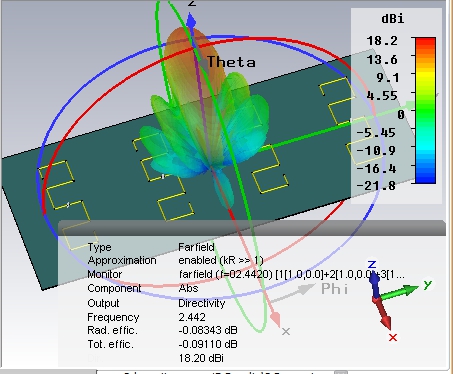

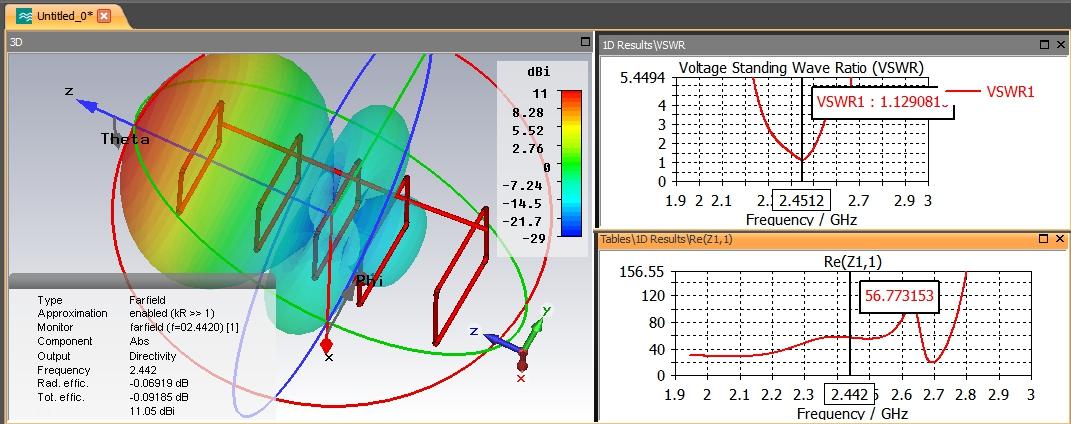

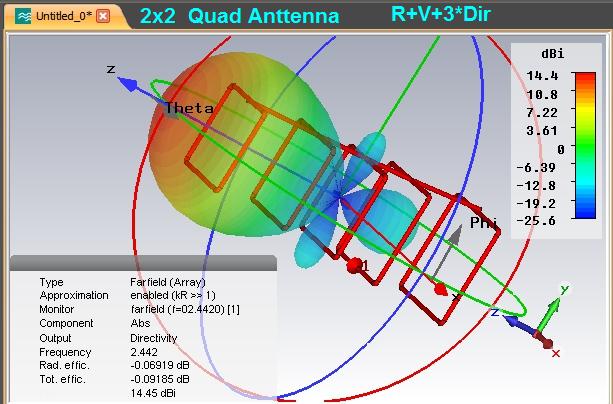

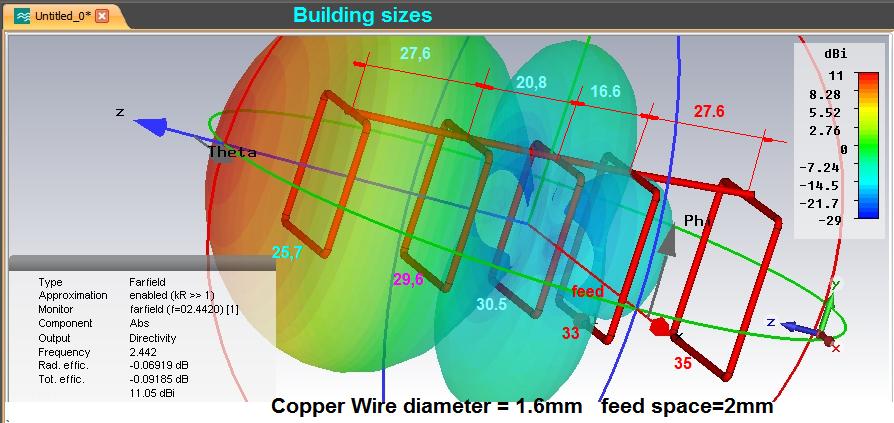

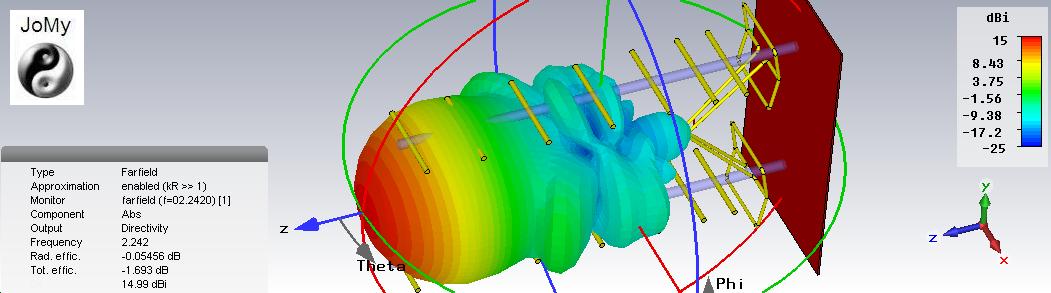

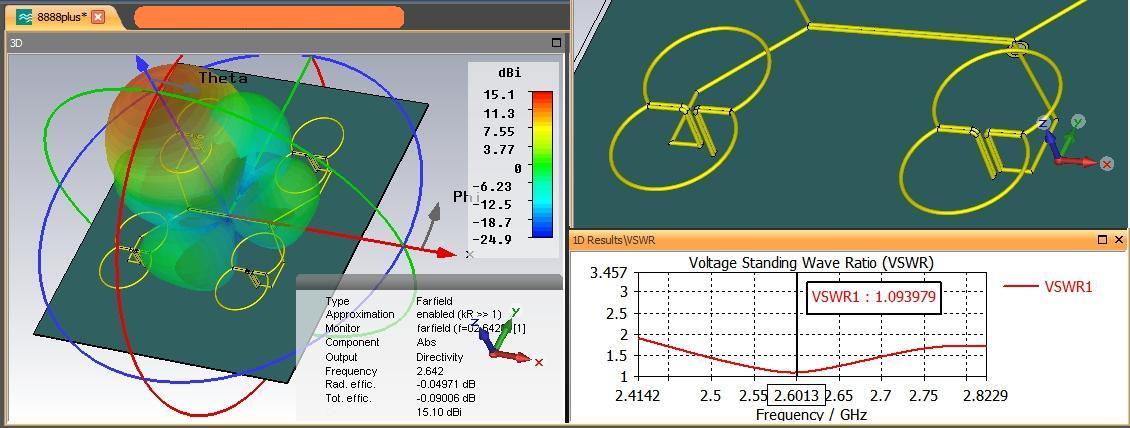

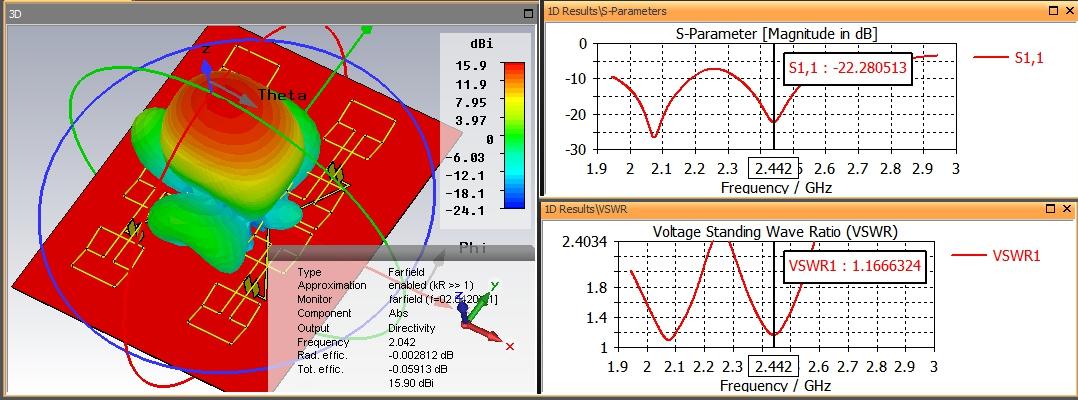

The quad antenna consists of a square loop of wire as shown in the figures below . The side of the loop is approximately lambda/4 in length and it is normally fed with 50-- 75*lambda coaxial cable at the point shown. The loop can be mounted with a diagonal vertical and fed at the bottom corner; in either case the feed point is a current maximum and the performance is identical. In the configuration shown, the polarisation is horizontal. If fed from the side of the loop, the polarisation will be vertical.








Share this post


Link to post
Share on other sites

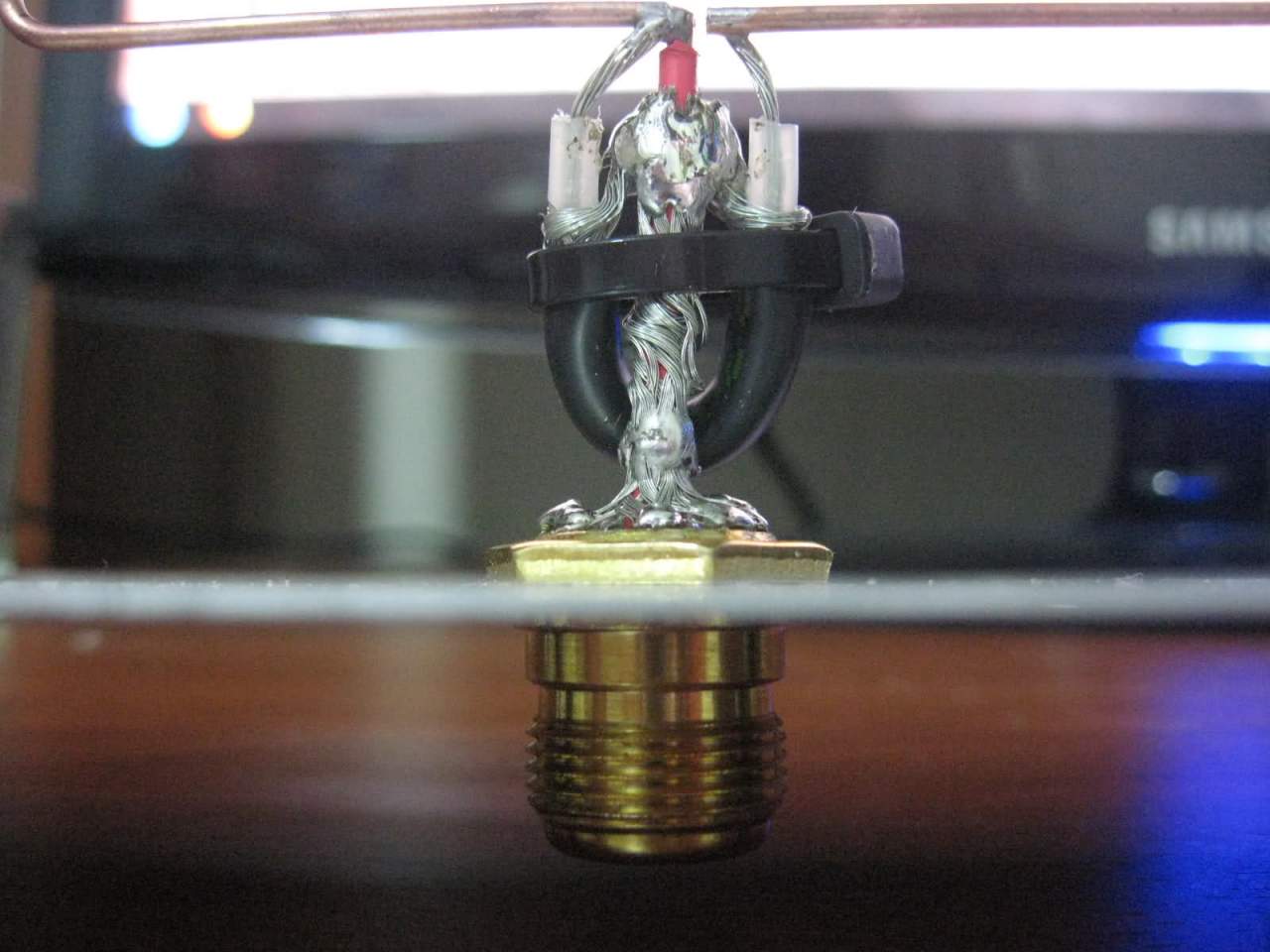

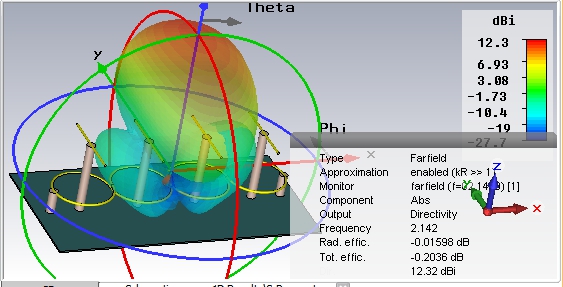

,,, and how do you make the connection between the spirals .. ??

Share this post


Link to post
Share on other sites

because of the limitations of measuring devices, I only use "signal quality" information on the router asus rt-n10u ddwrt.

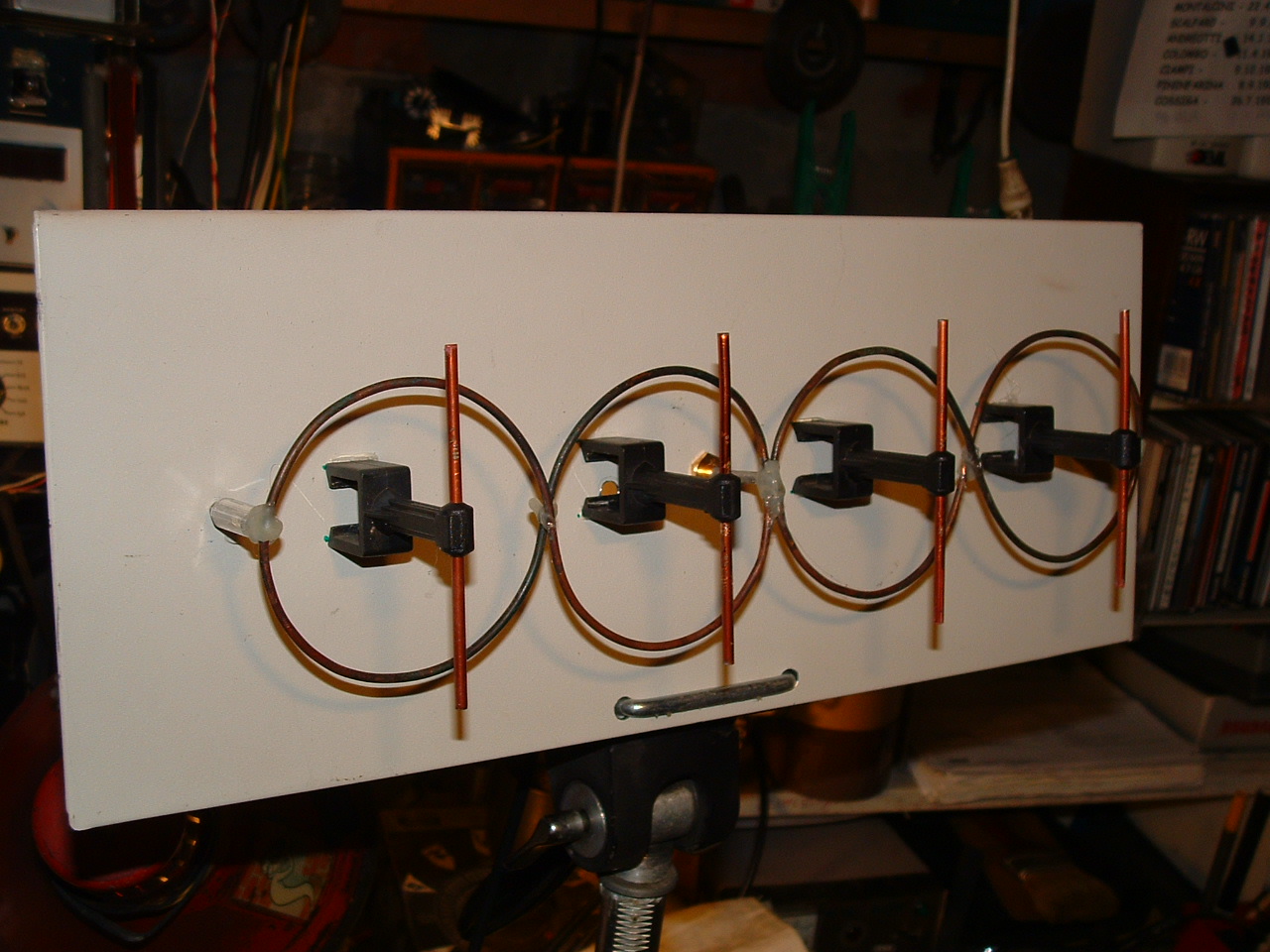

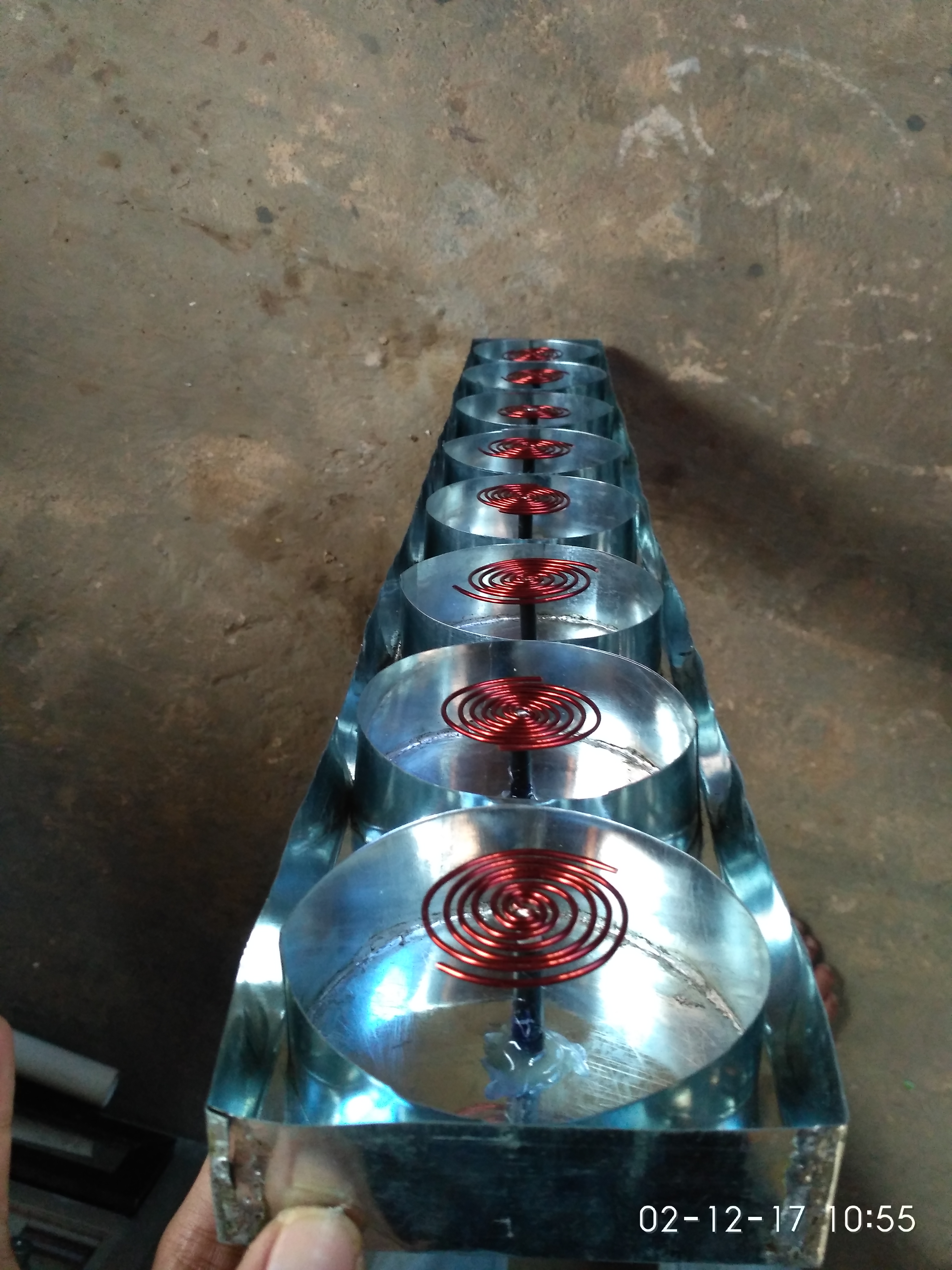

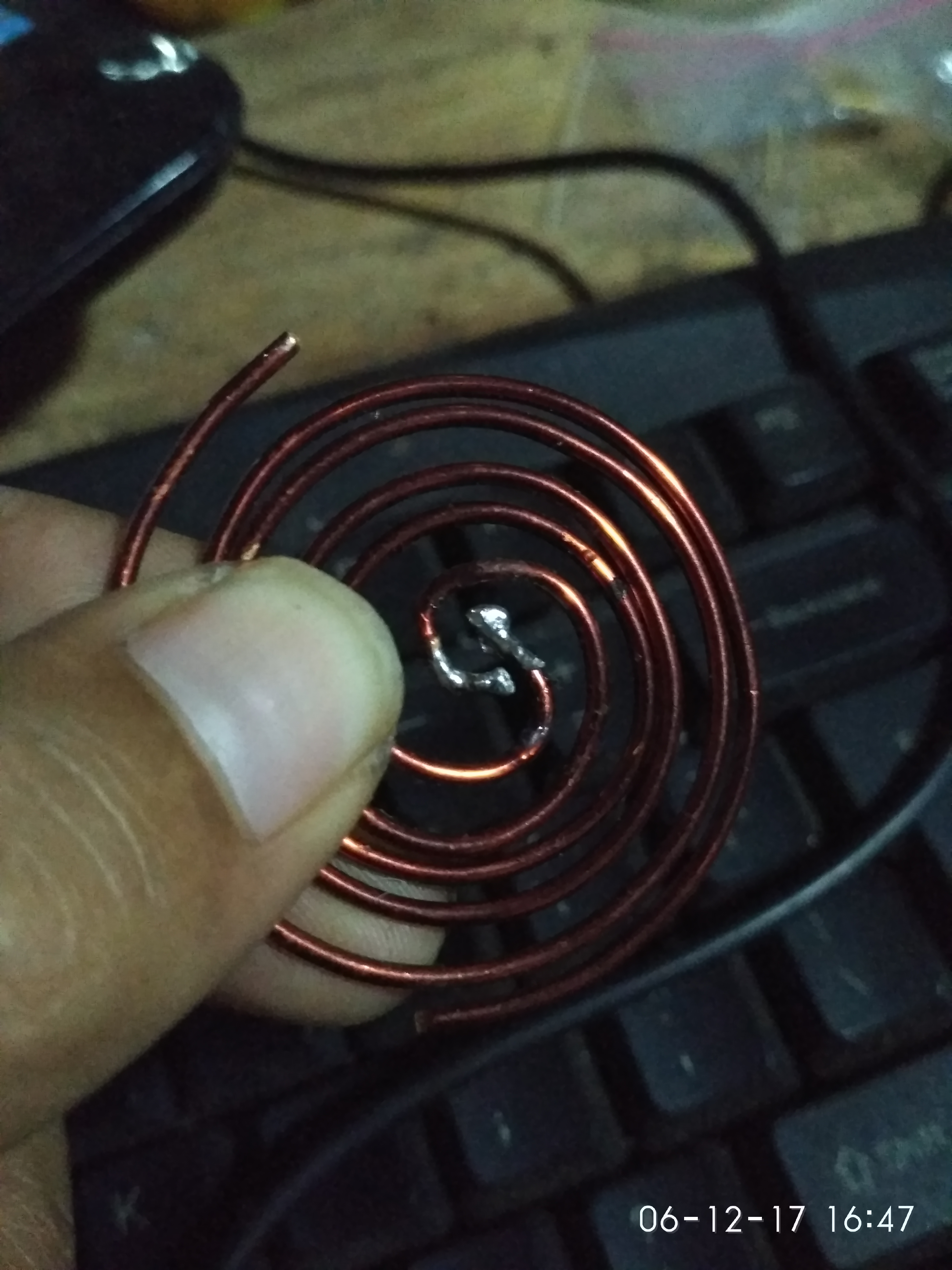

I call this antenna "capucino" because of its coffee-like shape in a glass.

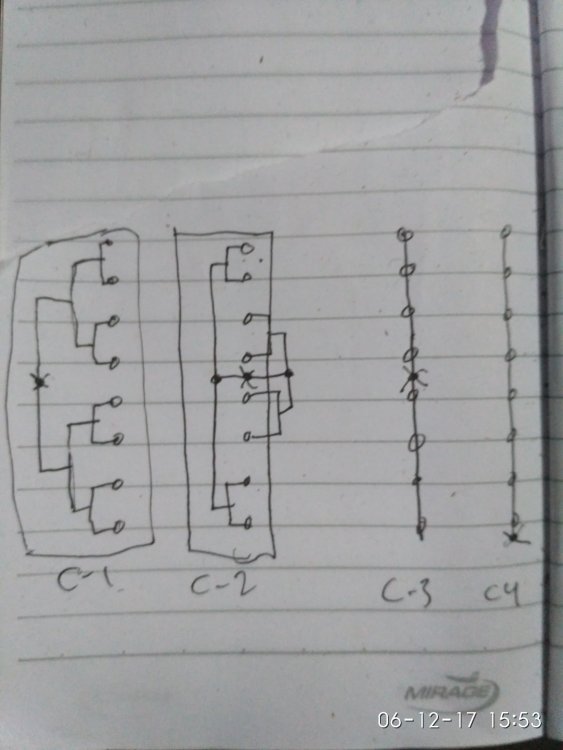

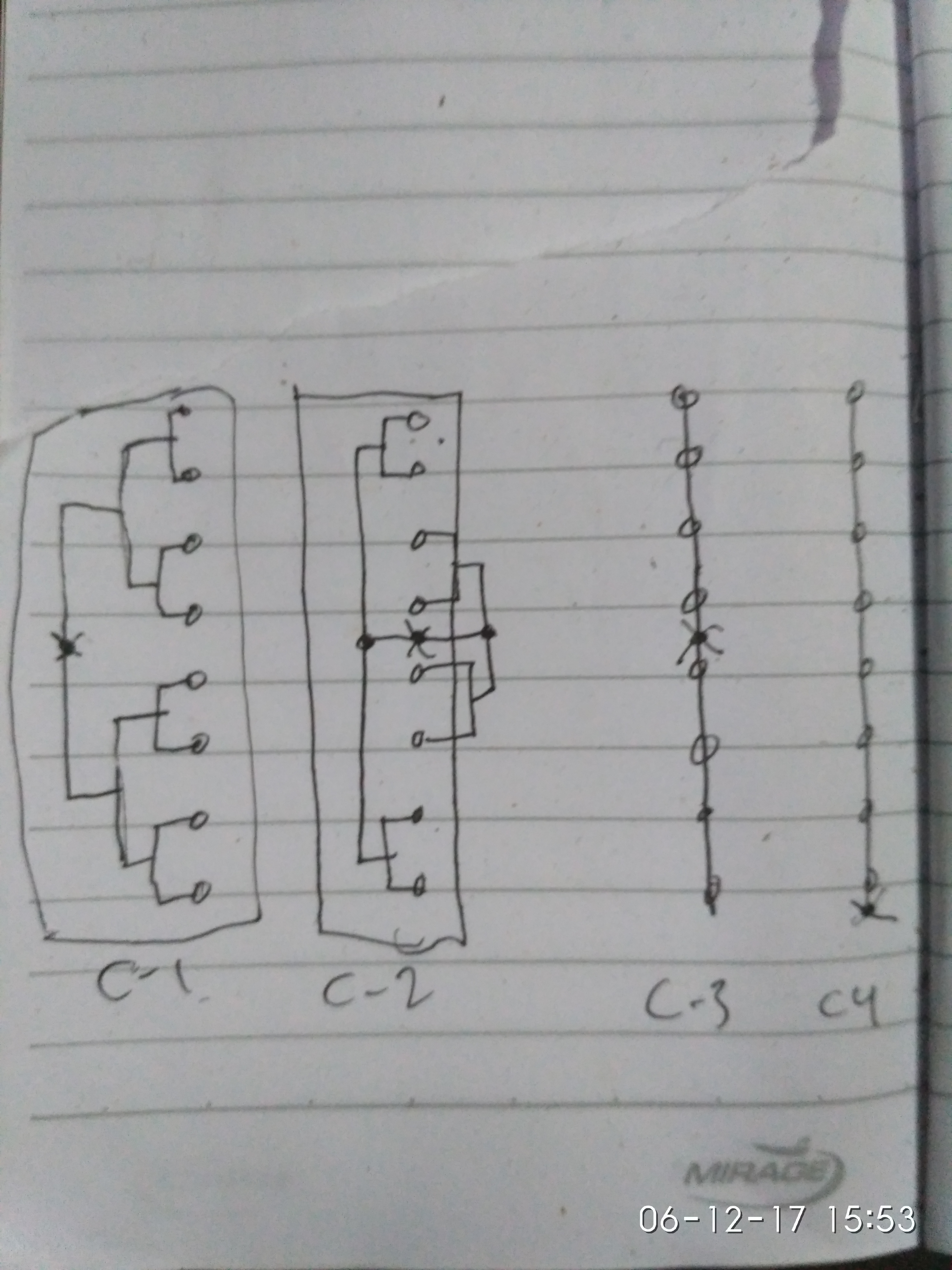

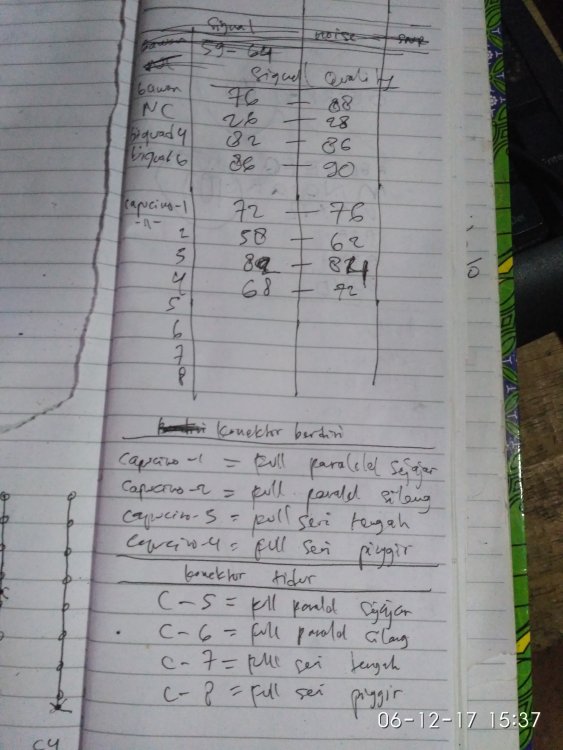

from the experimental results I made, (C-3) is best in my opinion, that is, in series, the middle connecting point.
because of the complexity of making it, i left the project behind.


Edited by pragata.my.id

Share this post


Link to post
Share on other sites

"no, no, I want to see how you typed spirals between them ///

Share this post


Link to post
Share on other sites
21 minutes ago, pragata.my.id said:

wear the same copper wire.

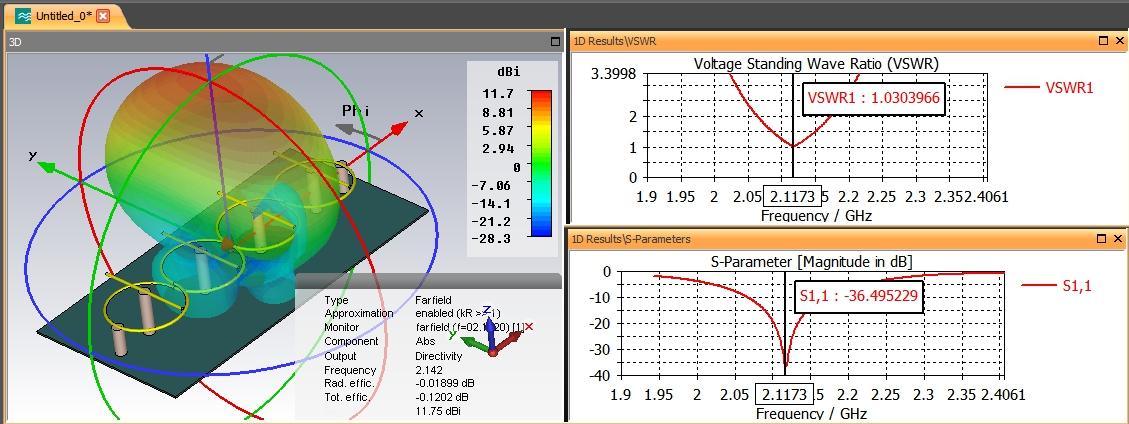

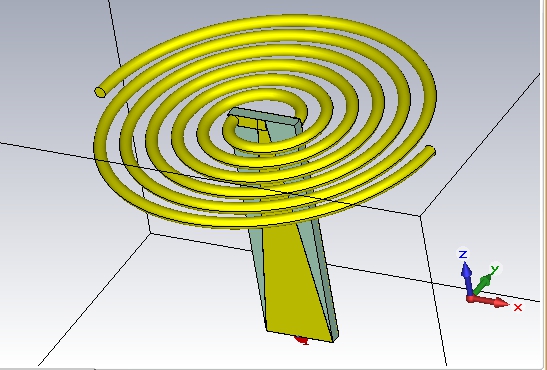

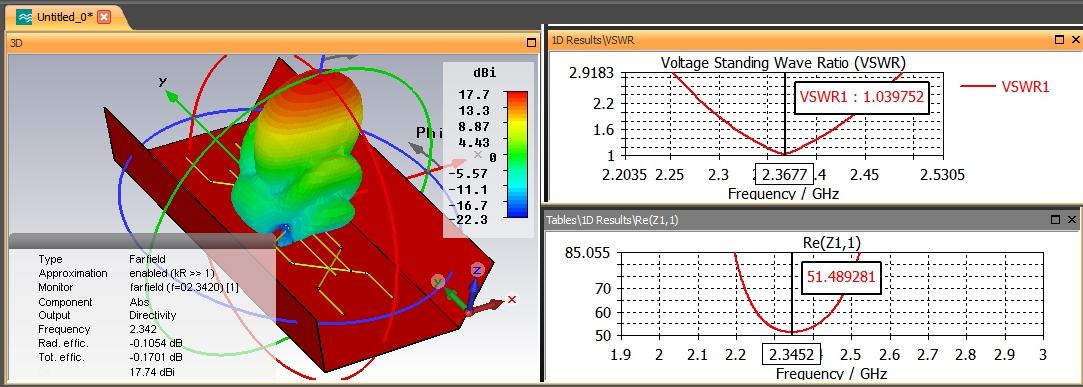

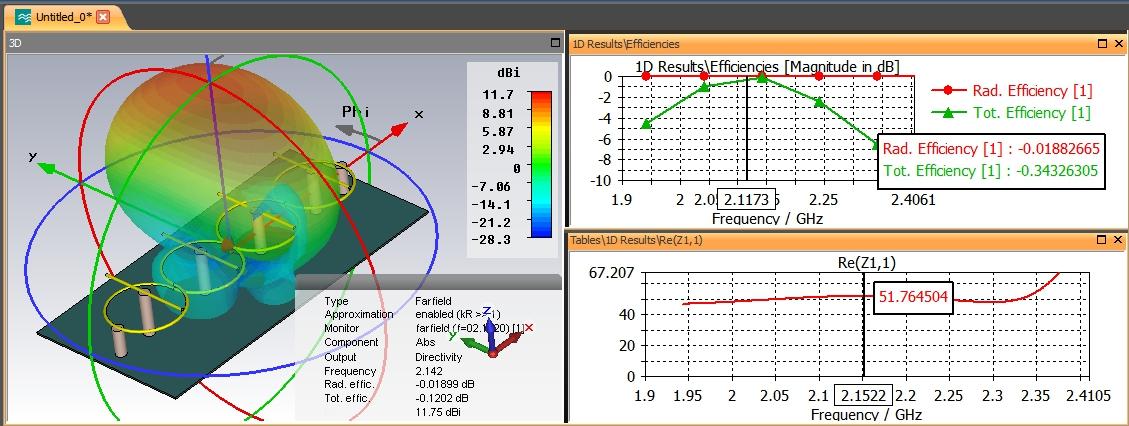

I will simulate such an antenna,,,!!!




Share this post


Link to post
Share on other sites

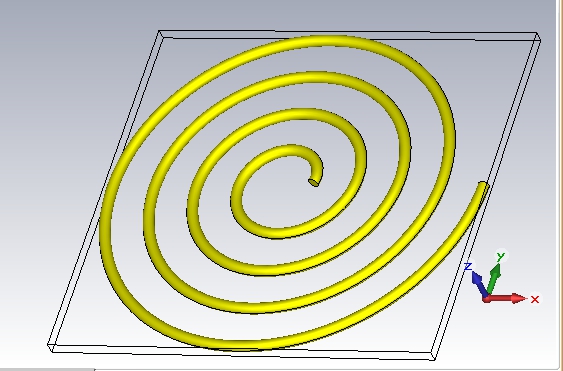

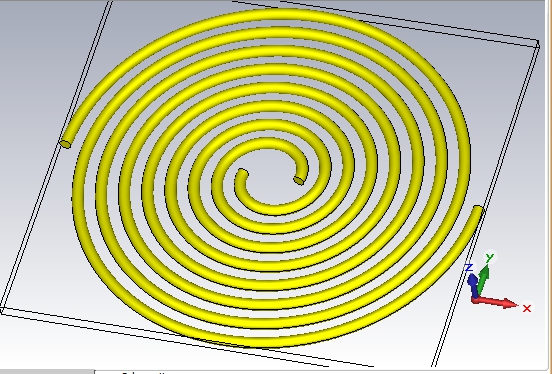

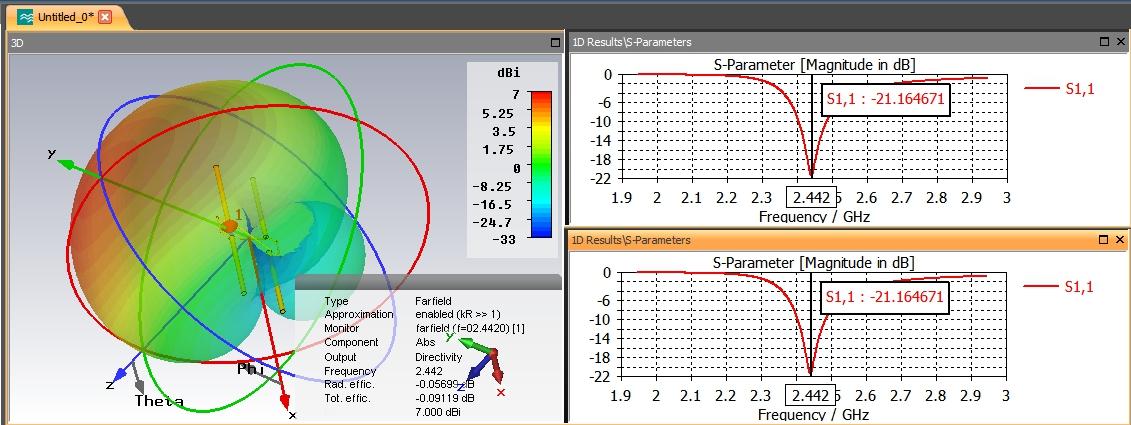

length of spiral wire I use 4 x lamda = 4 x 123,86 = 495,44mm.
the distance between the spiral with the reflector is about 35mm.

Share this post


Link to post
Share on other sites

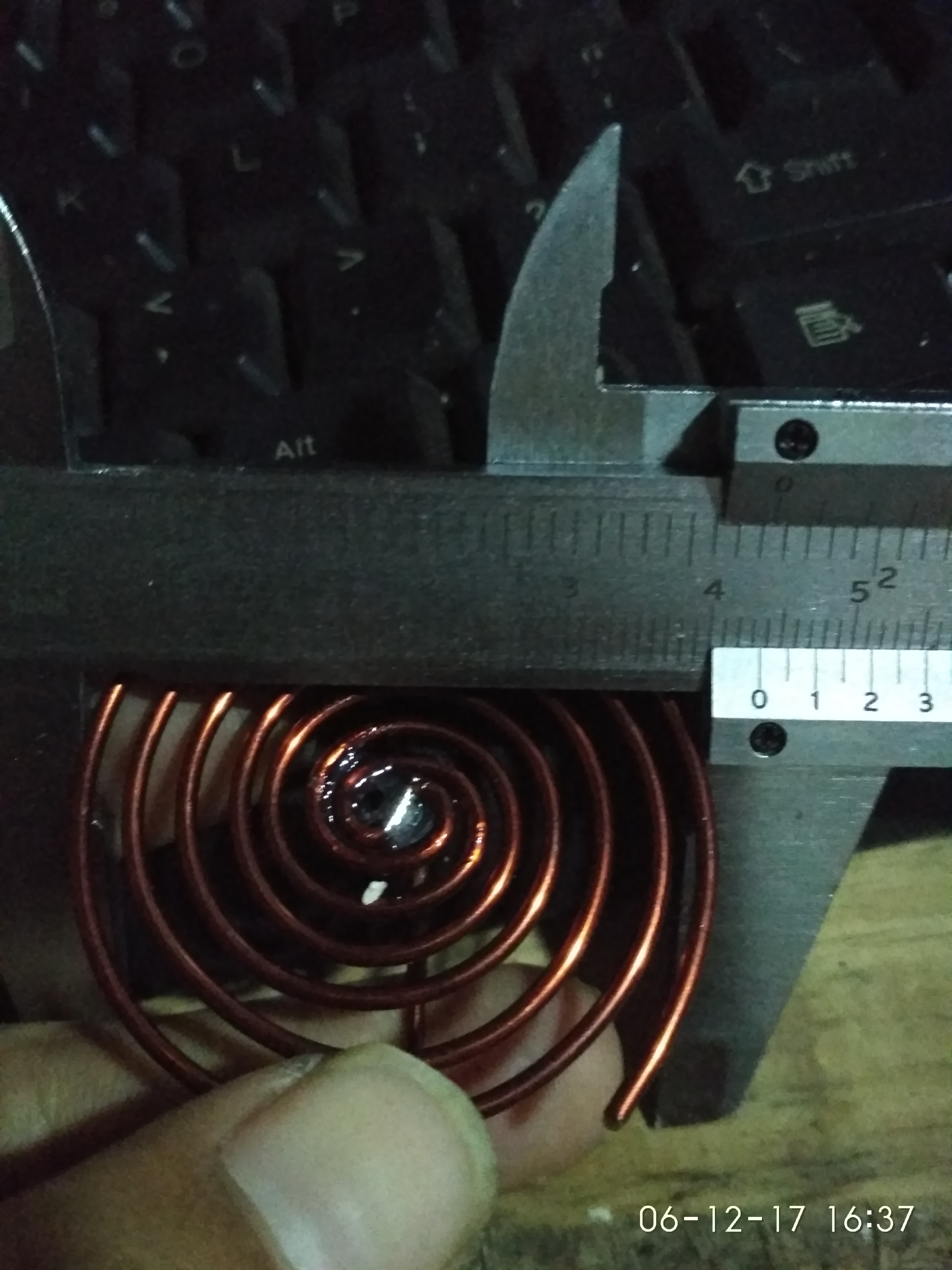

diameter wire = 2mm

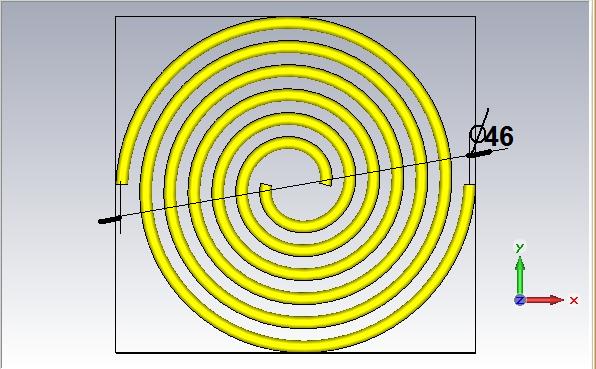

diameter spiral = 44-46mm


Edited by pragata.my.id

Share this post


Link to post
Share on other sites

which is correct according to the theory that I can on the internet between the 2 wire is connected, but why in fact, better separated? positive and negative poles.

like this.


Edited by pragata.my.id

Share this post


Link to post
Share on other sites
6 minutes ago, pragata.my.id said:

wear the same copper wire.

please help me, use whatever construction is up to admin father, to achieve maximum performance of this antenna model, yesterday i only use the same copper wire with spiral.

Share this post


Link to post
Share on other sites
4 minutes ago, Admin said:

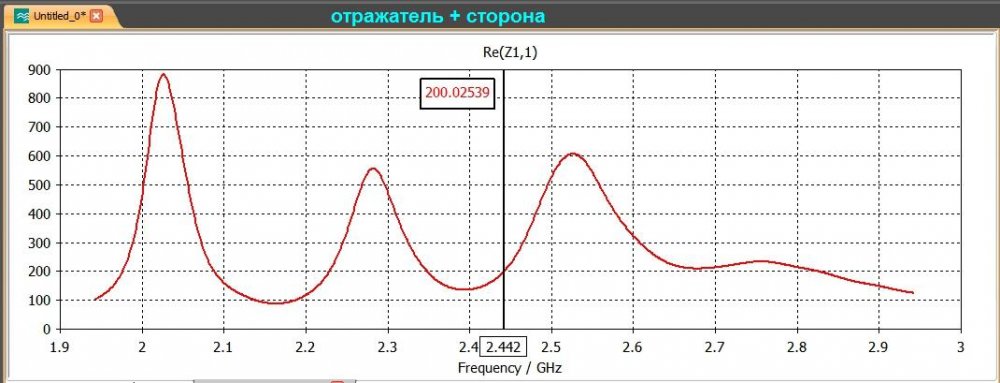

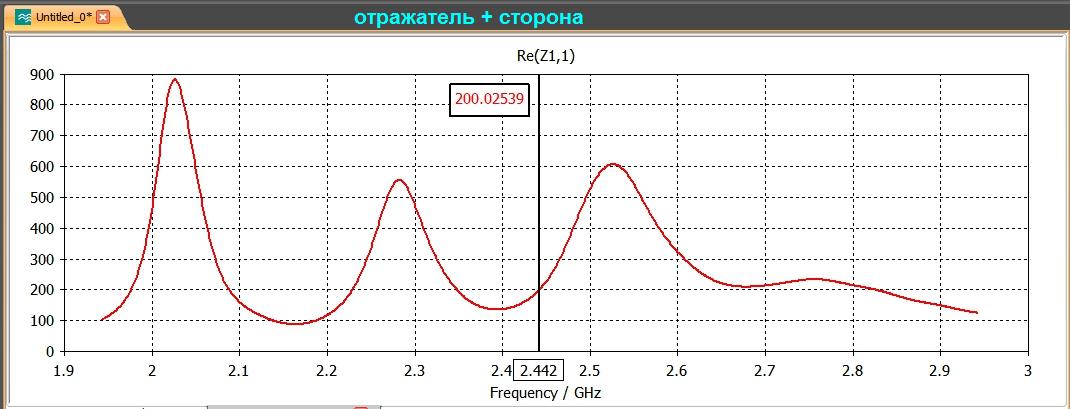

Anda harus membuat garis adaptasi ...


thank master, for this suggestion. or may also need additional reflectors in front of it?

Share this post


Link to post
Share on other sites
