acri

antenna 27TNJ SISO BSM13

This antenna it"s really good but , I  will make my  own product with the simulation results in CST

Now I hawe 5,8 SiSo 13gBi and wil develope it into MiMo,everything needs a long process

please support,because my equipment is verry limited

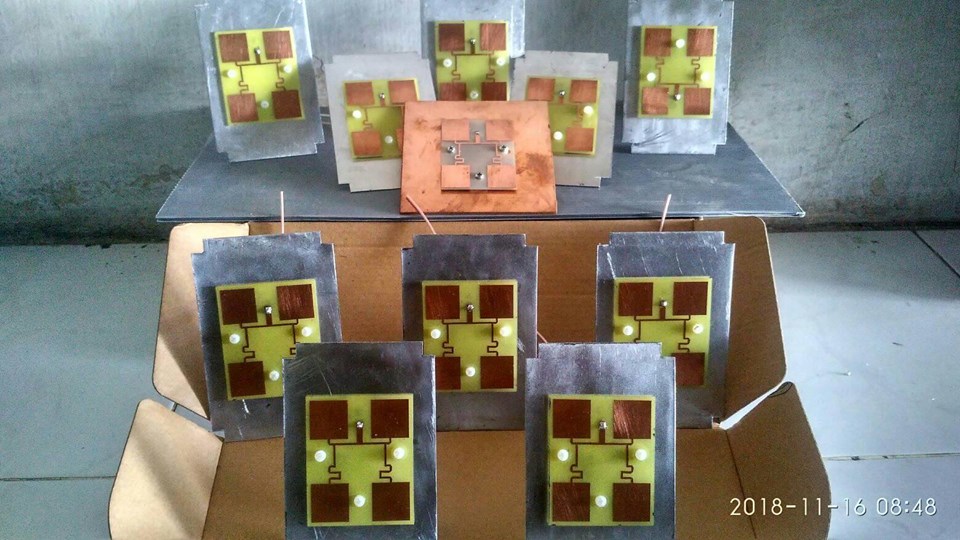

this SiSo 5,8GHz 13dBi with coaxial Teflon RG174


this finally for CPE modif

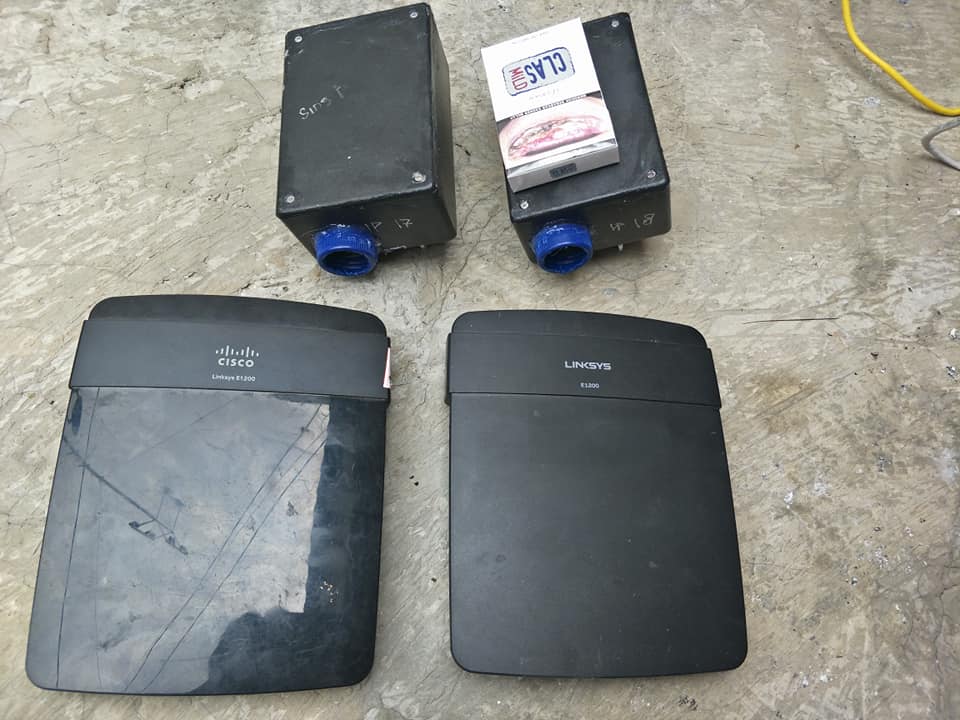

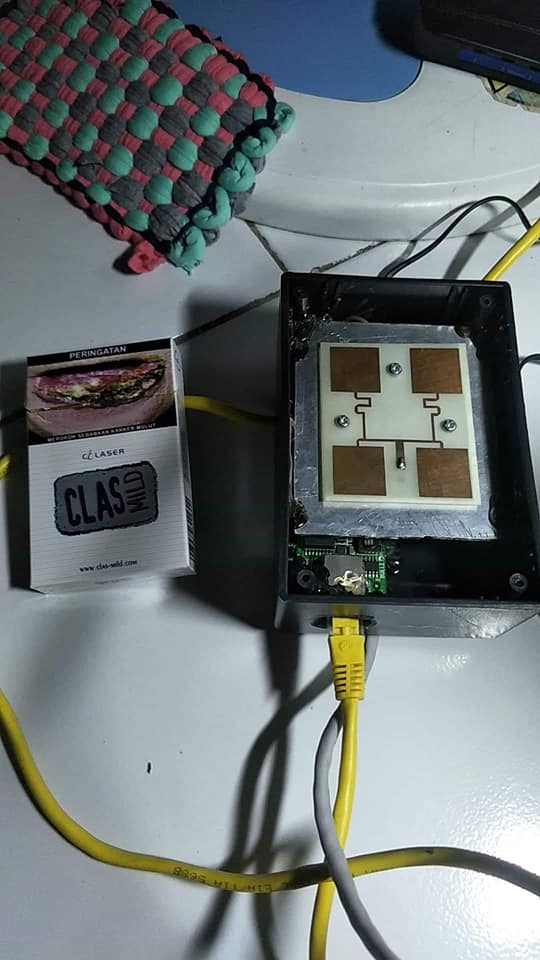

CPE mod from my friend with radio bulletm5

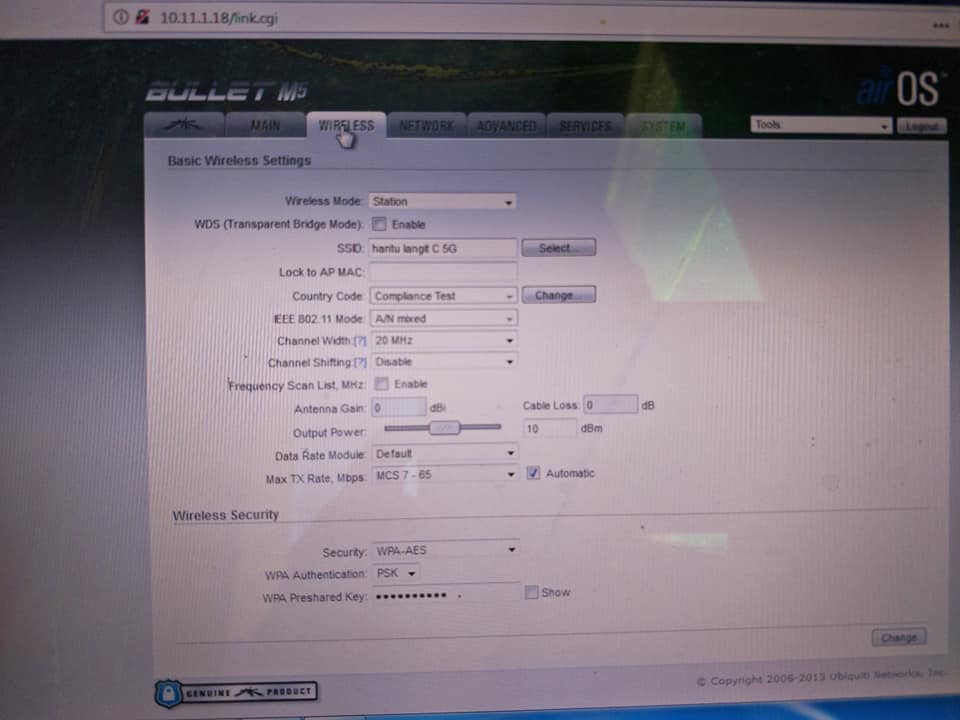

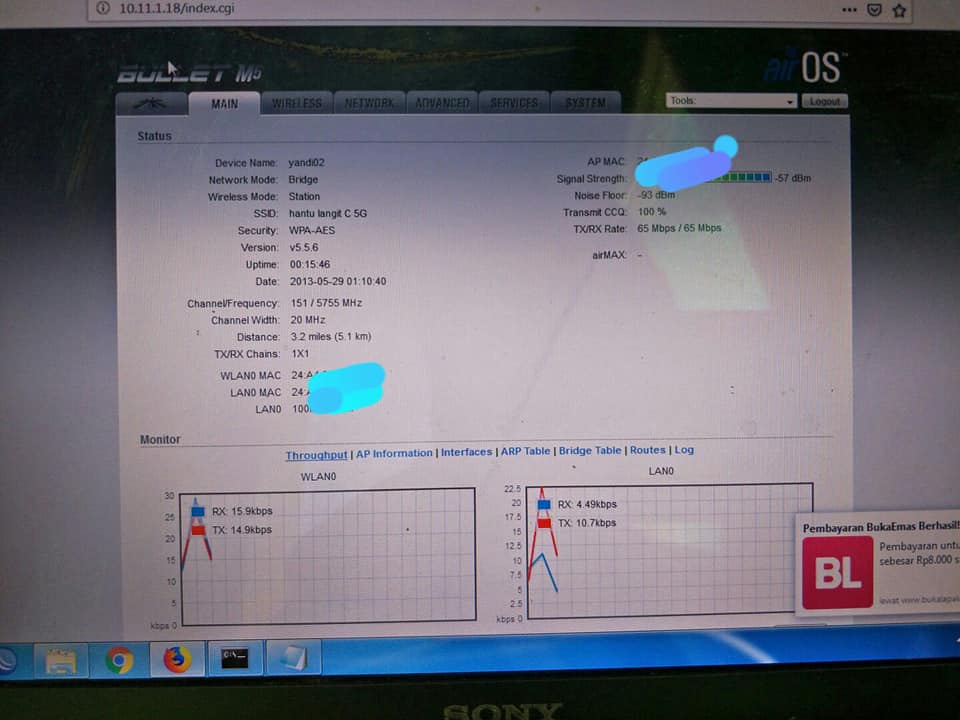

test results in the air

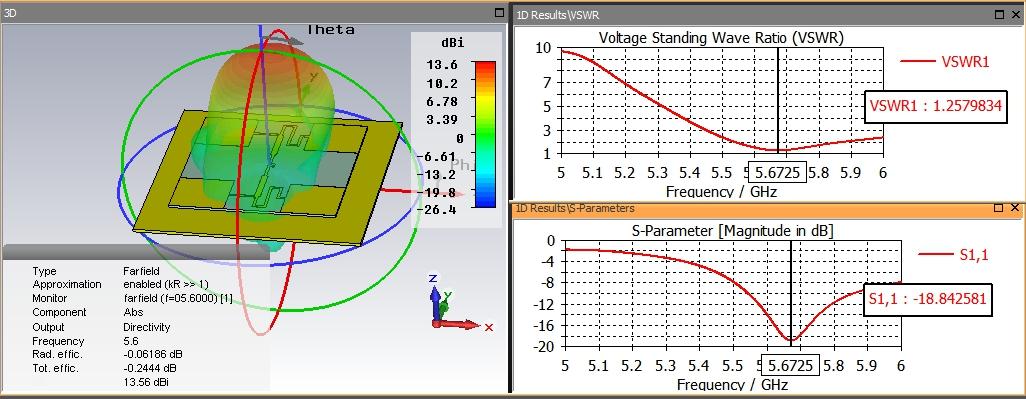

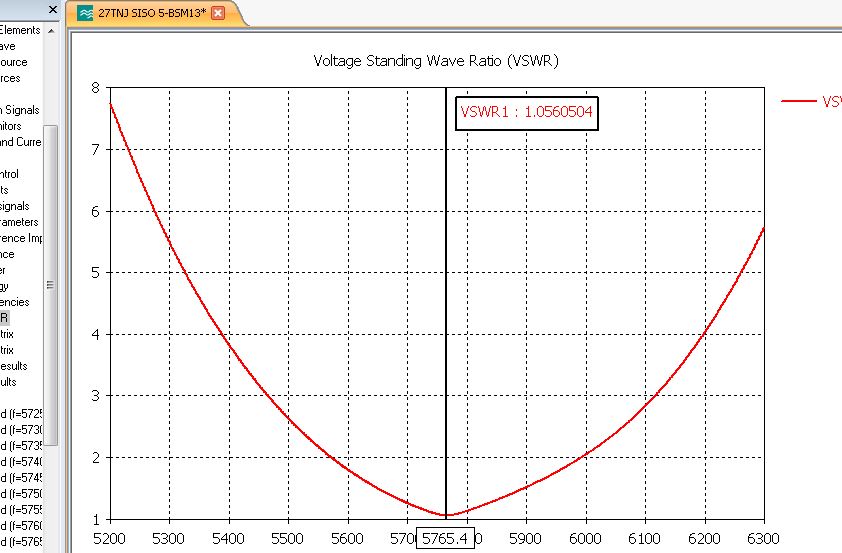

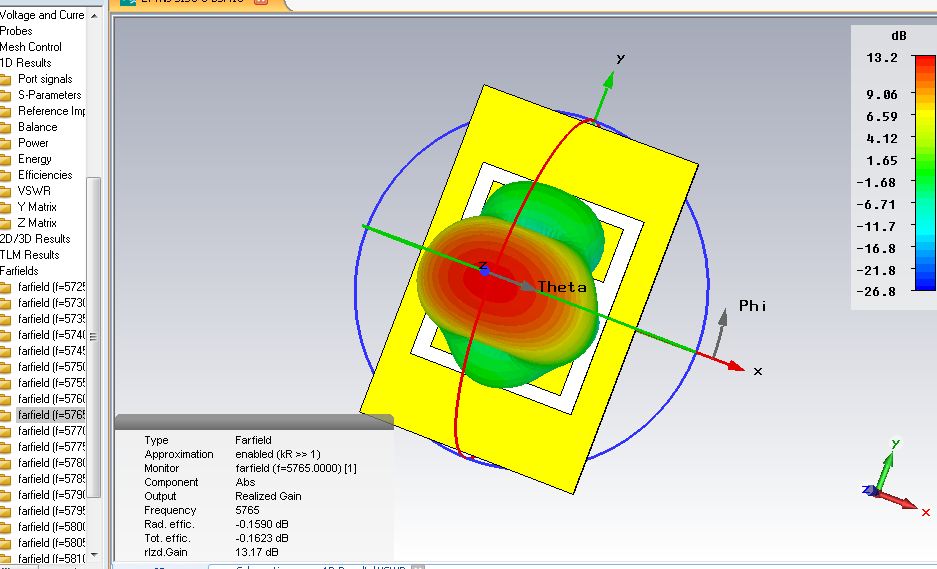

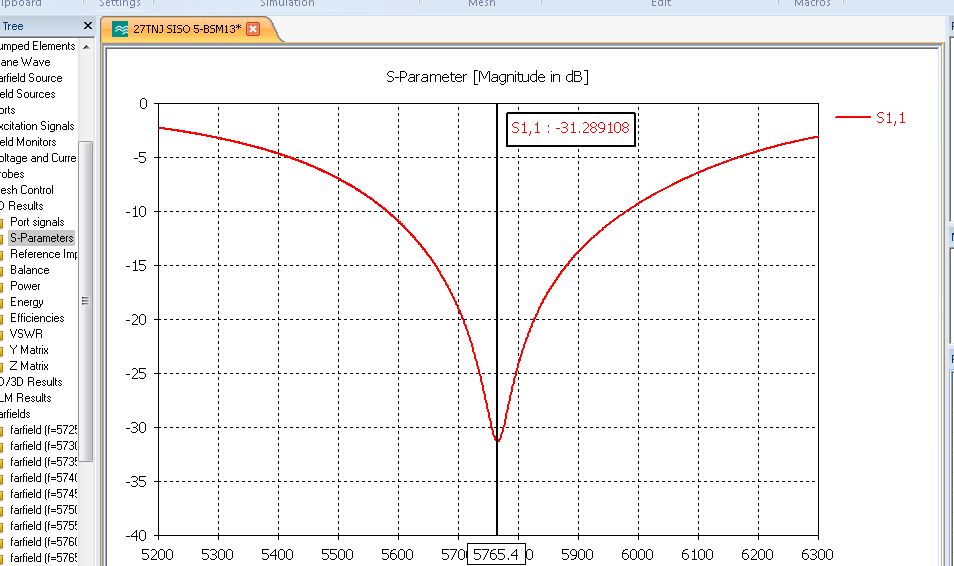

result on simulation

2 people like this

Share this post


Link to post
Share on other sites

...wow, can you give some size ... ???

ok, but tell me though, why only 13 dBi ...?

Share this post


Link to post
Share on other sites
3 hours ago, acri said:

this finally for CPE modif

can You show how to solder coaxial cable to the patch antenna and  CPE mod

Share this post


Link to post
Share on other sites
3 hours ago, Admin said:

...wow, can you give some size ... ???

ok, but tell me though, why only 13 dBi ...?

ok, I'll give the size later

because it was the result of the simulation in CST, with such results I was very grateful

Share this post


Link to post
Share on other sites
1 hour ago, bejonet said:

can You show how to solder coaxial cable to the patch antenna and  CPE mod

i dont know, this picture from my buyer

Share this post


Link to post
Share on other sites

Can you give the sizes or design? I have find a similar patch panel project in web, i think it could be more or less similar.

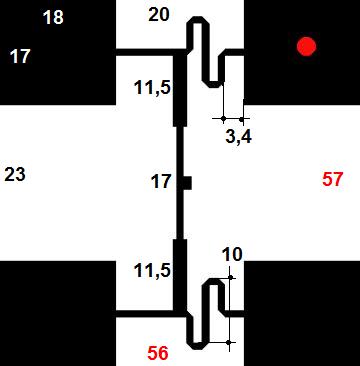

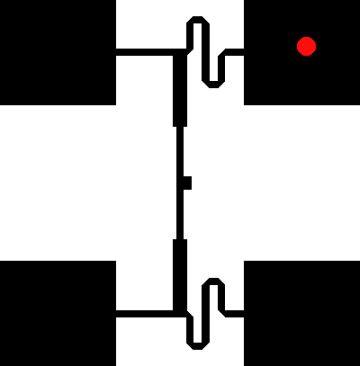

Panel 16dBi 5GHz – jednostronny - 56mm x 57mm - distancia refletor 4 a 6mm.jpg

Share this post


Link to post
Share on other sites
1 hour ago, patatua666 said:

Can you give the sizes or design? I have find a similar patch panel project in web, i think it could be more or less similar.

Panel 16dBi 5GHz – jednostronny - 56mm x 57mm - distancia refletor 4 a 6mm.jpg

not same,  according to admin my design is not good
still the better model that you give the picture

Share this post


Link to post
Share on other sites
On 07/12/2018 at 0:12 AM, acri said:

not same,  according to admin my design is not good
still the better model that you give the picture

 Thank you for answering. I don't speak English natively, so I don't know if I understand it very well. You said the design I showed you was better?

1 person likes this

Share this post


Link to post
Share on other sites

Well, but the antenna has nothing to gain in the directivity 16dBi , as they say...!!!!




,,,,patatua666, where you found this drawing...???



Panel 16dBi 5GHz 56x57mm






1 person likes this
