4G antenna (1800 MHz)

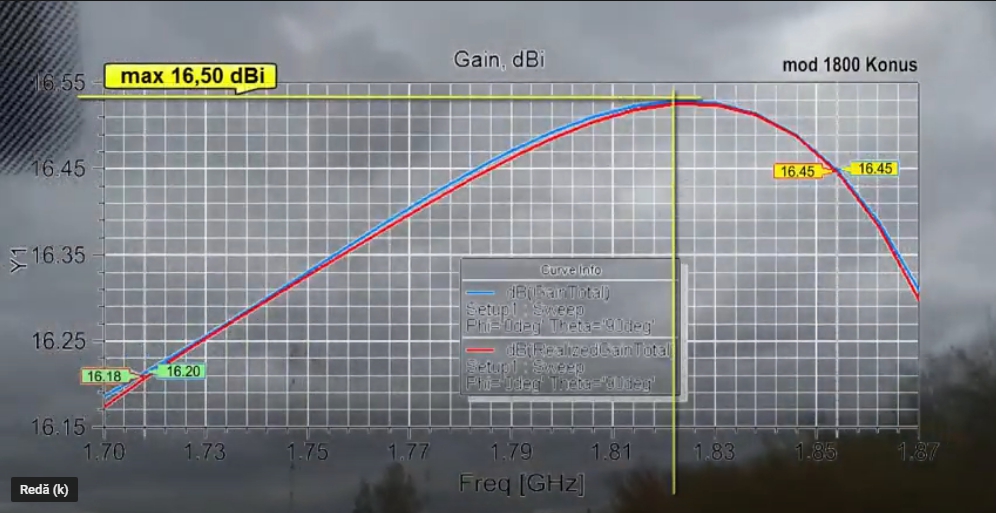

Updated <<KONUS>> 4G antenna model (1800 MHz) with gain up to 17 dBi (max 16.7 dBi), which is also made of composite materials.Composite material consists of two layers of thin, pre-painted aluminum sheet, between which polypropylene(dielectric constant (2.2–2.5) is enclosed,thickness = 3.2mm.

Thin composite panels with a thickness of 3.0 mm with a wall of 0.21-0.3 mm,4.0 mm thick panels with 0.4 mm thick aluminum sheet

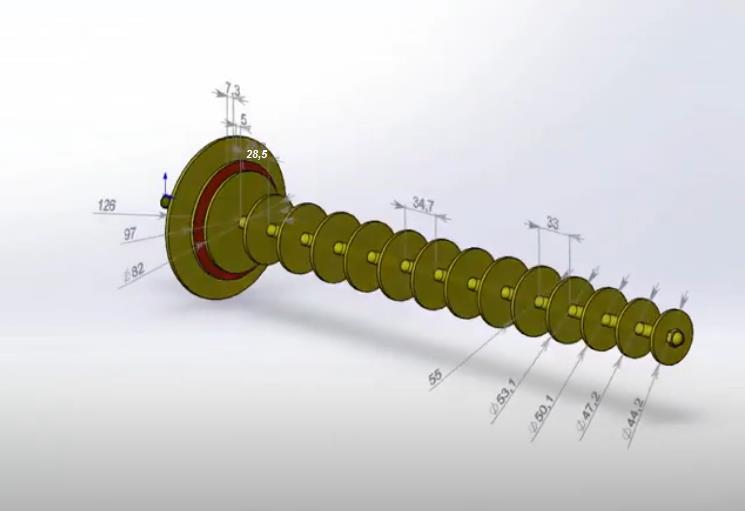

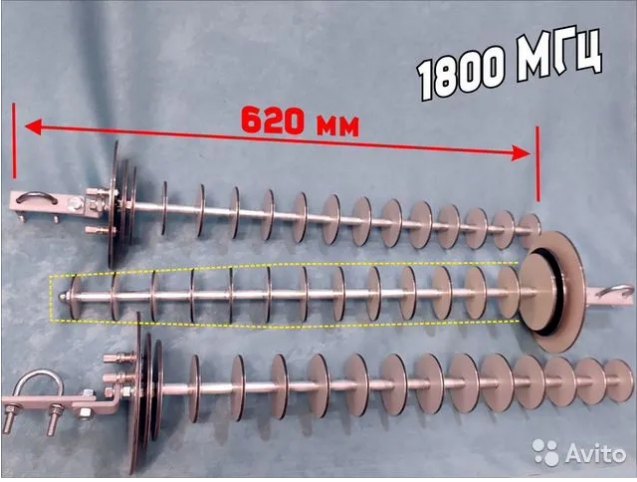

The antenna is made in the form of a cone, with a total length of 620 mm.

The output has two F-connectors for connecting a 50-ohm or 75-ohm coaxial cable. It is possible to install SMA connectors on the antenna and make a cable assembly with pigtails for an additional fee.for a fee.

Installing and configuring the antenna is quite simple. Instructions for setting up the antenna are attached. You can use it to set up the antenna without even knowing which way the base station is located.








,,,,information from...https://www.avito.ru/voronezh/tovary_dlya_kompyutera/4g_antenna_1800_mgts_s_usileniem_do_17_dbi_2120447796?referer=https://www.youtube.com/

3 people like this

Share this post

Link to post
Share on other sites

isolator  P.P

(PP)2,2-2,4   Dielectric constant ε'
