AX-800 OFFSET MIMO 2x2

Efficient offset mirror antenna irradiator for 4G networks (LTE800 and UMTS900, with support for MIMO technology. F=790-960 MHz, Resulting CU with a reflector up to 25dBi. The connector type is N-female (50 Ohms).  The maximum speed of data reception in the LTE800 at a distance of up to 30 km.

Electric characteristic

Operating frequency range, MHz 790-960

Native gain, dBi 8

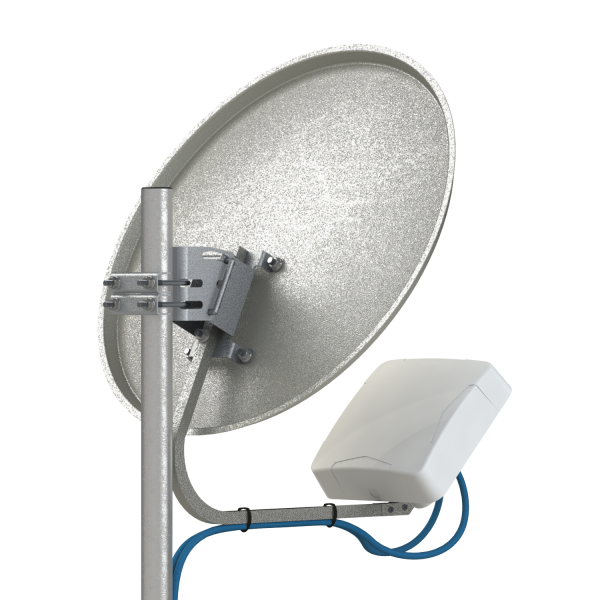

The resulting gain and width of the directional diagram by level -3dB at different diameters of offset parabolic antenna (F/D=0.5)

0.6 m 10-12 dBi 33-37 gr.

0.9 m 15-17 dBi 22-25 gr.

1.3 m 18-19 dBi 15-17gr.

1.8 m 21-22 dBi 11-13 gr.

2.5 m 22-25 dBi 8-9 gr.

The width of the bottom of the irradiator in the E-plane at the level-10dB, deg 120

Width of the irradiator bottom H-plane at the level-10dB, deg 180

Decoupling between antenna inputs, not less than dB 28

Input resistance, Ohms 50 / 75

SWR in the operating frequency range, no more than 1,5

Permissible power, W 10

Polarization X-pol

Mechanical characteristics

Weight, g 1100

Overall dimensions, m 0, 2x0,2x0, 14

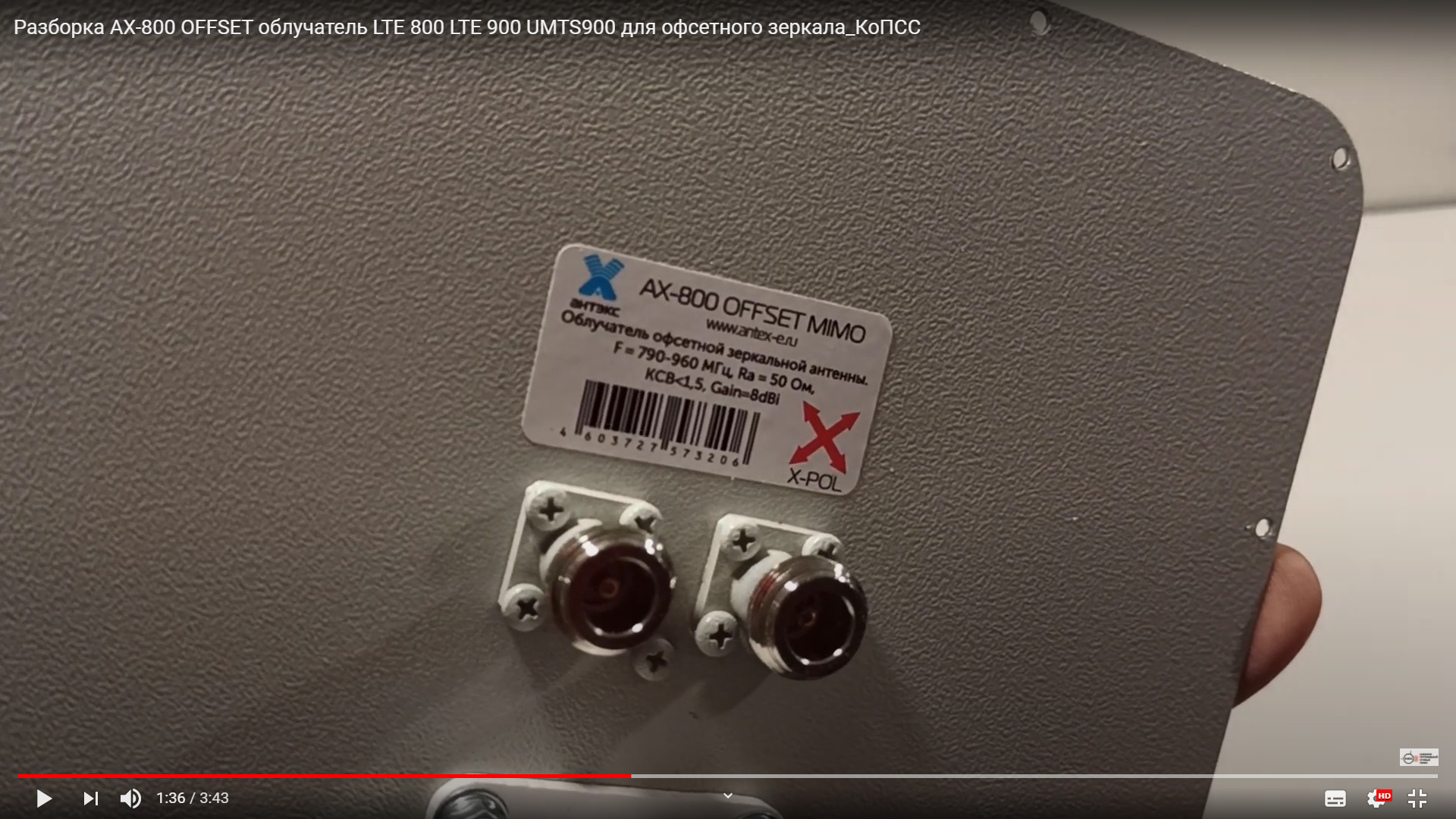

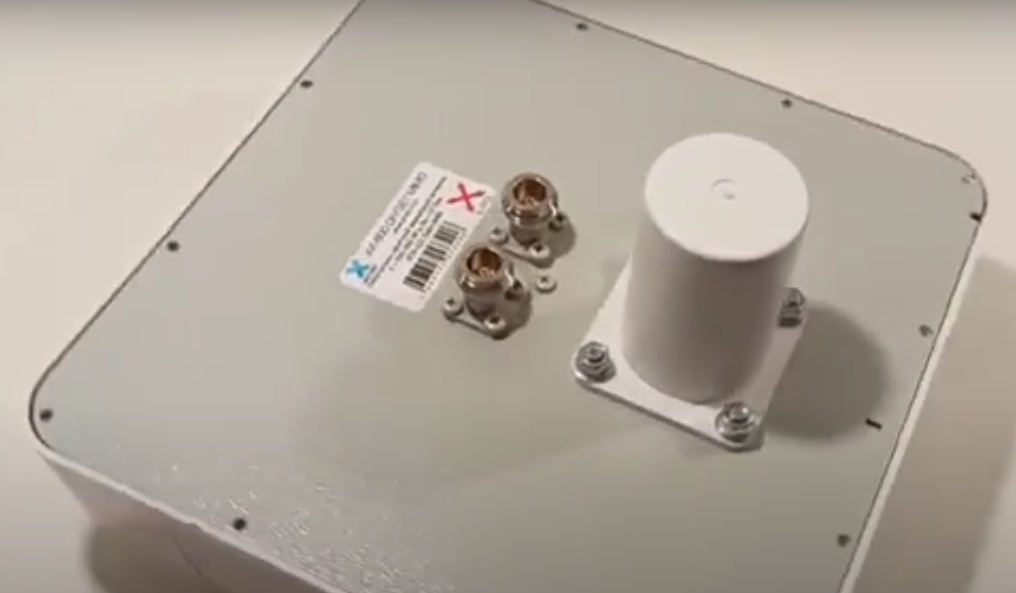

Connectors 2 x N -female

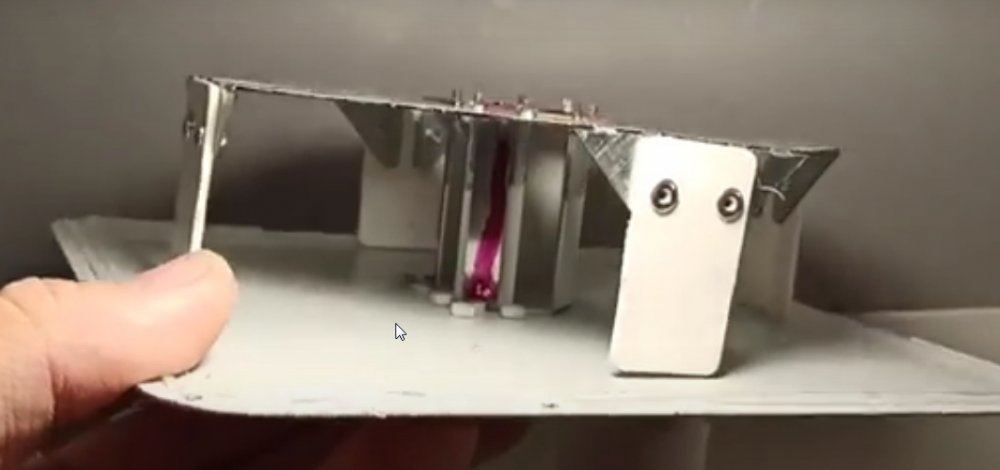

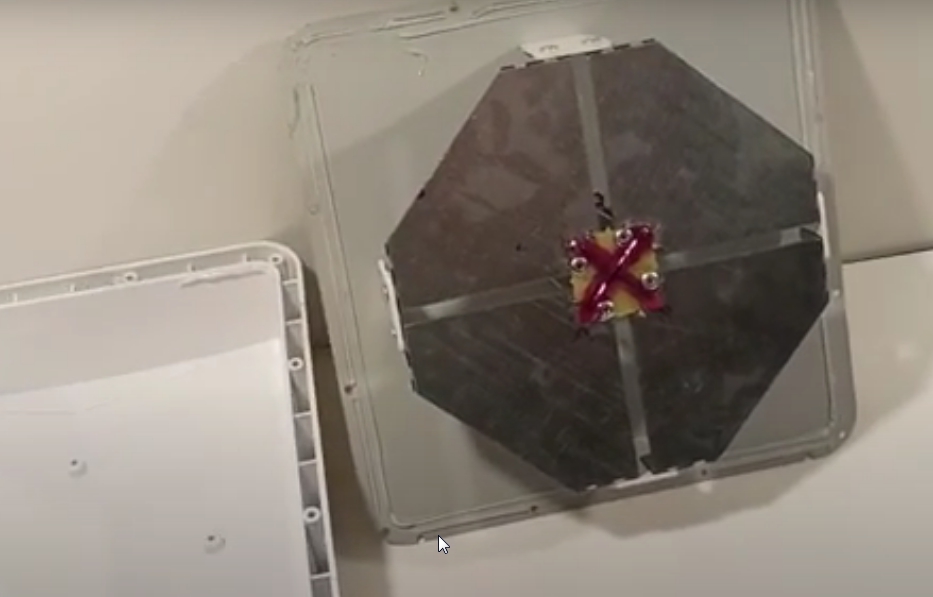

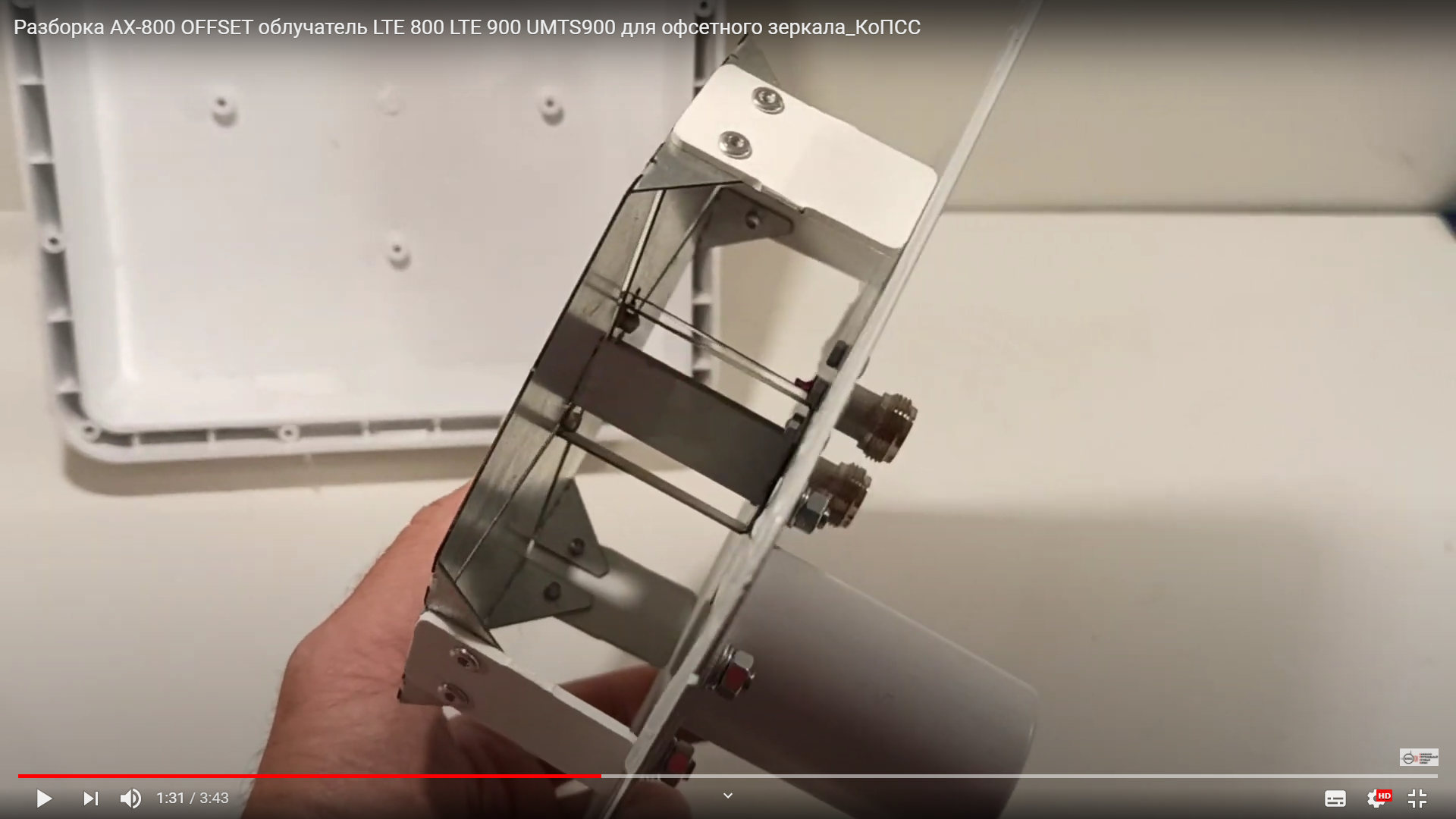

The material of the radiator steel, galvanized steel, tinned sheet

Protective coating powder polymer paint

Protective box material Polycarbonate+ABS
