BrashEndeavours

Design request? Patch-Yagi for Inmarsat

First of all, thank you for all the great posts I’ve got the chance to read. It’s really incredible what has been designed here!

Unfortunately, I do not own the antenna design software to try my project on my own.

I hope this request is allowed and it’s in the right spot.  In my browsing I could not find a design I am looking for. What I am looking to make is a patch-yagi similar to the popular wifi gun design. It will be used for amateur reception on Inmarsat messaging.

Constraints:

Fc = 1550MHz
BW = 80MHz
Max Physical Length = 30”
Centre Support = 1/4” or 5/16” allthread
Beamwidth = no concern



Thank you in advance for your time, antenna gurus!!






Share this post


Link to post
Share on other sites

,,,hi buddy...!!!

,,, first of all, I say to you, welcome to this website...!!!

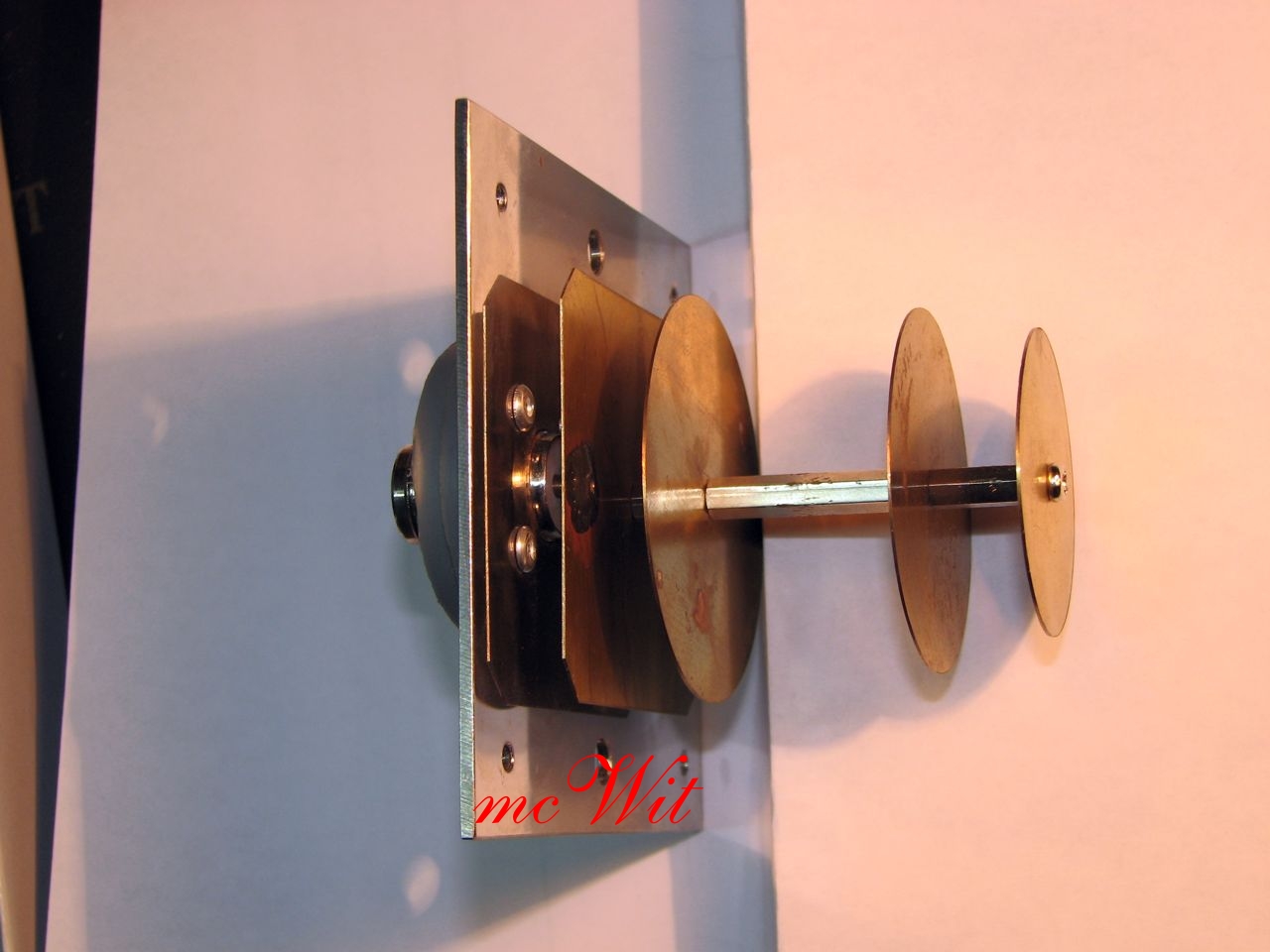

,,,secondly I ask you if you refer to such an patch-yagi antenna...???


Share this post


Link to post
Share on other sites

Hello! Yes that is the type!

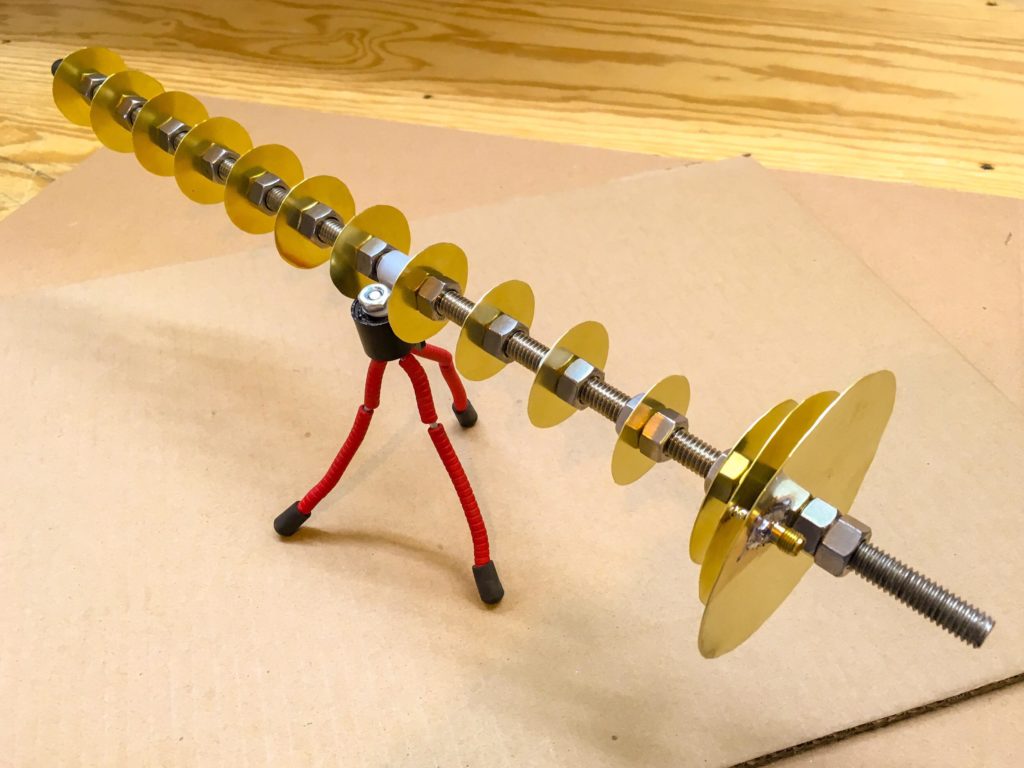

But with more elements that will fit in 30”. Like this attachment.

The satellites are geostationary so beam width isn’t an issue, only bandwidth.

i would be willing to donate some money for the time to commission such an antenna design.


Share this post


Link to post
Share on other sites

,,, for the frequency of 1550MHz ... ???

Share this post


Link to post
Share on other sites

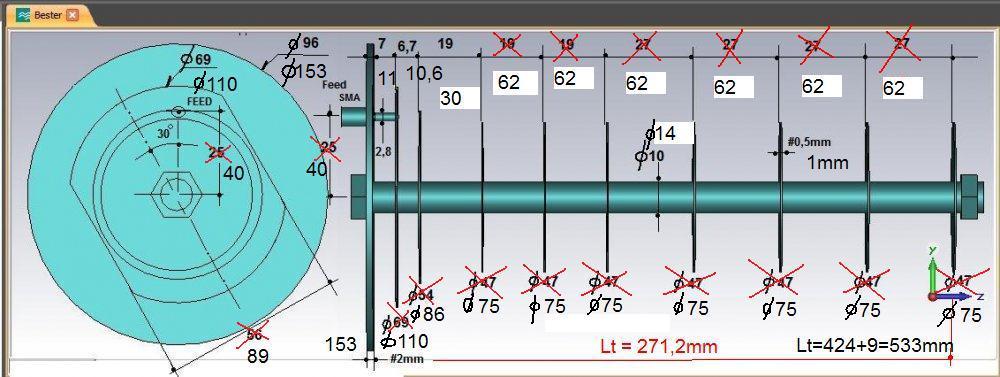

 L-Band (Inmarsat AERO/STD-C) Bester Antenna RHCP polarized 1542 MHz Center Frequency..???





Share this post


Link to post
Share on other sites

Concern:

This has happened a couple times: I log onto my alt in the mines and to find that alt on the other side of Alora O.O Whats up what that? a bug?

Share this post


Link to post
Share on other sites
12 hours ago, Admin said:

 L-Band (Inmarsat AERO/STD-C) Bester Antenna RHCP polarized 1542 MHz Center Frequency..???





Yes. I cannot find that specific antenna, but that is the application!

Share this post


Link to post
Share on other sites

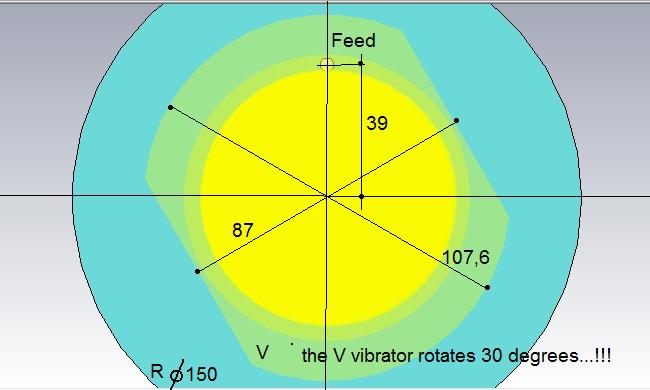

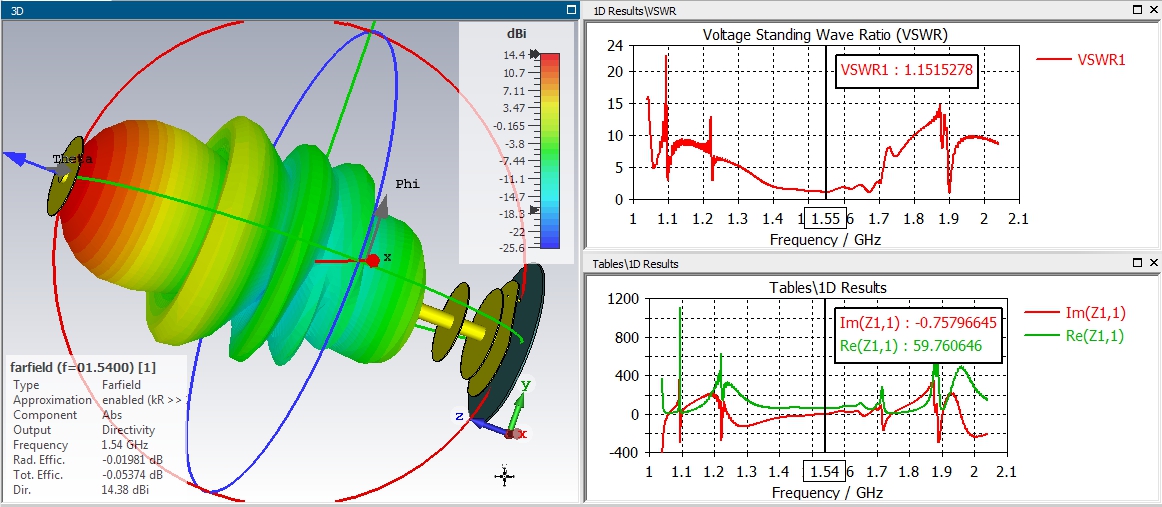

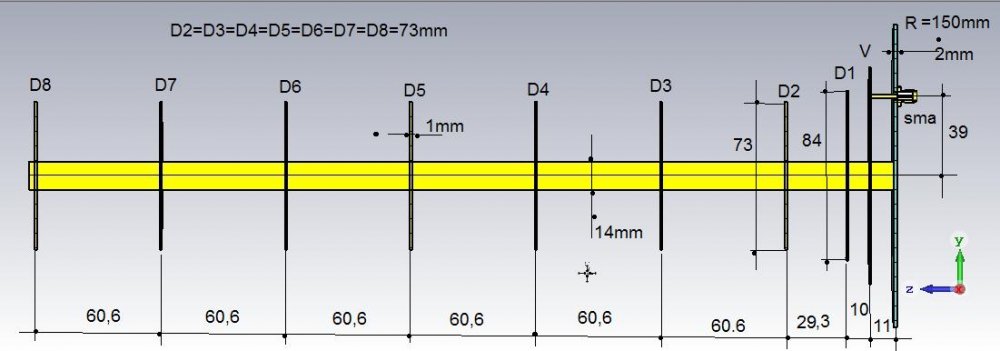

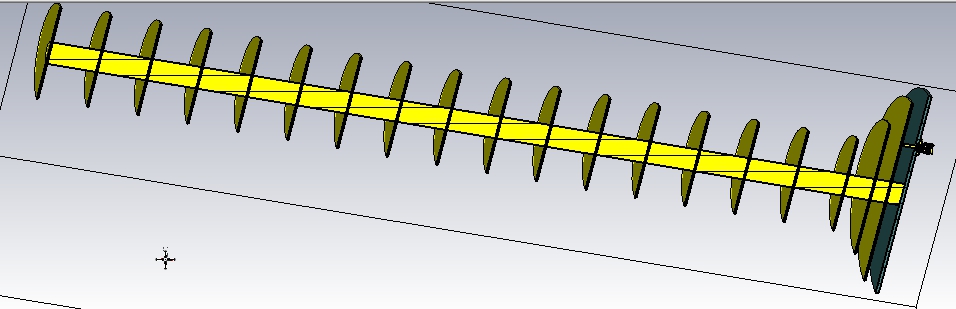

 I'm working on this(for 1542 MHz), does it suit you ... ??


1 person likes this

Share this post


Link to post
Share on other sites
4 hours ago, Admin said:

 I'm working on this(for 1542 MHz), does it suit you ... ??


Yes, that looks awesome!
I can’t wait until your design is ready so I can build it.

Share this post


Link to post
Share on other sites

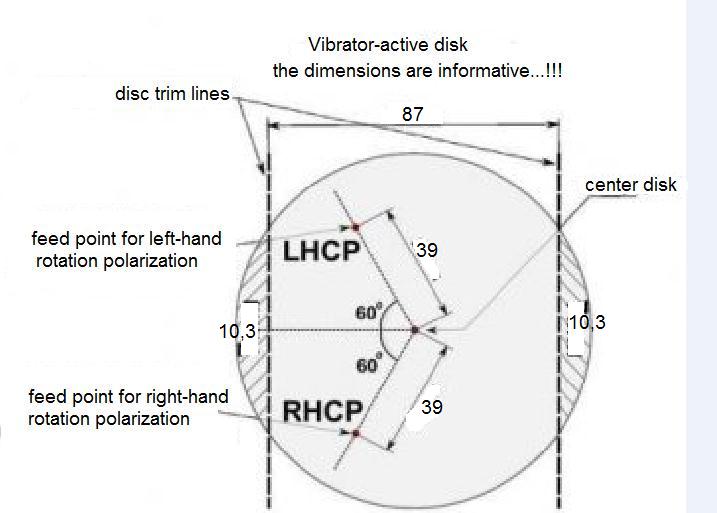

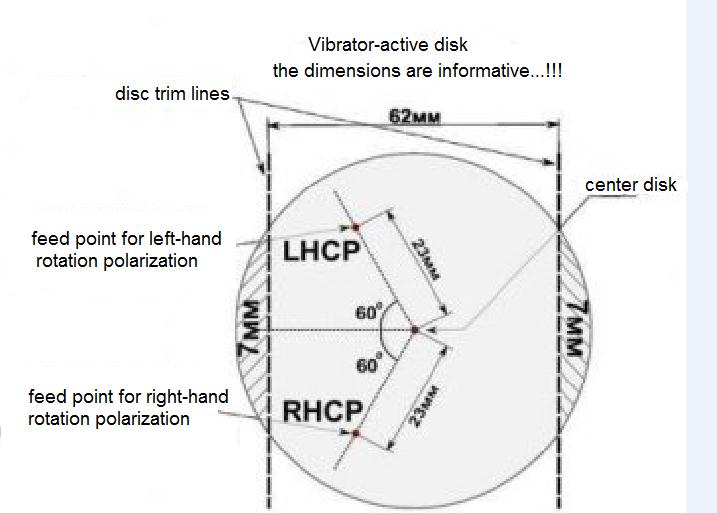

,,, okay, but you can try that too...gain 14 dBi...!!!




,,,polarized antenna...


Share this post


Link to post
Share on other sites

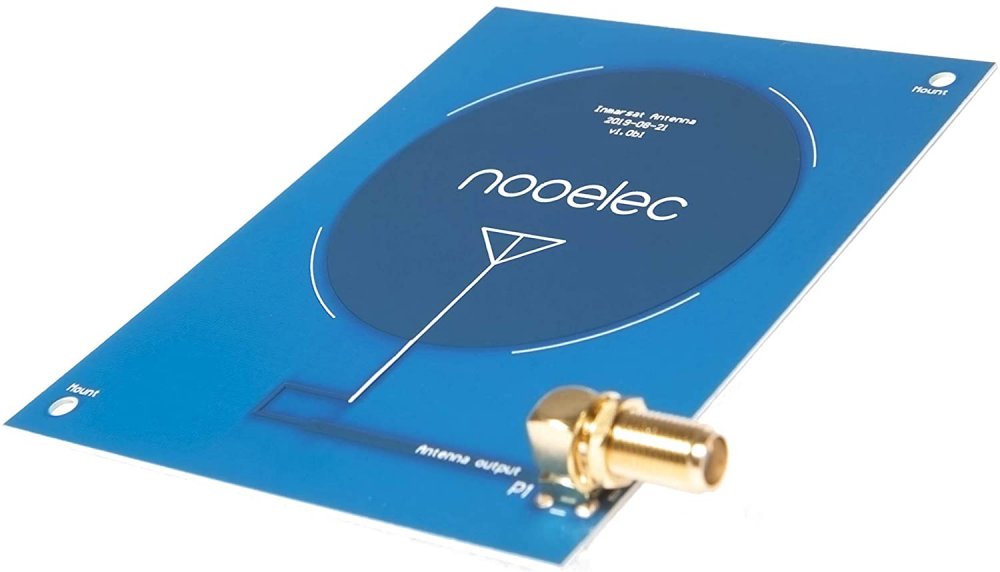

Nooelec Inmarsat Patch Antenna - High Gain (3.5dBi) 1550MHz PCB Antenna with SMA Connector for AERO


Share this post


Link to post
Share on other sites
18 hours ago, Admin said:

Nooelec Inmarsat Patch Antenna - High Gain (3.5dBi) 1550MHz PCB Antenna with SMA Connector for AERO


I have that exact one!
it might be good, but signals so weak it does not fit my application.

I will try to build the model you linked above!

i assume it is okay to keep adding elements at 75mm spacing?


Share this post


Link to post
Share on other sites

,,, this is the right model for the requested frequency...









1 person likes this

Share this post


Link to post
Share on other sites

BrashEndeavours,I think that for the reception of the Inmarsat satellite it would be better if a parabolic dish were used...!!!

2 people like this

Share this post


Link to post
Share on other sites
