Eric_Truong

CPE Mercury MWB205 PTP Need Some Help

Dear Admin

I have couple of CPE with anoucement about 5km with point to point communicate ( MWB 205 mercury CPE, you can find it on internet. from china)

I need to communicate with distance about 1 KM.

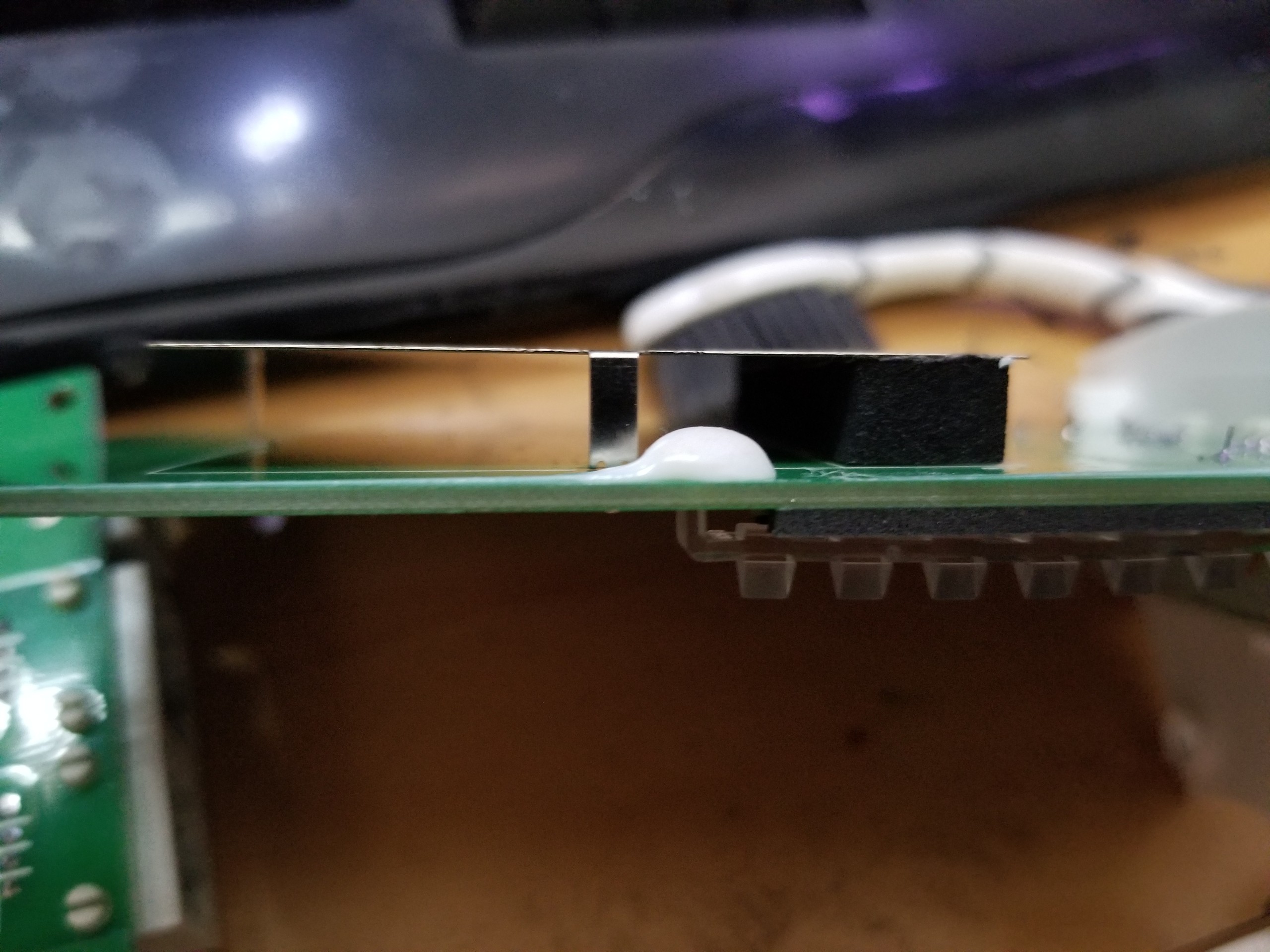

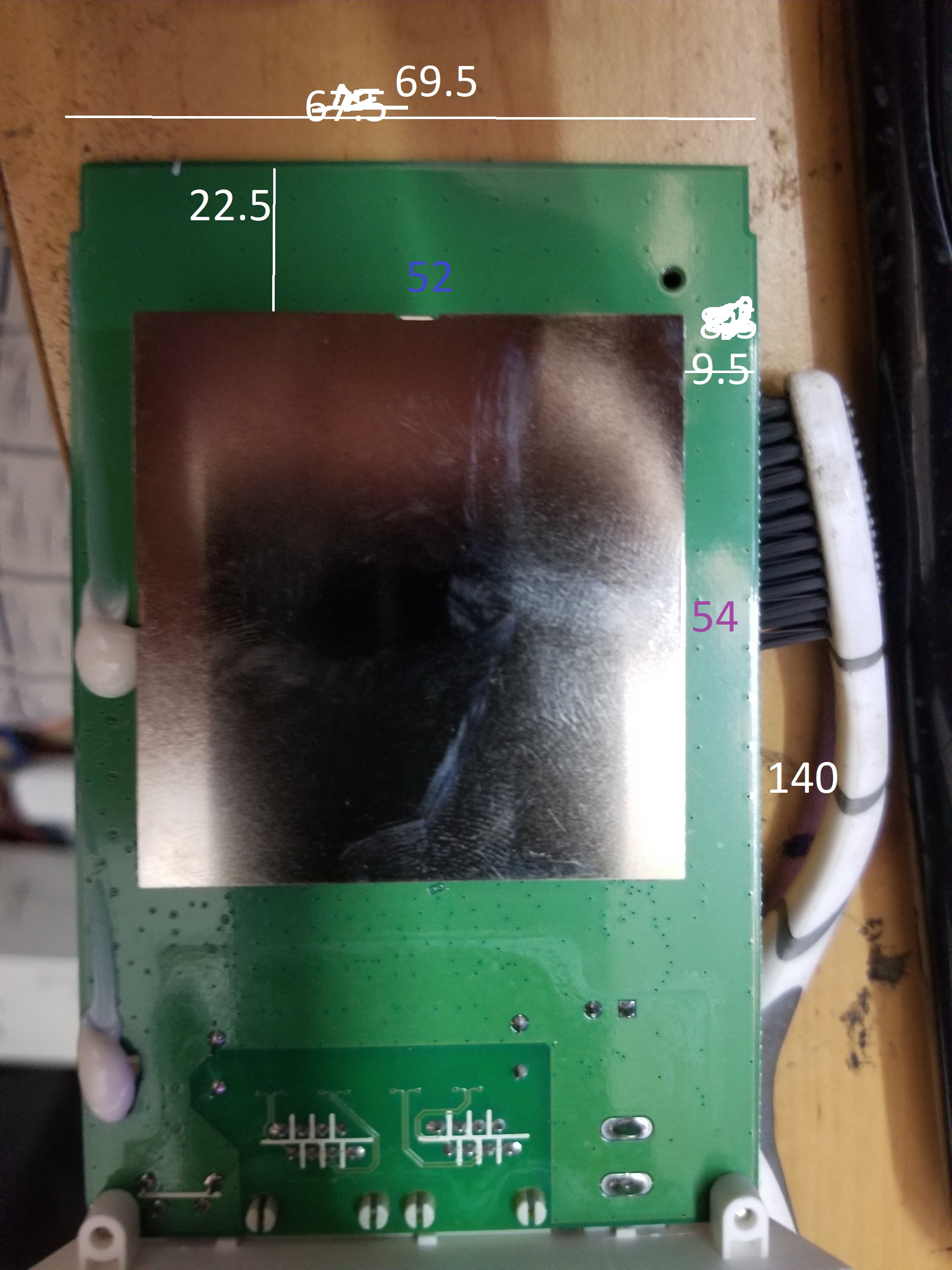

I try to replace their antenna with the new one, DiY on forum. but after making some antenna and replace to test the signal ( Without simulator) , it cant compare with the original antenna which is just one pierce metal aluminium, i guest. the signal very weak,

but the original very nice. about 200m the signal still 100% and more than 100 Mpbs

the new one. not strong enough.

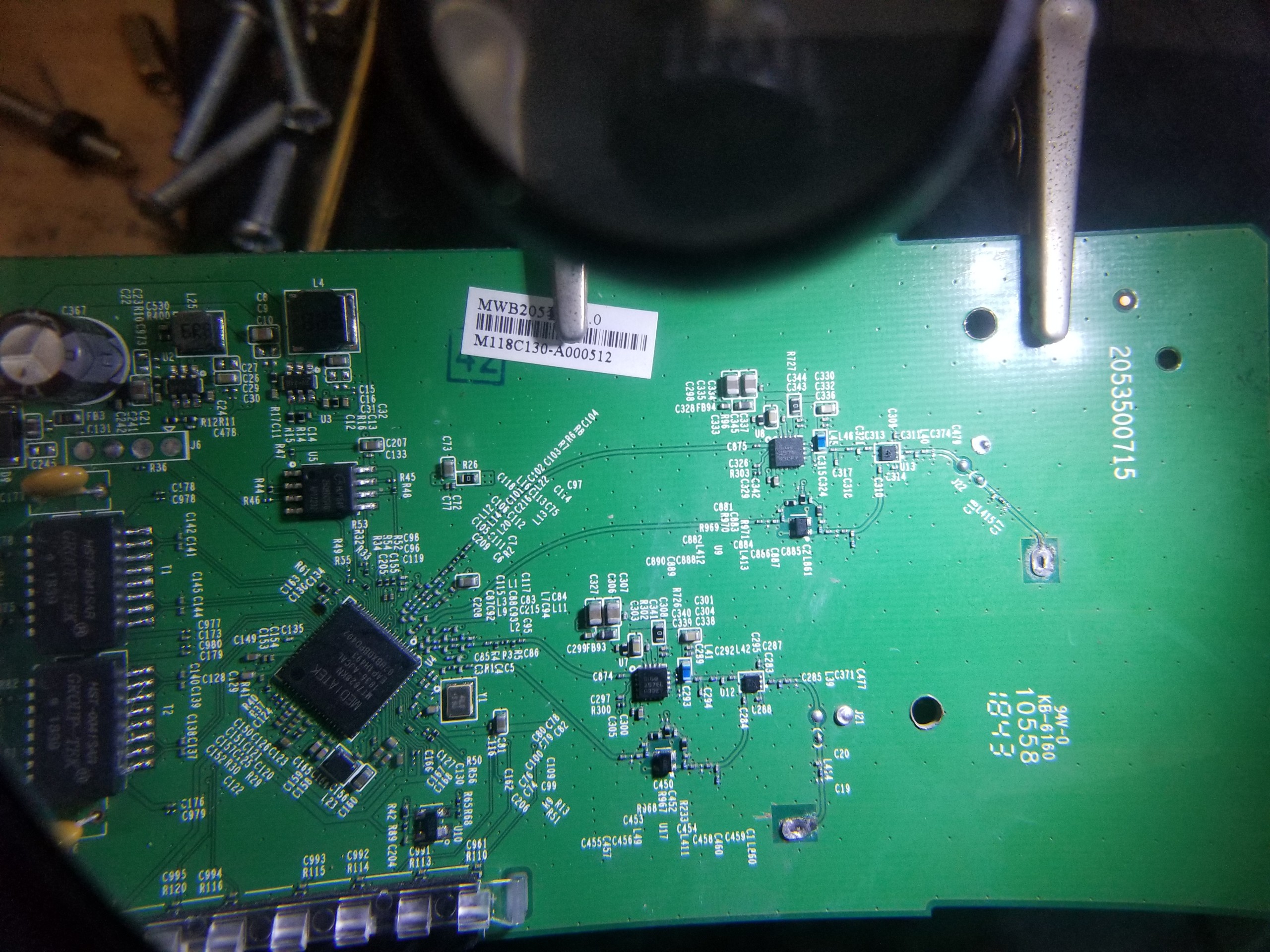

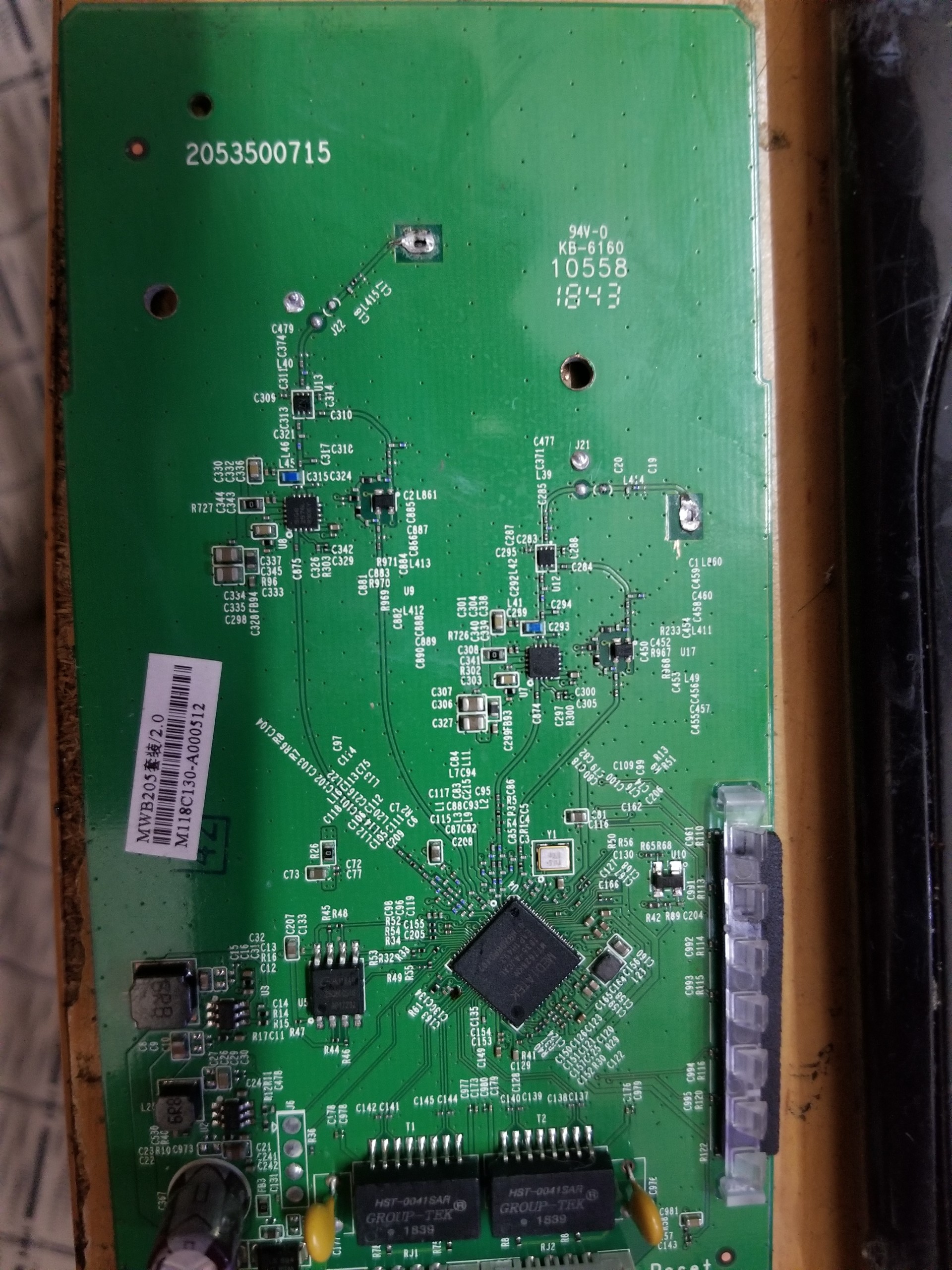

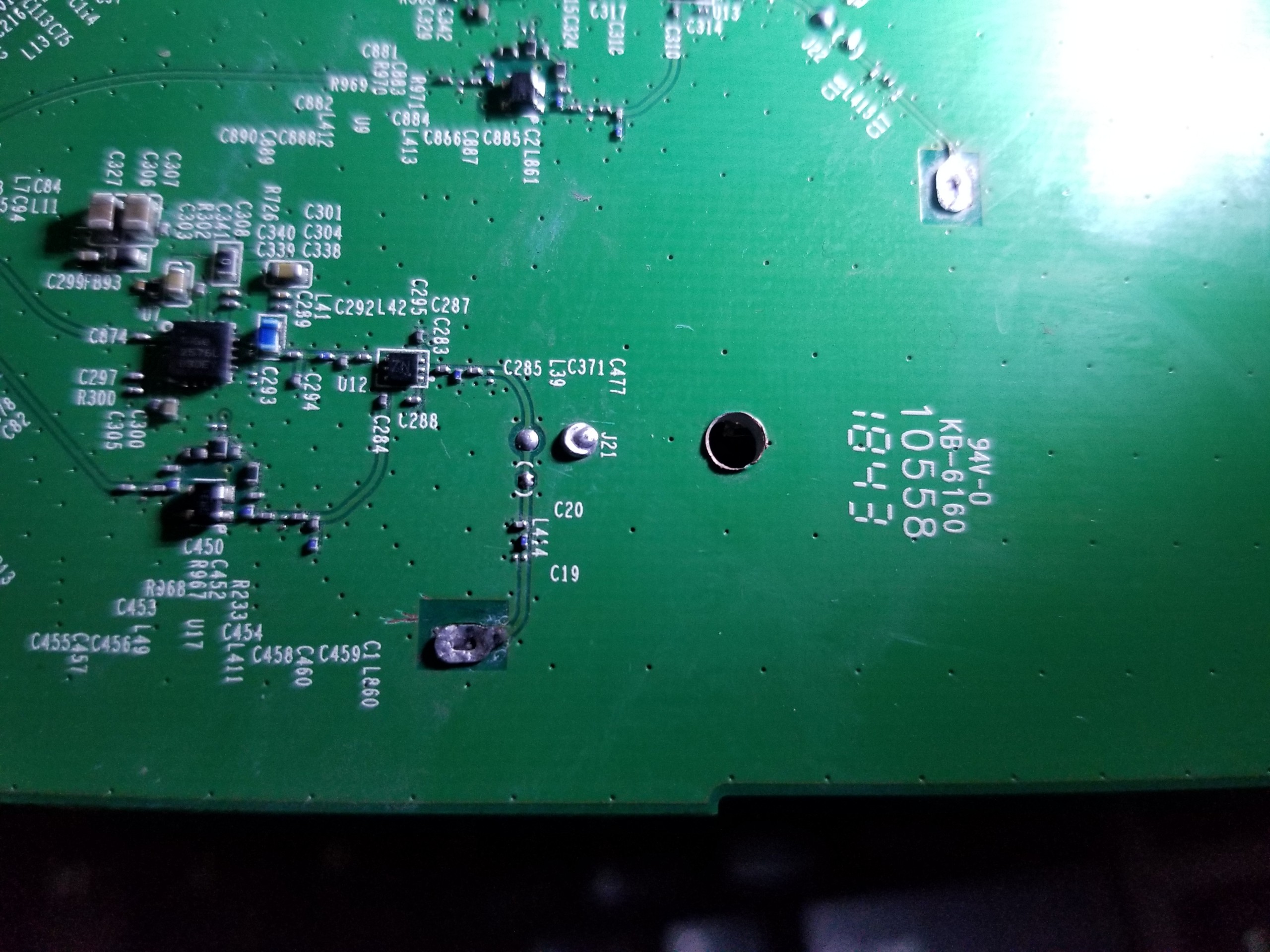

I have a question about the PCB, which on attachment.  how can i solid the antenna with 2 wire. because on pcb i just see there are one hole for meta ( original antenna) ,

P/s there are two antenna which is connect on the same antenna. now i need to connect the new antenna using wire.

Sr for my english. it not good enough









Share this post


Link to post
Share on other sites

,,,hi buddy...!!!

..., as I understand it, you want to replace the existing antenna with a better one...???

1 person likes this

Share this post


Link to post
Share on other sites
1 minute ago, Admin said:

,,,hi buddy...!!!

..., as I understand it, you want to replace the existing antenna with a better one...???

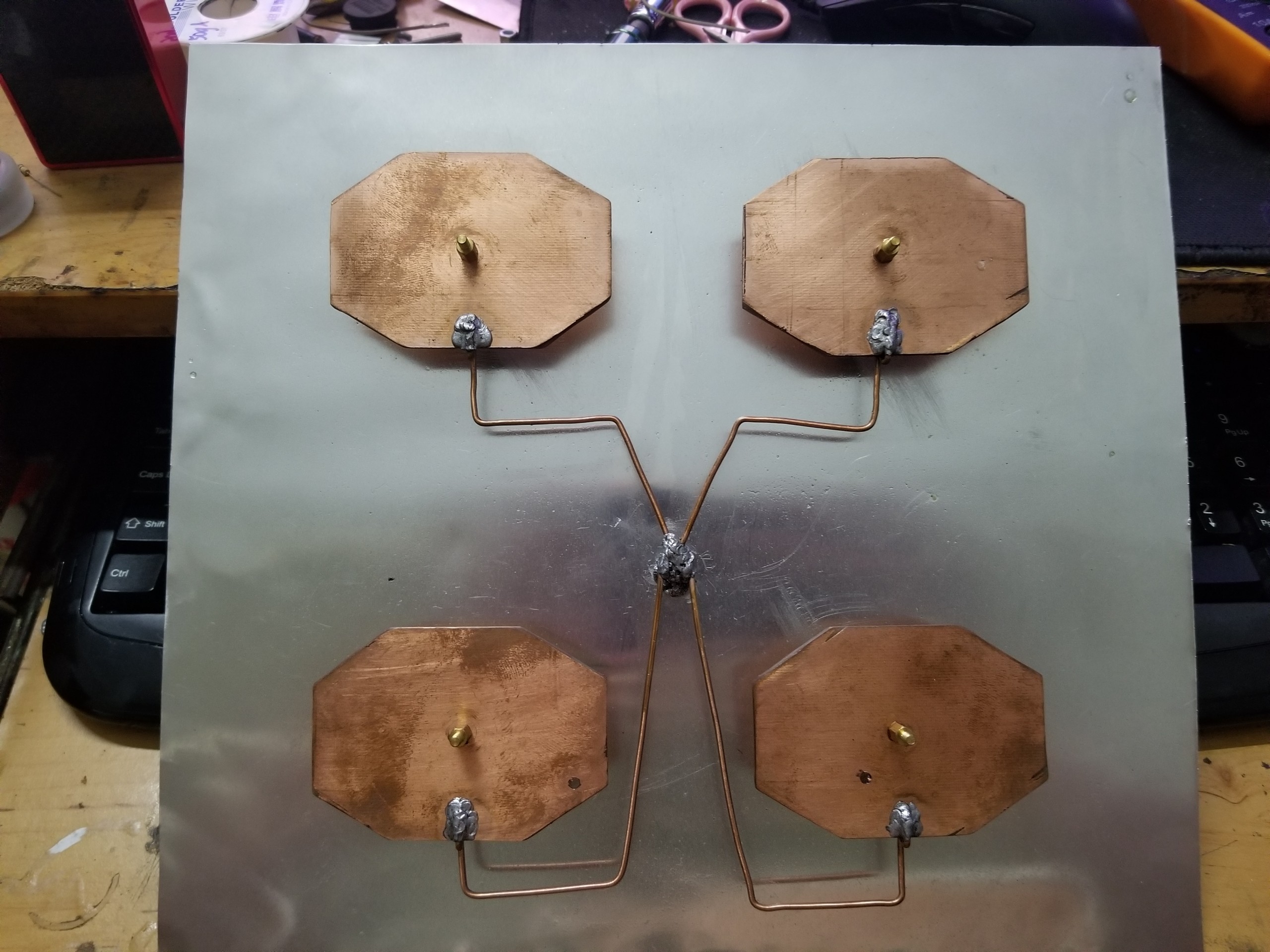

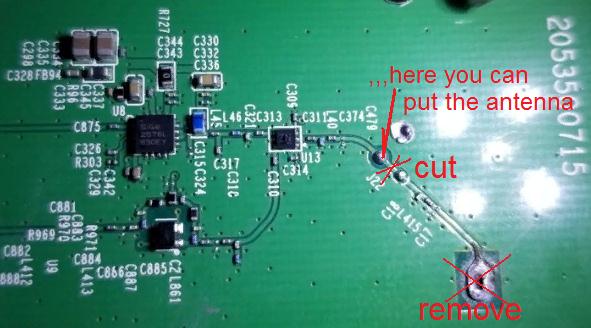

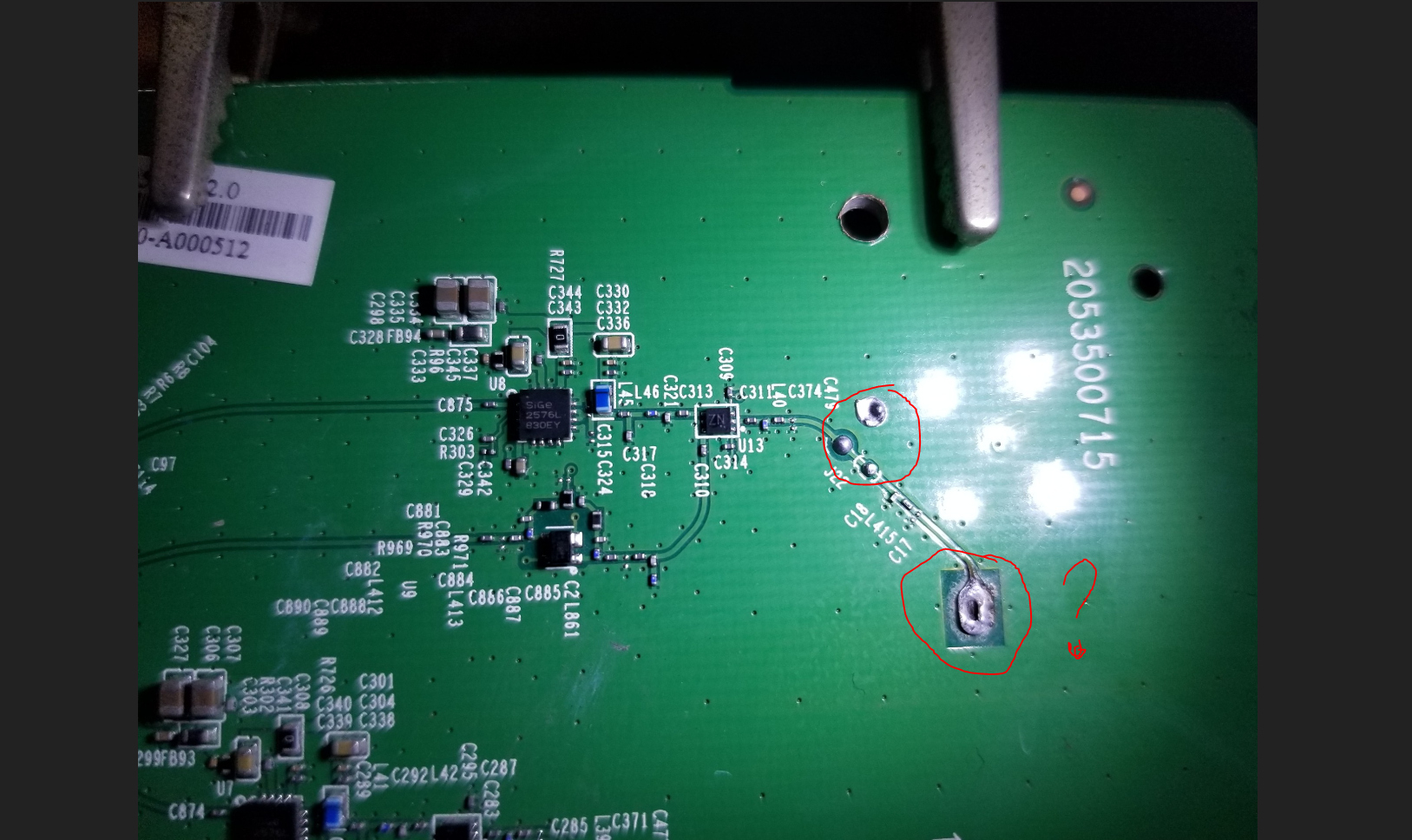

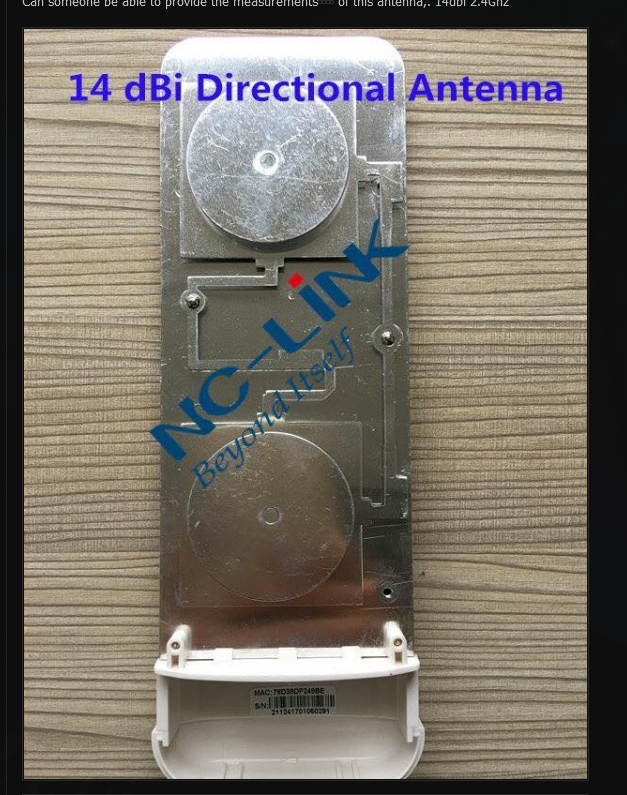

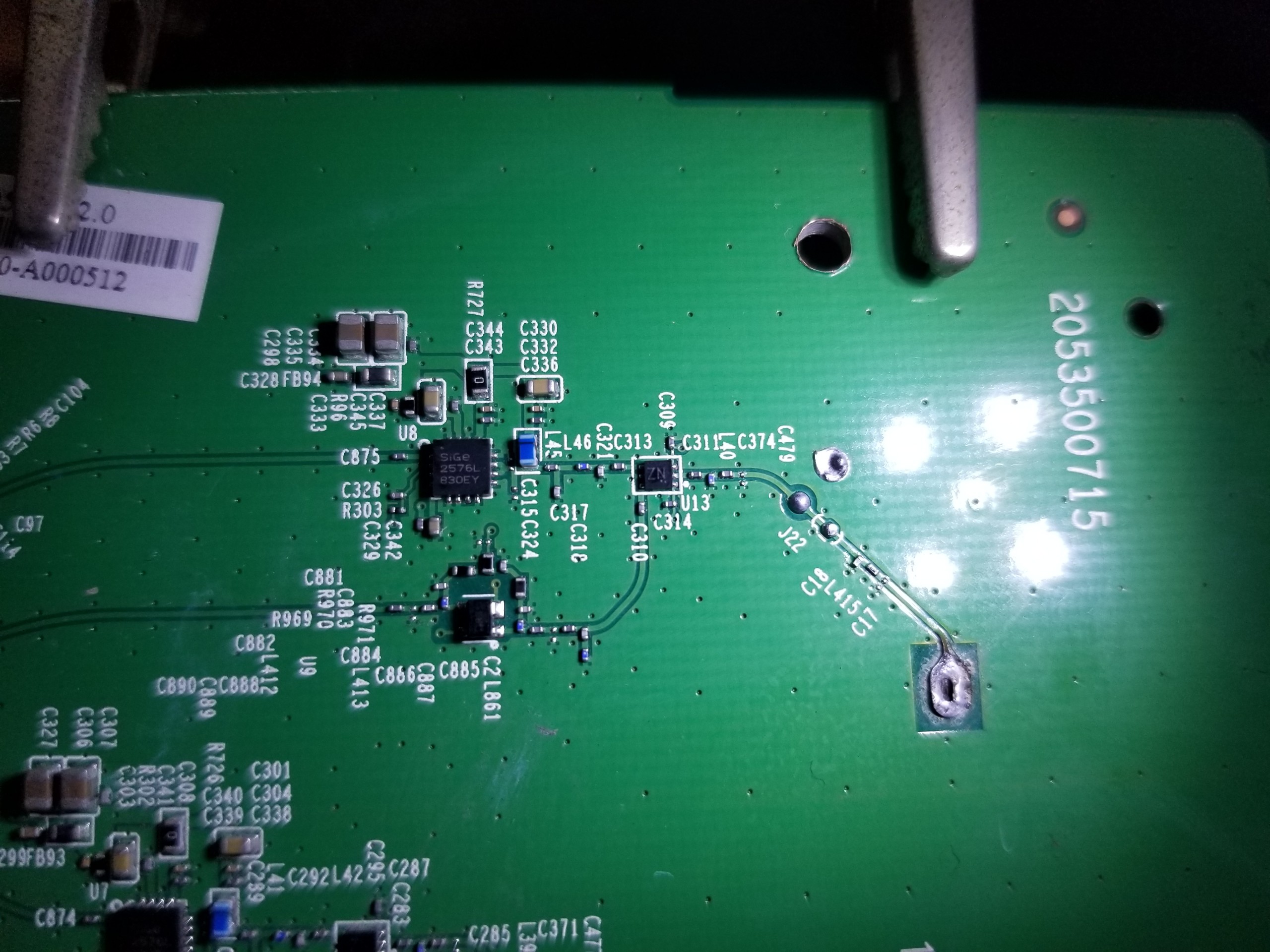

Yes. Bro, i want to replace the existing with the new one, but the new one,  cant compare with the old antenna. i try 14db and 12db mimo ( PCB), now i think i solid the antenna wire wrong position, that why the signal dont get strong, i connect the wiring of the new antenna to J22, it's it correct ?




Share this post


Link to post
Share on other sites

,,show me the 14dBi and 12dBi mimo antenna on PCB ,if you can...!!!


Share this post


Link to post
Share on other sites
4 hours ago, Admin said:

,,show me the 14dBi and 12dBi mimo antenna on PCB ,if you can...!!!


Sure Bro. I followed your topic

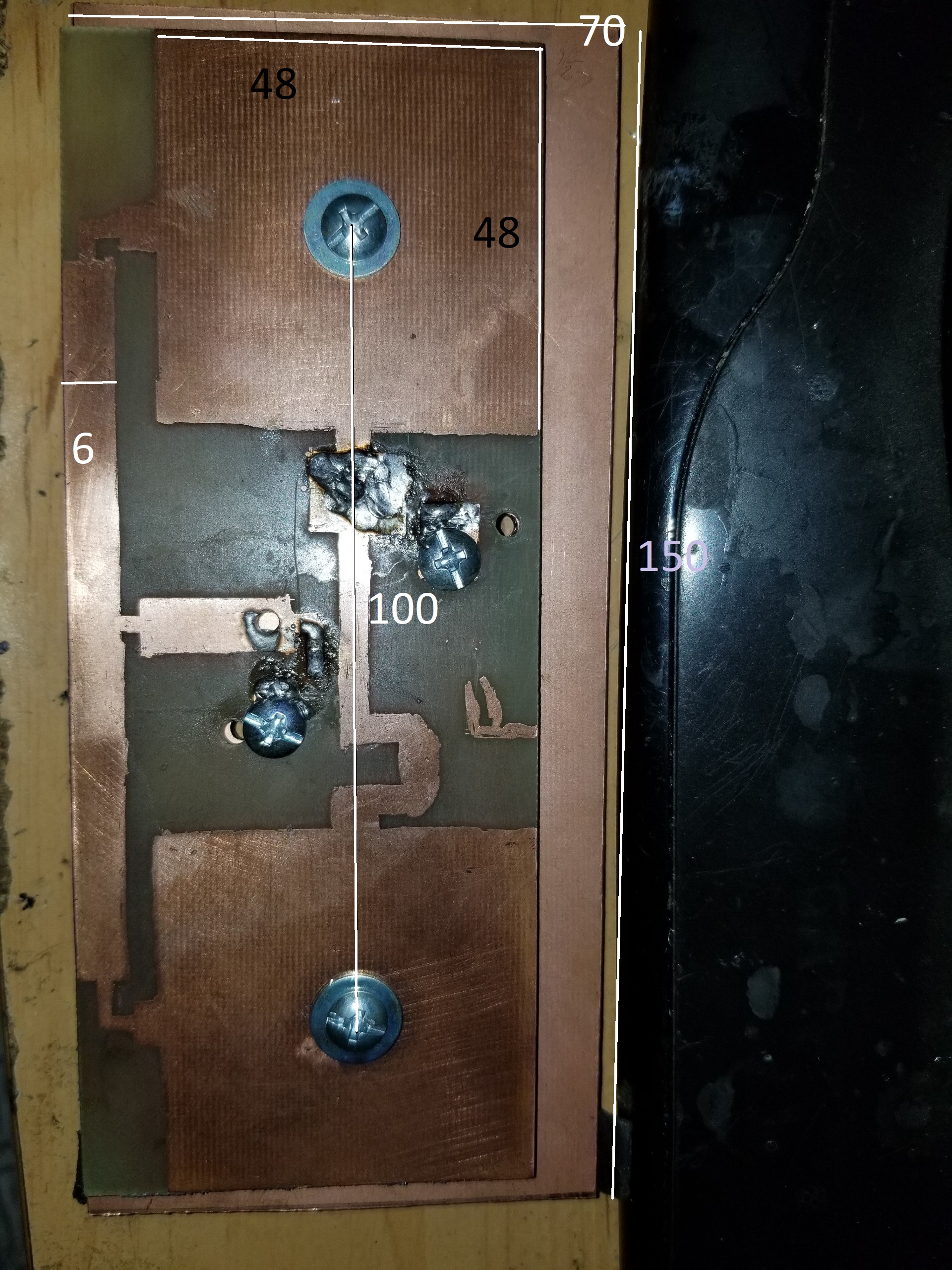

Can you help me simulator the antenna i attached, i copied the antenna of Totolink CP300, which said 11 db



Share this post


Link to post
Share on other sites

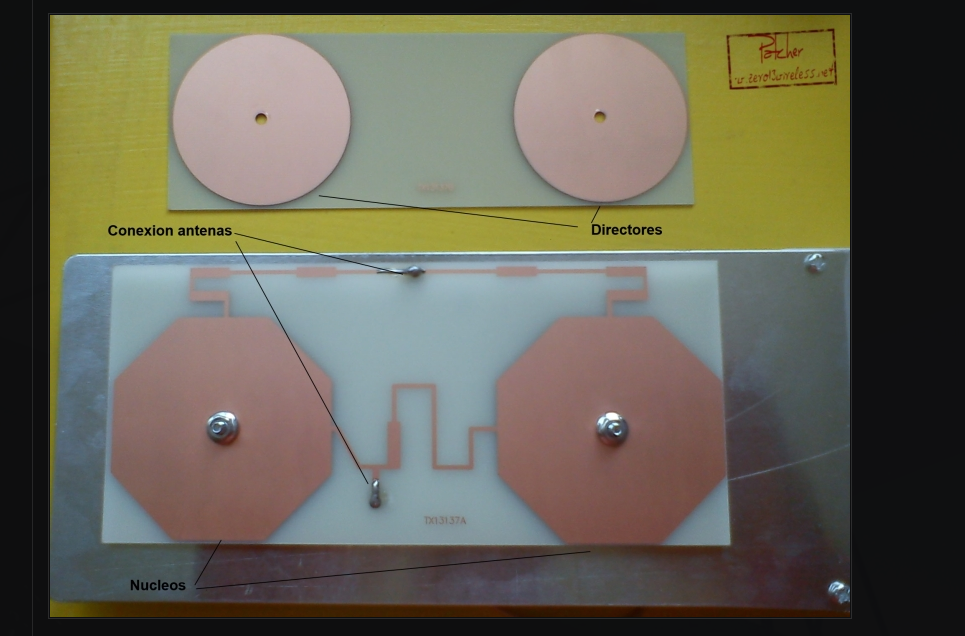

,,,you can make this MiMo antenna on PCB ... ???


2 people like this

Share this post


Link to post
Share on other sites
1 minute ago, Admin said:

,,,you can make this MiMo antenna on PCB ... ???


i can make this antenna, but i think the smaller version will be suilt in my case, i just need to communicate 1 Km,  Do you have the detail of below Antennas ?



Share this post


Link to post
Share on other sites
On 4/20/2020 at 9:19 PM, Admin said:


can I add "director" in front of the driven element? if yes, what dimension it should be? thanks

1 person likes this

Share this post


Link to post
Share on other sites

the driven element=0,5x47x47mm(or o,5x44x44mm)  h=5mm

1 person likes this

Share this post


Link to post
Share on other sites
On 4/20/2020 at 4:38 PM, Eric_Truong said:

saya dapat membuat antena ini, tetapi saya pikir versi yang lebih kecil akan cocok dalam kasus saya, saya hanya perlu berkomunikasi 1 Km, Apakah Anda memiliki detail Antena di bawah ini?



Antena ini dimensinya bro?

i can make this antenna but i think a smaller version will fit in my case i just need to communicate 1 Km, Do you have Antenna details below?



Share this post


Link to post
Share on other sites

,,,says in English bro...!!!

1 person likes this
