2 by 2 19 dbi...?

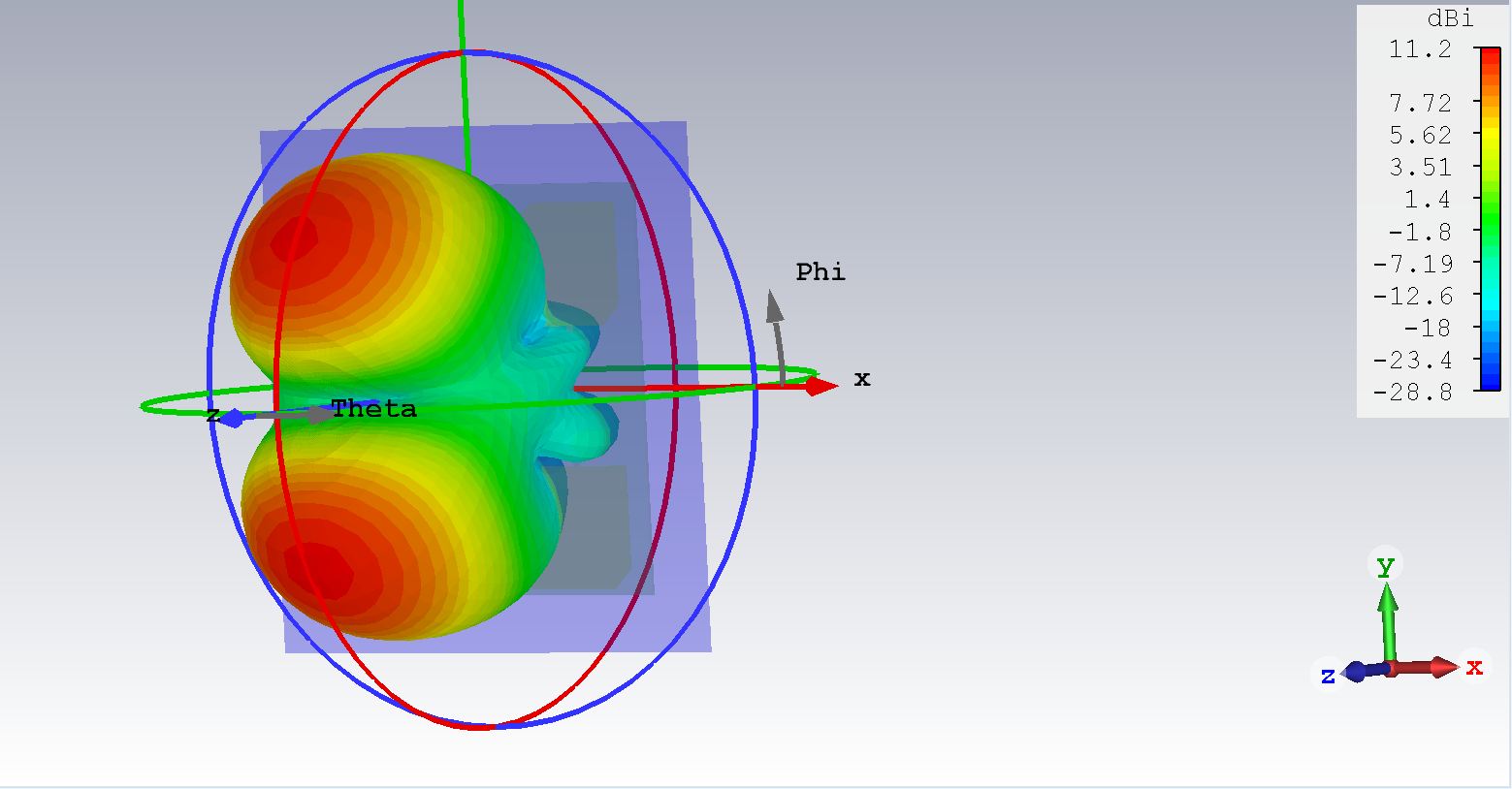

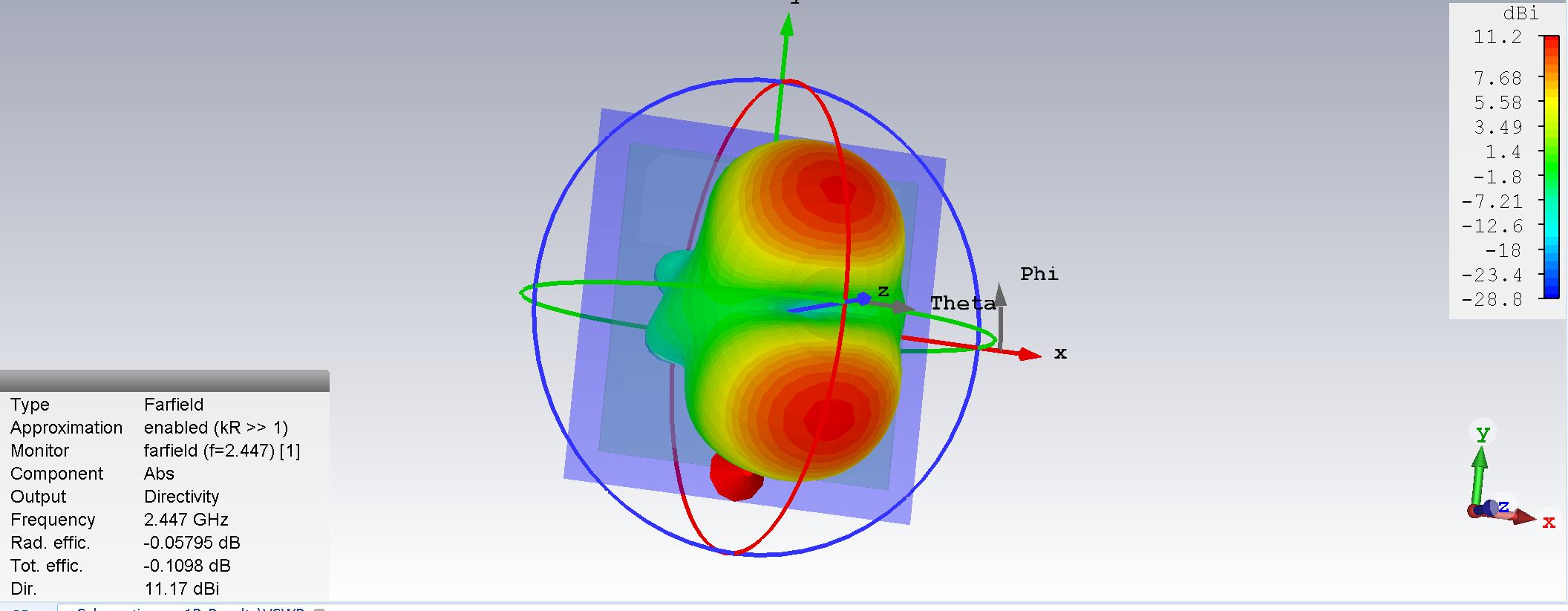

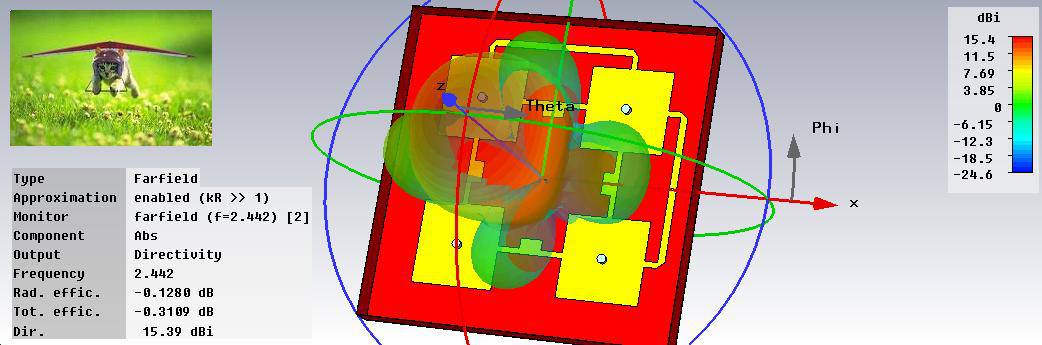

Yes, I know this antenna, but why it has two main lobes of radiation...???!!!

,,, and I do not think it has such a big gain in directivity(with only 4patches)...!!!

1 person likes this

Share this post


Link to post
Share on other sites

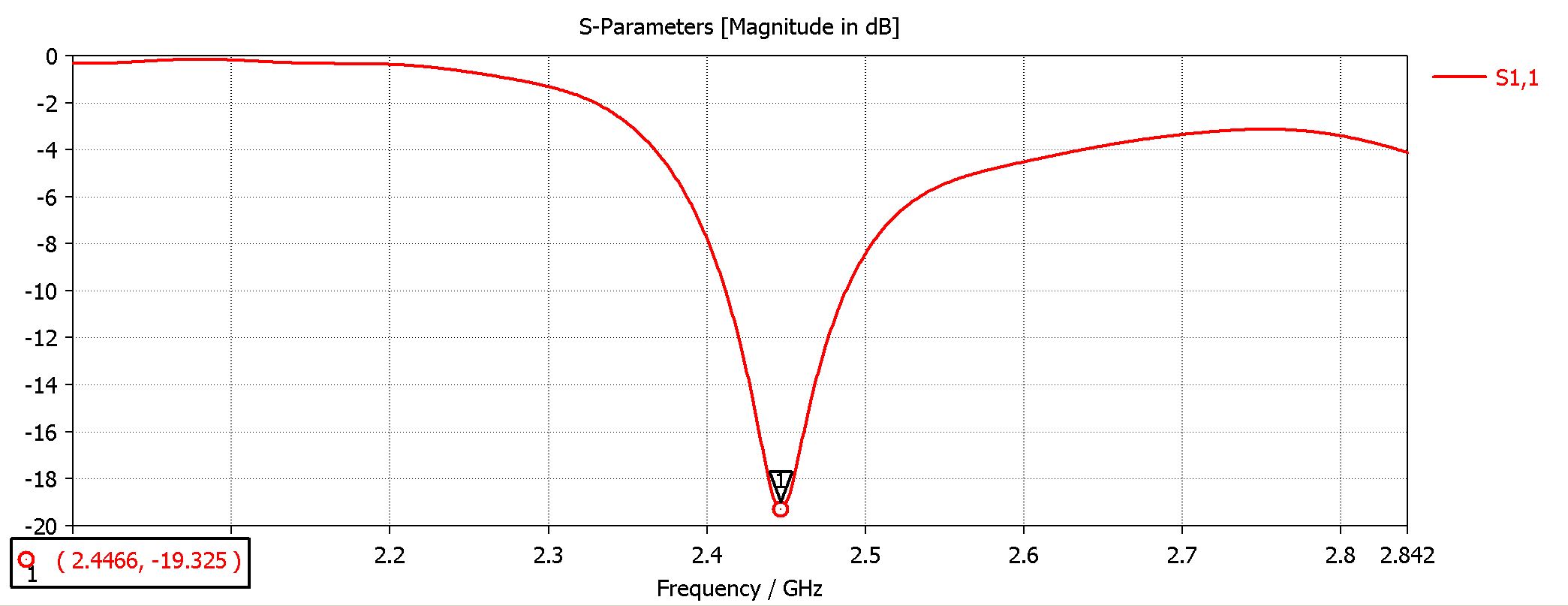

it looks like BULLSHIT...to me...not getting more than 10 dbis right now

Share this post


Link to post
Share on other sites

Clanon, can you give me these dimensions?




Share this post


Link to post
Share on other sites

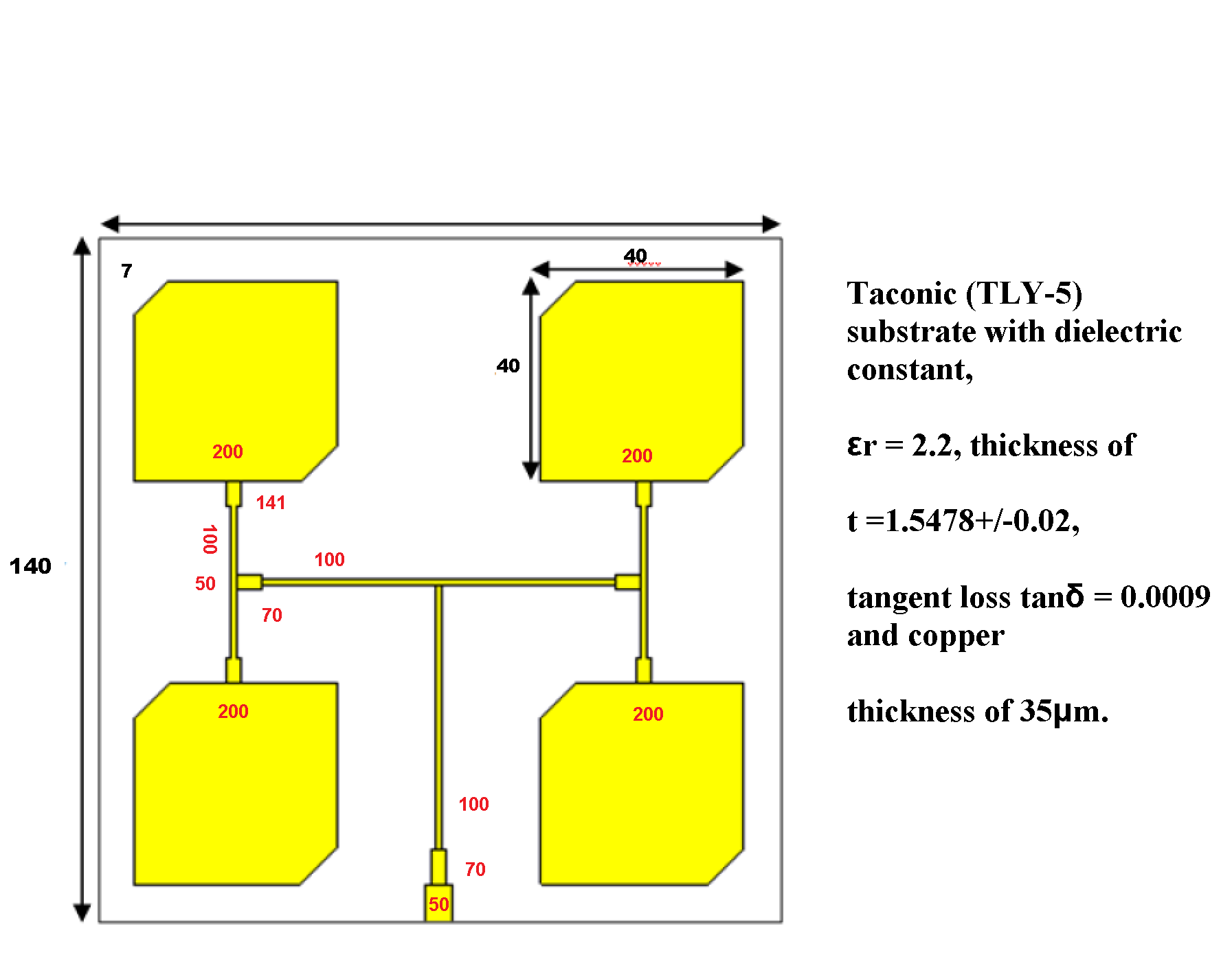

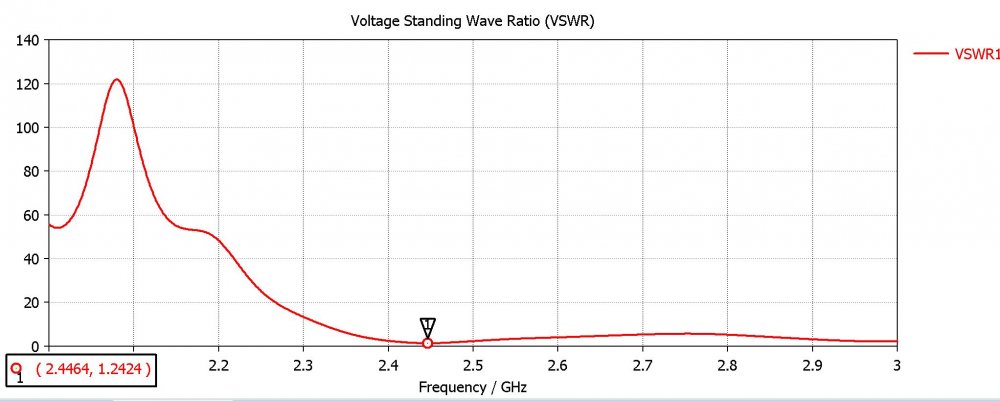

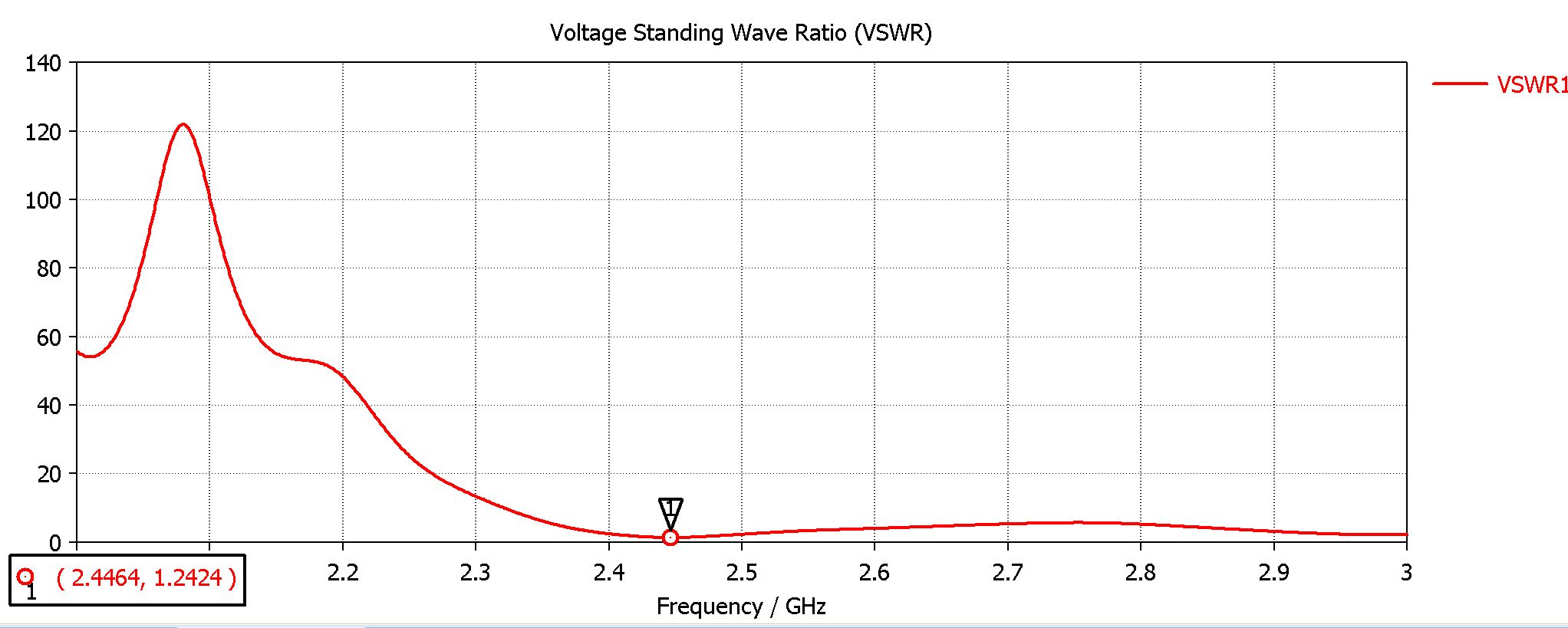

my "GUESS"...:




BUT MAYBE I GOT WRONG THE Z ADAPTATIONS

Edited by clanon

Share this post


Link to post
Share on other sites

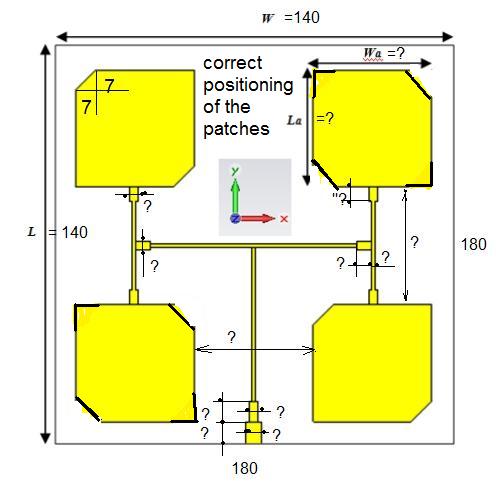

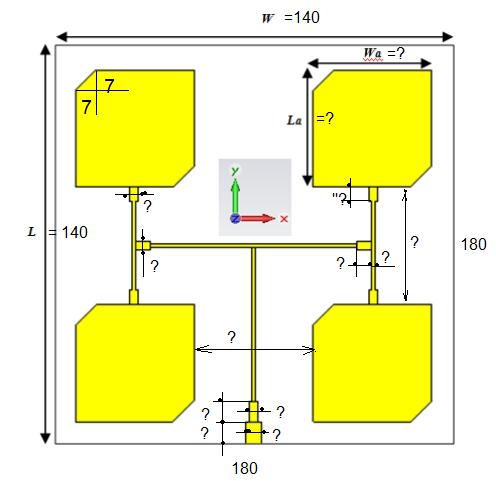

"I do not understand anything, put the quotas on my drawing above....!!!

,, and the * cst file, I cannot download it..!!!

Share this post


Link to post
Share on other sites
4 minutes ago, Eric said:

this one..

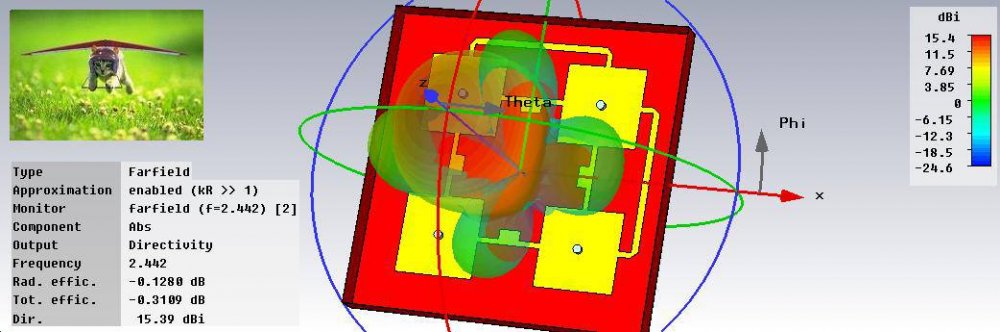

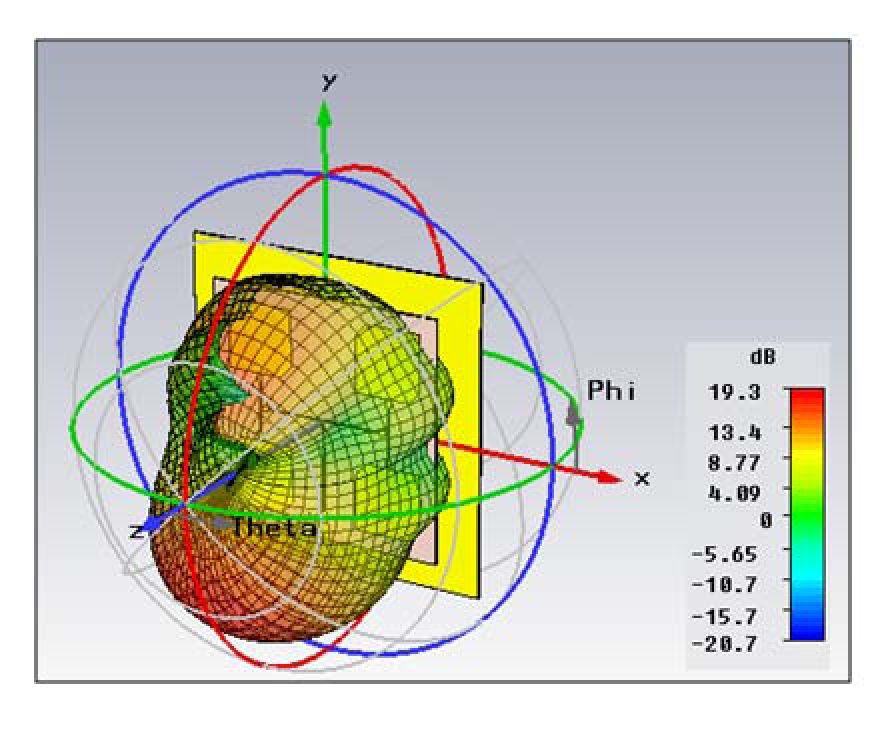

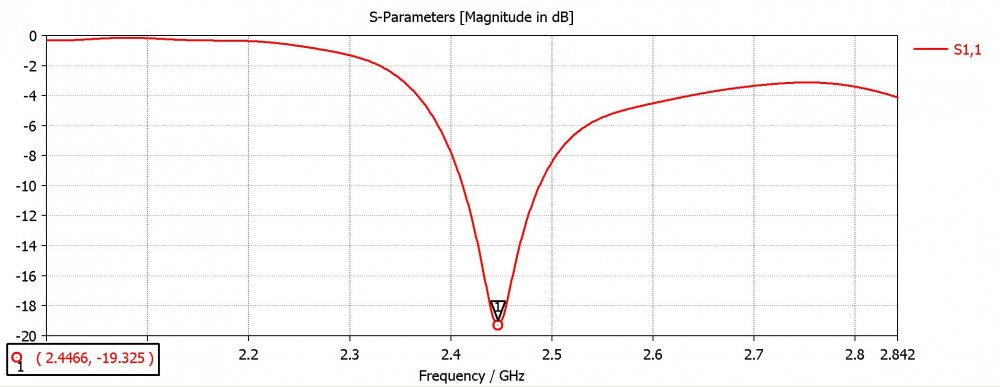

 yup , never see more than 15 or 16 dbis on 4 patchs on AIR and BOX ...Thiss is on a dielectric and flat , maybe i'm missing something...it's even PUBLISHED on IEEE...https://ieeexplore.ieee.org/document/7219647/
